Thermostat/Housing & Related Parts (Solihull Plant Build) (2.0L I4 Mid Dohc Aj200 Petrol, 2.0L I4...

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] - Thermostat/Housing & Related Parts (Solihull Plant Build) (2.0L I4 Mid DOHC AJ200 Petrol, 2.0L I4...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR082795 BOLT - HEX.HEAD $3.19 To Order
Photo Part No Description Price (each) Stock
LR123819 O-RING $3.19 To Order
Photo Part No Description Price (each) Stock
LR123822 O-RING $4.43 To Order
Photo Part No Description Price (each) Stock
LR073689 SCREW $2.27 To Order
LR073689 SCREW $2.27 To Order
Photo Part No Description Price (each) Stock
LR071774 SCREW $2.23 To Order
Photo Part No Description Price (each) Stock
LR073648 SCREW $2.55 IN STOCK
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.54 IN STOCK
Photo Part No Description Price (each) Stock
LR133081 STUD $2.42 To Order
Photo Part No Description Price (each) Stock
LR105592 SEAL - THERMOSTAT $8.28 IN STOCK
Photo Part No Description Price (each) Stock
LR093328 thermostat and housing $135.05 To Order
LR106640 THERMOSTAT AND HOUSING $136.01 To Order
LR106640 THERMOSTAT AND HOUSING $136.01 To Order
Photo Part No Description Price (each) Stock
LR171244 TUBE - WATER OUTLET $47.02 To Order
LR122821 TUBE - WATER OUTLET $46.64 To Order
Photo Part No Description Price (each) Stock
LR092977 HOSE - RADIATOR $48.65 To Order
LR111133 TUBE - BY-PASS $54.11 To Order
Photo Part No Description Price (each) Stock
LR092094 HOSE - WATER INLET $68.64 To Order
LR110295 HOSE - WATER INLET $69.88 To Order
Photo Part No Description Price (each) Stock
LR092113 TUBE - BY-PASS $49.97 To Order
LR108956 HOSE $53.70 To Order
Photo Part No Description Price (each) Stock
LR093671 TUBE - OUTLET $50.39 To Order
Photo Part No Description Price (each) Stock
LR181890 TUBE - CONNECTING $31.38 To Order
Photo Part No Description Price (each) Stock
LR093489 SEPARATOR - COOLANT DEGAS $89.83 To Order
Photo Part No Description Price (each) Stock
LR105595 SENSOR - ENGINE COOLANT TEMPERATURE $34.73 To Order
Photo Part No Description Price (each) Stock
LR105610 RETAINER - SENSOR CLIP $4.50 To Order
Photo Part No Description Price (each) Stock
LR093670 TUBE - BY-PASS $32.56 To Order
Photo Part No Description Price (each) Stock
LR092095 HOSE - WATER BY-PASS $42.03 To Order
Photo Part No Description Price (each) Stock
LR093484 HOSE - BYPASS VALVE $58.27 To Order
Photo Part No Description Price (each) Stock
LR093483 HOSE - AIR $40.68 To Order
LR115232 HOSE - BY-PASS $41.68 To Order
View All

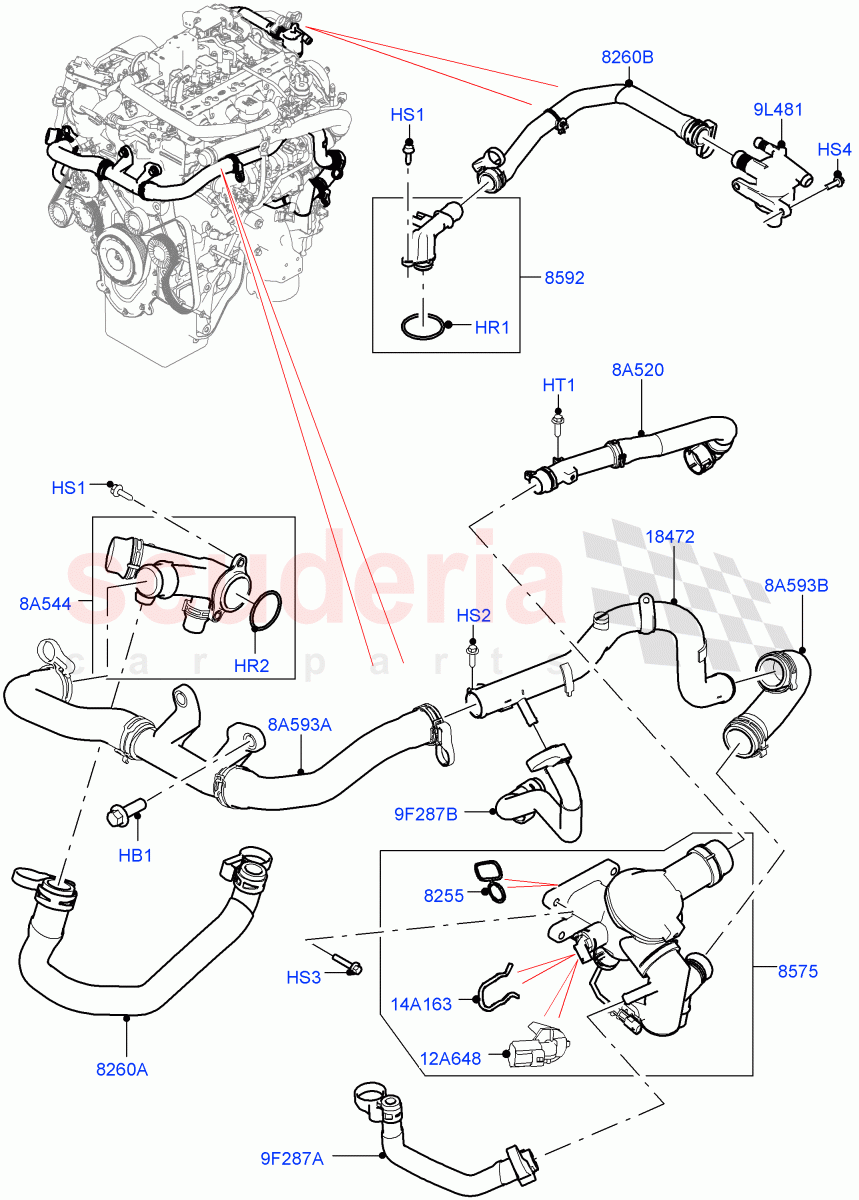

Thermostat/Housing & Related Parts (Solihull Plant Build) (2.0L I4 Mid DOHC AJ200 Petrol, 2.0L I4 High DOHC AJ200 Petrol, 2.0L AJ200P Hi PHEV) ((V) FROMHA000001, (V) TOLA999999) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR082795
BOLT - HEX.HEAD
Hexagonal Head, M12 X 35MM, To Heater Hoses 		$3.19 2
HR1 LR123819
O-RING
Between Cylinder Head And Coolant Inlet Pipe 		$3.19 1
HR2 LR123822
O-RING
EGR Cooler 		$4.43 1
HS1 LR073689
SCREW
Hexagonal Head, M6 X 20MM, Outlet pipe 		$2.27 1
HS1 LR073689
SCREW
Hexagonal Head, M6 X 20MM 		$2.27 2
HS2 LR071774
SCREW
Hexagonal Head, M6 X 20MM 		$2.23 3
HS3 LR073648
SCREW
Hexagonal Head, M6 x 30MM, Thermostat To Engine
IN STOCK 		$2.55 4
HS4 LR073655
SCREW
Hexagonal Head, M6 X 20MM, Separator
IN STOCK 		$1.54 2
HT1 LR133081
STUD
M6 X 26MM 		$2.42 2
8A520 LR093671
TUBE - OUTLET
Outlet 		$50.39 1
8A544 LR181890
TUBE - CONNECTING
EGR Cooler 		$31.38 1
8A593A LR093670
TUBE - BY-PASS 		$32.56 1
8A593B LR092095
HOSE - WATER BY-PASS 		$42.03 1
9F287A LR093484
HOSE - BYPASS VALVE 		$58.27 1
9F287B LR093483
HOSE - AIR
For Engine Serial Number Earlier Than ESN 180117Y0140PT204 		$40.68 1
9F287B LR115232
HOSE - BY-PASS
For Engine Serial Number Later Than ESN 180117Y0140PT204 		$41.68 1
9L481 LR093489
SEPARATOR - COOLANT DEGAS 		$89.83 1
12A648 LR105595
SENSOR - ENGINE COOLANT TEMPERATURE 		$34.73 1
14A163 LR105610
RETAINER - SENSOR CLIP 		$4.50 1
8255 LR105592
SEAL - THERMOSTAT
Thermostat And Housing Assy
IN STOCK 		$8.28 1
8260A LR092094
HOSE - WATER INLET
To: KA779965 		$68.64 1
8260A LR110295
HOSE - WATER INLET
From: KA779966 		$69.88 1
8260B LR092113
TUBE - BY-PASS
Tube Water By-Pass / To: JA700445 		$49.97 1
8260B LR108956
HOSE
Tube Water By-Pass / From: JA700446 		$53.70 1
8575 LR093328
thermostat and housing
To: JA711408 		$135.05 1
8575 LR106640
THERMOSTAT AND HOUSING
From: JA711409 / To: LA272213 		$136.01 1
8575 LR106640
THERMOSTAT AND HOUSING
From: LA272214 		$136.01 1
8592 LR171244
TUBE - WATER OUTLET
To: KA792429 		$47.02 1
8592 LR122821
TUBE - WATER OUTLET
From: KA792430 / To: MA327607 		$46.64 1
18472 LR092977
HOSE - RADIATOR
To: JA711408 		$48.65 1
18472 LR111133
TUBE - BY-PASS
From: JA711409 		$54.11 1
