Switches (Facia And Console) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] - Switches (Facia And Console) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR032125 NUT $1.35 To Order
Photo Part No Description Price (each) Stock
FYP500110 SCREW - SELF-TAPPING $1.38 To Order
Photo Part No Description Price (each) Stock
YYP500120 SCREW $0.11 To Order
FYP500410 SCREW $0.96 To Order
Photo Part No Description Price (each) Stock
LR010876 SWITCH - LIGHTING $164.69 To Order
Photo Part No Description Price (each) Stock
LR010879 Switch - Lighting $106.55 To Order
Photo Part No Description Price (each) Stock
YWL500050PVJ SWITCH $57.01 To Order
Photo Part No Description Price (each) Stock
YUF500120PVJ SWITCH $22.49 To Order
Photo Part No Description Price (each) Stock
YUC500030PVJ SWITCH $28.43 To Order
Photo Part No Description Price (each) Stock
LR015366 SWITCH $472.52 To Order
LR020368 SWITCH $276.82 To Order
LR030335 SWITCH - PARKING BRAKE $76.26 To Order
Photo Part No Description Price (each) Stock
LR014325 PANEL - CONTROL $243.40 To Order
LR020188 PANEL - CONTROL $368.48 To Order
LR030735 CONTROL - AUDIO/VISUAL UNIT $240.74 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR014015 SWITCH - SOLENOID CONTROL $96.45 To Order
LR014255 SWITCH - SOLENOID CONTROL $35.97 To Order
Photo Part No Description Price (each) Stock
LR030332 SWITCH - CONTROL $494.17 To Order
LR030333 SWITCH - CONTROL $574.76 To Order
LR044982 SWITCH - CONTROL $475.94 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR015363 SWITCH - CONTROL $478.56 To Order
LR015364 SWITCH - CONTROL $446.10 To Order
LR020067 SWITCH - CONTROL $603.17 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR029901 SWITCH - HILL DESCENT CONTROL $253.41 To Order
LR029902 SWITCH - HILL DESCENT CONTROL $253.41 To Order
View All

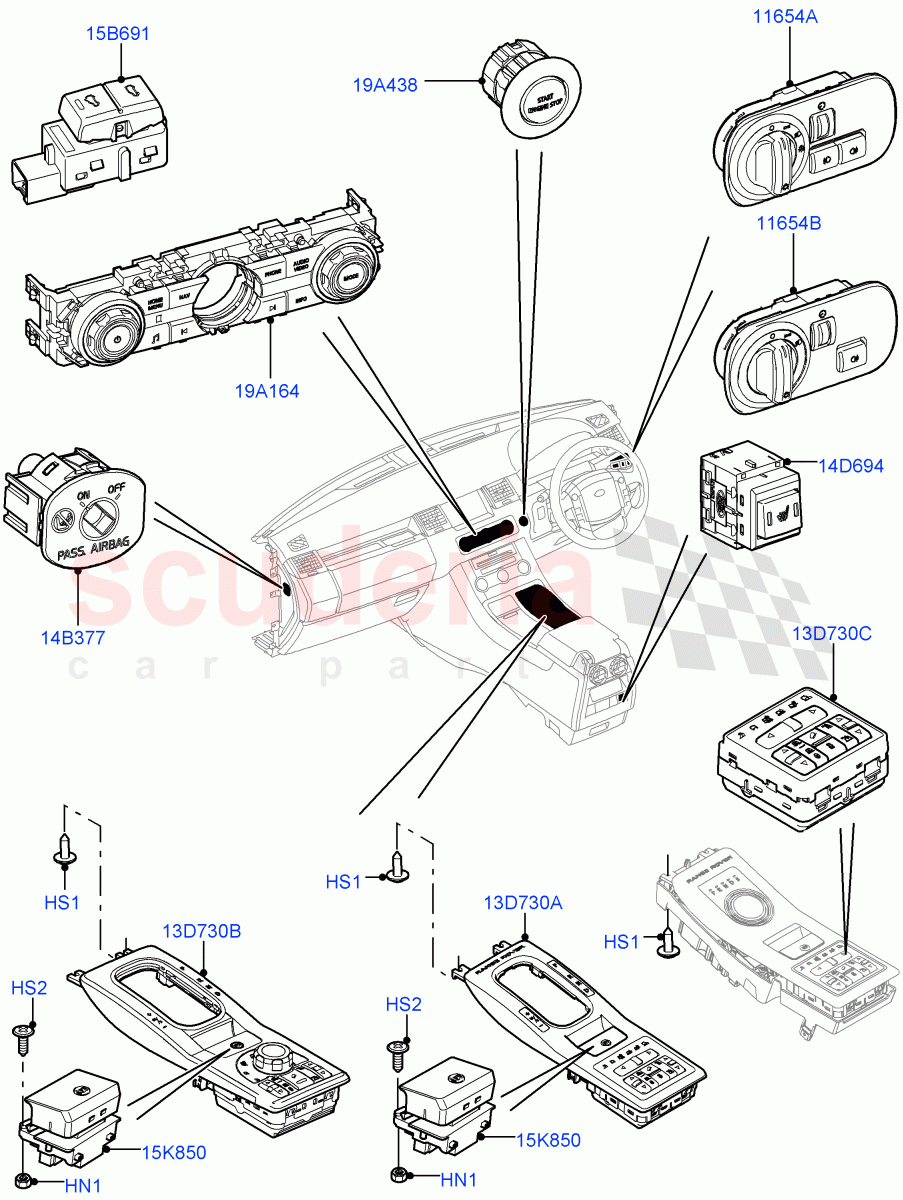

Switches (Facia And Console) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 LR032125
NUT
Switch - Parking Brake / From: AA000001 		$1.35 2
HS1 FYP500110
SCREW - SELF-TAPPING
4.2 x 13MM, Self Tapping / From: AA000001 		$1.38 3
HS2 YYP500120
SCREW
M3 x 14MM, Switch - Parking Brake / From: CA000001 		$0.11 2
HS2 FYP500410
SCREW
M3 x 14MM, Switch - Parking Brake / From: AA000001 / To: BA999999 		$0.96 2
13D730A LR030332
SWITCH - CONTROL
6 Speed Auto Transmission ZF 6HP28, Less Adaptive Damping / From: CA000001 / To: DA787056 		$494.17 1
13D730A LR030333
SWITCH - CONTROL
6 Speed Auto Transmission ZF 6HP28, With Continuous Variable Damping / From: CA000001 / To: DA787056 		$574.76 1
13D730A LR044982
SWITCH - CONTROL
6 Speed Auto Transmission ZF 6HP28, Less Adaptive Damping / From: DA787057 		$475.94 1
13D730A LR044983
SWITCH - CONTROL
6 Speed Auto Transmission ZF 6HP28, With Continuous Variable Damping / From: DA787057 		$474.60 1
13D730B LR015363
SWITCH - CONTROL
Less Adaptive Damping / 5 Position, Terrain Response / From: AA000001 / To: AA227363 		$478.56 1
13D730B LR015364
SWITCH - CONTROL
With Continuous Variable Damping / 6 Position, Terrain Response / From: AA000001 / To: AA227363 		$446.10 1
13D730B LR020067
SWITCH - CONTROL
Less Adaptive Damping / 5 Position, Terrain Response / From: AA227364 / To: AA245590 		$603.17 1
13D730B LR020066
SWITCH - CONTROL
With Continuous Variable Damping / 6 Position, Terrain Response / From: AA227364 / To: AA245590 		$485.73 1
13D730B LR023304
SWITCH - CONTROL
Less Adaptive Damping / 5 Position, Terrain Response / From: AA245591 / To: BA295831 		$478.88 1
13D730B LR023305
SWITCH - CONTROL
With Continuous Variable Damping / 6 Position, Terrain Response / From: AA245591 / To: BA295831 		$507.89 1
13D730B LR045150
SWITCH - CONTROL
Less Adaptive Damping / 5 Position, Terrain Response / From: BA295832 / To: BA999999 		$423.54 1
13D730B LR045151
SWITCH - CONTROL
With Continuous Variable Damping / 6 Position, Terrain Response / From: BA295832 / To: BA999999 		$428.33 1
13D730C LR029901
SWITCH - HILL DESCENT CONTROL
8 Speed Auto Trans ZF 8HP70 4WD, Less Adaptive Damping / From: CA000001 		$253.41 1
13D730C LR029902
SWITCH - HILL DESCENT CONTROL
8 Speed Auto Trans ZF 8HP70 4WD, With Continuous Variable Damping / From: CA000001 		$253.41 1
14B377 YWL500050PVJ
SWITCH
With Passenger Air Bag Deactivation / From: AA000001 		$57.01 1
14D694 YUF500120PVJ
SWITCH
With Heated Seats - Front/Rear / From: AA000001 		$22.49 2
15B691 YUC500030PVJ
SWITCH
Power Tilt/Slide Sun Roof / From: AA000001 		$28.43 1
15K850 LR015366
SWITCH
Parking Brake / From: AA000001 / To: AA333332 		$472.52 1
15K850 LR020368
SWITCH
Parking Brake / From: AA333333 / To: BA999999 		$276.82 1
15K850 LR030335
SWITCH - PARKING BRAKE
Parking Brake / From: CA000001 		$76.26 1
19A164 LR014325
PANEL - CONTROL
From: AA000001 / To: AA221361 		$243.40 1
19A164 LR020188
PANEL - CONTROL
From: AA221362 / To: BA999999 		$368.48 1
19A164 LR030735
CONTROL - AUDIO/VISUAL UNIT
MFD Dual View Screen / From: CA000001 		$240.74 1
19A164 LR029583
PANEL - RADIO CONTROL
HLDF Screen / From: CA000001 		$260.06 1
19A438 LR014015
SWITCH - SOLENOID CONTROL
With Keyless Start / From: AA000001 		$96.45 1
19A438 LR014255
SWITCH - SOLENOID CONTROL
Keyless Start - Japanese Script / From: AA000001 		$35.97 1
11654A LR010876
SWITCH - LIGHTING
With Auto Headlamps / From: AA000001 		$164.69 1
11654B LR010879
Switch - Lighting
Less Auto Headlamps / From: AA000001 		$106.55 1
