Alternator And Mountings (3.0L 24V Dohc V6 Tc Diesel) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] - Alternator And Mountings (3.0L 24V DOHC V6 TC Diesel) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FB110156 BOLT - HEX.HEAD $2.58 IN STOCK
Photo Part No Description Price (each) Stock
RYG500290 BOLT - HEX.HEAD $0.50 IN STOCK
Photo Part No Description Price (each) Stock
LR013847 ALTERNATOR $1,305.65 To Order
LR065866 ALTERNATOR $1,195.64 To Order
LR140622 ALTERNATOR $734.35 To Order
Photo Part No Description Price (each) Stock
LR018304 BRACKET $76.52 To Order
LR017917 BRACKET $277.25 To Order
LR035510 BRACKET - ALTERNATOR $102.30 To Order
...and 1 more part variants. See table on right for more details.
View All

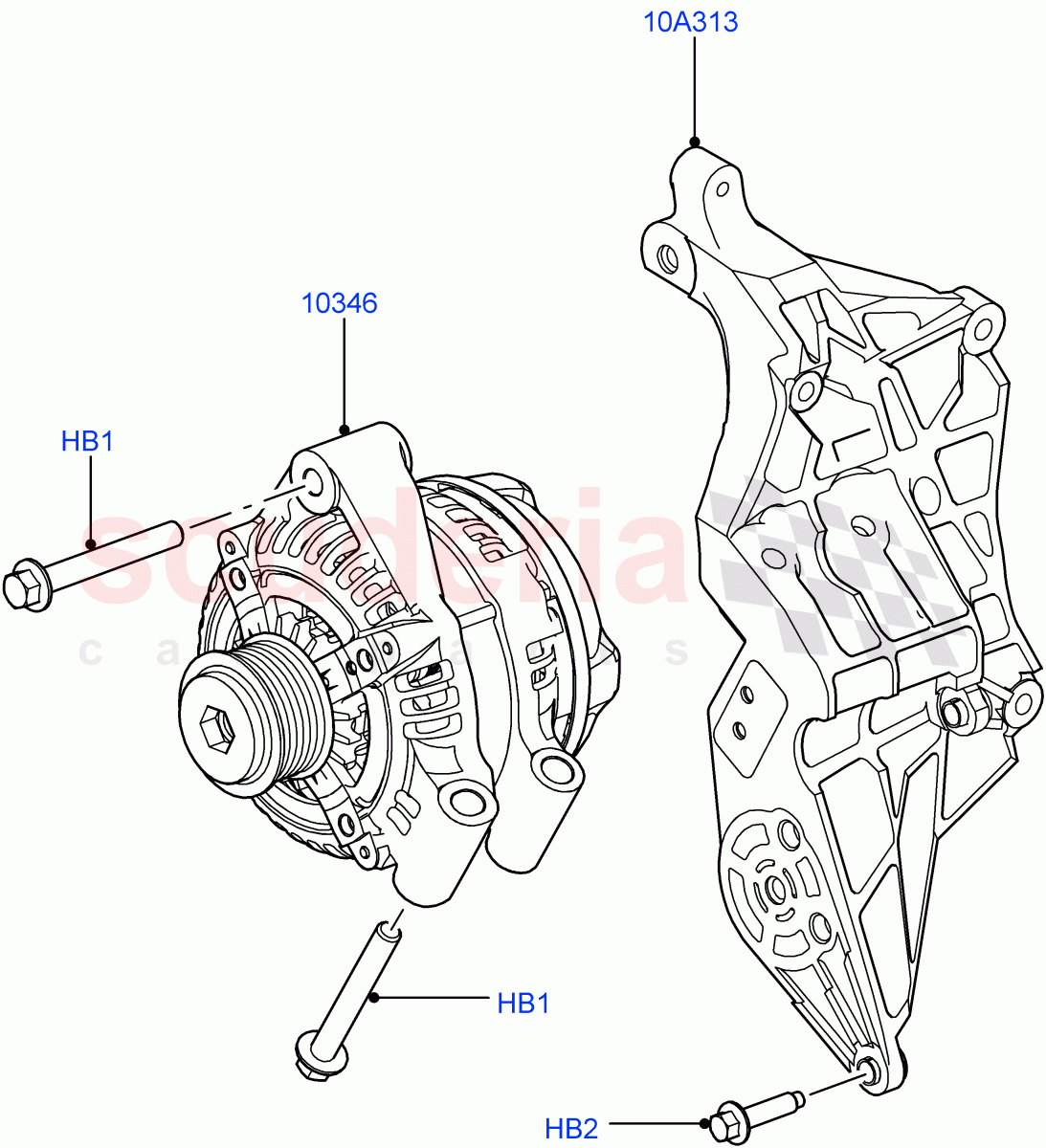

Alternator And Mountings (3.0L 24V DOHC V6 TC Diesel) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FB110156
BOLT - HEX.HEAD
Hexagonal Head, M10 x 75MM / From: AA000001
IN STOCK 		$2.58 3
HB2 RYG500290
BOLT - HEX.HEAD
Bracket, Hexagonal Head, M8 x 30MM / From: AA000001
IN STOCK 		$0.50 7
10A313 LR018304
BRACKET
Less ACE Suspension, Less Roll Stability Control / From: AA000001 / To: CA999999 		$76.52 1
10A313 LR017917
BRACKET
With ACE Suspension, With Roll Stability Control / From: AA000001 		$277.25 1
10A313 LR035510
BRACKET - ALTERNATOR
Less ACE Suspension, Less Roll Stability Control / From: DA000001 / To: DA795732 		$102.30 1
10A313 LR065741
BRACKET - ALTERNATOR
3.0L 24V DOHC V6 TC Diesel, Less ACE Suspension / From: DA795733 		$202.02 1
10346 LR013847
ALTERNATOR
New Part-Please Check For Reman Version / From: AA000001 / To: CA720989 		$1,305.65 1
10346 LR065866
ALTERNATOR
New Part-Please Check For Reman Version / From: CA720990 		$1,195.64 1
10346 LR140622
ALTERNATOR
Remanufactured Part / From: AA000001 		$734.35 1
