Family Entertainment System (Luggage Compartment) ((V) FROMAA000001, (V) TOBA999999) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] - Family Entertainment System (Luggage Compartment) ((V) FROMAA000001, (V) TOBA999999)

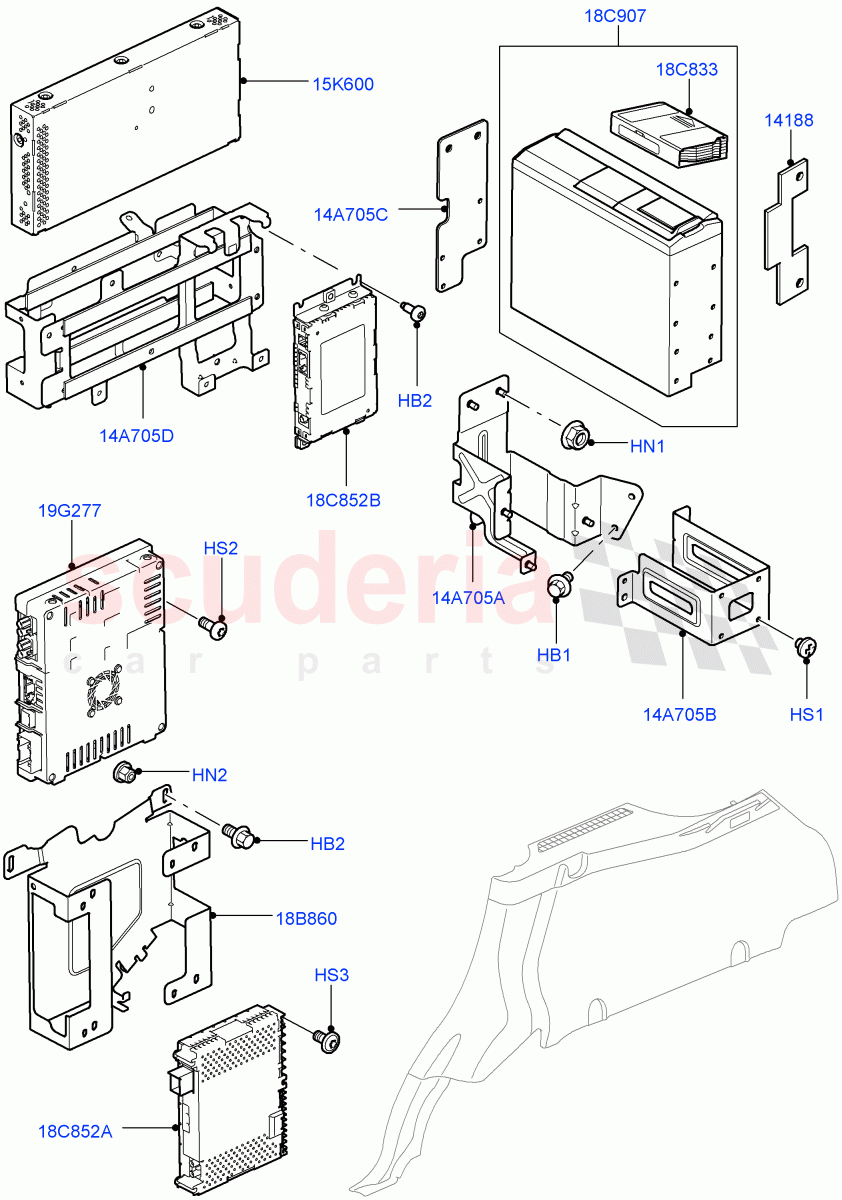

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS106127	Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	XYG500160	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106047	Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KTQ100020	NUT - PLASTIC - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CDU1889	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	XYP500070	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BYP100210	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038074	PROTECTOR - DVD PLAYER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017366	CONTROL - HEADPHONE VOLUME	Enquire	To Order
	LR020145	CONTROL - HEADPHONE VOLUME	Enquire	To Order
	LR023678	CONTROL - HEADPHONE VOLUME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015369	BRACKET	Enquire	To Order
	LR023354	BRACKET	Enquire	To Order
	LR029167	BRACKET	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	XQZ000050	MAGAZINE - CD AUTOCHANGER	Enquire	To Order
	LR020208	MAGAZINE - CD AUTOCHANGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	XQE500600	DVD PLAYER	Enquire	To Order
	XQE500590	DVD PLAYER	Enquire	To Order
	XQE500610	DVD PLAYER	Enquire	To Order

...and 18 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR010997	TUNER - TELEVISION	Enquire	To Order
	LR023070	TUNER - TELEVISION	Enquire	To Order
	LR024779	TUNER - TELEVISION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	XQU500080	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018676	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018675	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018553	BRACKET - RADIO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008322	RECEIVER - RADIO	Enquire	To Order
	LR071711	RECEIVER - RADIO	Enquire	To Order
	LR061021	RECEIVER - RADIO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008264	RECEIVER - RADIO	Enquire	To Order
	LR019261	RECEIVER - RADIO	Enquire	To Order
	LR023922	RECEIVER - RADIO	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FS106127	Bolt	FS106127 Bolt M6 x 12MM / From: AA000001	-	1	Enquire
HB2	XYG500160	BOLT	XYG500160 BOLT M6 x 12MM, Torx / From: AA000001	-	4	Enquire
HN1	FN106047	Nut	FN106047 Nut M6 / From: AA000001	-	-	Enquire
HN2	KTQ100020	NUT - PLASTIC - SPECIAL	KTQ100020 NUT - PLASTIC - SPECIAL M6, Plastic / From: AA000001	-	1	Enquire
HS1	CDU1889	Screw	CDU1889 Screw M4 / From: AA000001	-	-	Enquire
HS2	XYP500070	SCREW	XYP500070 SCREW M6 X 14MM, Torx / From: AA000001	-	-	Enquire
HS3	BYP100210	SCREW	BYP100210 SCREW M5 X 10MM, Torx / From: AA000001	-	-	Enquire
14A705A	XQU500080	BRACKET	XQU500080 BRACKET DVD Player, Inner / From: AA000001	-	1	Enquire
14A705B	LR018676	BRACKET	LR018676 BRACKET DVD Player, Outer / From: AA000001	-	1	Enquire
14A705C	LR018675	BRACKET	LR018675 BRACKET From: AA000001	-	1	Enquire
14A705D	LR018553	BRACKET - RADIO	LR018553 BRACKET - RADIO From: AA000001	-	1	Enquire
15K600	LR017366	CONTROL - HEADPHONE VOLUME	LR017366 CONTROL - HEADPHONE VOLUME With Provision For DVD Screen / From: AA000001 / To: AA232720	-	1	Enquire
15K600	LR020145	CONTROL - HEADPHONE VOLUME	LR020145 CONTROL - HEADPHONE VOLUME With Provision For DVD Screen / From: AA232721 / To: AA262641	-	1	Enquire
15K600	LR023678	CONTROL - HEADPHONE VOLUME	LR023678 CONTROL - HEADPHONE VOLUME With Provision For DVD Screen / From: BA262642	-	1	Enquire
18B860	LR015369	BRACKET	LR015369 BRACKET (-)"J" / From: AA000001 / To: AA262641	-	1	Enquire
18B860	LR023354	BRACKET	LR023354 BRACKET From: BA262642 / To: BA284476	-	1	Enquire
18B860	LR029167	BRACKET	LR029167 BRACKET From: BA284477 / To: BA999999	-	1	Enquire
18B860	LR079005	BRACKET - TV TUNER	LR079005 BRACKET - TV TUNER From: CA000001	-	1	Enquire
18C833	XQZ000050	MAGAZINE - CD AUTOCHANGER	XQZ000050 MAGAZINE - CD AUTOCHANGER Alpine / From: AA000001 / To: AA235471	-	1	Enquire
18C833	LR020208	MAGAZINE - CD AUTOCHANGER	LR020208 MAGAZINE - CD AUTOCHANGER Alpine / From: AA235472	-	1	Enquire
18C852A	LR008322	RECEIVER - RADIO	LR008322 RECEIVER - RADIO (-)"CDN/MEX/USA", HD Radio Broadcast / From: AA000001 / To: CA737978	-	1	Enquire
18C852A	LR071711	RECEIVER - RADIO	LR071711 RECEIVER - RADIO (+)"CDN/MEX/USA", HD And Sirius Radio Broadcast / From: AA000001	-	1	Enquire
18C852A	LR061021	RECEIVER - RADIO	LR061021 RECEIVER - RADIO (-)"CDN/MEX/USA", HD Radio Broadcast / From: CA737979	-	1	Enquire
18C852B	LR008264	RECEIVER - RADIO	LR008264 RECEIVER - RADIO HD And Sirius Radio Broadcast / From: AA000001 / To: AA262641	-	1	Enquire
18C852B	LR019261	RECEIVER - RADIO	LR019261 RECEIVER - RADIO Digital Audio Broadcast / From: AA000001	-	1	Enquire
18C852B	LR023922	RECEIVER - RADIO	LR023922 RECEIVER - RADIO Sirius Radio Broadcast / From: BA262642	-	1	Enquire
18C907	XQE500600	DVD PLAYER	XQE500600 DVD PLAYER DVD Player Region 2 (Pal) / New Part-Please Check For Reman Version / From: AA000001 / To: AA235471	-	1	Enquire
18C907	XQE500590	DVD PLAYER	XQE500590 DVD PLAYER DVD Player Region 1 / New Part-Please Check For Reman Version / From: AA000001 / To: AA235471	-	1	Enquire
18C907	XQE500610	DVD PLAYER	XQE500610 DVD PLAYER DVD Player Region 2 (Ntsc) / From: AA000001 / To: AA235471	-	1	Enquire
18C907	XQE500620	DVD PLAYER	XQE500620 DVD PLAYER DVD Region 3 / From: AA000001 / To: AA235471	-	1	Enquire
18C907	XQE500630	DVD PLAYER	XQE500630 DVD PLAYER DVD Player Region 4 / New Part-Please Check For Reman Version / From: AA000001 / To: AA235471	-	1	Enquire
18C907	XQE500650	DVD PLAYER	XQE500650 DVD PLAYER DVD Player Region 6 / New Part-Please Check For Reman Version / From: AA000001 / To: AA235471	-	1	Enquire
18C907	XQE500640	DVD PLAYER	XQE500640 DVD PLAYER DVD Region 5 / New Part-Please Check For Reman Version / From: AA000001 / To: AA235471	-	1	Enquire
18C907	LR020194	DVD PLAYER	LR020194 DVD PLAYER DVD Player Region 1 / New Part-Please Check For Reman Version / From: AA235472	-	1	Enquire
18C907	LR020195	DVD PLAYER	LR020195 DVD PLAYER DVD Player Region 2 (Pal) / New Part-Please Check For Reman Version / From: AA235472	-	1	Enquire
18C907	LR020196	DVD PLAYER	LR020196 DVD PLAYER DVD Player Region 2 (Ntsc) / From: AA235472	-	1	Enquire
18C907	LR020197	DVD PLAYER	LR020197 DVD PLAYER DVD Region 3 / From: AA235472	-	1	Enquire
18C907	LR020198	DVD PLAYER	LR020198 DVD PLAYER DVD Player Region 4 / From: AA235472	-	1	Enquire
18C907	LR020199	DVD PLAYER	LR020199 DVD PLAYER DVD Region 5 / From: AA235472	-	1	Enquire
18C907	LR020200	DVD PLAYER	LR020200 DVD PLAYER DVD Player Region 6 / From: AA235472	-	1	Enquire
18C907	LR043327	DVD PLAYER	LR043327 DVD PLAYER DVD Player Region 2 (Pal) / Less Magazine, Remanufactured Part / From: AA000001 / To: AA235471	-	1	Enquire
18C907	LR043328	DVD PLAYER	LR043328 DVD PLAYER DVD Player Region 1 / Less Magazine, Remanufactured Part / From: AA000001 / To: AA235471	-	1	Enquire
18C907	LR043331	DVD PLAYER	LR043331 DVD PLAYER DVD Player Region 4 / Less Magazine, Remanufactured Part / From: AA000001 / To: AA235471	-	1	Enquire
18C907	LR043332	DVD PLAYER	LR043332 DVD PLAYER DVD Region 5 / Less Magazine, Remanufactured Part / From: AA000001 / To: AA235471	-	1	Enquire
18C907	LR043333	DVD PLAYER	LR043333 DVD PLAYER DVD Player Region 6 / Less Magazine, Remanufactured Part / From: AA000001 / To: AA235471	-	1	Enquire
18C907	LR030816	DVD PLAYER	LR030816 DVD PLAYER DVD Player Region 1 / Remanufactured Part / From: AA235472	-	1	Enquire
18C907	LR030817	DVD PLAYER	LR030817 DVD PLAYER DVD Player Region 2 (Pal) / Remanufactured Part / From: AA235472	-	1	Enquire
19G277	LR010997	TUNER - TELEVISION	LR010997 TUNER - TELEVISION TV Integrated In Navigation Screen / From: AA000001 / To: AA258697	-	1	Enquire
19G277	LR023070	TUNER - TELEVISION	LR023070 TUNER - TELEVISION (+)"J" / From: BA000001	-	1	Enquire
19G277	LR024779	TUNER - TELEVISION	LR024779 TUNER - TELEVISION TV Integrated In Navigation Screen / From: AA258698	-	1	Enquire
14188	LR038074	PROTECTOR - DVD PLAYER	LR038074 PROTECTOR - DVD PLAYER DVD Player / From: AA000001	-	1	Enquire
