Family Entertainment System (Rear Seat) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] - Family Entertainment System (Rear Seat) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
YIP500390 SCREEN - DVD Enquire To Order
LR025770 SCREEN - DVD Enquire To Order
LR046029 SCREEN - DVD Enquire To Order
Photo Part No Description Price (each) Stock
XQF500060 HEADPHONE Enquire To Order
LR028886 HEADPHONE - WIRELESS Enquire To Order
LR037701 HEADPHONE - WIRELESS Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
XVN500040 PANEL - CONSOLE Enquire To Order
XVO500020 PANEL - CONSOLE Enquire To Order
LR030642 PANEL - CONSOLE Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
VUP500060 BAG - HEADPHONES Enquire To Order
Photo Part No Description Price (each) Stock
LR028885 TRANSMITTER - WIRELESS HEADPHONES Enquire To Order
Photo Part No Description Price (each) Stock
LR032718 DOCKING STATION Enquire To Order
LR032719 DOCKING STATION Enquire To Order
LR032720 DOCKING STATION Enquire To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR021917 BATTERY ACCESSORIES Enquire To Order
LR045744 BATTERY ACCESSORIES Enquire To Order
LR048539 BATTERY ACCESSORIES Enquire To Order
Photo Part No Description Price (each) Stock
LR025897 REMOTE CONTROL - DVD Enquire To Order
LR043539 REMOTE CONTROL - DVD Enquire To Order
Photo Part No Description Price (each) Stock
YUH500060 REMOTE CONTROL - DVD Enquire To Order
Photo Part No Description Price (each) Stock
LR014103 CONTROL - HEADPHONE VOLUME Enquire To Order
View All

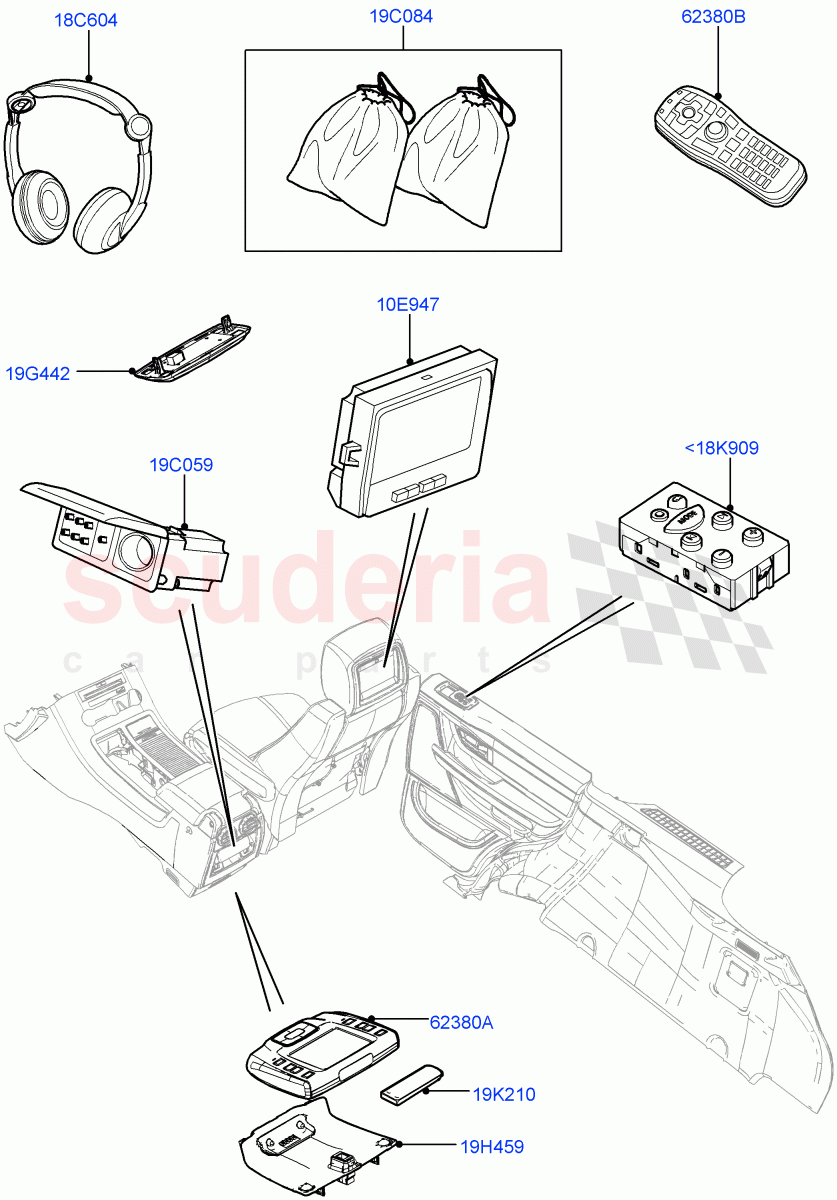

Family Entertainment System (Rear Seat) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<18K909 LR014103
CONTROL - HEADPHONE VOLUME
Headphone Sockets - Less Headphones / From: AA000001 		- 2 Enquire
10E947 YIP500390
SCREEN - DVD
6.5" / From: AA000001 / To: BA999999 		- 2 Enquire
10E947 LR025770
SCREEN - DVD
With Provision For DVD Screen / 8" / From: CA000001 / To: DA802758 		- 2 Enquire
10E947 LR046029
SCREEN - DVD
With Provision For DVD Screen / 8" / From: DA802759 		- 2 Enquire
18C604 XQF500060
HEADPHONE
With Provision For DVD Screen / From: AA000001 / To: BA999999 		- 1 Enquire
18C604 LR028886
HEADPHONE - WIRELESS
With Provision For DVD Screen, With Wireless Headphones / From: CA000001 / To: CA733205 		- 1 Enquire
18C604 LR037701
HEADPHONE - WIRELESS
With Provision For DVD Screen, With Wireless Headphones / From: CA733206 / To: DA785013 		- 1 Enquire
18C604 LR044425
HEADPHONE - WIRELESS
With Provision For DVD Screen, With Wireless Headphones / From: DA785014 / To: DA798326 		- 1 Enquire
18C604 LR038817
HEADPHONE - WIRELESS
With Provision For DVD Screen, With Wireless Headphones / From: DA798327 / To: DA810672 		- 1 Enquire
18C604 LR057983
HEADPHONE - WIRELESS
With Provision For DVD Screen, With Wireless Headphones / From: DA810673 		- 1 Enquire
19C059 XVN500040
PANEL - CONSOLE
With Provision For DVD Screen / From: AA000001 / To: BA999999 		- 1 Enquire
19C059 XVO500020
PANEL - CONSOLE
Less DVD Screen / From: AA000001 / To: BA999999 		- 1 Enquire
19C059 LR030642
PANEL - CONSOLE
With Provision For DVD Screen / From: CA000001 		- 1 Enquire
19C059 LR030644
PANEL - CONSOLE
Less DVD Screen / From: CA000001 		- 1 Enquire
19C084 VUP500060
BAG - HEADPHONES
With Provision For DVD Screen / Black / From: AA000001 / To: BA999999 		- 2 Enquire
19G442 LR028885
TRANSMITTER - WIRELESS HEADPHONES
With Provision For DVD Screen / From: CA000001 		- 1 Enquire
19H459 LR032718
DOCKING STATION
Arabica, With Provision For DVD Screen / From: CA000001 / To: DA785825 		- 1 Enquire
19H459 LR032719
DOCKING STATION
Ocean, With Provision For DVD Screen / From: CA000001 / To: DA785825 		- 1 Enquire
19H459 LR032720
DOCKING STATION
Ivory/Lunar, With Provision For DVD Screen / From: CA000001 / To: DA785825 		- 1 Enquire
19H459 LR032721
DOCKING STATION
Ebony/Tan, With Provision For DVD Screen / From: CA000001 / To: DA785825 		- 1 Enquire
19H459 LR032722
DOCKING STATION
Almond, With Provision For DVD Screen / From: CA000001 / To: DA785825 		- 1 Enquire
19H459 LR041301
DOCKING STATION
Arabica/Almond, With Provision For DVD Screen / From: DA785826 		- 1 Enquire
19H459 LR041302
DOCKING STATION
Ocean, With Provision For DVD Screen / From: DA785826 		- 1 Enquire
19H459 LR041303
DOCKING STATION
Ivory/Lunar, With Provision For DVD Screen / From: DA785826 		- 1 Enquire
19H459 LR041304
DOCKING STATION
Ebony/Cirrus, With Provision For DVD Screen / From: DA785826 		- 1 Enquire
19H459 LR041305
DOCKING STATION
Almond/Nutmeg, With Provision For DVD Screen / From: DA785826 		- 1 Enquire
19K210 LR021917
BATTERY ACCESSORIES
With Provision For DVD Screen / Remote Control / From: CA000001 / To: DA791342 		- 1 Enquire
19K210 LR045744
BATTERY ACCESSORIES
With Provision For DVD Screen / Remote Control / From: DA791343 / To: DA802457 		- 1 Enquire
19K210 LR048539
BATTERY ACCESSORIES
With Provision For DVD Screen / Remote Control / From: DA802458 		- 1 Enquire
62380A LR025897
REMOTE CONTROL - DVD
With Provision For DVD Screen / Less Battery / From: CA000001 / To: DA775013 		- 1 Enquire
62380A LR043539
REMOTE CONTROL - DVD
With Provision For DVD Screen / Less Battery / From: DA775014 		- 1 Enquire
62380B YUH500060
REMOTE CONTROL - DVD
With Provision For DVD Screen / Alpine, Remote Control / From: AA000001 / To: BA999999 		- 1 Enquire
