Insulators - Front ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] - Insulators - Front ((V) FROMAA000001)

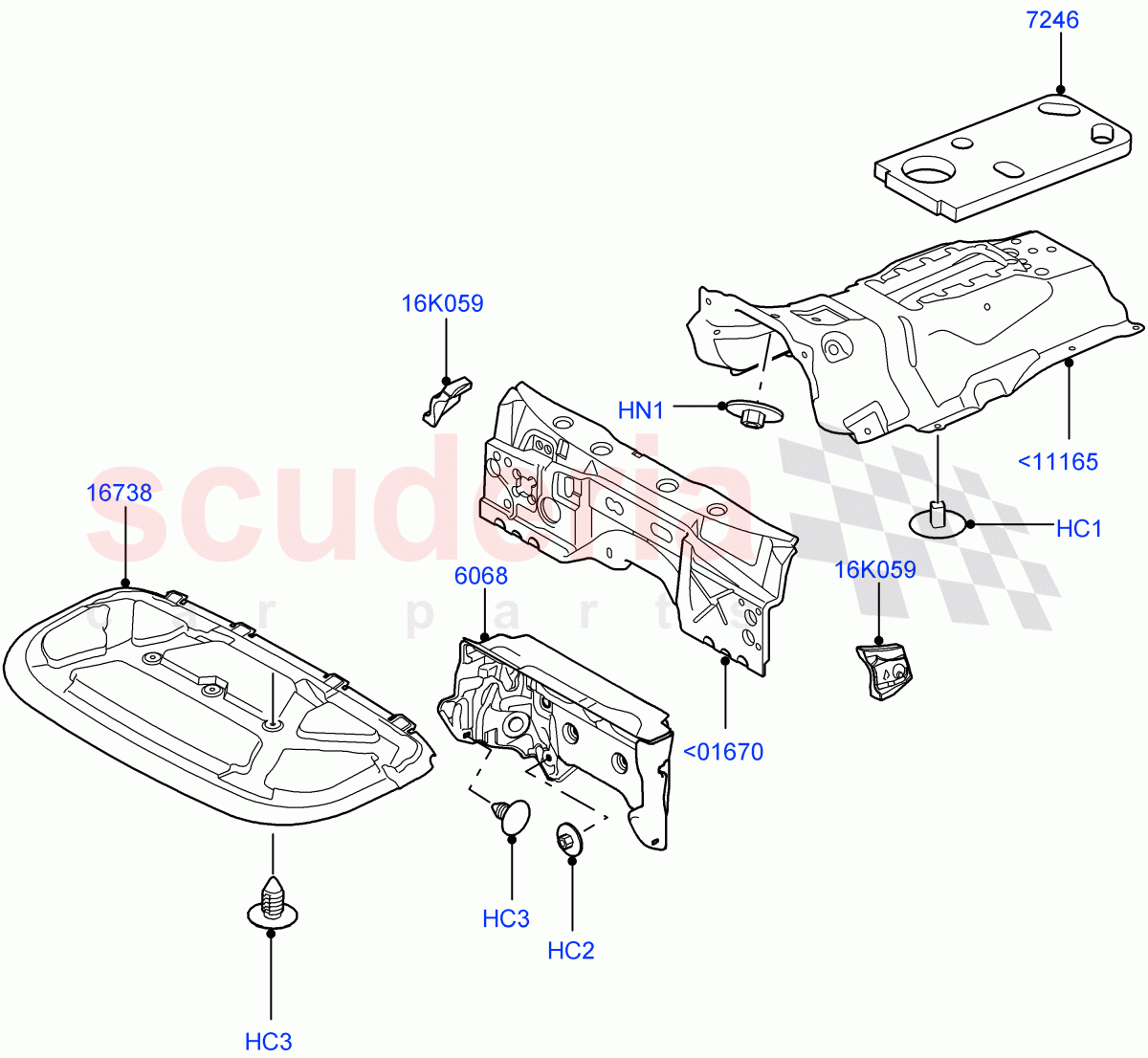

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AFU3711L	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EYC500320	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BTR2985	CLIP	Enquire	To Order
	BTR2985	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYH500050	NUT - LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013156	INSULATOR - DASH PANEL	Enquire	To Order
	LR015041	INSULATOR - ENGINE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ETR500120	INSULATOR - GEAR CHANGE LEVER	Enquire	To Order
	ETR500130	INSULATOR - GEAR CHANGE LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013222	INSULATOR - HOOD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017443	INSULATOR - DASH PANEL	Enquire	To Order
	LR014378	INSULATOR - DASH PANEL	Enquire	To Order
	LR020542	INSULATOR - BULKHEAD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR013223	INSULATOR - TUNNEL	Enquire	To Order
	LR046702	INSULATOR - TUNNEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CZL500141	INSULATOR - "A" PILLAR	Enquire	To Order
	CZL500151	INSULATOR - "A" PILLAR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<01670	LR017443	INSULATOR - DASH PANEL	LR017443 INSULATOR - DASH PANEL RHD / From: AA000001 / To: AA229465	-	1	Enquire
<01670	LR014378	INSULATOR - DASH PANEL	LR014378 INSULATOR - DASH PANEL LHD / From: AA000001 / To: AA229465	-	1	Enquire
<01670	LR020542	INSULATOR - BULKHEAD	LR020542 INSULATOR - BULKHEAD RHD / From: AA229466	-	1	Enquire
<01670	LR020543	INSULATOR - BULKHEAD	LR020543 INSULATOR - BULKHEAD LHD / From: AA229466	-	1	Enquire
<11165	LR013223	INSULATOR - TUNNEL	LR013223 INSULATOR - TUNNEL Tunnel Insulator / From: AA000001 / To: DA809541	-	1	Enquire
<11165	LR046702	INSULATOR - TUNNEL	LR046702 INSULATOR - TUNNEL Tunnel Insulator / From: DA809542	-	1	Enquire
HC1	AFU3711L	CLIP	AFU3711L CLIP Tunnel Insulator / From: AA000001	-	6	Enquire
HC2	EYC500320	CLIP	EYC500320 CLIP 5.0MM, Insulator / From: AA000001	-	3	Enquire
HC3	BTR2985	CLIP	BTR2985 CLIP 6.5 x 6, Hood Assy, Push Pin / From: AA000001	-	11	Enquire
HC3	BTR2985	CLIP	BTR2985 CLIP 6.5 x 6, Bulkhead, Push Pin / From: AA000001	-	2	Enquire
HN1	WYH500050	NUT - LOCKING	WYH500050 NUT - LOCKING M5, Tunnel Insulator / From: AA000001	-	9	Enquire
16K059	CZL500141	INSULATOR - "A" PILLAR	CZL500141 INSULATOR - "A" PILLAR RH, Foam / From: AA000001	-	1	Enquire
16K059	CZL500151	INSULATOR - "A" PILLAR	CZL500151 INSULATOR - "A" PILLAR LH, Foam / From: AA000001	-	1	Enquire
6068	LR013156	INSULATOR - DASH PANEL	LR013156 INSULATOR - DASH PANEL 3.6L V8 32V DOHC EFi Diesel Lion / Bulkhead / From: AA000001	-	1	Enquire
6068	LR015041	INSULATOR - ENGINE COMPARTMENT	LR015041 INSULATOR - ENGINE COMPARTMENT 5.0L OHC SGDI SC V8 Petrol - AJ133 / Bulkhead / From: AA000001	-	1	Enquire
7246	ETR500120	INSULATOR - GEAR CHANGE LEVER	ETR500120 INSULATOR - GEAR CHANGE LEVER RH, Automatic, Gearshift Lever / From: AA000001	-	1	Enquire
7246	ETR500130	INSULATOR - GEAR CHANGE LEVER	ETR500130 INSULATOR - GEAR CHANGE LEVER LH, Automatic, Gearshift Lever / From: AA000001	-	1	Enquire
16738	LR013222	INSULATOR - HOOD	LR013222 INSULATOR - HOOD From: AA000001	-	1	Enquire
