Luggage Compartment Door (Finisher And Seals) ((V) FROMAA000001, (V) TOBA999999) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] - Luggage Compartment Door (Finisher And Seals) ((V) FROMAA000001, (V) TOBA999999)

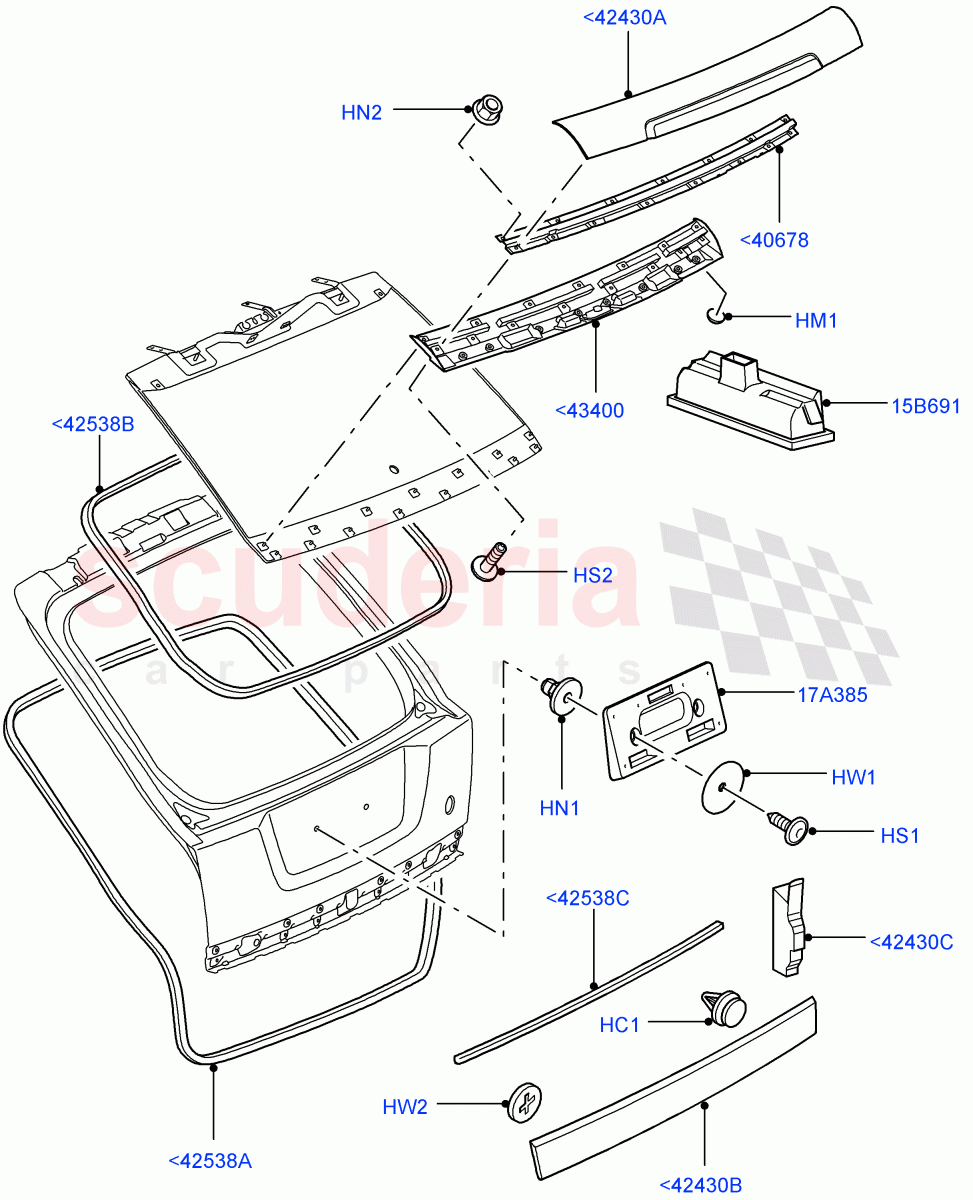

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	DYC101420	CLIP - DOOR CLADDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CZU000010	RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYH000140	NUT - BLIND ANCHOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BYH500050	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYP000120	SCREW - SELF-TAPPING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083297	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYF000070	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYF500330	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CQD500010	REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CXB500101PMA	HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	YUZ500020	SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002145	BRACKET - LICENSE PLATE	Enquire	To Order
	LR019327	BRACKET - LICENSE PLATE	Enquire	To Order
	LR019328	BRACKET - LICENSE PLATE	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	DRC500011LML	MOULDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014360	MOULDING - TAILGATE OUTSIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DDS500080	MOULDING - TAILGATE	Enquire	To Order
	DDS500090	MOULDING - TAILGATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017172	SEAL - TAILGATE	Enquire	To Order
	LR024948	SEAL - TAILGATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016985	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DDS500040	SEAL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<40678	CQD500010	REINFORCEMENT	CQD500010 REINFORCEMENT Tailgate Glass / From: AA000001	-	1	Enquire
<42430A	DRC500011LML	MOULDING	DRC500011LML MOULDING Primed / From: AA000001	-	1	Enquire
<42430B	LR014360	MOULDING - TAILGATE OUTSIDE	LR014360 MOULDING - TAILGATE OUTSIDE Lower, Primed / From: AA000001	-	1	Enquire
<42430C	DDS500080	MOULDING - TAILGATE	DDS500080 MOULDING - TAILGATE RH, Foam / From: AA000001	-	1	Enquire
<42430C	DDS500090	MOULDING - TAILGATE	DDS500090 MOULDING - TAILGATE LH, Foam / From: AA000001	-	1	Enquire
<42538A	LR017172	SEAL - TAILGATE	LR017172 SEAL - TAILGATE Tailgate Aperture / From: AA000001 / To: AA224292	-	1	Enquire
<42538A	LR024948	SEAL - TAILGATE	LR024948 SEAL - TAILGATE Tailgate Aperture / From: AA224293	-	1	Enquire
<42538B	LR016985	SEAL	LR016985 SEAL Tailgate Glass / From: AA000001	-	1	Enquire
<42538C	DDS500040	SEAL	DDS500040 SEAL Moulding Tailgate / From: AA000001	-	1	Enquire
<43400	CXB500101PMA	HANDLE	CXB500101PMA HANDLE Black, Switch - Liftgate/Glass Ajar / From: AA000001	-	1	Enquire
HC1	DYC101420	CLIP - DOOR CLADDING	DYC101420 CLIP - DOOR CLADDING Moulding Tailgate / From: AA000001	-	15	Enquire
HM1	CZU000010	RUBBER	CZU000010 RUBBER Handle / From: AA000001	-	2	Enquire
HN1	DYH000140	NUT - BLIND ANCHOR	DYH000140 NUT - BLIND ANCHOR For Licence Plate, M5, Plastic / From: AA000001	-	2	Enquire
HN2	BYH500050	NUT - FLANGED	BYH500050 NUT - FLANGED Flanged, Reinforcement / From: AA000001	-	15	Enquire
HS1	DYP000120	SCREW - SELF-TAPPING	DYP000120 SCREW - SELF-TAPPING (-)"Europe" / For License Plate, Self Tapping / From: AA000001	-	2	Enquire
HS2	LR083297	SCREW	LR083297 SCREW M5 x 18MM, Moulding To Handle, Torx / From: AA000001	-	8	Enquire
HW1	DYF000070	WASHER	DYF000070 WASHER (+)"J" / For License Plate / From: AA000001	-	2	Enquire
HW2	DYF500330	WASHER	DYF500330 WASHER Foam, Moulding Tailgate / From: AA000001	-	3	Enquire
15B691	YUZ500020	SWITCH	YUZ500020 SWITCH Micro, Tailgate Release / From: AA000001	-	1	Enquire
17A385	LR002145	BRACKET - LICENSE PLATE	LR002145 BRACKET - LICENSE PLATE Rear Number Plate Plinth - Japan / Anthracite / From: AA000001 / To: AA224293	-	1	Enquire
17A385	LR019327	BRACKET - LICENSE PLATE	LR019327 BRACKET - LICENSE PLATE Rear Number Plate Plinth - NAS / Anthracite / From: AA000001	-	1	Enquire
17A385	LR019328	BRACKET - LICENSE PLATE	LR019328 BRACKET - LICENSE PLATE Rr Number Plate Plinth - Australia / Anthracite / From: AA000001	-	1	Enquire
17A385	LR021920	BRACKET - LICENSE PLATE	LR021920 BRACKET - LICENSE PLATE Rear Number Plate Plinth - Japan / Anthracite / From: AA224294 / To: BA555777	-	1	Enquire
17A385	LR055151	BRACKET - LICENSE PLATE	LR055151 BRACKET - LICENSE PLATE Rear Number Plate Plinth - Japan / Anthracite / From: BA555778	-	1	Enquire
