Rear Door Lock Controls ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] - Rear Door Lock Controls ((V) FROMAA000001)

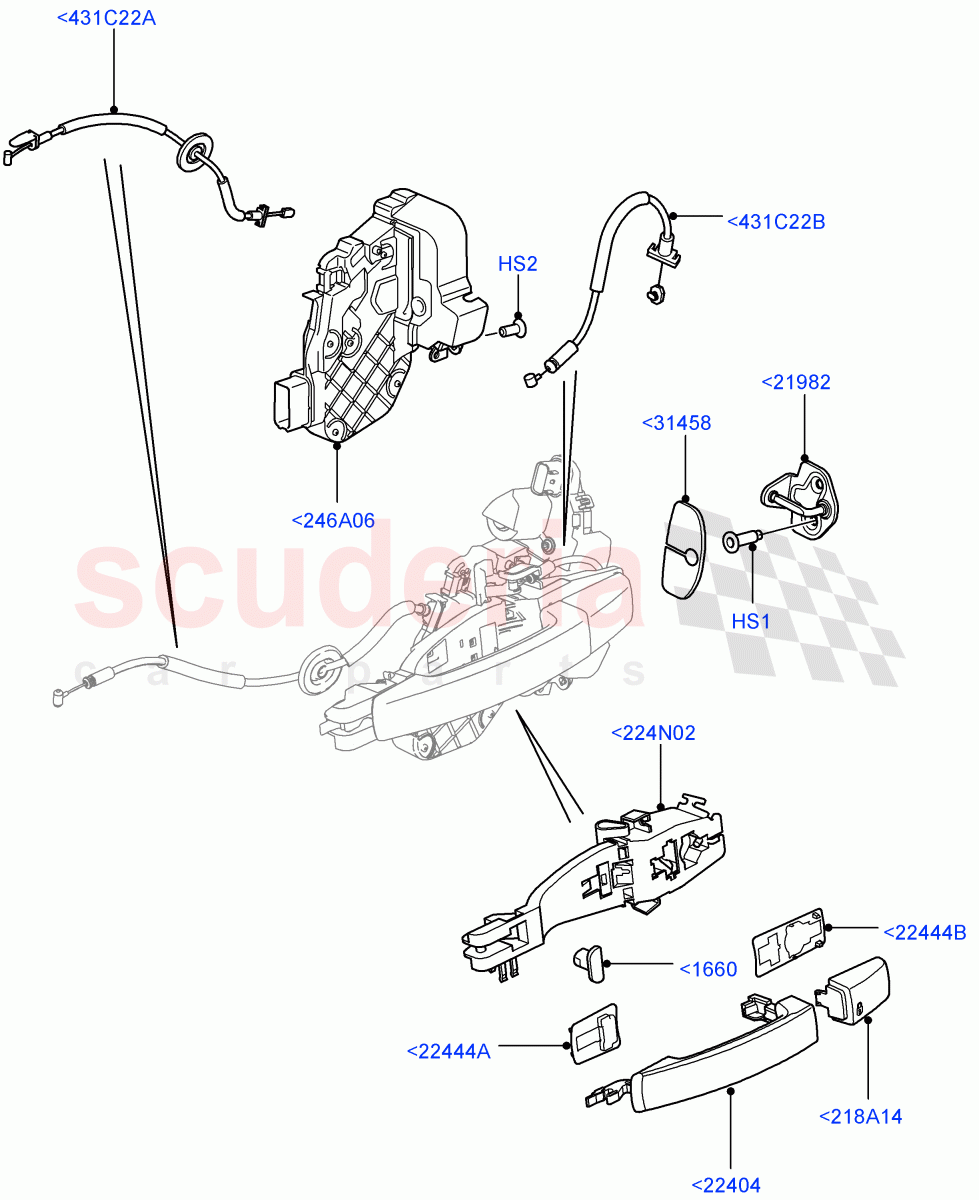

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FYP500020	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FYP500010	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ABS780160	SPACER - HANDLE ASSIST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FQB500041PMA	STRIKER - DOOR LOCKING MECHANISM	Enquire	To Order
	LR031915	STRIKER - DOOR LOCKING MECHANISM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019308	HANDLE - DOOR - OUTER	Enquire	To Order
	LR019764	HANDLE - DOOR - OUTER	Enquire	To Order
	LR020928	HANDLE - DOOR - OUTER	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	FQW500022PMA	COVER - DOOR INSIDE HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018254	CAP - HANDLE	Enquire	To Order
	LR030194	CAP - HANDLE	Enquire	To Order
	LR030193	CAP - HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CXE500050	GASKET - DOOR HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CXE500040	GASKET - DOOR HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018297	REINFORCEMENT - DOOR HANDLE	Enquire	To Order
	LR018298	REINFORCEMENT - DOOR HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011302	LATCH - REAR DOOR	Enquire	To Order
	LR011303	LATCH - REAR DOOR	Enquire	To Order
	LR013890	LATCH - REAR DOOR	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR015066	CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FQZ500153	CABLE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<218A14	LR018254	CAP - HANDLE	LR018254 CAP - HANDLE Oberon, RH/LH / From: AA000001 / To: BA999999	-	2	Enquire
<218A14	LR030194	CAP - HANDLE	LR030194 CAP - HANDLE Less Lock Barrel Aperture, Primed, RH/LH / From: CA000001	-	2	Enquire
<218A14	LR030193	CAP - HANDLE	LR030193 CAP - HANDLE Primed, RH/LH, With Lock Barrel Aperture / From: CA000001	-	2	Enquire
<224N02	LR018297	REINFORCEMENT - DOOR HANDLE	LR018297 REINFORCEMENT - DOOR HANDLE RH, Handle / From: AA000001	-	1	Enquire
<224N02	LR018298	REINFORCEMENT - DOOR HANDLE	LR018298 REINFORCEMENT - DOOR HANDLE LH, Handle / From: AA000001	-	1	Enquire
<246A06	LR011302	LATCH - REAR DOOR	LR011302 LATCH - REAR DOOR Double Locking Power Lock Latch, Less Door Lock Shields, Less Keyless Entry System / RH / From: AA000001	-	1	Enquire
<246A06	LR011303	LATCH - REAR DOOR	LR011303 LATCH - REAR DOOR Double Locking Power Lock Latch, Less Door Lock Shields, Less Keyless Entry System / LH / From: AA000001	-	1	Enquire
<246A06	LR013890	LATCH - REAR DOOR	LR013890 LATCH - REAR DOOR Double Locking Power Lock Latch, Keyless Entry/Start - Passive, Less Door Lock Shields / RH / From: AA000001	-	1	Enquire
<246A06	LR013892	LATCH - REAR DOOR	LR013892 LATCH - REAR DOOR Double Locking Power Lock Latch, Keyless Entry/Start - Passive, Less Door Lock Shields / LH / From: AA000001	-	1	Enquire
<246A06	LR013891	LATCH - REAR DOOR	LR013891 LATCH - REAR DOOR Less Door Lock Shields, Single Locking Power Lock Latch, With Keyless Entry/Start - Passive / RH / From: AA000001	-	1	Enquire
<246A06	LR013893	LATCH - REAR DOOR	LR013893 LATCH - REAR DOOR Less Door Lock Shields, Single Locking Power Lock Latch, With Keyless Entry/Start - Passive / LH / From: AA000001	-	1	Enquire
<246A06	LR011304	LATCH - REAR DOOR	LR011304 LATCH - REAR DOOR Less Door Lock Shields, Single Locking Power Lock Latch, With Keyless Start / RH / From: AA000001	-	1	Enquire
<246A06	LR011305	LATCH - REAR DOOR	LR011305 LATCH - REAR DOOR Less Door Lock Shields, Single Locking Power Lock Latch, With Keyless Start / LH / From: AA000001	-	1	Enquire
<431C22A	LR015066	CABLE	LR015066 CABLE Door Release Control, Internal / From: AA000001	-	2	Enquire
<431C22B	FQZ500153	CABLE	FQZ500153 CABLE Door Release Control, External / From: AA000001	-	2	Enquire
<1660	ABS780160	SPACER - HANDLE ASSIST	ABS780160 SPACER - HANDLE ASSIST From: AA000001	-	2	Enquire
<21982	FQB500041PMA	STRIKER - DOOR LOCKING MECHANISM	FQB500041PMA STRIKER - DOOR LOCKING MECHANISM From: AA000001 / To: BA709599	-	2	Enquire
<21982	LR031915	STRIKER - DOOR LOCKING MECHANISM	LR031915 STRIKER - DOOR LOCKING MECHANISM From: BA709600	-	2	Enquire
<22404	LR019308	HANDLE - DOOR - OUTER	LR019308 HANDLE - DOOR - OUTER With Keyless Start / Oberon, RH/LH / From: AA000001 / To: AA224293	-	2	Enquire
<22404	LR019764	HANDLE - DOOR - OUTER	LR019764 HANDLE - DOOR - OUTER With Keyless Entry/Start - Passive / Oberon, RH/LH / From: AA000001 / To: BA888887	-	2	Enquire
<22404	LR020928	HANDLE - DOOR - OUTER	LR020928 HANDLE - DOOR - OUTER With Keyless Start / Oberon, RH/LH / From: AA224294 / To: BA999999	-	2	Enquire
<22404	LR020810	HANDLE - DOOR - OUTER	LR020810 HANDLE - DOOR - OUTER With Keyless Entry/Start - Passive / Oberon, RH/LH / From: BA888888 / To: BA999999	-	2	Enquire
<22404	LR030195	HANDLE - DOOR - OUTER	LR030195 HANDLE - DOOR - OUTER With Keyless Entry/Start - Passive / Primed, RH/LH / From: CA000001	-	2	Enquire
<22404	LR030196	HANDLE - DOOR - OUTER	LR030196 HANDLE - DOOR - OUTER With Keyless Start / Primed, RH/LH / From: CA000001	-	2	Enquire
<22444A	CXE500050	GASKET - DOOR HANDLE	CXE500050 GASKET - DOOR HANDLE Front, Handle / From: AA000001	-	2	Enquire
<22444B	CXE500040	GASKET - DOOR HANDLE	CXE500040 GASKET - DOOR HANDLE Handle, Rear / From: AA000001	-	2	Enquire
<31458	FQW500022PMA	COVER - DOOR INSIDE HANDLE	FQW500022PMA COVER - DOOR INSIDE HANDLE Striker / From: AA000001	-	2	Enquire
HS1	FYP500020	SCREW	FYP500020 SCREW M8 X 25MM, Striker / From: AA000001	-	4	Enquire
HS2	FYP500010	SCREW	FYP500010 SCREW Latch, M6 x 12MM / From: AA000001	-	6	Enquire
