Radiator Grille And Front Bumper ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] - Radiator Grille And Front Bumper ((V) FROMAA000001)

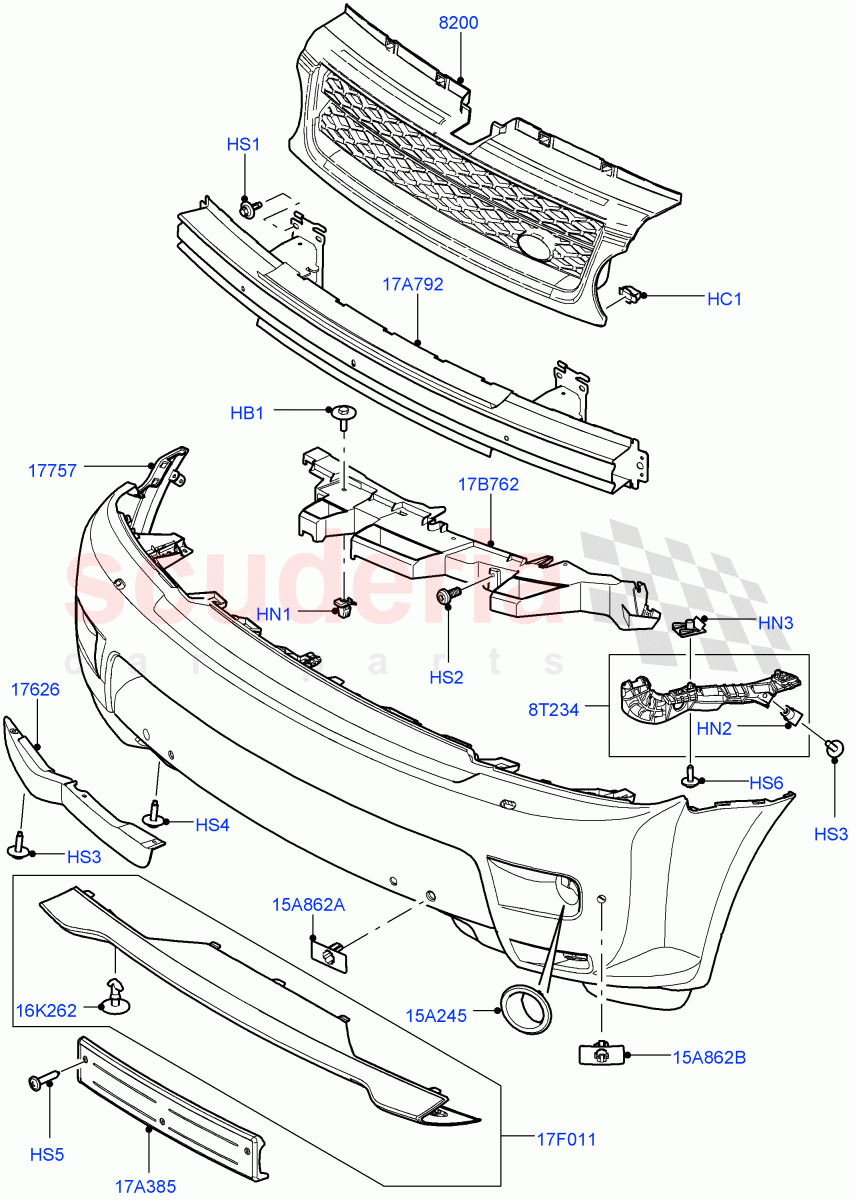

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	DYP500080	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018173	CLIP - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYH500131	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYH500110	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYH100790	NUT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	UYP500050	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EHV500010	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106494	SCREW	Enquire	To Order
	LR106494	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYP500010	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYP000040	SCREW	Enquire	To Order
	DYP000040	SCREW	Enquire	To Order
	DYP000040	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500860	SCREW & WASHER - HEX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018416	GRILLE - CENTRE	Enquire	To Order
	LR018417	GRILLE - CENTRE	Enquire	To Order
	LR020925	GRILLE - CENTRE	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR015129	PANEL	Enquire	To Order
	LR015130	PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015071	BUMPER - FRONT	Enquire	To Order
	LR015073	BUMPER - FRONT	Enquire	To Order
	LR015075	BUMPER - FRONT	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR015103	BRACKET	Enquire	To Order
	LR015104	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019636	BEZEL - FOG LAMP	Enquire	To Order
	LR019637	BEZEL - FOG LAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012844	CLIP - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015114	BRACKET - LICENSE PLATE	Enquire	To Order
	LR015115	BRACKET - LICENSE PLATE	Enquire	To Order
	LR015116	BRACKET - LICENSE PLATE	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR013926	REINFORCEMENT - FRONT BUMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013866	BRACKET - BUMPER MOUNTING	Enquire	To Order
	LR013864	BRACKET - BUMPER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015078	COVER	Enquire	To Order
	LR015079	COVER	Enquire	To Order
	LR029971	COVER - TOWING HOOK	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR015238	RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015239	RETAINER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	DYP500080	BOLT	DYP500080 BOLT Bezel, M5 x 20MM / From: AA000001	-	4	Enquire
HC1	LR018173	CLIP - RETAINING	LR018173 CLIP - RETAINING Front Grille / From: AA000001	-	2	Enquire
HN1	DYH500131	NUT	DYH500131 NUT Bezel / From: AA000001	-	4	Enquire
HN2	DYH500110	NUT	DYH500110 NUT 7mm Diameter Holes, Bracket, Plastic / From: AA000001	-	1	Enquire
HN3	AYH100790	NUT - SPECIAL	AYH100790 NUT - SPECIAL Bracket, M6 X 0.5-4, Nut "U" Spring / From: AA000001	-	2	Enquire
HS1	UYP500050	SCREW AND WASHER	UYP500050 SCREW AND WASHER M8 X 33MM, Reinforcement / From: AA000001	-	8	Enquire
HS2	EHV500010	SCREW	EHV500010 SCREW Bezel, M6 x 14mm / From: AA000001	-	2	Enquire
HS3	LR106494	SCREW	LR106494 SCREW Bracket, M5 x 20MM, Self Tapping / From: AA000001	-	1	Enquire
HS3	LR106494	SCREW	LR106494 SCREW M5 x 20MM, Self Tapping, Valance / From: AA000001	-	3	Enquire
HS4	AYP500010	SCREW AND WASHER	AYP500010 SCREW AND WASHER Bumper, M6 X 20MM / From: AA000001	-	4	Enquire
HS5	DYP000040	SCREW	DYP000040 SCREW Front Number Plate Plinth NAS / M5, With Plinth - Licence Plate / From: AA000001	-	7	Enquire
HS5	DYP000040	SCREW	DYP000040 SCREW Front Number Plate Plinth - Japan / M5, With Plinth - Licence Plate / From: AA000001	-	5	Enquire
HS5	DYP000040	SCREW	DYP000040 SCREW (-)"CDN/MEX/USA", Front Number Plate Plinth Base / M5, With Plinth - Licence Plate / From: AA000001	-	4	Enquire
HS6	RYG500860	SCREW & WASHER - HEX HEAD	RYG500860 SCREW & WASHER - HEX HEAD Bolt And Washer, M6 X 20MM / From: AA000001	-	1	Enquire
8T234	LR015103	BRACKET	LR015103 BRACKET RH / From: AA000001	-	1	Enquire
8T234	LR015104	BRACKET	LR015104 BRACKET LH / From: AA000001	-	1	Enquire
15A245	LR019636	BEZEL - FOG LAMP	LR019636 BEZEL - FOG LAMP With Body Kit Diesel / RH, For Fog Lamps, Primer Grey / From: AA000001	-	1	Enquire
15A245	LR019637	BEZEL - FOG LAMP	LR019637 BEZEL - FOG LAMP With Body Kit Diesel / LH, For Fog Lamps, Primer Grey / From: AA000001	-	1	Enquire
15A862A	LR015238	RETAINER	LR015238 RETAINER Centre, For Rear Parking Aid, Less Bodykit / From: AA000001	-	2	Enquire
15A862B	LR015239	RETAINER	LR015239 RETAINER For Rear Parking Aid, Less Bodykit, RH/LH / From: AA000001	-	2	Enquire
16K262	LR012844	CLIP - RETAINING	LR012844 CLIP - RETAINING 1/4 Turn Click Type, Towing Eye / From: AA000001	-	4	Enquire
17A385	LR015114	BRACKET - LICENSE PLATE	LR015114 BRACKET - LICENSE PLATE Front Number Plate Plinth NAS / From: AA000001	-	1	Enquire
17A385	LR015115	BRACKET - LICENSE PLATE	LR015115 BRACKET - LICENSE PLATE Front Number Plate Plinth - Japan / From: AA000001	-	1	Enquire
17A385	LR015116	BRACKET - LICENSE PLATE	LR015116 BRACKET - LICENSE PLATE (-)"J", Front Number Plate Plinth Base / With Plinth - Licence Plate / From: AA000001 / To: DA797335	-	1	Enquire
17A385	LR048595	BRACKET - LICENSE PLATE	LR048595 BRACKET - LICENSE PLATE Front Number Plate Plinth-China / From: DA797336	-	1	Enquire
17A385	LR015116	BRACKET - LICENSE PLATE	LR015116 BRACKET - LICENSE PLATE (-)"J", Front Number Plate Plinth Base / With Plinth - Licence Plate / From: DA797336	-	1	Enquire
17A792	LR013926	REINFORCEMENT - FRONT BUMPER	LR013926 REINFORCEMENT - FRONT BUMPER Bumper / From: AA000001	-	1	Enquire
17B762	LR013866	BRACKET - BUMPER MOUNTING	LR013866 BRACKET - BUMPER MOUNTING LH / From: AA000001	-	1	Enquire
17B762	LR013864	BRACKET - BUMPER MOUNTING	LR013864 BRACKET - BUMPER MOUNTING RH / From: AA000001	-	1	Enquire
17F011	LR015078	COVER	LR015078 COVER 3.6L V8 32V DOHC EFi Diesel Lion, Less Body Kit / Oberon, Towing Eye / From: AA000001 / To: BA999999	-	1	Enquire
17F011	LR015079	COVER	LR015079 COVER 5.0L OHC SGDI SC V8 Petrol - AJ133, Less Body Kit / Titan, Towing Eye / From: AA000001 / To: BA266780	-	1	Enquire
17F011	LR029971	COVER - TOWING HOOK	LR029971 COVER - TOWING HOOK 5.0L OHC SGDI SC V8 Petrol - AJ133, Less Body Kit / Towing Eye, Zermatt Silver / From: BA266781 / To: BA999999	-	1	Enquire
17F011	LR029973	COVER - TOWING HOOK	LR029973 COVER - TOWING HOOK 5.0L OHC SGDI SC V8 Petrol - AJ133, Less Body Kit / Rhodium/Indus Silver, Towing Eye / From: CA000001	-	1	Enquire
17F011	LR029976	COVER - TOWING HOOK	LR029976 COVER - TOWING HOOK 3.0L 24V DOHC V6 TC Diesel, Less Body Kit / Dark Atlas, Towing Eye / From: CA000001	-	1	Enquire
17F011	LR019169	COVER	LR019169 COVER With Body Kit Diesel, With Front Parking Aid / Titan, Towing Eye / From: AA000001	-	1	Enquire
8200	LR018416	GRILLE - CENTRE	LR018416 GRILLE - CENTRE 5.0L OHC SGDI NA V8 Petrol - AJ133, Less Body Kit / Oberon / Jupiter / From: AA000001 / To: AA229466	-	1	Enquire
8200	LR018417	GRILLE - CENTRE	LR018417 GRILLE - CENTRE 3.6L V8 32V DOHC EFi Diesel Lion, Less Body Kit / Oberon/Titan / From: AA000001 / To: AA229466	-	1	Enquire
8200	LR020925	GRILLE - CENTRE	LR020925 GRILLE - CENTRE Less Body Kit, With Black Grille / Oberon / Jupiter / From: AA229467 / To: BA999999	-	1	Enquire
8200	LR020926	GRILLE - CENTRE	LR020926 GRILLE - CENTRE Less Body Kit, With Titan Grille / Oberon/Titan / From: AA229467 / To: BA999999	-	1	Enquire
8200	LR030349	GRILLE - CENTRE	LR030349 GRILLE - CENTRE Grille - Atlas / From: CA000001	-	1	Enquire
8200	LR030785	GRILLE - CENTRE	LR030785 GRILLE - CENTRE Grille - Dark Atlas / From: CA000001	-	1	Enquire
8200	LR032397	GRILLE - CENTRE	LR032397 GRILLE - CENTRE With Black Gloss Grille / From: CA000001	-	1	Enquire
8200	LR019207	GRILLE - CENTRE	LR019207 GRILLE - CENTRE With Black Gloss Grille, With Body Kit Petrol / Ebony/Noble/Oberon / From: AA000001 / To: BA999999	-	1	Enquire
8200	LR048613	GRILLE - RADIATOR	LR048613 GRILLE - RADIATOR 3.0 V6 Diesel / For Cold Climates Only / From: AA000001	-	1	Enquire
17626	LR015129	PANEL	LR015129 PANEL RH, Black / From: AA000001	-	1	Enquire
17626	LR015130	PANEL	LR015130 PANEL LH, Black / From: AA000001	-	1	Enquire
17757	LR015071	BUMPER - FRONT	LR015071 BUMPER - FRONT Less Body Kit, Less Front Camera, Less Front Parking Aid / Primed / From: AA000001	-	1	Enquire
17757	LR015073	BUMPER - FRONT	LR015073 BUMPER - FRONT Less Body Kit, Less Front Camera, With Front Parking Aid / Primed / From: AA000001	-	1	Enquire
17757	LR015075	BUMPER - FRONT	LR015075 BUMPER - FRONT Less Body Kit, Surround Camera System, With Front Parking Aid / Primed / From: AA000001	-	1	Enquire
17757	LR015076	BUMPER - FRONT	LR015076 BUMPER - FRONT Less Body Kit, Less Front Parking Aid, Surround Camera System / Primed / From: AA000001	-	1	Enquire
17757	LR019739	BUMPER - FRONT	LR019739 BUMPER - FRONT Less Front Camera, With Body Kit Diesel, With Front Parking Aid / Primed / From: AA000001	-	1	Enquire
17757	LR019740	BUMPER - FRONT	LR019740 BUMPER - FRONT Surround Camera System, With Body Kit Diesel, With Front Parking Aid / Primed / From: AA000001	-	1	Enquire
