Rear Door Glass And Window Controls ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] - Rear Door Glass And Window Controls ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FN106047 Nut Enquire To Order
Photo Part No Description Price (each) Stock
CYP500010 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
CYP500080 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR016714 SCREW - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
CYP500030 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
CGE000880 WEATHERSTRIP - DOOR BELT Enquire To Order
CGE000890 WEATHERSTRIP - DOOR BELT Enquire To Order
LR044769 WEATHERSTRIP - DOOR BELT Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR016352 MOTOR - WINDOW OPERATING Enquire To Order
LR016353 MOTOR - WINDOW OPERATING Enquire To Order
Photo Part No Description Price (each) Stock
LR017041 RUN - DOOR GLASS Enquire To Order
LR017042 RUN - DOOR GLASS Enquire To Order
Photo Part No Description Price (each) Stock
CGE000922 WEATHERSTRIP - DOOR BELT Enquire To Order
CGE000932 WEATHERSTRIP - DOOR BELT Enquire To Order
Photo Part No Description Price (each) Stock
LR013870 REGULATOR - WINDOW Enquire To Order
LR013872 REGULATOR - WINDOW Enquire To Order
Photo Part No Description Price (each) Stock
FVY500040 BRACKET Enquire To Order
FVY500050 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
CVB500220 GLASS - DOOR Enquire To Order
CVB500230 GLASS - DOOR Enquire To Order
CVB500200 GLASS - DOOR Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
CVB000864 Glass - Door Rear Window - Fixed Enquire To Order
CVB000874 Glass - Door Rear Window - Fixed Enquire To Order
CVB500324 Glass - Door Rear Window - Fixed Enquire To Order
...and 7 more part variants. See table on right for more details.
View All

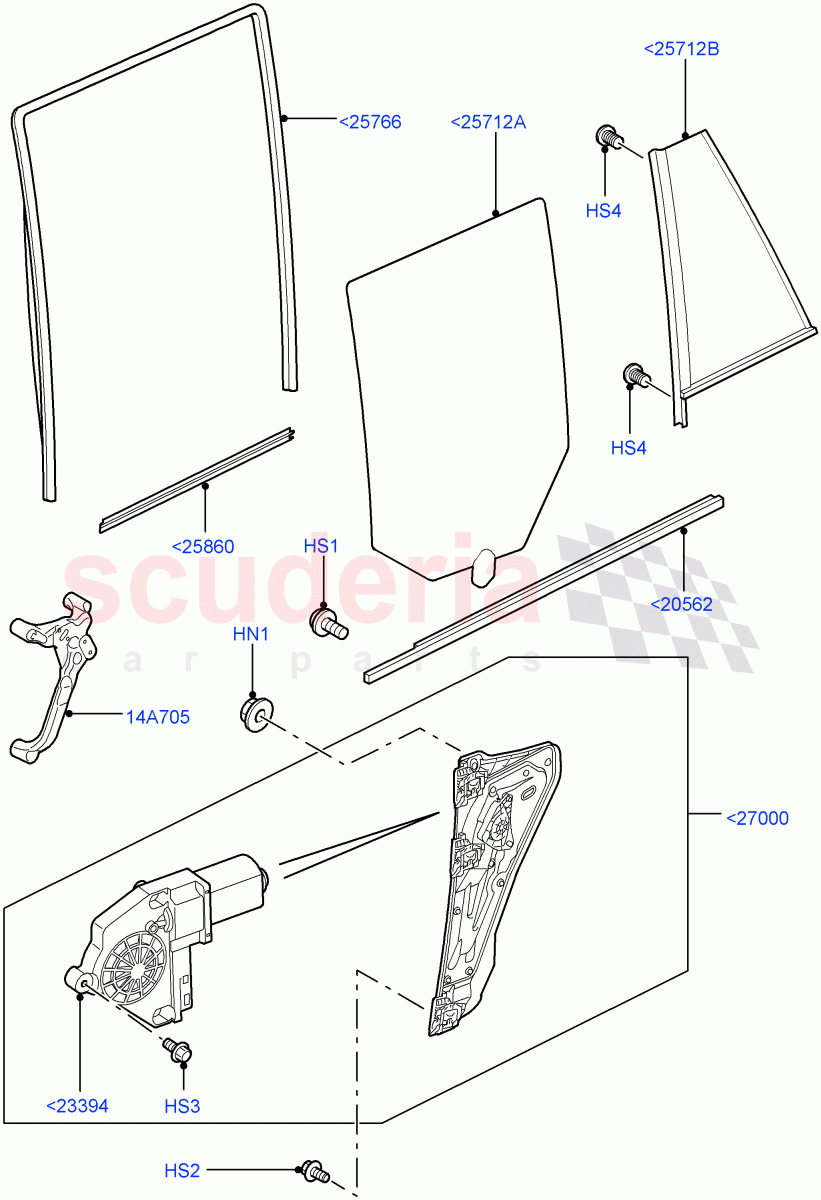

Rear Door Glass And Window Controls ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<20562 CGE000880
WEATHERSTRIP - DOOR BELT
RH, Outer / From: AA000001 / To: DA779709 		- 1 Enquire
<20562 CGE000890
WEATHERSTRIP - DOOR BELT
LH, Outer / From: AA000001 / To: DA779725 		- 1 Enquire
<20562 LR044769
WEATHERSTRIP - DOOR BELT
LH, Outer / From: DA779726 		- 1 Enquire
<20562 LR044768
WEATHERSTRIP - DOOR BELT
RH, Outer / From: DA779710 		- 1 Enquire
<23394 LR016352
MOTOR - WINDOW OPERATING
RH / From: AA000001 		- 1 Enquire
<23394 LR016353
MOTOR - WINDOW OPERATING
LH / From: AA000001 		- 1 Enquire
<25712A CVB500220
GLASS - DOOR
With Privacy Glass / RH / From: AA000001 		- 1 Enquire
<25712A CVB500230
GLASS - DOOR
With Privacy Glass / LH / From: AA000001 		- 1 Enquire
<25712A CVB500200
GLASS - DOOR
With Optikool Glass / RH / From: AA000001 / To: CA751326 		- 1 Enquire
<25712A CVB500210
GLASS - DOOR
With Optikool Glass / LH / From: AA000001 / To: CA754230 		- 1 Enquire
<25712A LR042721
GLASS - REAR DOOR
With Optikool Glass / RH / From: CA751327 		- 1 Enquire
<25712A LR042722
GLASS - REAR DOOR
With Optikool Glass / LH / From: CA754231 		- 1 Enquire
<25712B CVB000864
Glass - Door Rear Window - Fixed
With Optikool Glass / RH, Quarter Panel / From: AA000001 / To: AA224293 		- 1 Enquire
<25712B CVB000874
Glass - Door Rear Window - Fixed
With Optikool Glass / LH, Quarter Panel / From: AA000001 / To: AA224293 		- 1 Enquire
<25712B CVB500324
Glass - Door Rear Window - Fixed
With Privacy Glass / RH, Quarter Panel / From: AA000001 / To: AA224293 		- 1 Enquire
<25712B CVB500334
Glass - Door Rear Window - Fixed
With Privacy Glass / LH, Quarter Panel / From: AA000001 / To: AA224293 		- 1 Enquire
<25712B LR021066
GLASS - QUARTER WINDOW
With Optikool Glass / RH, Quarter Panel / From: AA224294 / To: DA774188 		- 1 Enquire
<25712B LR021068
GLASS - QUARTER WINDOW
With Privacy Glass / RH, Quarter Panel / From: AA224294 		- 1 Enquire
<25712B LR021079
GLASS - QUARTER WINDOW
With Optikool Glass / LH, Quarter Panel / From: AA224294 / To: DA769756 		- 1 Enquire
<25712B LR021081
GLASS - QUARTER WINDOW
With Privacy Glass / LH, Quarter Panel / From: AA224294 		- 1 Enquire
<25712B LR044524
GLASS - QUARTER WINDOW
With Optikool Glass / LH, Quarter Panel / From: DA769757 		- 1 Enquire
<25712B LR044523
GLASS - QUARTER WINDOW
With Optikool Glass / RH, Quarter Panel / From: DA774189 		- 1 Enquire
<25766 LR017041
RUN - DOOR GLASS
RH / From: AA000001 		- 1 Enquire
<25766 LR017042
RUN - DOOR GLASS
LH / From: AA000001 		- 1 Enquire
<25860 CGE000922
WEATHERSTRIP - DOOR BELT
RH, Inner / From: AA000001 		- 1 Enquire
<25860 CGE000932
WEATHERSTRIP - DOOR BELT
LH, Inner / From: AA000001 		- 1 Enquire
<27000 LR013870
REGULATOR - WINDOW
RH / From: AA000001 		- 1 Enquire
<27000 LR013872
REGULATOR - WINDOW
LH / From: AA000001 		- 1 Enquire
HN1 FN106047
Nut
M6, Window Regulator / From: AA000001 		- 4 Enquire
HS1 CYP500010
SCREW 		- 2 Enquire
HS2 CYP500080
SCREW
M6 x 12MM, Window Regulator / From: AA000001 		- 8 Enquire
HS3 LR016714
SCREW - SPECIAL
Motor - Window / From: AA000001 		- 6 Enquire
HS4 CYP500030
SCREW
Glass - Quarter Panel, M6 x 12MM, Torx / From: AA000001 		- 4 Enquire
14A705 FVY500040
BRACKET
RH, Window Regulator / From: AA000001 		- 1 Enquire
14A705 FVY500050
BRACKET
LH, Window Regulator / From: AA000001 		- 1 Enquire
