Fuel Tank Filler Door And Controls ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] - Fuel Tank Filler Door And Controls ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
IPN500030 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR019152 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
ALR5073 PLUG - BLANKING Enquire To Order
Photo Part No Description Price (each) Stock
BZX500010 TUBE Enquire To Order
Photo Part No Description Price (each) Stock
BPA780110 RETAINER - LATCH Enquire To Order
Photo Part No Description Price (each) Stock
LR014044 HOUSING - FUEL TANK FILLER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
ARY780040 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
ARV780020 BEZEL Enquire To Order
Photo Part No Description Price (each) Stock
FSG500030 ACTUATOR Enquire To Order
Photo Part No Description Price (each) Stock
BPA780101 ACTUATOR Enquire To Order
Photo Part No Description Price (each) Stock
CAL500070 SEAL Enquire To Order
Photo Part No Description Price (each) Stock
BPA780120 SPRING Enquire To Order
Photo Part No Description Price (each) Stock
BPA790040 DOOR - FUEL TANK FILLER ACCESS Enquire To Order
View All

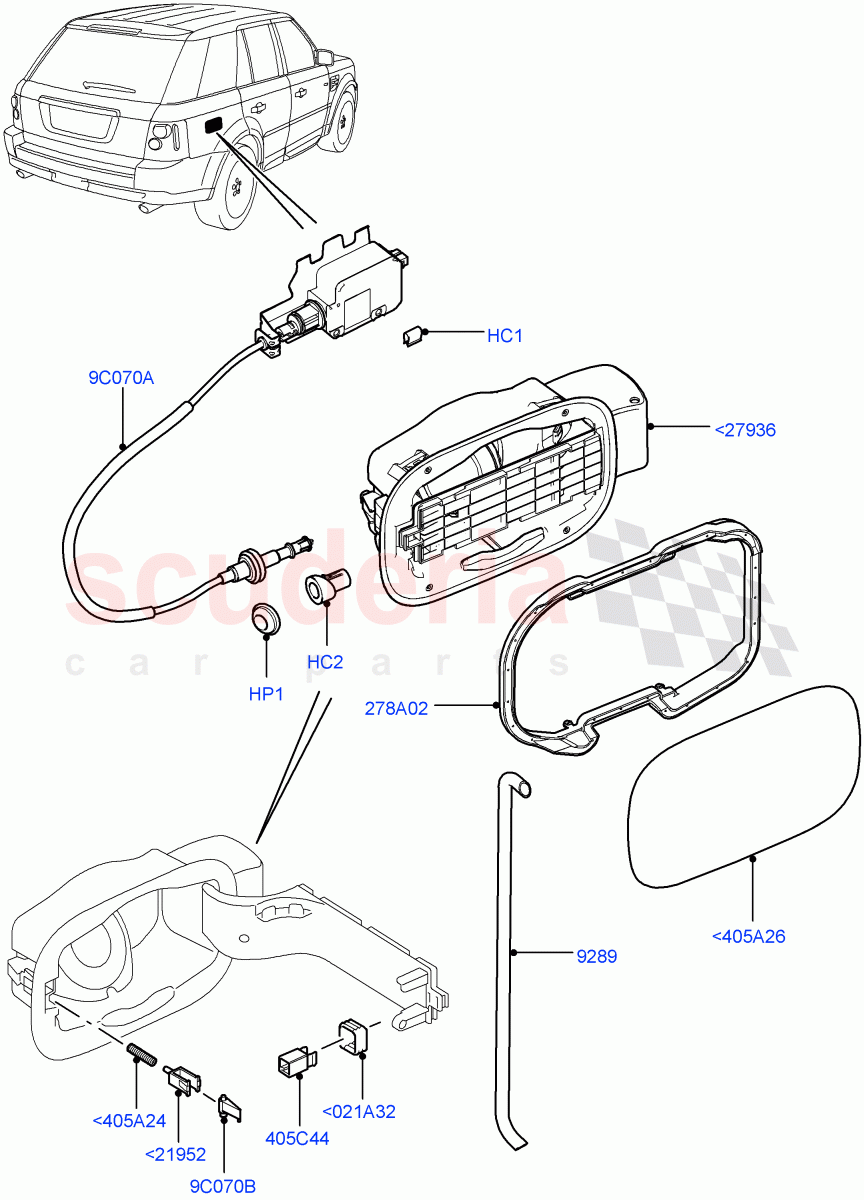

Fuel Tank Filler Door And Controls ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<021A32 CAL500070
SEAL
From: AA000001 		- 1 Enquire
<405A24 BPA780120
SPRING
From: AA000001 		- 1 Enquire
<405A26 BPA790040
DOOR - FUEL TANK FILLER ACCESS
From: AA000001 		- 1 Enquire
<21952 BPA780110
RETAINER - LATCH
From: AA000001 		- 1 Enquire
<27936 LR014044
HOUSING - FUEL TANK FILLER PIPE
From: AA000001 		- 1 Enquire
HC1 IPN500030
CLIP
Fuel Tank Flap - Locking / Actuator / From: AA000001 		- 1 Enquire
HC2 LR019152
CLIP
Fuel Tank Flap - Locking / Actuator / From: AA000001 		- 1 Enquire
HP1 ALR5073
PLUG - BLANKING
Fuel Tank Flap - Non Locking / On Body / From: AA000001 		- 1 Enquire
9C070A FSG500030
ACTUATOR
Fuel Tank Flap - Locking / From: AA000001 		- 1 Enquire
9C070B BPA780101
ACTUATOR
From: AA000001 		- 1 Enquire
278A02 ARY780040
GASKET
From: AA000001 		- 1 Enquire
405C44 ARV780020
BEZEL
From: AA000001 		- 1 Enquire
9289 BZX500010
TUBE
From: AA000001 		- 1 Enquire
