Rear Bumper ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] - Rear Bumper ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
ANR2224 HARDWARE - MISCELLANEOUS $2.57 To Order
Photo Part No Description Price (each) Stock
DYH500110 NUT $1.58 To Order
Photo Part No Description Price (each) Stock
DYH500010 NUT $3.47 IN STOCK
DYH500010 NUT $3.47 IN STOCK
Photo Part No Description Price (each) Stock
RYG501590 SCREW $0.96 To Order
Photo Part No Description Price (each) Stock
AYP500010 SCREW AND WASHER $1.01 To Order
Photo Part No Description Price (each) Stock
LR106494 SCREW $2.16 IN STOCK
LR106494 SCREW $2.16 IN STOCK
Photo Part No Description Price (each) Stock
AWR3994 RETAINER $3.81 To Order
RYQ500070 PIN - RETAINING $1.45 IN STOCK
Photo Part No Description Price (each) Stock
LR015112 BUMPER - REAR $779.97 To Order
LR015113 BUMPER - REAR $904.52 To Order
LR019741 BUMPER - REAR $906.94 To Order
Photo Part No Description Price (each) Stock
LR021954 MOULDING - BUMPER BAR $32.29 To Order
LR021955 MOULDING - BUMPER BAR $32.29 To Order
Photo Part No Description Price (each) Stock
XFF500020 REFLECTOR $81.22 IN STOCK
XFF500030 REFLECTOR $81.22 IN STOCK
Photo Part No Description Price (each) Stock
LR012844 CLIP - RETAINING $3.53 IN STOCK
Photo Part No Description Price (each) Stock
LR019556 PAD $99.65 To Order
LR019557 PAD $99.65 To Order
Photo Part No Description Price (each) Stock
LR015110 BRACKET - BUMPER MOUNTING $14.82 To Order
LR015111 BRACKET - BUMPER MOUNTING $14.82 To Order
Photo Part No Description Price (each) Stock
LR013862 BRACKET - BUMPER MOUNTING $99.76 To Order
Photo Part No Description Price (each) Stock
LR015131 INSERT - BUMPER $90.95 To Order
LR030239 INSERT - BUMPER $93.02 To Order
Photo Part No Description Price (each) Stock
LR015132 COVER $65.20 To Order
LR019170 COVER $74.89 To Order
Photo Part No Description Price (each) Stock
LR015238 RETAINER $5.65 To Order
Photo Part No Description Price (each) Stock
LR015239 RETAINER $33.40 To Order
Photo Part No Description Price (each) Stock
LR013858 BRACKET - BUMPER MOUNTING $24.92 To Order
LR013860 BRACKET - BUMPER MOUNTING $24.92 To Order
Photo Part No Description Price (each) Stock
DQG000063 BRACKET - BUMPER MOUNTING $51.06 To Order
DQG000073 BRACKET - BUMPER MOUNTING $51.06 To Order
View All

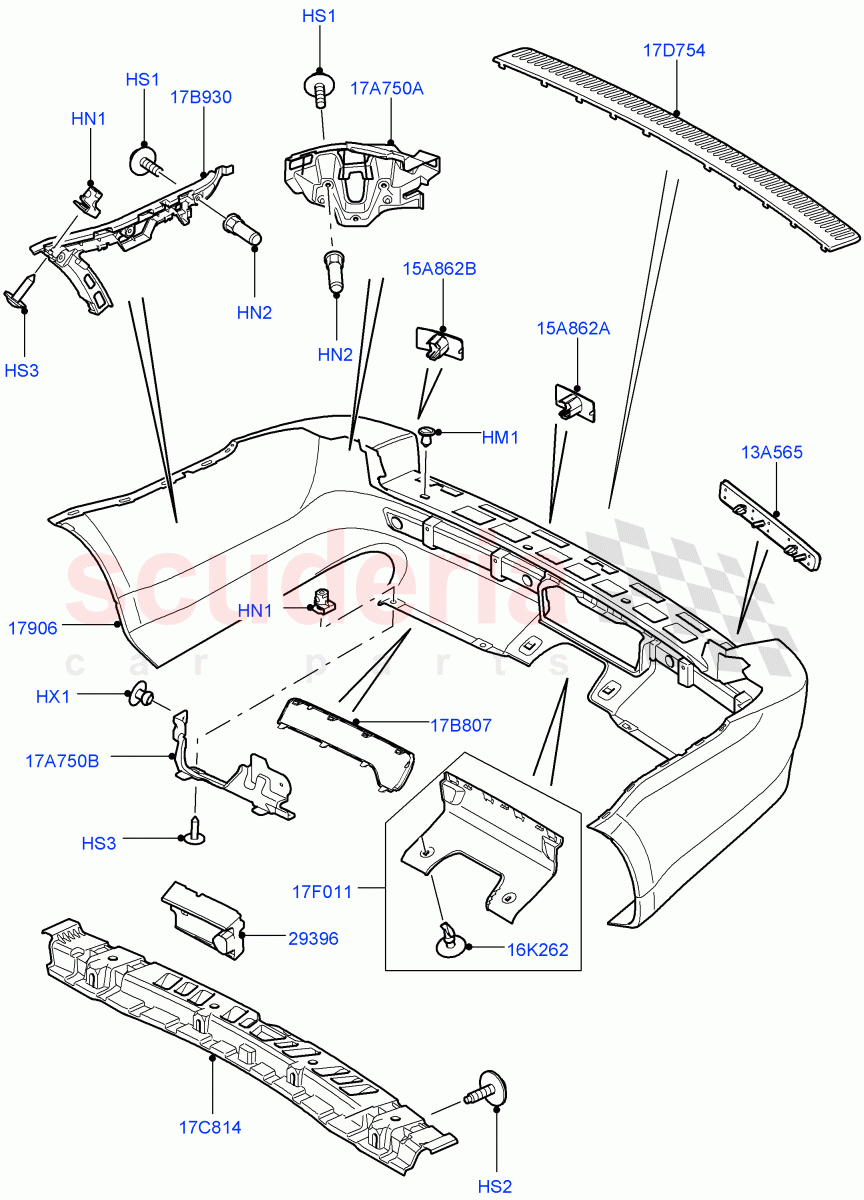

Rear Bumper ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HM1 ANR2224
HARDWARE - MISCELLANEOUS
8 X 20MM, Bumper, Pin / From: AA000001 		$2.57 4
HN1 DYH500110
NUT
7mm Diameter Holes, Bracket, Plastic, Side / From: AA000001 		$1.58 2
HN2 DYH500010
NUT
Bracket, M6, Side / From: AA000001
IN STOCK 		$3.47 3
HN2 DYH500010
NUT
Armature, Bracket, M6 / From: AA000001
IN STOCK 		$3.47 2
HS1 RYG501590
SCREW
Bracket, Hexagonal Head, M6 X 20MM, Side / From: AA000001 		$0.96 3
HS2 AYP500010
SCREW AND WASHER
Bracket, Centre, M6 X 20MM / From: AA000001 		$1.01 4
HS3 LR106494
SCREW
Armature, Bracket, M5 x 20MM, Self Tapping / From: AA000001
IN STOCK 		$2.16 2
HS3 LR106494
SCREW
Bracket, M5 x 20MM, Self Tapping, Side / From: AA000001
IN STOCK 		$2.16 1
HX1 AWR3994
RETAINER
6.3 X 22MM, Push Pin / From: AA000001 / To: BA713299 		$3.81 4
HX1 RYQ500070
PIN - RETAINING
6.3 X 22MM, Push Pin / From: BA713300
IN STOCK 		$1.45 4
13A565 XFF500020
REFLECTOR
RH / From: AA000001
IN STOCK 		$81.22 1
13A565 XFF500030
REFLECTOR
LH / From: AA000001
IN STOCK 		$81.22 1
15A862A LR015238
RETAINER
Centre, For Rear Parking Aid, Less Bodykit / From: AA000001 		$5.65 2
15A862B LR015239
RETAINER
For Rear Parking Aid, Less Bodykit, RH/LH / From: AA000001 		$33.40 2
16K262 LR012844
CLIP - RETAINING
1/4 Turn Click Type, Cover / From: AA000001
IN STOCK 		$3.53 2
17A750A LR013858
BRACKET - BUMPER MOUNTING
RH, Corner / From: AA000001 		$24.92 1
17A750A LR013860
BRACKET - BUMPER MOUNTING
LH, Corner / From: AA000001 		$24.92 1
17A750B DQG000063
BRACKET - BUMPER MOUNTING
RH, Armature / From: AA000001 		$51.06 1
17A750B DQG000073
BRACKET - BUMPER MOUNTING
LH, Armature / From: AA000001 		$51.06 1
17B807 LR019556
PAD
With Body Kit Diesel, With Rear Parking Aid / RH / From: AA000001 		$99.65 1
17B807 LR019557
PAD
With Body Kit Diesel, With Rear Parking Aid / LH / From: AA000001 		$99.65 1
17B930 LR015110
BRACKET - BUMPER MOUNTING
RH, Side / From: AA000001 		$14.82 1
17B930 LR015111
BRACKET - BUMPER MOUNTING
LH, Side / From: AA000001 		$14.82 1
17C814 LR013862
BRACKET - BUMPER MOUNTING
Centre / From: AA000001 		$99.76 1
17D754 LR015131
INSERT - BUMPER
Oberon, Tread Mat / From: AA000001 / To: BA999999 		$90.95 1
17D754 LR030239
INSERT - BUMPER
Anthracite, Tread Mat / From: CA000001 		$93.02 1
17F011 LR015132
COVER
Less Body Kit / Towing Eye / From: AA000001 		$65.20 1
17F011 LR019170
COVER
With Body Kit Diesel, With Rear Parking Aid / From: AA000001 		$74.89 1
17906 LR015112
BUMPER - REAR
Less Body Kit, Less Rear Parking Aid / From: AA000001 		$779.97 1
17906 LR015113
BUMPER - REAR
Less Body Kit, With Rear Parking Aid / From: AA000001 		$904.52 1
17906 LR019741
BUMPER - REAR
With Body Kit Diesel, With Rear Parking Aid / Primed, Supplied With PDC Holders / From: AA000001 		$906.94 1
29396 LR021954
MOULDING - BUMPER BAR
RH Pad / From: AA000001 		$32.29 1
29396 LR021955
MOULDING - BUMPER BAR
LH Pad / From: AA000001 		$32.29 1
