Dash Panel And Front Fenders ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel]

View All

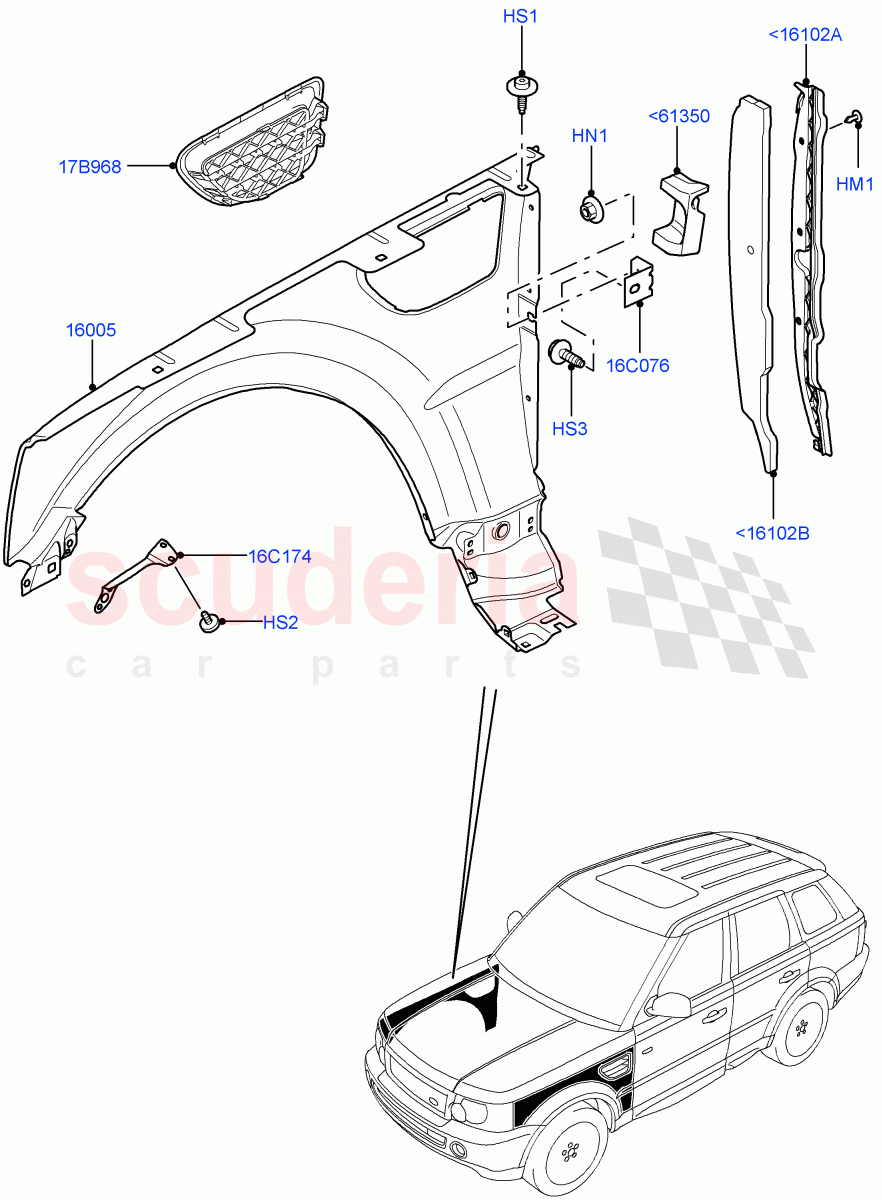

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] - Dash Panel And Front Fenders ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	ANR2224	HARDWARE - MISCELLANEOUS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ESR1560	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYP500010	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BYP000051	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500980	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015036	FENDER - FRONT	Enquire	To Order
	LR015037	FENDER - FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EUH500341	COVER - INSULATOR	Enquire	To Order
	LR013218	COVER - INSULATOR	Enquire	To Order
	LR019638	COVER - INSULATOR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	ASU780200	BRACKET - FENDER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ASU780120	BRACKET - FENDER MOUNTING	Enquire	To Order
	ASU780130	BRACKET - FENDER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018411	GRILLE - AIR INLET	Enquire	To Order
	LR018412	GRILLE - AIR INLET	Enquire	To Order
	LR018413	GRILLE - AIR INLET	Enquire	To Order

...and 20 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR016860	BAFFLE - FRONT FENDER	Enquire	To Order
	LR016861	BAFFLE - FRONT FENDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015045	BAFFLE - FRONT FENDER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<16102A	LR016860	BAFFLE - FRONT FENDER	LR016860 BAFFLE - FRONT FENDER RH / From: AA000001	-	1	Enquire
<16102A	LR016861	BAFFLE - FRONT FENDER	LR016861 BAFFLE - FRONT FENDER LH / From: AA000001	-	1	Enquire
<16102B	LR015045	BAFFLE - FRONT FENDER	LR015045 BAFFLE - FRONT FENDER Front Fender, RH/LH / From: AA000001	-	2	Enquire
<61350	EUH500341	COVER - INSULATOR	EUH500341 COVER - INSULATOR RH, Insulator-Duct Air Cooling Inlet / From: AA000001 / To: AA224293	-	1	Enquire
<61350	LR013218	COVER - INSULATOR	LR013218 COVER - INSULATOR 5.0L OHC SGDI SC V8 Petrol - AJ133 / LH, Insulator-Duct Air Cooling Inlet / From: AA000001 / To: AA224293	-	1	Enquire
<61350	LR019638	COVER - INSULATOR	LR019638 COVER - INSULATOR 5.0L OHC SGDI SC V8 Petrol - AJ133 / LH, Insulator-Duct Air Cooling Inlet / From: AA224294	-	1	Enquire
<61350	LR019639	COVER - INSULATOR	LR019639 COVER - INSULATOR RH, Insulator-Duct Air Cooling Inlet / From: AA224294	-	1	Enquire
HM1	ANR2224	HARDWARE - MISCELLANEOUS	ANR2224 HARDWARE - MISCELLANEOUS 8 X 20MM, Pin / From: AA000001	-	4	Enquire
HN1	ESR1560	NUT - FLANGED	ESR1560 NUT - FLANGED Bracket - A Pillar, M6 / From: AA000001	-	1	Enquire
HS1	AYP500010	SCREW AND WASHER	AYP500010 SCREW AND WASHER Front Fender, M6 X 20MM / From: AA000001	-	5	Enquire
HS2	BYP000051	SCREW AND WASHER	BYP000051 SCREW AND WASHER Bracket, M6 x 14MM / From: AA000001	-	2	Enquire
HS3	RYG500980	SCREW AND WASHER	RYG500980 SCREW AND WASHER Bracket - A Pillar, M8 x 24MM / From: AA000001	-	1	Enquire
16C076	ASU780200	BRACKET - FENDER MOUNTING	ASU780200 BRACKET - FENDER MOUNTING "A" Pillar, RH/LH / From: AA000001	-	2	Enquire
16C174	ASU780120	BRACKET - FENDER MOUNTING	ASU780120 BRACKET - FENDER MOUNTING RH / From: AA000001	-	1	Enquire
16C174	ASU780130	BRACKET - FENDER MOUNTING	ASU780130 BRACKET - FENDER MOUNTING LH / From: AA000001	-	1	Enquire
17B968	LR018411	GRILLE - AIR INLET	LR018411 GRILLE - AIR INLET 5.0L OHC SGDI NA V8 Petrol - AJ133 / RH, Jupiter/Oberon/Titan / From: AA000001 / To: AA229465	-	1	Enquire
17B968	LR018412	GRILLE - AIR INLET	LR018412 GRILLE - AIR INLET 3.6L V8 32V DOHC EFi Diesel Lion / RH, Oberon/Titan / From: AA000001 / To: AA229465	-	1	Enquire
17B968	LR018413	GRILLE - AIR INLET	LR018413 GRILLE - AIR INLET 3.0L 24V DOHC V6 TC Diesel / LH, Jupiter/Oberon/Titan / From: AA000001 / To: AA229465	-	1	Enquire
17B968	LR018414	GRILLE - AIR INLET	LR018414 GRILLE - AIR INLET 5.0L OHC SGDI SC V8 Petrol - AJ133 / LH, Oberon/Titan / From: AA000001 / To: AA229465	-	1	Enquire
17B968	LR018415	GRILLE - AIR INLET	LR018415 GRILLE - AIR INLET 5.0L OHC SGDI NA V8 Petrol - AJ133 / LH, Jupiter/Oberon/Titan / From: AA000001 / To: AA229465	-	1	Enquire
17B968	LR019749	GRILLE - AIR INLET	LR019749 GRILLE - AIR INLET 3.0L 24V DOHC V6 TC Diesel / LH, Oberon/Titan / From: AA000001 / To: BA999999	-	1	Enquire
17B968	LR020790	GRILLE - AIR INLET	LR020790 GRILLE - AIR INLET 3.0L 24V DOHC V6 TC Diesel / RH, Jupiter/Oberon/Titan / From: AA229466 / To: BA999999	-	1	Enquire
17B968	LR020795	GRILLE - AIR INLET	LR020795 GRILLE - AIR INLET 3.6L V8 32V DOHC EFi Diesel Lion / RH, Oberon/Titan / From: AA229466 / To: BA999999	-	1	Enquire
17B968	LR020801	GRILLE - AIR INLET	LR020801 GRILLE - AIR INLET 3.0L 24V DOHC V6 TC Diesel / LH, Jupiter/Oberon/Titan / From: AA229466 / To: BA999999	-	1	Enquire
17B968	LR020802	GRILLE - AIR INLET	LR020802 GRILLE - AIR INLET 5.0L OHC SGDI SC V8 Petrol - AJ133 / LH, Oberon/Titan / From: AA229466 / To: BA999999	-	1	Enquire
17B968	LR020803	GRILLE - AIR INLET	LR020803 GRILLE - AIR INLET 5.0L OHC SGDI NA V8 Petrol - AJ133 / LH, Jupiter/Oberon/Titan / From: AA229466 / To: BA999999	-	1	Enquire
17B968	LR030765	GRILLE - AIR INLET	LR030765 GRILLE - AIR INLET 3.0L 24V DOHC V6 TC Diesel, Grille - Dark Atlas / RH / From: CA000001	-	1	Enquire
17B968	LR030766	GRILLE - FENDER - FRONT	LR030766 GRILLE - FENDER - FRONT 5.0L OHC SGDI NA V8 Petrol - AJ133, Grille - Atlas / RH / From: CA000001	-	1	Enquire
17B968	LR030767	GRILLE - FENDER - FRONT	LR030767 GRILLE - FENDER - FRONT 3.0L 24V DOHC V6 TC Diesel, Grille - Dark Atlas / LH / From: CA000001	-	1	Enquire
17B968	LR030769	GRILLE - FENDER - FRONT	LR030769 GRILLE - FENDER - FRONT 5.0L OHC SGDI NA V8 Petrol - AJ133, Grille - Atlas / LH / From: CA000001	-	1	Enquire
17B968	LR030770	GRILLE - FENDER - FRONT	LR030770 GRILLE - FENDER - FRONT 5.0L OHC SGDI NA V8 Petrol - AJ133, Grille - Dark Atlas / LH / From: CA000001	-	1	Enquire
17B968	LR030771	GRILLE - AIR INLET	LR030771 GRILLE - AIR INLET 3.0L 24V DOHC V6 TC Diesel, Grille - Atlas / LH / From: CA000001	-	1	Enquire
17B968	LR032403	GRILLE - AIR INLET	LR032403 GRILLE - AIR INLET 3.0L 24V DOHC V6 TC Diesel, With Black Gloss Grille / LH / From: CA000001	-	1	Enquire
17B968	LR032404	GRILLE - AIR INLET	LR032404 GRILLE - AIR INLET 5.0L OHC SGDI NA V8 Petrol - AJ133, With Black Gloss Grille / LH / From: CA000001	-	1	Enquire
17B968	LR032401	GRILLE - AIR INLET	LR032401 GRILLE - AIR INLET With Black Gloss Grille / RH / From: CA000001	-	1	Enquire
17B968	LR019280	GRILLE - AIR INLET	LR019280 GRILLE - AIR INLET With Black Gloss Grille / RH, Ebony/Noble/Oberon / From: AA000001 / To: BA999999	-	1	Enquire
17B968	LR019282	GRILLE - AIR INLET	LR019282 GRILLE - AIR INLET 3.6L V8 32V DOHC EFi Diesel Lion, With Black Gloss Grille / LH, Ebony/Noble/Oberon / From: AA000001 / To: BA999999	-	1	Enquire
17B968	LR019283	GRILLE - AIR INLET	LR019283 GRILLE - AIR INLET 5.0L OHC SGDI SC V8 Petrol - AJ133, With Black Gloss Grille / LH, Ebony/Noble/Oberon / From: AA000001 / To: BA999999	-	1	Enquire
16005	LR015036	FENDER - FRONT	LR015036 FENDER - FRONT RH / From: AA000001	-	1	Enquire
16005	LR015037	FENDER - FRONT	LR015037 FENDER - FRONT LH / From: AA000001	-	1	Enquire
