Electrical Wiring - Body And Rear (Audio/Navigation/Entertainment) ((V) Fromca000001)

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] - Electrical Wiring - Body And Rear (Audio/Navigation/Entertainment) ((V) FROMCA000001)

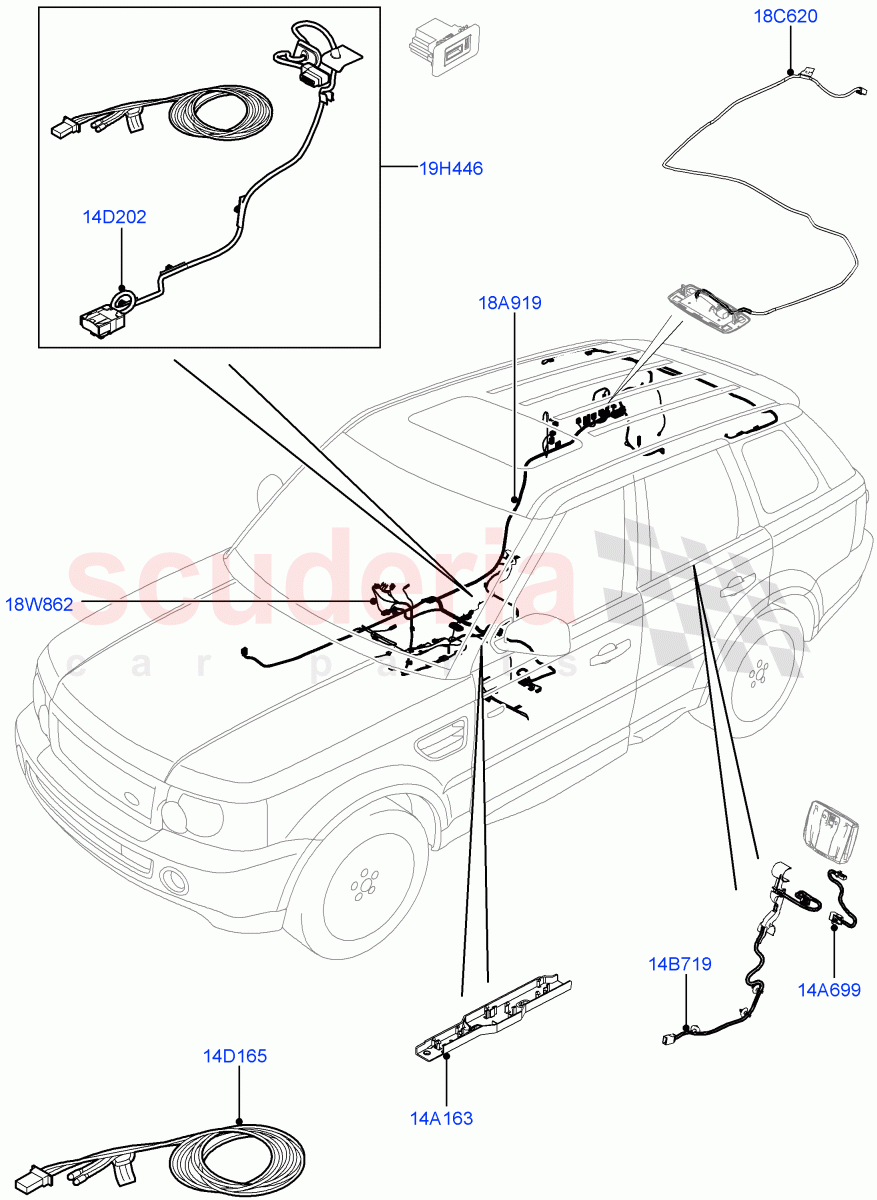

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR029718 RETAINER - CABLE GUIDE Enquire To Order
LR029705 RETAINER - CABLE GUIDE Enquire To Order
Photo Part No Description Price (each) Stock
LR030883 WIRING - SEAT Enquire To Order
Photo Part No Description Price (each) Stock
LR030546 WIRING - ARMREST Enquire To Order
Photo Part No Description Price (each) Stock
LR043229 WIRING - REPAIR Enquire To Order
LR043230 WIRING - REPAIR Enquire To Order
LR043231 WIRING - REPAIR Enquire To Order
...and 18 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR029566 WIRING - SOCKET Enquire To Order
Photo Part No Description Price (each) Stock
LR030527 WIRE - RADIO FEED Enquire To Order
LR030529 WIRE - RADIO FEED Enquire To Order
LR030535 WIRE - RADIO FEED Enquire To Order
...and 26 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR030545 WIRING - ROOF Enquire To Order
Photo Part No Description Price (each) Stock
LR030319 WIRE - RADIO FEED Enquire To Order
LR030321 WIRE - RADIO FEED Enquire To Order
LR030322 WIRE - RADIO FEED Enquire To Order
...and 19 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR054936 KIT - IPOD Enquire To Order
View All
Electrical Wiring - Body And Rear (Audio/Navigation/Entertainment) ((V) FROMCA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
14A163 LR029718
RETAINER - CABLE GUIDE
LH / From: CA000001 		- 1 Enquire
14A163 LR029705
RETAINER - CABLE GUIDE
RH / From: CA000001 		- 1 Enquire
14A699 LR030883
WIRING - SEAT
With Provision For DVD Screen / From: CA000001 		- 1 Enquire
14B719 LR030546
WIRING - ARMREST
With Provision For DVD Screen / From: CA000001 		- 1 Enquire
14D165 LR043229
WIRING - REPAIR
From Connector C2820 To Connector C1184, Please Refer To Electrical Library In TOPIx, Wiring - Harness Repair / From: CA000001 		- 1 Enquire
14D165 LR043230
WIRING - REPAIR
From Connector C2620 To Connector C2610, Please Refer To Electrical Library In TOPIx, Wiring - Harness Repair / From: CA000001 		- 1 Enquire
14D165 LR043231
WIRING - REPAIR
From Connector C3461 To Connector C2727, Please Refer To Electrical Library In TOPIx, Wiring - Harness Repair / From: CA000001 		- 1 Enquire
14D165 LR043232
WIRING - REPAIR
Links Connectors: C3461, C2727, C2821, Please Refer To Electrical Library In TOPIx, Wiring - Harness Repair / From: CA000001 		- 1 Enquire
14D165 LR043233
WIRING - REPAIR
From Connector C3716 To Connector C2822, Please Refer To Electrical Library In TOPIx, Wiring - Harness Repair / From: CA000001 		- 1 Enquire
14D165 LR043234
WIRING - REPAIR
From Connector C2823 To Connector C2967, Please Refer To Electrical Library In TOPIx, Wiring - Harness Repair / From: CA000001 		- 1 Enquire
14D165 LR043258
WIRING - REPAIR
From Connector C2226 To Connector C2315, Please Refer To Electrical Library In TOPIx, Wiring - Harness Repair / From: CA000001 		- 1 Enquire
14D165 LR043235
WIRING - REPAIR
From Connector C2622 To Connector C3499, Please Refer To Electrical Library In TOPIx, Wiring - Harness Repair / From: CA000001 		- 1 Enquire
14D165 LR043236
WIRING - REPAIR
From Connector C2727A To Connector C3462, Please Refer To Electrical Library In TOPIx, Wiring - Harness Repair / From: CA000001 		- 1 Enquire
14D165 LR043237
WIRING - REPAIR
From Connector C2640 To Connector C3460, Please Refer To Electrical Library In TOPIx, Wiring - Harness Repair / From: CA000001 		- 1 Enquire
14D165 LR043243
WIRING - REPAIR
From Connector C3742 To Connector C3744, Please Refer To Electrical Library In TOPIx, Wiring - Harness Repair / From: CA000001 		- 1 Enquire
14D165 LR043244
WIRING - REPAIR
From Connector C3741 To Connector C3743, Please Refer To Electrical Library In TOPIx, Wiring - Harness Repair / From: CA000001 		- 1 Enquire
14D165 LR043245
WIRING - REPAIR
From Connector C3359L To Connector C3342, Please Refer To Electrical Library In TOPIx, Wiring - Harness Repair / From: CA000001 		- 1 Enquire
14D165 LR043246
WIRING - REPAIR
From Connector C2674L To Connector C3340, Please Refer To Electrical Library In TOPIx, Wiring - Harness Repair / From: CA000001 		- 1 Enquire
14D165 LR043247
WIRING - REPAIR
From Connector C3359R To Connector C3342, Please Refer To Electrical Library In TOPIx, Wiring - Harness Repair / From: CA000001 		- 1 Enquire
14D165 LR043248
WIRING - REPAIR
From Connector C2674R To Connector C3340, Please Refer To Electrical Library In TOPIx, Wiring - Harness Repair / From: CA000001 		- 1 Enquire
14D165 LR043249
WIRING - REPAIR
From Connector C0460 To Connector C3343, Please Refer To Electrical Library In TOPIx, Wiring - Harness Repair / From: CA000001 		- 1 Enquire
14D165 LR043250
WIRING - REPAIR
From Connector C0464 To Connector C3344, Please Refer To Electrical Library In TOPIx, Wiring - Harness Repair / From: CA000001 		- 1 Enquire
14D165 LR043251
WIRING - REPAIR
From Connector C0122S To Connector C3346, Please Refer To Electrical Library In TOPIx, Wiring - Harness Repair / From: CA000001 		- 1 Enquire
14D165 LR043238
WIRING - REPAIR
Links Connectors: C2105, C2825, C2867, Please Refer To Electrical Library In TOPIx, Wiring - Harness Repair / From: CA000001 		- 1 Enquire
14D165 LR043255
WIRING - REPAIR
From Connector C0122T To Connector C3346, Please Refer To Electrical Library In TOPIx, Wiring - Harness Repair / From: CA000001 		- 1 Enquire
14D202 LR029566
WIRING - SOCKET
From: CA000001 		- 1 Enquire
18A919 LR030527
WIRE - RADIO FEED
Digital Audio Broadcast, Less Navigation System / From: CA000001 / To: DA786429 		- 1 Enquire
18A919 LR030529
WIRE - RADIO FEED
Less TV Receiver, Sirius Radio Broadcast, With Colour Nav. System NAS, With Provision For DVD Screen / From: CA000001 		- 1 Enquire
18A919 LR030535
WIRE - RADIO FEED
Less DVD Screen, Less TV Receiver, Sirius Radio Broadcast, With Colour Nav. System NAS / From: CA000001 		- 1 Enquire
18A919 LR030530
WIRE - RADIO FEED
Digital Audio Broadcast, Less TV Receiver, Navigation Centre - All, With Provision For DVD Screen / From: CA000001 / To: DA786429 		- 1 Enquire
18A919 LR030531
WIRE - RADIO FEED
HD Radio Broadcast, Less TV Receiver, Navigation Centre - All, With Provision For DVD Screen / From: CA000001 		- 1 Enquire
18A919 LR030533
WIRE - RADIO FEED
Digital Audio Broadcast, Less DVD Screen, Less TV Receiver, Navigation Centre - All / From: CA000001 / To: DA786429 		- 1 Enquire
18A919 LR030534
WIRE - RADIO FEED
HD Radio Broadcast, Less DVD Screen, Less TV Receiver, With Colour Nav. System NAS / From: CA000001 		- 1 Enquire
18A919 LR030536
WIRE - RADIO FEED
Digital Audio Broadcast, Navigation Centre - All, TV Receiver Hybrid-DVB-T & Analog, With Provision For DVD Screen / From: CA000001 		- 1 Enquire
18A919 LR030537
WIRE - RADIO FEED
Analogue Audio Broadcast, TV Receiver Hybrid-DVB-T & Analog, With Colour Nav. System NAS, With Provision For DVD Screen / From: CA000001 		- 1 Enquire
18A919 LR030538
WIRE - RADIO FEED
Digital Audio Broadcast, Less DVD Screen, Navigation Centre - All, TV Receiver Hybrid-DVB-T & Analog / From: CA000001 / To: DA786429 		- 1 Enquire
18A919 LR030539
WIRE - RADIO FEED
HD Radio Broadcast, Less DVD Screen, TV Receiver Hybrid-DVB-T & Analog, With Colour Nav. System NAS / From: CA000001 		- 1 Enquire
18A919 LR030528
WIRE - RADIO FEED
HD Radio Broadcast, Less Navigation System / From: CA000001 		- 1 Enquire
18A919 LR030526
WIRE - RADIO FEED
(+)"J", Nav System/Dynmc Route Guide-VICS, With Provision For DVD Screen / From: CA000001 		- 1 Enquire
18A919 LR030532
WIRE - RADIO FEED
(+)"J", Less DVD Screen, Nav System/Dynmc Route Guide-VICS / From: CA000001 		- 1 Enquire
18A919 LR030540
WIRE - RADIO FEED
Less TV Receiver, With Navigation Preparation, With Provision For DVD Screen / From: CA000001 		- 1 Enquire
18A919 LR030541
WIRE - RADIO FEED
Less DVD Screen, Less TV Receiver, With Navigation Preparation / From: CA000001 		- 1 Enquire
18A919 LR030542
WIRE - RADIO FEED
TV Receiver Hybrid-DVB-T & Analog, With Navigation Preparation, With Provision For DVD Screen / From: CA000001 		- 1 Enquire
18A919 LR030543
WIRE - RADIO FEED
Less DVD Screen, TV Receiver Hybrid-DVB-T & Analog, With Navigation Preparation / From: CA000001 		- 1 Enquire
18A919 LR047366
WIRE - RADIO FEED
Digital Audio Broadcast, Navigation Centre - All, Premium Audio 1280 W, TV Receiver - Digital, With Provision For DVD Screen / From: DA786430 		- 1 Enquire
18A919 LR047383
WIRE - RADIO FEED
Analogue Audio Broadcast, Navigation Centre - All, Premium Audio 1280 W, TV Receiver - Digital, With Provision For DVD Screen / From: DA786430 		- 1 Enquire
18A919 LR047367
WIRE - RADIO FEED
Analogue Audio Broadcast, Premium Audio 1280 W, TV Receiver - Digital, With Navigation Preparation, With Provision For DVD Screen / From: DA786430 		- 1 Enquire
18A919 LR047368
WIRE - RADIO FEED
Digital Audio Broadcast, Hi Line Audio System - 600 W, Less DVD Screen, Navigation Centre - All, TV Receiver - Digital / From: DA786430 		- 1 Enquire
18A919 LR047369
WIRE - RADIO FEED
HD Radio Broadcast, Less DVD Screen, Navigation Centre - All, Premium Audio 1280 W, TV Receiver - Digital / From: DA786430 		- 1 Enquire
18A919 LR047376
WIRE - RADIO FEED
Analogue Audio Broadcast, Less DVD Screen, Navigation Centre - Asia, Premium Audio 1280 W, TV Receiver - Digital / From: DA786430 		- 1 Enquire
18A919 LR047378
WIRE - RADIO FEED
Digital Audio Broadcast, Less DVD Screen, Less Navigation System, Less TV Receiver, Premium Audio 1280 W / From: DA786430 		- 1 Enquire
18A919 LR047380
WIRE - RADIO FEED
Digital Audio Broadcast, Hi Line Audio System - 600 W, Less TV Receiver, Navigation Centre - All, With Provision For DVD Screen / From: DA786430 		- 1 Enquire
18A919 LR047377
WIRE - RADIO FEED
Digital Audio Broadcast, Less DVD Screen, Less TV Receiver, Navigation Centre - All, Premium Audio 1280 W / From: DA786430 		- 1 Enquire
18A919 LR047381
WIRE - RADIO FEED
Digital Audio Broadcast, Hi Line Audio System - 600 W, Navigation Centre - Asia, TV Receiver Hybrid-DVB-T & Analog, With Provision For DVD Screen / From: DA786430 		- 1 Enquire
18A919 LR047382
WIRE - RADIO FEED
Digital Audio Broadcast, Less DVD Screen, Navigation Centre - All, Premium Audio 1280 W, TV Receiver Hybrid-DVB-T & Analog / From: DA786430 		- 1 Enquire
18C620 LR030545
WIRING - ROOF
With Wireless Headphones / From: CA000001 		- 1 Enquire
18W862 LR030319
WIRE - RADIO FEED
Less Camera System, Less DVD Screen, Less Navigation System, Less TV Receiver / From: CA000001 / To: CA735770 		- 1 Enquire
18W862 LR030321
WIRE - RADIO FEED
Less Camera System, Less DVD Screen, Less TV Receiver, Navigation Centre - All / From: CA000001 / To: CA735770 		- 1 Enquire
18W862 LR030322
WIRE - RADIO FEED
Less Camera System, TV Receiver Hybrid-DVB-T & Analog, With Provision For DVD Screen / From: CA000001 / To: CA735770 		- 1 Enquire
18W862 LR030323
WIRE - RADIO FEED
Less DVD Screen, Less TV Receiver, Navigation Centre - All, Rear View Camera-Fixed / From: CA000001 / To: CA735770 		- 1 Enquire
18W862 LR030324
WIRE - RADIO FEED
Surround Camera System, TV Receiver Hybrid-DVB-T & Analog, With Provision For DVD Screen / From: CA000001 / To: CA735770 		- 1 Enquire
18W862 LR030325
WIRE - RADIO FEED
Less Camera System, Less DVD Screen, TV Receiver Hybrid-DVB-T & Analog / From: CA000001 / To: CA735770 		- 1 Enquire
18W862 LR030326
WIRE - RADIO FEED
Less DVD Screen, Surround Camera System, TV Receiver Hybrid-DVB-T & Analog / From: CA000001 / To: CA735770 		- 1 Enquire
18W862 LR030320
WIRE - RADIO FEED
Less DVD Screen, Less Navigation System, Less TV Receiver, Rear View Camera-Fixed / From: CA000001 / To: CA735770 		- 1 Enquire
18W862 LR030327
WIRE - RADIO FEED
Less Camera System, Less TV Receiver, With Provision For DVD Screen / From: CA000001 / To: CA735770 		- 1 Enquire
18W862 LR030328
WIRE - RADIO FEED
Less TV Receiver, Rear View Camera-Fixed, With Provision For DVD Screen / From: CA000001 / To: CA735770 		- 1 Enquire
18W862 LR038488
WIRE - RADIO FEED
Less Camera System, Less DVD Screen, Less TV Receiver, With Navigation Preparation / From: CA735771 		- 1 Enquire
18W862 LR038489
WIRE - RADIO FEED
Less Camera System, Less DVD Screen, Less TV Receiver, With Colour Nav. System NAS / From: CA735771 		- 1 Enquire
18W862 LR038490
WIRE - RADIO FEED
Less Camera System, With Provision For DVD Screen / From: CA735771 		- 1 Enquire
18W862 LR038491
WIRE - RADIO FEED
Less DVD Screen, Less TV Receiver, Navigation Centre - All, Surround Camera System / From: CA735771 		- 1 Enquire
18W862 LR038492
WIRE - RADIO FEED
Surround Camera System, With Provision For DVD Screen / From: CA735771 		- 1 Enquire
18W862 LR038493
WIRE - RADIO FEED
Less Camera System, Less DVD Screen, TV Receiver - Digital / From: CA735771 		- 1 Enquire
18W862 LR038494
WIRE - RADIO FEED
Less DVD Screen, Rear View Camera-Fixed, TV Receiver Hybrid-DVB-T & Analog / From: CA735771 		- 1 Enquire
18W862 LR038496
WIRE - RADIO FEED
Less DVD Screen, Less TV Receiver, Navigation Centre - Asia, Rear View Camera-Fixed / From: CA735771 		- 1 Enquire
18W862 LR061703
Wiring
Less Camera System, Less Navigation System, Premium Audio 1280 W, With Provision For DVD Screen / From: DA000001 		- 1 Enquire
18W862 LR061704
Wiring
Hi Line Audio System - 600 W, Less Navigation System, Surround Camera System, With Provision For DVD Screen / From: DA000001 		- 1 Enquire
18W862 LR061702
Wiring
Hi Line Audio System - 600 W, Less Camera System, Less DVD Screen, Less Navigation System, TV Receiver Hybrid-DVB-T & Analog / From: DA000001 		- 1 Enquire
18W862 LR061701
Wiring
Less DVD Screen, Less Navigation System, Premium Audio 1280 W, Surround Camera System, TV Receiver Hybrid-DVB-T & Analog / From: DA000001 		- 1 Enquire
19H446 LR054936
KIT - IPOD
From: CA000001 		- 1 Enquire
