Headlamps And Front Flasher Lamps ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] - Headlamps And Front Flasher Lamps ((V) FROMAA000001)

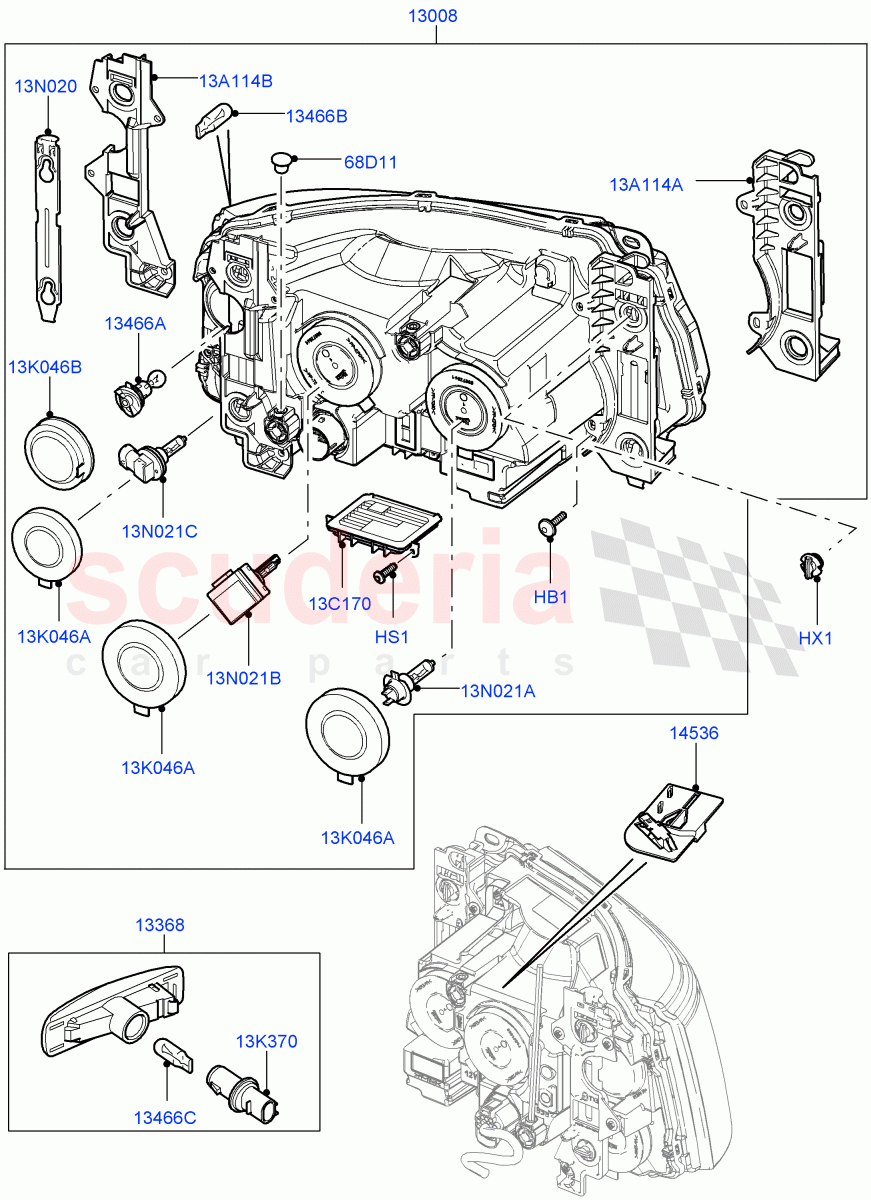

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
XYG500040 BOLT - FLANGED HEX. $1.86 To Order
Photo Part No Description Price (each) Stock
LR011326 SCREW - PAN - TORX $1.09 To Order
Photo Part No Description Price (each) Stock
XZM500013 RETAINER $0.70 To Order
Photo Part No Description Price (each) Stock
LR015074 HEADLAMP AND FLASHER $1,259.42 To Order
LR015080 HEADLAMP AND FLASHER $1,259.42 To Order
LR015097 HEADLAMP AND FLASHER $1,259.42 To Order
...and 45 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR007954 LAMP - FLASHER $73.08 To Order
Photo Part No Description Price (each) Stock
ABU780380 BRACKET - WIRING $6.56 To Order
Photo Part No Description Price (each) Stock
LR025160 CAP - SCREW $0.96 To Order
Photo Part No Description Price (each) Stock
LR015296 BULB - FLASHER LAMP $44.42 To Order
Photo Part No Description Price (each) Stock
XZQ000080 BULB $2.05 To Order
Photo Part No Description Price (each) Stock
LR007107 BULB $8.79 To Order
Photo Part No Description Price (each) Stock
LR014114 BALLAST - HEADLAMP $213.81 To Order
Photo Part No Description Price (each) Stock
YAJ000050 HOLDER - BULB $20.29 To Order
Photo Part No Description Price (each) Stock
XBU500011 RETAINER - HEADLAMP ADJUSTING $10.17 To Order
Photo Part No Description Price (each) Stock
LR014115 BRACKET - HEADLAMP MOUNTING $41.95 To Order
LR014118 BRACKET - HEADLAMP MOUNTING $41.95 To Order
Photo Part No Description Price (each) Stock
LR014116 BRACKET - HEADLAMP MOUNTING $41.95 To Order
LR014119 BRACKET - HEADLAMP MOUNTING $41.95 To Order
Photo Part No Description Price (each) Stock
LR015106 COVER - BULB $24.31 To Order
Photo Part No Description Price (each) Stock
LR015107 COVER - BULB $24.31 To Order
Photo Part No Description Price (each) Stock
LR000703 BULB $15.92 To Order
Photo Part No Description Price (each) Stock
LR009163 BULB - HEADLAMP MAIN BEAM $252.40 IN STOCK
Photo Part No Description Price (each) Stock
LR010353 BULB $29.57 To Order
View All
Headlamps And Front Flasher Lamps ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 XYG500040
BOLT - FLANGED HEX.
Headlamp, Mounting Bracket / From: AA000001 		$1.86 14
HS1 LR011326
SCREW - PAN - TORX
Ballast Assy, Lighting Module, M4 x 16MM / From: AA000001 		$1.09 2
HX1 XZM500013
RETAINER
1/4 Turn Click Type / From: AA000001 		$0.70 8
13A114A LR014115
BRACKET - HEADLAMP MOUNTING
RH, Inboard / From: AA000001 		$41.95 2
13A114A LR014118
BRACKET - HEADLAMP MOUNTING
LH, Inboard / From: AA000001 		$41.95 2
13A114B LR014116
BRACKET - HEADLAMP MOUNTING
RH, Outboard / From: AA000001 		$41.95 2
13A114B LR014119
BRACKET - HEADLAMP MOUNTING
LH, Outboard / From: AA000001 		$41.95 2
13C170 LR014114
BALLAST - HEADLAMP
Lighting Module / From: AA000001 		$213.81 2
13K046A LR015106
COVER - BULB
For Cornering Lamp, For Headlamp High/Low Beam / From: AA000001 		$24.31 6
13K046B LR015107
COVER - BULB
For Front Indicator Lamp / From: AA000001 		$24.31 2
13K370 YAJ000050
HOLDER - BULB
Side Repeater / From: AA000001 		$20.29 2
13N020 XBU500011
RETAINER - HEADLAMP ADJUSTING
Quick Release Latch / From: AA000001 		$10.17 4
13N021A LR000703
BULB
H7 12V 55W, High Beam / From: AA000001 		$15.92 -
13N021B LR009163
BULB - HEADLAMP MAIN BEAM
D3S, High Intensity Discharge, Low Beam, With Ignitor / From: AA000001
IN STOCK 		$252.40 -
13N021C LR010353
BULB
For Cornering Lamp, H8 12V 35W / From: AA000001 		$29.57 -
68D11 LR025160
CAP - SCREW
(+)"CDN/MEX/USA" / From: AA000001 		$0.96 2
13008 LR015074
HEADLAMP AND FLASHER
LHD, With Adaptive BI-Xenon Headlamp NAS / RH / From: AA000001 / To: AA258288 		$1,259.42 1
13008 LR015080
HEADLAMP AND FLASHER
LHD, With Xenon Headlamps - NAS / RH / From: AA000001 / To: AA258288 		$1,259.42 1
13008 LR015097
HEADLAMP AND FLASHER
LHD, With Adaptive Headlamps Bi Xenon / RH / From: AA000001 / To: AA258288 		$1,259.42 1
13008 LR015088
HEADLAMP AND FLASHER
RHD, With BI - Xenon Headlamps / RH, (+)"ROW" / From: AA000001 / To: AA258288 		$1,694.59 1
13008 LR015091
HEADLAMP AND FLASHER
LHD, With BI - Xenon Headlamps / RH / From: AA000001 / To: AA258288 		$1,694.59 1
13008 LR015093
HEADLAMP AND FLASHER
RHD, With Adaptive Headlamps Bi Xenon / RH, (+)"ROW" / From: AA000001 / To: AA258288 		$1,694.59 1
13008 LR015090
HEADLAMP AND FLASHER
RHD, With BI - Xenon Headlamps / LH, (+)"ROW" / From: AA000001 / To: AA258288 		$1,694.59 1
13008 LR015092
HEADLAMP AND FLASHER
LHD, With BI - Xenon Headlamps / LH / From: AA000001 / To: AA258288 		$1,694.59 1
13008 LR015095
HEADLAMP AND FLASHER
RHD, With Adaptive Headlamps Bi Xenon / LH, (+)"ROW" / From: AA000001 / To: AA258288 		$1,694.59 1
13008 LR015098
HEADLAMP AND FLASHER
LHD, With Adaptive Headlamps Bi Xenon / LH / From: AA000001 / To: AA258288 		$1,259.42 1
13008 LR015082
HEADLAMP AND FLASHER
LHD, With Xenon Headlamps - NAS / LH / From: AA000001 / To: AA258288 		$1,259.42 1
13008 LR015077
HEADLAMP AND FLASHER
LHD, With Adaptive BI-Xenon Headlamp NAS / LH / From: AA000001 / To: AA258288 		$1,259.42 1
13008 LR023553
HEADLAMP AND FLASHER
RHD, With BI - Xenon Headlamps / RH, (+)"ROW" / From: AA258289 / To: BA999999 		$1,579.08 1
13008 LR023551
HEADLAMP AND FLASHER
LHD, With BI - Xenon Headlamps / RH / From: AA258289 / To: BA999999 		$1,760.68 1
13008 LR023557
HEADLAMP AND FLASHER
RHD, With Adaptive Headlamps Bi Xenon / RH, (+)"ROW" / From: AA258289 / To: BA999999 		$1,967.96 1
13008 LR023555
HEADLAMP AND FLASHER
LHD, With Adaptive Headlamps Bi Xenon / RH / From: AA258289 / To: BA999999 		$2,031.55 1
13008 LR023549
HEADLAMP AND FLASHER
LHD, With Xenon Headlamps - NAS / RH / From: AA258289 / To: BA289500 		$1,319.43 1
13008 LR023559
HEADLAMP AND FLASHER
LHD, With Adaptive BI-Xenon Headlamp NAS / RH / From: AA258289 / To: BA273945 		$1,319.43 1
13008 LR023554
HEADLAMP AND FLASHER
RHD, With BI - Xenon Headlamps / LH, (+)"ROW" / From: AA258289 / To: BA999999 		$1,760.68 1
13008 LR023552
HEADLAMP AND FLASHER
LHD, With BI - Xenon Headlamps / LH / From: AA258289 / To: BA999999 		$1,760.68 1
13008 LR023558
HEADLAMP AND FLASHER
RHD, With Adaptive Headlamps Bi Xenon / LH, (+)"ROW" / From: AA258289 / To: BA999999 		$1,967.96 1
13008 LR023556
HEADLAMP AND FLASHER
LHD, With Adaptive Headlamps Bi Xenon / LH / From: AA258289 / To: BA999999 		$2,031.55 1
13008 LR023550
HEADLAMP AND FLASHER
LHD, With Xenon Headlamps - NAS / LH / From: AA258289 / To: BA289500 		$1,319.43 1
13008 LR023560
HEADLAMP AND FLASHER
LHD, With Adaptive BI-Xenon Headlamp NAS / LH / From: AA258289 / To: BA273945 		$1,319.43 1
13008 LR029340
HEADLAMP AND FLASHER
LHD, With Adaptive BI-Xenon Headlamp NAS / LH / From: BA273946 / To: BA999999 		$1,822.03 1
13008 LR029338
HEADLAMP AND FLASHER
LHD, With Adaptive BI-Xenon Headlamp NAS / RH / From: BA273946 / To: BA999999 		$2,031.55 1
13008 LR030754
HEADLAMP AND FLASHER
RHD, With BI - Xenon Headlamps, With Cornering Lamp / RH, (+)"ROW" / From: CA000001 		$2,112.82 1
13008 LR030755
HEADLAMP AND FLASHER
LHD, With BI - Xenon Headlamps, With Cornering Lamp / RH / From: CA000001 		$2,112.82 1
13008 LR030791
HEADLAMP AND FLASHER
LHD, Less Cornering Lamp, With Xenon Headlamps - NAS / RH / From: CA000001 		$1,894.90 1
13008 LR030756
HEADLAMP AND FLASHER
RHD, With Adaptive Headlamps Bi Xenon / RH, (+)"ROW" / From: CA000001 		$2,356.58 1
13008 LR030757
HEADLAMP AND FLASHER
LHD, With Adaptive Headlamps Bi Xenon / RH / From: CA000001 		$2,356.58 1
13008 LR030792
HEADLAMP AND FLASHER
LHD, With Adaptive BI-Xenon Headlamp NAS / RH / From: CA000001 		$2,356.58 1
13008 LR030758
HEADLAMP AND FLASHER
RHD, With BI - Xenon Headlamps, With Cornering Lamp / LH, (+)"ROW" / From: CA000001 		$2,112.82 1
13008 LR030759
HEADLAMP AND FLASHER
LHD, With BI - Xenon Headlamps, With Cornering Lamp / LH / From: CA000001 		$2,112.82 1
13008 LR030793
HEADLAMP AND FLASHER
LHD, Less Cornering Lamp, With Xenon Headlamps - NAS / LH / From: CA000001 		$2,112.82 1
13008 LR030760
HEADLAMP AND FLASHER
RHD, With Adaptive Headlamps Bi Xenon / LH, (+)"ROW" / From: CA000001 		$2,356.58 1
13008 LR030761
HEADLAMP AND FLASHER
LHD, With Adaptive Headlamps Bi Xenon / LH / From: CA000001 		$2,113.55 1
13008 LR030794
HEADLAMP AND FLASHER
LHD, With Adaptive BI-Xenon Headlamp NAS / LH / From: CA000001 		$2,356.58 1
13008 LR029604
HEADLAMP AND FLASHER
LHD, With Xenon Headlamps - NAS / RH / From: BA289501 / To: BA999999 		$2,031.55 1
13008 LR029654
HEADLAMP AND FLASHER
LHD, With Xenon Headlamps - NAS / LH / From: BA289501 / To: BA999999 		$2,031.55 1
13008 LR084906
Headlamp
RHD, With BI - Xenon Headlamps / RH, Fixes Sunburn Failure - Japan Market Only / From: AA212145 / To: BA999999 		$1,354.86 1
13008 LR084907
Headlamp
RHD, With Adaptive Headlamps Bi Xenon / RH, Fixes Sunburn Failure - Japan Market Only / From: AA212145 / To: BA999999 		$810.08 1
13008 LR084909
Headlamp
RHD, With BI - Xenon Headlamps / LH, Fixes Sunburn Failure - Japan Market Only / From: AA212145 / To: BA999999 		$662.13 1
13008 LR084908
Headlamp
RHD, With Adaptive Headlamps Bi Xenon / LH, Fixes Sunburn Failure - Japan Market Only / From: AA212145 / To: BA999999 		$1,657.61 1
13008 LR084913
Headlamp
RHD, With BI - Xenon Headlamps, With Cornering Lamp / LH, Fixes Sunburn Failure - Japan Market Only / From: CA000001 / To: DA999999 		$1,506.24 1
13008 LR084912
Headlamp
RHD, With Adaptive Headlamps Bi Xenon / LH, Fixes Sunburn Failure - Japan Market Only / From: CA000001 / To: DA999999 		$1,657.61 1
13008 LR084910
Headlamp
RHD, With BI - Xenon Headlamps, With Cornering Lamp / RH, Fixes Sunburn Failure - Japan Market Only / From: CA000001 / To: DA999999 		$1,506.24 1
13008 LR084911
Headlamp
RHD, With Adaptive Headlamps Bi Xenon / RH, Fixes Sunburn Failure - Japan Market Only / From: CA000001 / To: DA999999 		$1,657.61 1
13368 LR007954
LAMP - FLASHER
Side Repeater / From: AA000001 		$73.08 2
13466A LR015296
BULB - FLASHER LAMP
For Front Indicator Lamp, PSY24W / From: AA000001 		$44.42 -
13466B XZQ000080
BULB
With Xenon Headlamps - NAS / 12V 3W, Headlamp, Side Marker / From: AA000001 		$2.05 -
13466C LR007107
BULB
12V-5W, Amber, Side Repeater, WY5W / From: AA000001 		$8.79 -
14536 ABU780380
BRACKET - WIRING
From: AA000001 		$6.56 1
