Speakers (Hi Line Audio System - 600 W, Hi Ice Branded, Midline Sound System) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] - Speakers (Hi Line Audio System - 600 W, Hi ICE Branded, Midline Sound System) ((V) FROMAA000001)

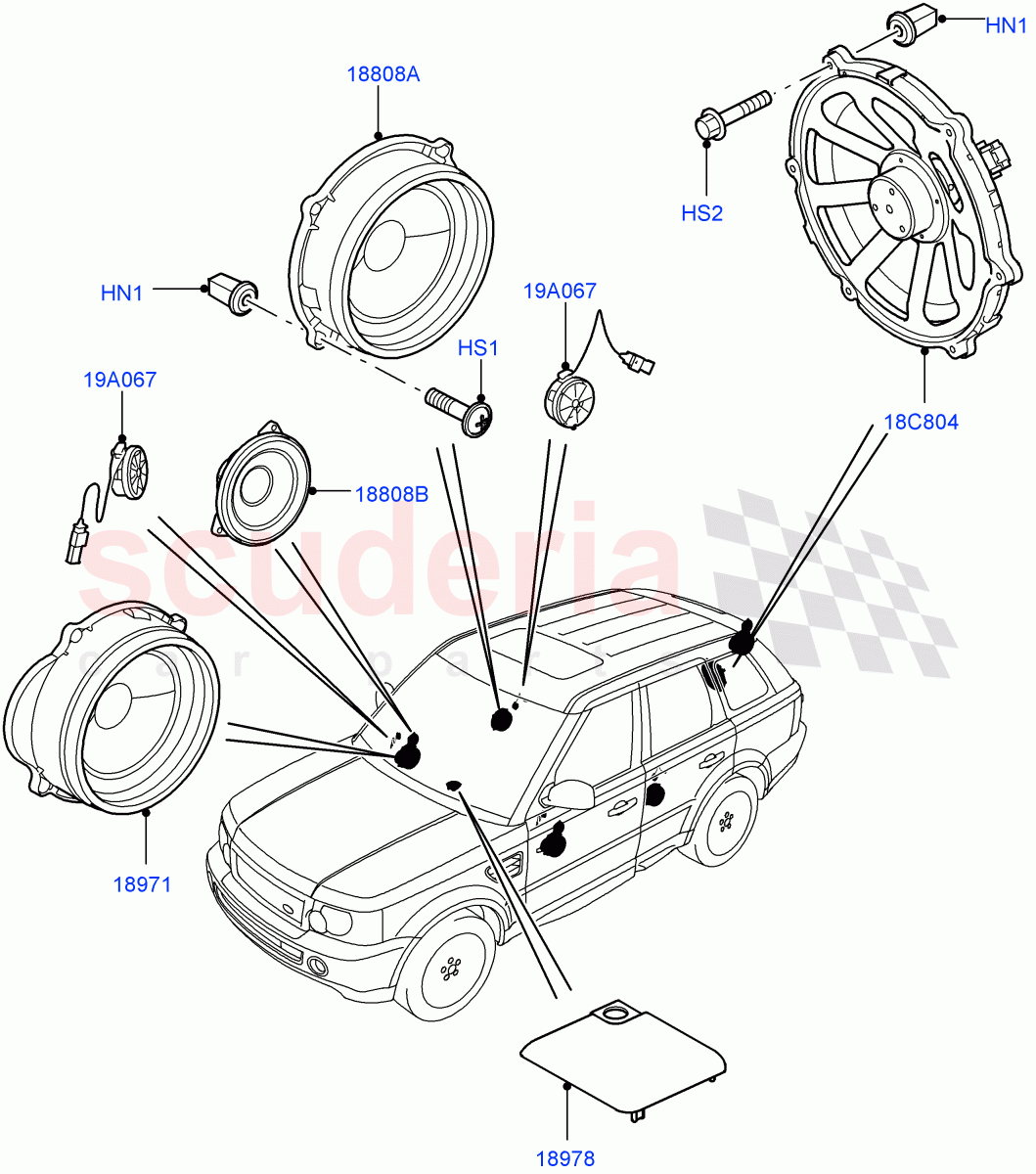

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYH500840 NUT Enquire To Order
Photo Part No Description Price (each) Stock
DA608064L SCREW - SELF-TAPPING Enquire To Order
Photo Part No Description Price (each) Stock
EYP000020 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
XQM500500 SPEAKER Enquire To Order
LR029721 SPEAKER Enquire To Order
Photo Part No Description Price (each) Stock
LR018984 GRILLE - SPEAKER Enquire To Order
Photo Part No Description Price (each) Stock
XQM500510 SPEAKER Enquire To Order
LR029720 SPEAKER Enquire To Order
Photo Part No Description Price (each) Stock
LR029719 SPEAKER Enquire To Order
Photo Part No Description Price (each) Stock
LR029722 SUBWOOFER Enquire To Order
XQA500120 WOOFER Enquire To Order
Photo Part No Description Price (each) Stock
XQN500010 SPEAKER Enquire To Order
LR029723 SPEAKER Enquire To Order
View All
Speakers (Hi Line Audio System - 600 W, Hi ICE Branded, Midline Sound System) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 RYH500840
NUT
8.3MM, Speaker - Subwoofer / From: AA000001 		- 6 Enquire
HS1 DA608064L
SCREW - SELF-TAPPING
No.8 X 19, Self Tapping, Speaker - Door (Front), Speaker - Door (Rear) / From: AA000001 		- - Enquire
HS2 EYP000020
SCREW
Speaker - Subwoofer, Torx / From: AA000001 		- 6 Enquire
18C804 LR029722
SUBWOOFER
From: CA000001 		- 1 Enquire
18C804 XQA500120
WOOFER
From: AA000001 / To: BA999999 		- 1 Enquire
19A067 XQN500010
SPEAKER
Front And Rear Door, Tweeter / From: AA000001 / To: BA999999 		- 4 Enquire
19A067 LR029723
SPEAKER
Front And Rear Door, Tweeter / From: CA000001 		- 4 Enquire
18808A XQM500510
SPEAKER
Mid Range, Rear Door / From: AA000001 / To: BA999999 		- 2 Enquire
18808A LR029720
SPEAKER
Rear Door, Woofer / From: CA000001 		- 2 Enquire
18808B LR029719
SPEAKER
Front Door, Mid Range / From: CA000001 		- 2 Enquire
18971 XQM500500
SPEAKER
Front Door, Mid Range / From: AA000001 / To: BA999999 		- 2 Enquire
18971 LR029721
SPEAKER
Front Door, Woofer / From: CA000001 		- 2 Enquire
18978 LR018984
GRILLE - SPEAKER
Ebony Black, Fascia Only / From: AA000001 		- 1 Enquire
