Name: Plugs - Floor Pan ((V) TO9A999999)
Rating: 4.7 (1 reviews)

View All

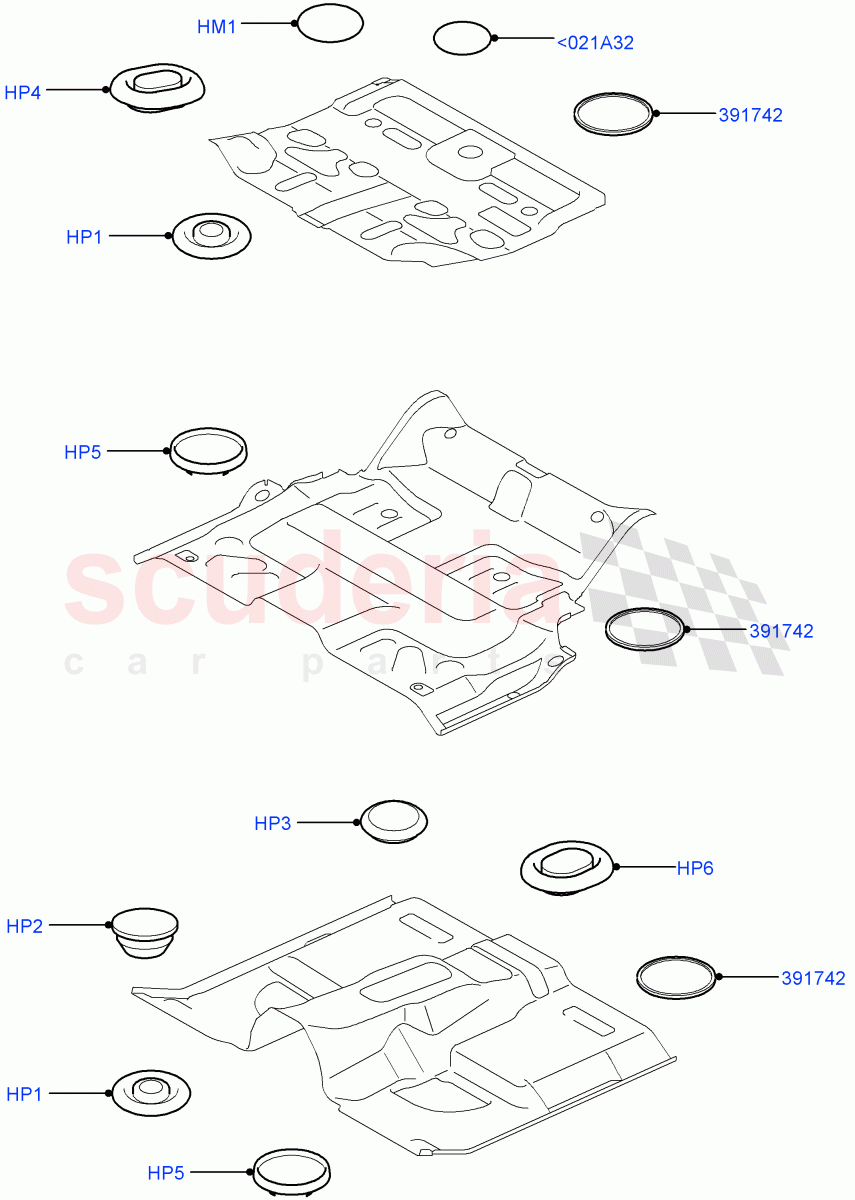

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	DBP6286	Hardware - Miscellaneous	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYB000030	PLUG - BODY SEALING	$1.08	To Order

Photo	Part No	Description	Price (each)	Stock
	AYB500040	PLUG - BODY SEALING	$0.89	To Order

Photo	Part No	Description	Price (each)	Stock
	AYB100760	PLUG - BLANKING	$0.73	To Order

Photo	Part No	Description	Price (each)	Stock
	AYB100770	PLUG	$1.49	To Order

Photo	Part No	Description	Price (each)	Stock
	BNP3996	SEAL - COVER	$2.89	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<021A32	BNP3996	SEAL - COVER	BNP3996 SEAL - COVER 30MM, Luggage Compartment Floor	$2.89	2
HM1	DBP6286	Hardware - Miscellaneous	DBP6286 Hardware - Miscellaneous Luggage Compartment Floor,	-	2	Enquire
HP1	AYB500050	PLUG	AYB500050 PLUG 25MM, Luggage Compartment Floor, Side	$2.01	2
HP1	AYB500050	PLUG	AYB500050 PLUG 25MM, Main Floor	$2.01	3
HP2	AYB000030	PLUG - BODY SEALING	AYB000030 PLUG - BODY SEALING 12MM, Main Floor	$1.08	2
HP3	AYB500040	PLUG - BODY SEALING	AYB500040 PLUG - BODY SEALING 33MM, Main Floor	$0.89	2
HP4	AYB100760	PLUG - BLANKING	AYB100760 PLUG - BLANKING 18MM x 24MM, Luggage Compartment Floor, Side	$0.73	2
HP5	ALR2246	PLUG - BLANKING	ALR2246 PLUG - BLANKING LH, 25.4MM, Main Floor	$0.73	1
HP5	ALR2246	PLUG - BLANKING	ALR2246 PLUG - BLANKING 25.4MM, Mid Floor	$0.73	6
HP6	AYB100770	PLUG	AYB100770 PLUG 25 X 30MM, Main Floor	$1.49	2
391742	ALR2245	PLUG	ALR2245 PLUG 50MM, Main Floor	$1.99	3
391742	ALR2245	PLUG	ALR2245 PLUG 50MM, Mid Floor	$1.99	2

Plugs - Floor Pan ((V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8]
