Rear Door Lock Controls ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8]

View All

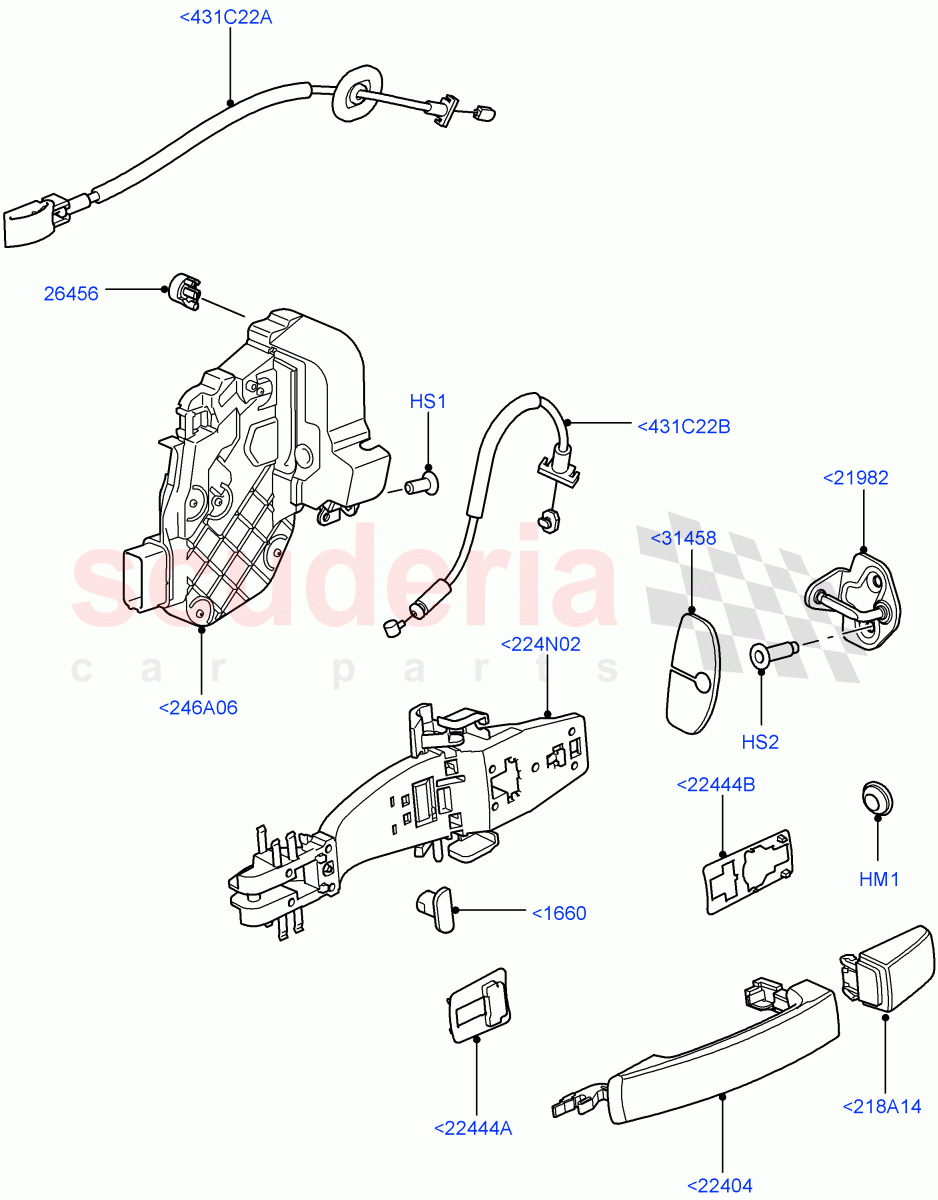

Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8] - Rear Door Lock Controls ((V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	ALR5073	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FYP500010	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FYP500020	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ABS780144	SPACER	Enquire	To Order
	ABS780145	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FPE500060	LEVER	Enquire	To Order
	FPE500070	LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FQB500041PMA	STRIKER - DOOR LOCKING MECHANISM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CXA000015LEP	HANDLE - DOOR - OUTER	Enquire	To Order
	CXA000016LEP	HANDLE - DOOR - OUTER	Enquire	To Order
	CXA500010LEP	HANDLE ASSY - DOOR - OUTER	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	FQW500022PMA	COVER - DOOR INSIDE HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CXJ500025LEP	CAP - HANDLE	Enquire	To Order
	CXJ500025LEP	CAP - HANDLE	Enquire	To Order
	CXJ500040LEP	CAP - HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CXE500020	GASKET	Enquire	To Order
	CXE500050	GASKET - DOOR HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CXE500013	GASKET	Enquire	To Order
	CXE500040	GASKET - DOOR HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CXF500033	REINFORCEMENT	Enquire	To Order
	CXF500043	REINFORCEMENT	Enquire	To Order
	CXF500034	REINFORCEMENT	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	FQM000144	LATCH	Enquire	To Order
	FQM000154	LATCH	Enquire	To Order
	FQM500081	LATCH	Enquire	To Order

...and 29 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	FQZ500193	CABLE	Enquire	To Order
	FQZ500330	CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FQZ500152	CABLE	Enquire	To Order
	FQZ500153	CABLE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<218A14	CXJ500025LEP	CAP - HANDLE	CXJ500025LEP CAP - HANDLE RH/LH, Tungsten / To: 5A900385	-	2	Enquire
<218A14	CXJ500025LEP	CAP - HANDLE	CXJ500025LEP CAP - HANDLE RH/LH, Tungsten / From: 5A900386 / To: 6A955389	-	2	Enquire
<218A14	CXJ500040LEP	CAP - HANDLE	CXJ500040LEP CAP - HANDLE RH/LH, Tungsten / From: 6A955390	-	2	Enquire
<224N02	CXF500033	REINFORCEMENT	CXF500033 REINFORCEMENT LH, Handle / To: 5A902899	-	1	Enquire
<224N02	CXF500043	REINFORCEMENT	CXF500043 REINFORCEMENT RH, Handle / To: 5A902899	-	1	Enquire
<224N02	CXF500034	REINFORCEMENT	CXF500034 REINFORCEMENT LH, Handle / From: 5A902900 / To: 6A954999	-	1	Enquire
<224N02	CXF500044	REINFORCEMENT	CXF500044 REINFORCEMENT RH, Handle / From: 5A902900 / To: 6A954999	-	1	Enquire
<224N02	CXF500070	REINFORCEMENT	CXF500070 REINFORCEMENT LH, Handle / From: 6A955000	-	1	Enquire
<224N02	CXF500140	REINFORCEMENT	CXF500140 REINFORCEMENT RH, Handle / From: 6A955000	-	1	Enquire
<246A06	FQM000144	LATCH	FQM000144 LATCH 433 MHZ Door Lock Frequency, Double Locking Power Lock Latch / RH / To: 5A902899	-	1	Enquire
<246A06	FQM000154	LATCH	FQM000154 LATCH 433 MHZ Door Lock Frequency, Double Locking Power Lock Latch / LH / To: 5A902899	-	1	Enquire
<246A06	FQM500081	LATCH	FQM500081 LATCH 315 MHZ Door Lock Frequency, Single Locking Power Lock Latch / RH / To: 5A902899	-	1	Enquire
<246A06	FQM500091	LATCH	FQM500091 LATCH 315 MHZ Door Lock Frequency, Single Locking Power Lock Latch / LH / To: 5A902899	-	1	Enquire
<246A06	FQM000145	LATCH	FQM000145 LATCH 433 MHZ Door Lock Frequency, Double Locking Power Lock Latch / RH / From: 5A902900 / To: 6A915545	-	1	Enquire
<246A06	FQM000155	LATCH	FQM000155 LATCH 433 MHZ Door Lock Frequency, Double Locking Power Lock Latch / LH / From: 5A902900 / To: 6A915545	-	1	Enquire
<246A06	FQM500082	LATCH	FQM500082 LATCH 315 MHZ Door Lock Frequency, Single Locking Power Lock Latch / RH / From: 5A902900 / To: 6A915545	-	1	Enquire
<246A06	FQM500092	LATCH	FQM500092 LATCH 315 MHZ Door Lock Frequency, Single Locking Power Lock Latch / LH / From: 5A902900 / To: 6A915545	-	1	Enquire
<246A06	FQM000146	LATCH	FQM000146 LATCH 433 MHZ Door Lock Frequency, Double Locking Power Lock Latch / RH / From: 6A915546 / To: 6A954999	-	1	Enquire
<246A06	FQM000156	LATCH	FQM000156 LATCH 433 MHZ Door Lock Frequency, Double Locking Power Lock Latch / LH / From: 6A915546 / To: 6A954999	-	1	Enquire
<246A06	FQM500083	LATCH	FQM500083 LATCH 315 Low MHZ Door Lock Frequency, Single Locking Power Lock Latch / RH / From: 6A915546 / To: 6A954999	-	1	Enquire
<246A06	FQM500093	LATCH	FQM500093 LATCH 315 Low MHZ Door Lock Frequency, Single Locking Power Lock Latch / LH / From: 6A915546 / To: 6A954999	-	1	Enquire
<246A06	FQM000148	LATCH	FQM000148 LATCH 433 MHZ Door Lock Frequency, Double Locking Power Lock Latch / RH / From: 6A955000 / To: 8A149820	-	1	Enquire
<246A06	FQM000158	LATCH	FQM000158 LATCH 433 MHZ Door Lock Frequency, Double Locking Power Lock Latch / LH / From: 6A955000 / To: 8A149820	-	1	Enquire
<246A06	FQM500085	LATCH	FQM500085 LATCH 315 MHZ Door Lock Frequency, Single Locking Power Lock Latch / RH / From: 6A955000 / To: 6A999999	-	1	Enquire
<246A06	FQM500095	LATCH	FQM500095 LATCH 315 MHZ Door Lock Frequency, Single Locking Power Lock Latch / LH / From: 6A955000 / To: 6A999999	-	1	Enquire
<246A06	FQM500290	LATCH	FQM500290 LATCH 433 MHZ Door Lock Frequency, Less Door Lock Shields / LH / From: 7A997618 / To: 8A149840	-	1	Enquire
<246A06	FQM500280	LATCH	FQM500280 LATCH 433 MHZ Door Lock Frequency, Less Door Lock Shields / RH / From: 7A997618 / To: 8A149840	-	1	Enquire
<246A06	FQM500360	LATCH	FQM500360 LATCH 433 MHZ Door Lock Frequency, Less Door Lock Shields / RH / From: 8A149841 / To: 9A194421	-	1	Enquire
<246A06	FQM500370	LATCH	FQM500370 LATCH 433 MHZ Door Lock Frequency, Less Door Lock Shields / LH / From: 8A149841 / To: 9A194421	-	1	Enquire
<246A06	FQM500210	LATCH	FQM500210 LATCH 315 MHZ Door Lock Frequency, With Central Locking System / LH / From: 8A000001 / To: 8A149840	-	1	Enquire
<246A06	FQM500320	LATCH	FQM500320 LATCH 433 MHZ Door Lock Frequency, Double Locking Power Lock Latch / RH / From: 8A149821	-	1	Enquire
<246A06	FQM500380	LATCH	FQM500380 LATCH 315 MHZ Door Lock Frequency, Single Locking Power Lock Latch / RH / From: 7A000001 / To: 7A999999	-	1	Enquire
<246A06	FQM500330	LATCH	FQM500330 LATCH 433 MHZ Door Lock Frequency, Double Locking Power Lock Latch / LH / From: 8A149821	-	1	Enquire
<246A06	FQM500390	LATCH	FQM500390 LATCH 315 MHZ Door Lock Frequency, Single Locking Power Lock Latch / LH / From: 7A000001 / To: 7A999999	-	1	Enquire
<246A06	FQM500200	LATCH	FQM500200 LATCH 315 MHZ Door Lock Frequency / RH / From: 8A000001 / To: 8A149840	-	1	Enquire
<246A06	FQM500340	LATCH	FQM500340 LATCH 315 MHZ Door Lock Frequency / RH / From: 8A149841 / To: 9A215634	-	1	Enquire
<246A06	FQM500350	LATCH	FQM500350 LATCH 315 MHZ Door Lock Frequency / LH / From: 8A149841 / To: 9A215634	-	1	Enquire
<246A06	LR011303	LATCH - REAR DOOR	LR011303 LATCH - REAR DOOR 433 MHZ Door Lock Frequency, Less Door Lock Shields / LH / From: 9A194422	-	1	Enquire
<246A06	LR011302	LATCH - REAR DOOR	LR011302 LATCH - REAR DOOR 433 MHZ Door Lock Frequency, Less Door Lock Shields / RH / From: 9A194422	-	1	Enquire
<246A06	LR011304	LATCH - REAR DOOR	LR011304 LATCH - REAR DOOR 315 MHZ Door Lock Frequency, Single Locking Power Lock Latch / RH / From: 9A215635	-	1	Enquire
<246A06	LR011305	LATCH - REAR DOOR	LR011305 LATCH - REAR DOOR 315 MHZ Door Lock Frequency, Single Locking Power Lock Latch / LH / From: 9A215635	-	1	Enquire
<431C22A	FQZ500193	CABLE	FQZ500193 CABLE Door Release Control, Internal / To: 8A149839	-	2	Enquire
<431C22A	FQZ500330	CABLE	FQZ500330 CABLE Door Release Control, Internal / From: 8A149840	-	1	Enquire
<431C22B	FQZ500152	CABLE	FQZ500152 CABLE Door Release Control, Exterior / To: 6A945999	-	2	Enquire
<431C22B	FQZ500153	CABLE	FQZ500153 CABLE Door Release Control, Exterior / From: 6A946000	-	2	Enquire
<1660	ABS780144	SPACER	ABS780144 SPACER To: 5A900068	-	2	Enquire
<1660	ABS780145	SPACER	ABS780145 SPACER From: 5A900069 / To: 8A149839	-	2	Enquire
<21982	FQB500041PMA	STRIKER - DOOR LOCKING MECHANISM	FQB500041PMA STRIKER - DOOR LOCKING MECHANISM	-	2	Enquire
<22404	CXA000015LEP	HANDLE - DOOR - OUTER	CXA000015LEP HANDLE - DOOR - OUTER RH/LH, Tungsten / To: 5A900385	-	2	Enquire
<22404	CXA000016LEP	HANDLE - DOOR - OUTER	CXA000016LEP HANDLE - DOOR - OUTER RH/LH, Tungsten / From: 5A900386 / To: 6A955389	-	2	Enquire
<22404	CXA500010LEP	HANDLE ASSY - DOOR - OUTER	CXA500010LEP HANDLE ASSY - DOOR - OUTER RH/LH, Tungsten / From: 6A955390 / To: 8A127436	-	2	Enquire
<22404	CXA500030LEP	HANDLE - DOOR PULL	CXA500030LEP HANDLE - DOOR PULL RH/LH, Tungsten / From: 8A127437 / To: 9A210925	-	2	Enquire
<22404	LR016457	HANDLE - DOOR PULL	LR016457 HANDLE - DOOR PULL RH/LH, Tungsten / From: 9A210926	-	2	Enquire
<22404	LR023343	HANDLE - DOOR - OUTER	LR023343 HANDLE - DOOR - OUTER RH/LH, Tungsten / From: 9A211000	-	2	Enquire
<22444A	CXE500020	GASKET	CXE500020 GASKET Front, Handle / To: 8A149839	-	2	Enquire
<22444A	CXE500050	GASKET - DOOR HANDLE	CXE500050 GASKET - DOOR HANDLE Front, Handle / From: 8A149840	-	2	Enquire
<22444B	CXE500013	GASKET	CXE500013 GASKET Handle, Rear / To: 8A149839	-	2	Enquire
<22444B	CXE500040	GASKET - DOOR HANDLE	CXE500040 GASKET - DOOR HANDLE Handle, Rear / From: 8A149840	-	2	Enquire
<31458	FQW500022PMA	COVER - DOOR INSIDE HANDLE	FQW500022PMA COVER - DOOR INSIDE HANDLE Striker	-	2	Enquire
HM1	ALR5073	PLUG - BLANKING	ALR5073 PLUG - BLANKING (+)"J", 315 MHZ Door Lock Frequency / Child Safety Lock - Rear Door, Grommet	-	1	Enquire
HS1	FYP500010	SCREW	FYP500010 SCREW Latch, M6 x 12MM	-	6	Enquire
HS2	FYP500020	SCREW	FYP500020 SCREW M8 X 25MM, Striker	-	4	Enquire
26456	FPE500060	LEVER	FPE500060 LEVER RH, Child Safety Lock - Rear Door / From: 6A915546	-	1	Enquire
26456	FPE500070	LEVER	FPE500070 LEVER LH, Child Safety Lock - Rear Door / From: 6A915546	-	1	Enquire
