Find Your Part

Side Panels - Inner (Rear) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8]

View All

Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8] - Side Panels - Inner (Rear) ((V) TO9A999999)

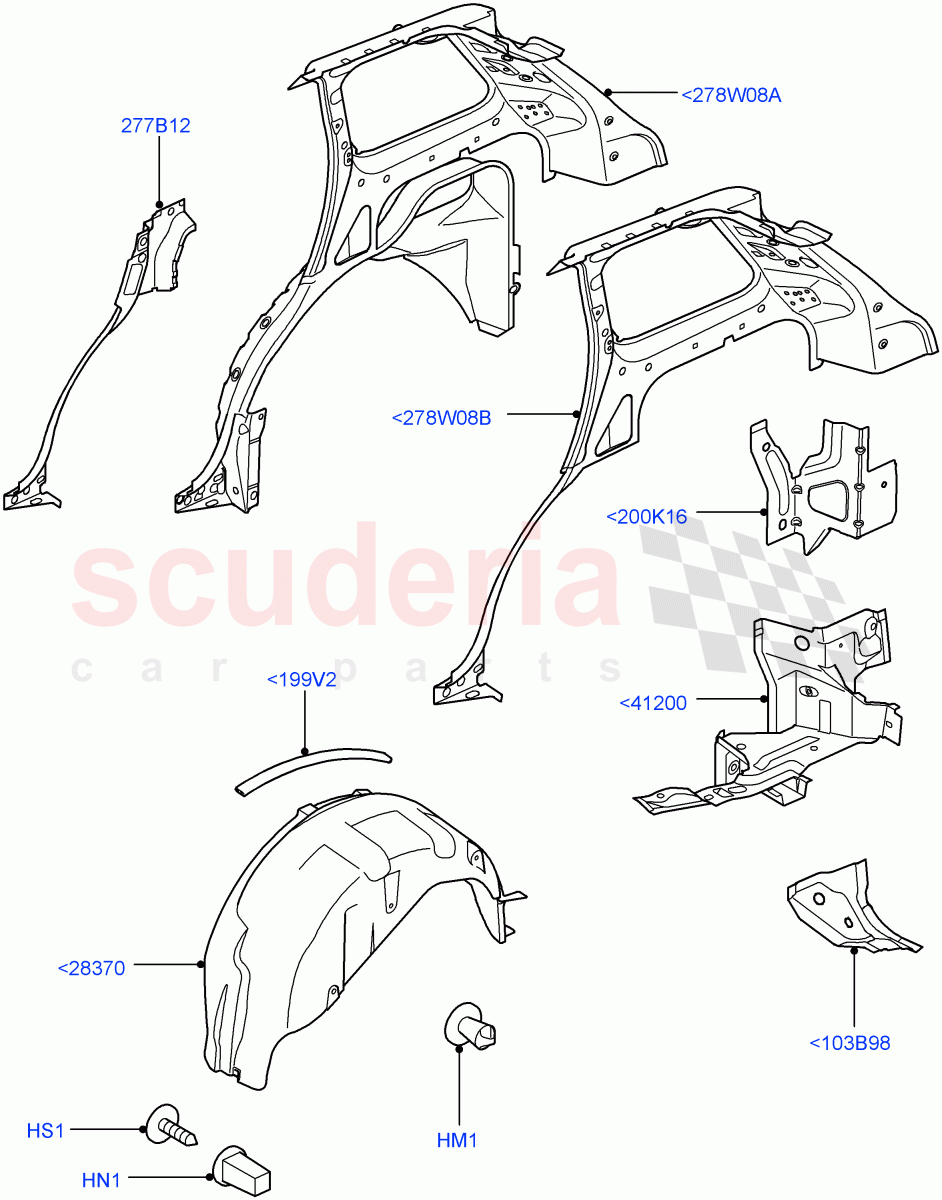

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	ANR2224	HARDWARE - MISCELLANEOUS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYH000200	NUT - CAGE	Enquire	To Order
	RYH500840	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106494	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CLB500061	PROTECTOR - WHEELARCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CLF500042	SHIELD	Enquire	To Order
	CLF500052	SHIELD	Enquire	To Order
	LR019116	SHIELD - SPLASH - WHEELHOUSE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	AGY790020	PANEL - "D" PILLAR - OUTER	Enquire	To Order
	AGY790030	PANEL - "D" PILLAR - OUTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ALR790740	REINFORCEMENT - C PILLAR	Enquire	To Order
	ALR790750	REINFORCEMENT - "C" PILLAR	Enquire	To Order
	ALR791000	REINFORCEMENT - "C" PILLAR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	AFF790020	GUSSET	Enquire	To Order
	AFF790030	GUSSET	Enquire	To Order
	AFF790021	GUSSET	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	AFR790320	REINFORCEMENT - "D" PILLAR	Enquire	To Order
	AFR790330	REINFORCEMENT - "D" PILLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ALJ790080	PANEL - REAR QUARTER CLOSING - FRNT	Enquire	To Order
	ALJ790090	PANEL - REAR QUARTER CLOSING - FRNT	Enquire	To Order
	ALJ790160	PANEL - REAR QUARTER CLOSING - FRNT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	ALJ790140	PANEL - REAR QUARTER CLOSING - FRNT	Enquire	To Order
	ALJ790150	PANEL - REAR QUARTER CLOSING - FRNT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<103B98	AFF790020	GUSSET	AFF790020 GUSSET RH, "D" Pillar, Lower / To: 5A901724	-	1	Enquire
<103B98	AFF790030	GUSSET	AFF790030 GUSSET LH, "D" Pillar, Lower / To: 5A901724	-	1	Enquire
<103B98	AFF790021	GUSSET	AFF790021 GUSSET RH, "D" Pillar, Lower / From: 5A901725	-	1	Enquire
<103B98	AFF790031	GUSSET	AFF790031 GUSSET LH, "D" Pillar, Lower / From: 5A901725	-	1	Enquire
<199V2	CLB500061	PROTECTOR - WHEELARCH	CLB500061 PROTECTOR - WHEELARCH Wheelarch	-	2	Enquire
<200K16	AFR790320	REINFORCEMENT - "D" PILLAR	AFR790320 REINFORCEMENT - "D" PILLAR RH	-	1	Enquire
<200K16	AFR790330	REINFORCEMENT - "D" PILLAR	AFR790330 REINFORCEMENT - "D" PILLAR LH	-	1	Enquire
<278W08A	ALJ790080	PANEL - REAR QUARTER CLOSING - FRNT	ALJ790080 PANEL - REAR QUARTER CLOSING - FRNT RH / To: 6A977699	-	1	Enquire
<278W08A	ALJ790090	PANEL - REAR QUARTER CLOSING - FRNT	ALJ790090 PANEL - REAR QUARTER CLOSING - FRNT LH / To: 6A977699	-	1	Enquire
<278W08A	ALJ790160	PANEL - REAR QUARTER CLOSING - FRNT	ALJ790160 PANEL - REAR QUARTER CLOSING - FRNT RH / From: 6A977700	-	1	Enquire
<278W08A	ALJ790170	PANEL - REAR QUARTER CLOSING - FRNT	ALJ790170 PANEL - REAR QUARTER CLOSING - FRNT LH / From: 6A977700	-	1	Enquire
<278W08B	ALJ790140	PANEL - REAR QUARTER CLOSING - FRNT	ALJ790140 PANEL - REAR QUARTER CLOSING - FRNT RH, Reinforcement	-	1	Enquire
<278W08B	ALJ790150	PANEL - REAR QUARTER CLOSING - FRNT	ALJ790150 PANEL - REAR QUARTER CLOSING - FRNT LH, Reinforcement	-	1	Enquire
<28370	CLF500042	SHIELD	CLF500042 SHIELD RH / To: 8A999999	-	1	Enquire
<28370	CLF500052	SHIELD	CLF500052 SHIELD LH / To: 8A999999	-	1	Enquire
<28370	LR019116	SHIELD - SPLASH - WHEELHOUSE	LR019116 SHIELD - SPLASH - WHEELHOUSE LH / From: 9A000001	-	1	Enquire
<28370	CLF500880	SHIELD - SPLASH - WHEELHOUSE	CLF500880 SHIELD - SPLASH - WHEELHOUSE RH / From: 9A000001	-	1	Enquire
<41200	AGY790020	PANEL - "D" PILLAR - OUTER	AGY790020 PANEL - "D" PILLAR - OUTER RH, Lower	-	1	Enquire
<41200	AGY790030	PANEL - "D" PILLAR - OUTER	AGY790030 PANEL - "D" PILLAR - OUTER LH, Lower	-	1	Enquire
HM1	ANR2224	HARDWARE - MISCELLANEOUS	ANR2224 HARDWARE - MISCELLANEOUS 8 X 20MM, Pin, Rivet, Shield, Wheelarch	-	2	Enquire
HN1	DYH000200	NUT - CAGE	DYH000200 NUT - CAGE	-	8	Enquire
HN1	RYH500840	NUT	RYH500840 NUT 8.3MM, Shield, Wheelarch / From: 6A912716	-	8	Enquire
HS1	LR106494	SCREW	LR106494 SCREW M5 x 20MM, Self Tapping, Shield, Wheelarch	-	16	Enquire
277B12	ALR790740	REINFORCEMENT - C PILLAR	ALR790740 REINFORCEMENT - C PILLAR RH, "C" Pillar, Lower / To: 6A977700	-	1	Enquire
277B12	ALR790750	REINFORCEMENT - "C" PILLAR	ALR790750 REINFORCEMENT - "C" PILLAR LH, "C" Pillar, Lower / To: 6A977700	-	1	Enquire
277B12	ALR791000	REINFORCEMENT - "C" PILLAR	ALR791000 REINFORCEMENT - "C" PILLAR RH, "C" Pillar, Lower / From: 6A977701	-	1	Enquire
277B12	ALR791010	REINFORCEMENT - C PILLAR	ALR791010 REINFORCEMENT - C PILLAR LH, "C" Pillar, Lower / From: 6A977701	-	1	Enquire
