Rear Doors, Hinges & Weatherstrips (Door And Fixings) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8]

View All

Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8] - Rear Doors, Hinges & Weatherstrips (Door And Fixings) ((V) TO9A999999)

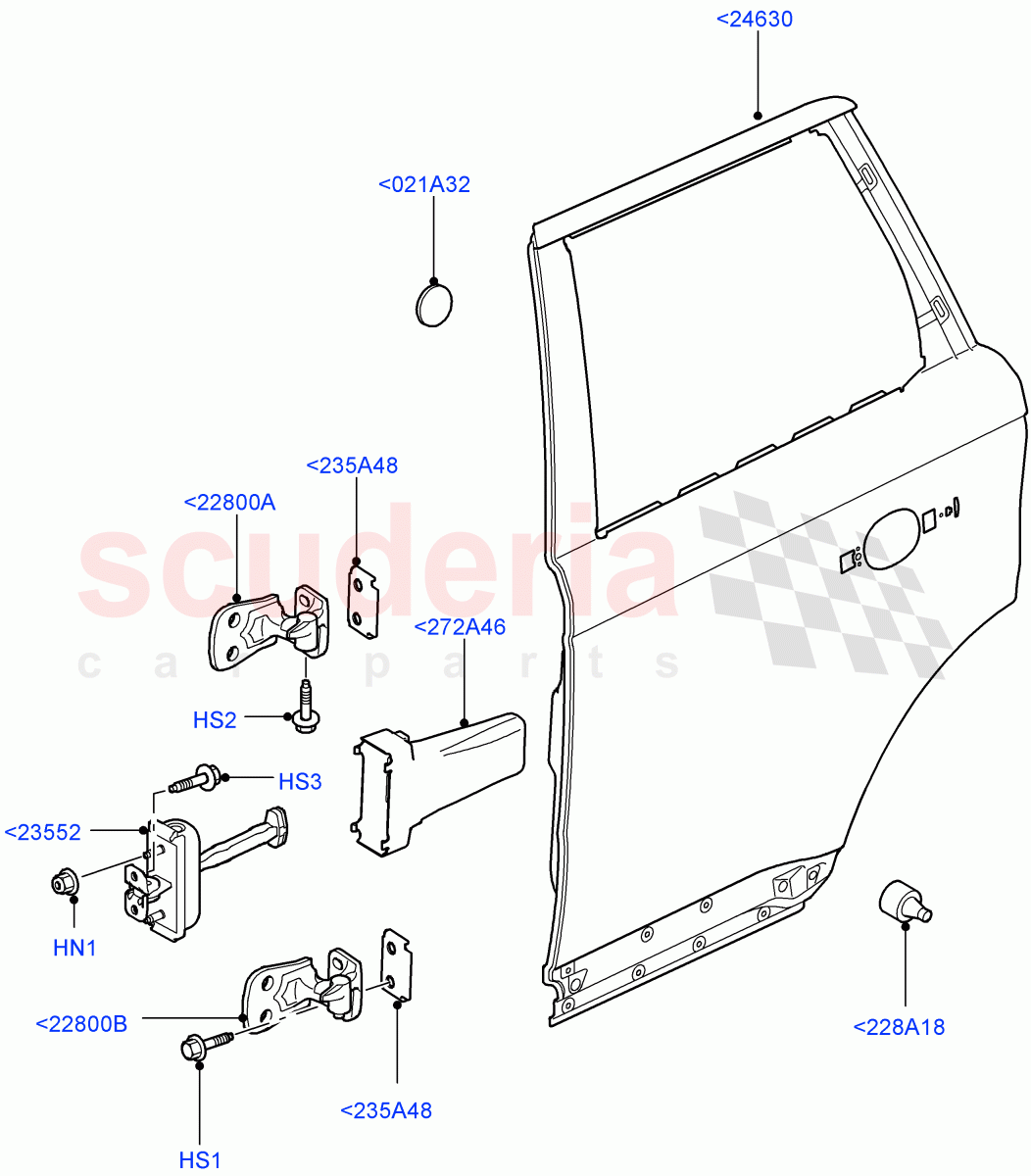

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FY106047	NUT - FLANGED	Enquire	To Order
	FY106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BYP000250	SCREW	Enquire	To Order
	BYP000251	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BYP500050	SCREW	Enquire	To Order
	BYP500220	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BYP500010	SCREW - PAN HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BFH790010	CHECK - DOOR	Enquire	To Order
	BFH790011	CHECK - DOOR	Enquire	To Order
	BFH790040	CHECK - DOOR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	BFA790090	DOOR - REAR	Enquire	To Order
	BFA790080	DOOR - REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BNP3996	SEAL - COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BDB780100	HINGE	Enquire	To Order
	BDB780110	HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BDB780120	HINGE	Enquire	To Order
	BDB780130	HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CFM500010	BUMP STOP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BDP780020	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BFM500020	COVER - DOOR CHECK PROTECTION	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<021A32	BNP3996	SEAL - COVER	BNP3996 SEAL - COVER 30MM	-	2	Enquire
<228A18	CFM500010	BUMP STOP	CFM500010 BUMP STOP	-	2	Enquire
<235A48	BDP780020	PLATE	BDP780020 PLATE Door Hinge	-	4	Enquire
<272A46	BFM500020	COVER - DOOR CHECK PROTECTION	BFM500020 COVER - DOOR CHECK PROTECTION	-	2	Enquire
<22800A	BDB780100	HINGE	BDB780100 HINGE RH, Upper	-	1	Enquire
<22800A	BDB780110	HINGE	BDB780110 HINGE LH, Upper	-	1	Enquire
<22800B	BDB780120	HINGE	BDB780120 HINGE RH, Lower	-	1	Enquire
<22800B	BDB780130	HINGE	BDB780130 HINGE LH, Lower	-	1	Enquire
<23552	BFH790010	CHECK - DOOR	BFH790010 CHECK - DOOR RH/LH / To: 5A900068	-	2	Enquire
<23552	BFH790011	CHECK - DOOR	BFH790011 CHECK - DOOR RH/LH / From: 5A900069 / To: 7A109927	-	2	Enquire
<23552	BFH790040	CHECK - DOOR	BFH790040 CHECK - DOOR RH/LH / From: 7A109928 / To: 8A145119	-	2	Enquire
<23552	BFH790050	CHECK - DOOR	BFH790050 CHECK - DOOR RH/LH / From: 8A145120	-	2	Enquire
<24630	BFA790090	DOOR - REAR	BFA790090 DOOR - REAR LH	-	1	Enquire
<24630	BFA790080	DOOR - REAR	BFA790080 DOOR - REAR RH	-	1	Enquire
HN1	FY106047	NUT - FLANGED	FY106047 NUT - FLANGED M6 / To: 7A118530	-	4	Enquire
HN1	FY106046	NUT - HEX.	FY106046 NUT - HEX. Hexagonal Head, M6 / From: 7A118531	-	4	Enquire
HS1	BYP000250	SCREW	BYP000250 SCREW Door Hinge / To: 5A901723	-	16	Enquire
HS1	BYP000251	SCREW	BYP000251 SCREW Door Hinge, M8 Torx / From: 5A901724	-	16	Enquire
HS2	BYP500050	SCREW	BYP500050 SCREW Door Hinge, M6 X 10MM / To: 7A109918	-	4	Enquire
HS2	BYP500220	SCREW	BYP500220 SCREW Door Hinge, Hexagonal Head, M6 X 10MM / From: 7A109919	-	8	Enquire
HS3	BYP500010	SCREW - PAN HEAD	BYP500010 SCREW - PAN HEAD M6 X 20MM	-	4	Enquire
