Fuel Tank & Related Parts (This Section Refers To TSB LTB00280, Vehicles Fitted With 10MY Fuel Tank, With 2 Vent Pipes) (Lion Diesel 2.7 V6 (140KW)) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

View All

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Fuel Tank & Related Parts (This Section Refers To TSB LTB00280, Vehicles Fitted With 10MY Fuel...

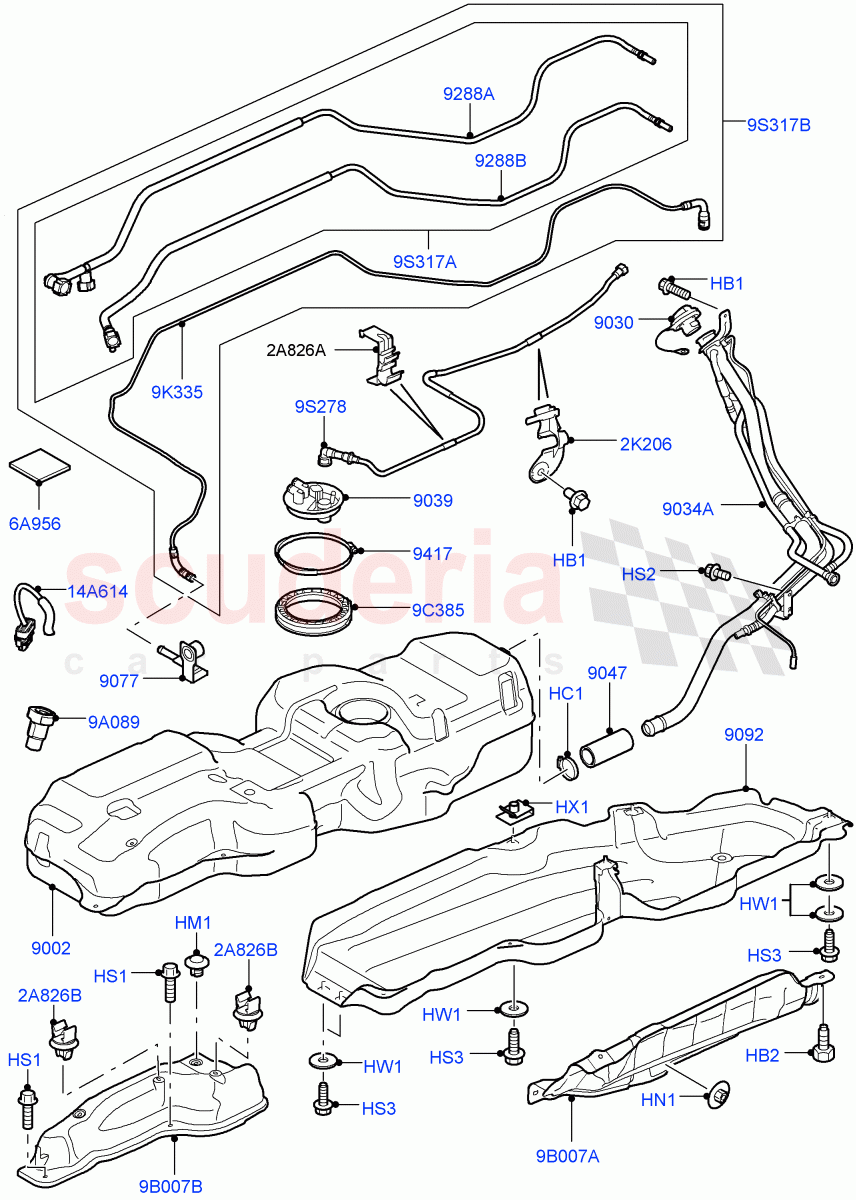

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	SN106127L	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CN100509	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYQ000010	RIVET - PLASTIC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYH500050	NUT - LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106206	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108126	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500270	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJ110006	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYH500100	NUT - SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013746	TANK - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015394	CAP - FUEL TANK FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013751	COVER - DUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010620	HOSE - FILLER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019275	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WFN000014	FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117476	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WFU500020	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025789	FOAM PAD - ENERGY ABSORBING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WMJ500181	PIPE - FUEL FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015385	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015384	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021822	CAP - FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013771	RING - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013917	TUBE - FUEL FEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016261	TUBE - BREATHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020971	JUMPER WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014156	CLIP - PARKING BRAKE CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SPV500020	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WFZ500034	SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021133	TUBE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021134	TUBE - FUEL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	SN106127L	BOLT	SN106127L BOLT M6	-	1	Enquire
HC1	CN100509	CLIP	CN100509 CLIP Hose Clamp	-	1	Enquire
HM1	WYQ000010	RIVET - PLASTIC	WYQ000010 RIVET - PLASTIC Plastic, Rivet Type	-	2	Enquire
HN1	WYH500050	NUT - LOCKING	WYH500050 NUT - LOCKING M5	-	2	Enquire
HS1	FS106206	SCREW	FS106206 SCREW Hexagonal Head, M6 X 20MM	-	1	Enquire
HS2	FS108126	SCREW	FS108126 SCREW M8 x 12MM	-	1	Enquire
HS3	RYG500270	SCREW	RYG500270 SCREW Hexagonal Head, M10 X 25MM	-	3	Enquire
HW1	WJ110006	WASHER	WJ110006 WASHER 10 MM	-	4	Enquire
HX1	KYH500100	NUT - SPRING	KYH500100 NUT - SPRING Fuel Tank Attaching, M10, Nut "U" Spring	-	2	Enquire
2A826A	LR014156	CLIP - PARKING BRAKE CABLE	LR014156 CLIP - PARKING BRAKE CABLE	-	3	Enquire
2A826B	SPV500020	CLIP	SPV500020 CLIP For	-	2	Enquire
2K206	WFU500020	BRACKET	WFU500020 BRACKET	-	1	Enquire
6A956	LR025789	FOAM PAD - ENERGY ABSORBING	LR025789 FOAM PAD - ENERGY ABSORBING	-	1	Enquire
9A089	LR021822	CAP - FILLER	LR021822 CAP - FILLER Less Fuel Fired Heater	-	1	Enquire
9B007B	WFZ500034	SHIELD	WFZ500034 SHIELD	-	1	Enquire
9C385	LR013771	RING - RETAINING	LR013771 RING - RETAINING	-	1	Enquire
9K335	LR013917	TUBE - FUEL FEED	LR013917 TUBE - FUEL FEED Fuel Tank To Fuel Burning Heater	-	1	Enquire
9S278	LR016261	TUBE - BREATHER	LR016261 TUBE - BREATHER Breather Pipe, Vapour Line	-	1	Enquire
9S317A	LR021133	TUBE - FUEL	LR021133 TUBE - FUEL Less Fuel Fired Heater / To: 6A999999	-	1	Enquire
9S317B	LR021134	TUBE - FUEL	LR021134 TUBE - FUEL With Fuel Fired Heater / To: 6A999999	-	1	Enquire
14A614	LR020971	JUMPER WIRING	LR020971 JUMPER WIRING	-	1	Enquire
9002	LR013746	TANK - FUEL	LR013746 TANK - FUEL	-	1	Enquire
9030	LR015394	CAP - FUEL TANK FILLER	LR015394 CAP - FUEL TANK FILLER	-	1	Enquire
9034A	WMJ500181	PIPE - FUEL FILLER	WMJ500181 PIPE - FUEL FILLER	-	1	Enquire
9039	LR013751	COVER - DUST	LR013751 COVER - DUST	-	1	Enquire
9047	LR010620	HOSE - FILLER PIPE	LR010620 HOSE - FILLER PIPE	-	1	Enquire
9077	LR019275	PLUG	LR019275 PLUG With Fresh Air Heater	-	1	Enquire
9092	WFN000014	FUEL TANK	WFN000014 FUEL TANK	-	1	Enquire
9288A	LR015385	HOSE	LR015385 HOSE Fuel Filter Outlet To Fuel Tank, Return	-	1	Enquire
9288B	LR015384	HOSE	LR015384 HOSE Feed	-	1	Enquire
9417	LR117476	GASKET	LR117476 GASKET O-Ring	-	1	Enquire
