Fuel Lines (Lion Diesel 2.7 V6 (140KW)) ((V) TO6A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

View All

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Fuel Lines (Lion Diesel 2.7 V6 (140KW)) ((V) TO6A999999)

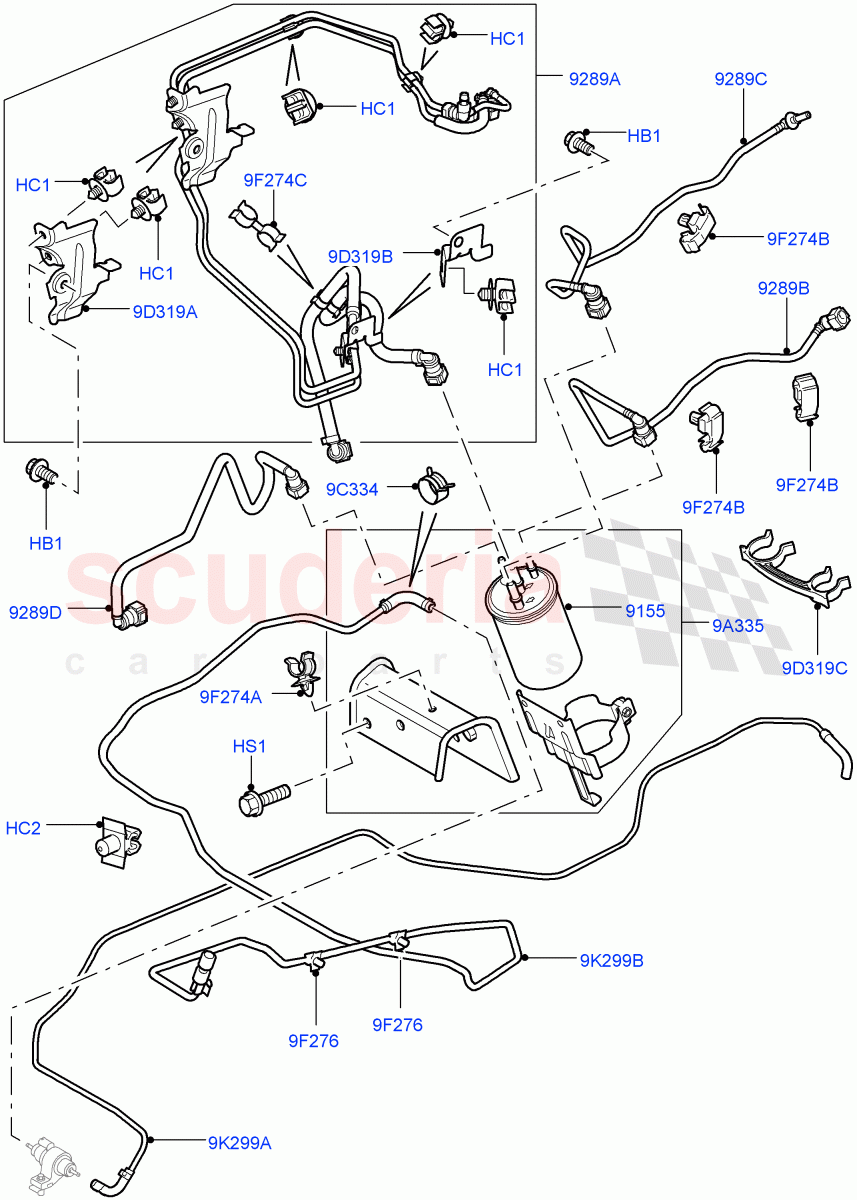

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108167L	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ESR1600	CLIP - FUEL PIPE SECURING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYC100880	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYP10002L	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJN500025	FILTER - FUEL	Enquire	To Order
	LR007311	KIT-FUEL FILTER ELEMENT	Enquire	To Order
	LR010075	KIT - FUEL FILTER ELEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJP500644	TUBE	Enquire	To Order
	WJP500643	PIPE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJP001306	PIPE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJP001315	Tube - Fuel	Enquire	To Order
	WJP001316	PIPE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJP500275	PIPE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJN500056	FILTER - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	UKC3796L	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYC500020	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJU500071	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJU500081	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJC500140	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJC500060	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJC500100	CLIP - FUEL PIPE SECURING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WFP500078	PIPE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJP500385	PIPE - FUEL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FS108167L	SCREW	FS108167L SCREW M8 X 16MM	-	2	Enquire
HC1	ESR1600	CLIP - FUEL PIPE SECURING	ESR1600 CLIP - FUEL PIPE SECURING Double	-	5	Enquire
HC2	WYC100880	CLIP	WYC100880 CLIP With Fuel Fired Heater / Tube Support	-	2	Enquire
HS1	KYP10002L	SCREW	KYP10002L SCREW Self Tapping	-	2	Enquire
9A335	WJN500056	FILTER - FUEL	WJN500056 FILTER - FUEL With Filter	-	1	Enquire
9C334	UKC3796L	CLAMP	UKC3796L CLAMP	-	2	Enquire
9D319A	WJU500071	BRACKET	WJU500071 BRACKET To: 6A999999	-	1	Enquire
9D319B	WJU500081	BRACKET	WJU500081 BRACKET To: 6A999999	-	1	Enquire
9F274A	WJC500140	CLIP	WJC500140 CLIP	-	1	Enquire
9F274B	WJC500060	CLIP	WJC500060 CLIP	-	3	Enquire
9F274C	WJC500100	CLIP - FUEL PIPE SECURING	WJC500100 CLIP - FUEL PIPE SECURING	-	1	Enquire
9F276	KYC500020	CLIP	KYC500020 CLIP With Fuel Fired Heater / For	-	7	Enquire
9K299A	WFP500078	PIPE - FUEL	WFP500078 PIPE - FUEL With Fuel Fired Heater	-	1	Enquire
9K299B	WJP500385	PIPE - FUEL	WJP500385 PIPE - FUEL With Fuel Fired Heater / To: 6A999999	-	1	Enquire
9155	WJN500025	FILTER - FUEL	WJN500025 FILTER - FUEL Kit / To: 5A999999	-	1	Enquire
9155	LR007311	KIT-FUEL FILTER ELEMENT	LR007311 KIT-FUEL FILTER ELEMENT Kit / From: 6A000001 / To: 6A499999	-	1	Enquire
9155	LR010075	KIT - FUEL FILTER ELEMENT	LR010075 KIT - FUEL FILTER ELEMENT Kit / From: 6A500000 / To: 6A999999	-	1	Enquire
9289A	WJP500644	TUBE	WJP500644 TUBE From: 6A913010	-	1	Enquire
9289A	WJP500643	PIPE - FUEL	WJP500643 PIPE - FUEL To: 6A913009	-	1	Enquire
9289B	WJP001306	PIPE - FUEL	WJP001306 PIPE - FUEL	-	1	Enquire
9289C	WJP001315	Tube - Fuel	WJP001315 Tube - Fuel To: 5A914111	-	1	Enquire
9289C	WJP001316	PIPE - FUEL	WJP001316 PIPE - FUEL From: 5A341437 / To: 5A914112	-	1	Enquire
9289D	WJP500275	PIPE - FUEL	WJP500275 PIPE - FUEL	-	1	Enquire
