Fuel Tank & Related Parts (Page B, With 3 Vent Pipes, Vehicles With Original Fuel Tank) (Lion...

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Fuel Tank & Related Parts (Page B, With 3 Vent Pipes, Vehicles With Original Fuel Tank) (Lion...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
SN106127L BOLT Enquire To Order
Photo Part No Description Price (each) Stock
WYC100780L CLIP - HOSE Enquire To Order
Photo Part No Description Price (each) Stock
WYC000080 CLIP - HOSE Enquire To Order
Photo Part No Description Price (each) Stock
FS108127L SCREW Enquire To Order
FS108126 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
WLD500091 CAP - FUEL TANK FILLER Enquire To Order
WLD500170 CAP - FUEL TANK FILLER Enquire To Order
WLD500380 CAP - FUEL TANK FILLER Enquire To Order
Photo Part No Description Price (each) Stock
WFP500361 TUBE Enquire To Order
Photo Part No Description Price (each) Stock
WFP500350 TUBE Enquire To Order
Photo Part No Description Price (each) Stock
WMJ500181 PIPE - FUEL FILLER Enquire To Order
Photo Part No Description Price (each) Stock
WLH500020 PIPE - FUEL FILLER Enquire To Order
Photo Part No Description Price (each) Stock
WFP500087 TUBE Enquire To Order
Photo Part No Description Price (each) Stock
WFP500098 PIPE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
WFP500500 PIPE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
SPV500040 CLIP - PARKING BRAKE CABLE Enquire To Order
Photo Part No Description Price (each) Stock
WJP501690 TUBE - FUEL FEED Enquire To Order
View All

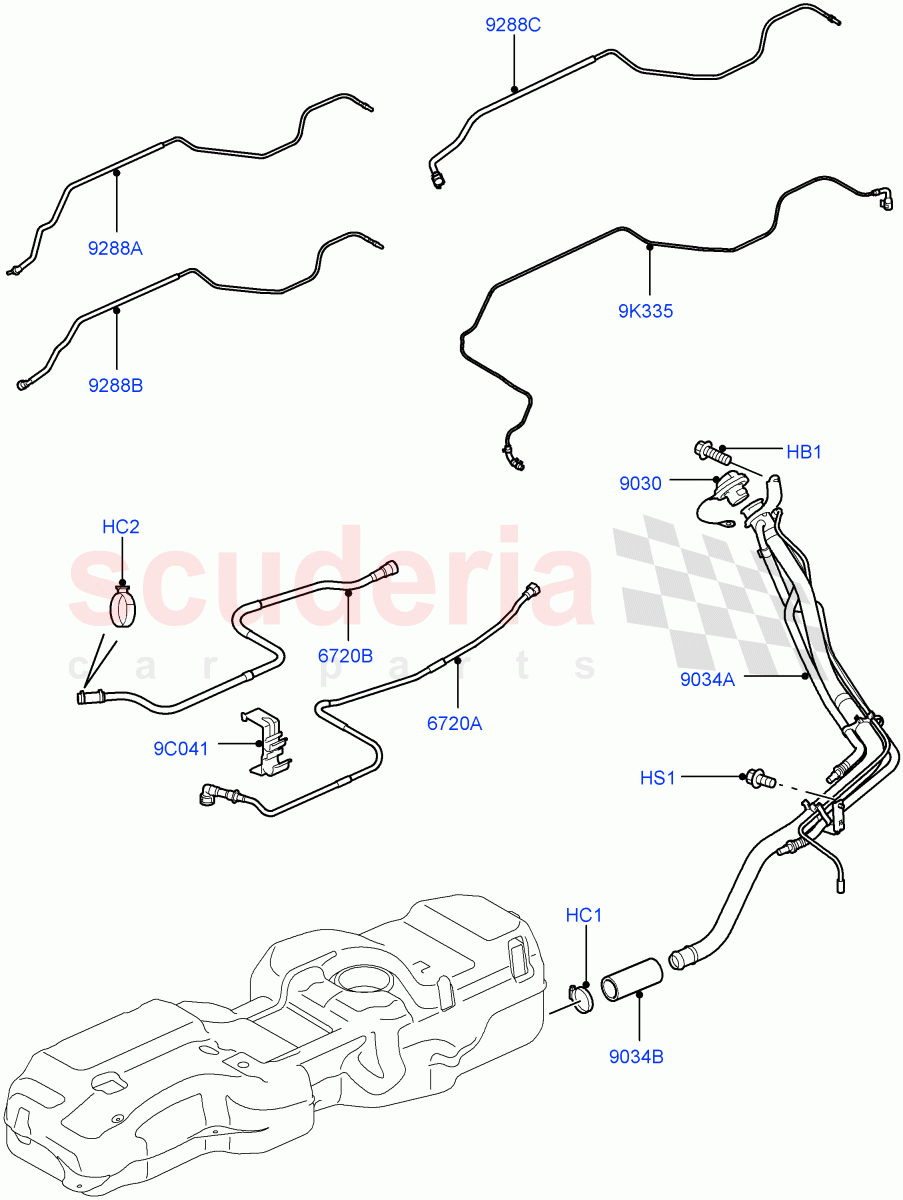

Fuel Tank & Related Parts (Page B, With 3 Vent Pipes, Vehicles With Original Fuel Tank) (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 SN106127L
BOLT
M6 		- 1 Enquire
HC1 WYC100780L
CLIP - HOSE
Pipe Clamp 		- 1 Enquire
HC2 WYC000080
CLIP - HOSE
27MM 		- 1 Enquire
HS1 FS108127L
SCREW
M8 x 12MM / To: 7A999999 		- 1 Enquire
HS1 FS108126
SCREW
M8 x 12MM / From: 8A000001 		- 8 Enquire
9C041 SPV500040
CLIP - PARKING BRAKE CABLE 		- 2 Enquire
9K335 WJP501690
TUBE - FUEL FEED
With Fuel Fired Heater / From: 7A000001 		- 1 Enquire
6720A WFP500361
TUBE 		- 1 Enquire
6720B WFP500350
TUBE 		- 1 Enquire
9030 WLD500091
CAP - FUEL TANK FILLER
To: 6A916350 		- 1 Enquire
9030 WLD500170
CAP - FUEL TANK FILLER
From: 6A916351 / To: 7A999999 		- 1 Enquire
9030 WLD500380
CAP - FUEL TANK FILLER
From: 8A000001 		- 1 Enquire
9034A WMJ500181
PIPE - FUEL FILLER 		- 1 Enquire
9034B WLH500020
PIPE - FUEL FILLER 		- 1 Enquire
9288A WFP500087
TUBE
Return / To: 6A999999 		- 1 Enquire
9288B WFP500098
PIPE - FUEL
Feed / To: 6A999999 		- 1 Enquire
9288C WFP500500
PIPE - FUEL
Feed, From Fuel Tank To Fuel Filter / From: 7A000001 		- 1 Enquire
