Fuel Lines (Lion Diesel 2.7 V6 (140KW)) ((V) FROM7A000001, (V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

View All

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Fuel Lines (Lion Diesel 2.7 V6 (140KW)) ((V) FROM7A000001, (V) TO9A999999)

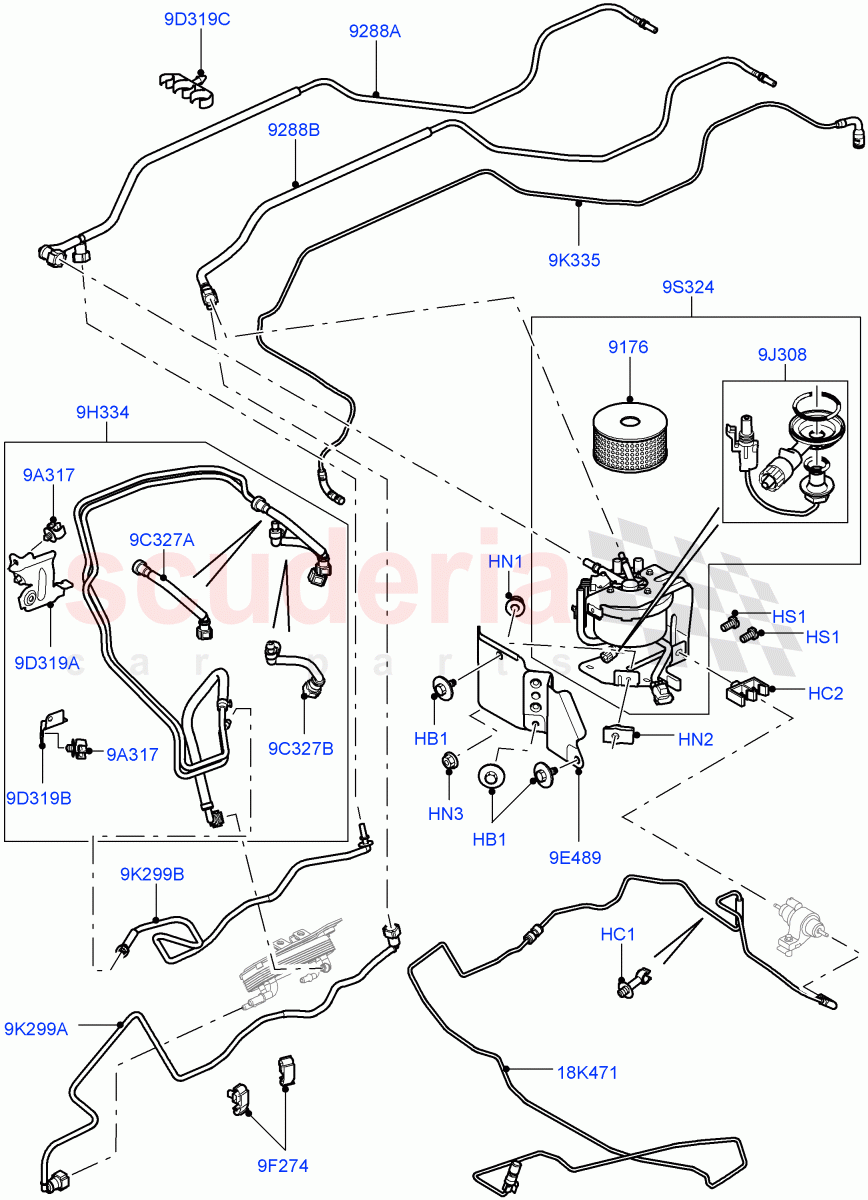

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	WYP500100	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJC500270	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYC500081	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AWR6715	NUT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000053	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106257	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJI500020	ELEMENT - FUEL FILTER	Enquire	To Order
	LR009705	ELEMENT - FUEL FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WFP500570	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WFP500500	PIPE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ESR1600	CLIP - FUEL PIPE SECURING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJC500060	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJP502210	TUBE	Enquire	To Order
	WJP502190	TUBE	Enquire	To Order
	WJP502490	TUBE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	WKW500080	SENSOR - WATER DETECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJP501690	TUBE - FUEL FEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJN500200	FILTER - FUEL	Enquire	To Order
	LR010416	FILTER - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJP502050	TUBE - FUEL FEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJP501980	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJP501960	HOSE - FUEL FEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJU500220	BRACKET	Enquire	To Order
	WJU500340	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJU500082	BRACKET	Enquire	To Order
	WJU500350	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJP502410	PIPE - FUEL	Enquire	To Order
	WJP501590	PIPE - FUEL	Enquire	To Order
	LR010352	PIPE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJP502420	PIPE - FUEL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	WYP500100	SCREW	WYP500100 SCREW Hexagonal Head, M6 / From: 7A000001	-	3	Enquire
HC1	WJC500270	CLIP	WJC500270 CLIP With Fuel Fired Heater / Tube Support / From: 7A000001	-	1	Enquire
HC2	WYC500081	CLIP	WYC500081 CLIP Double, For	-	3	Enquire
HN1	AWR6715	NUT - SPECIAL	AWR6715 NUT - SPECIAL M6 / From: 7A000001	-	2	Enquire
HN2	LR000053	NUT - FLANGED	LR000053 NUT - FLANGED M6 / From: 7A000001	-	2	Enquire
HS1	FS106257	Screw	FS106257 Screw M6 X 25MM / From: 7A000001	-	2	Enquire
9A317	ESR1600	CLIP - FUEL PIPE SECURING	ESR1600 CLIP - FUEL PIPE SECURING Double, For	-	4	Enquire
9C327A	WJP501980	HOSE	WJP501980 HOSE Return / From: 7A000001	-	1	Enquire
9C327B	WJP501960	HOSE - FUEL FEED	WJP501960 HOSE - FUEL FEED Feed, Fuel Pump / From: 7A000001	-	1	Enquire
9D319A	WJU500220	BRACKET	WJU500220 BRACKET From: 7A000001 / To: 7A998504	-	1	Enquire
9D319A	WJU500340	BRACKET	WJU500340 BRACKET From: 7A998505	-	1	Enquire
9D319B	WJU500082	BRACKET	WJU500082 BRACKET From: 7A000001 / To: 7A998504	-	1	Enquire
9D319B	WJU500350	BRACKET	WJU500350 BRACKET From: 7A998505	-	1	Enquire
9F274	WJC500060	CLIP	WJC500060 CLIP From: 7A000001	-	3	Enquire
9H334	WJP502210	TUBE	WJP502210 TUBE EU2 / From: 7A000001 / To: 9A198283	-	1	Enquire
9H334	WJP502190	TUBE	WJP502190 TUBE Euro Stage 4 Emissions / From: 7A000001 / To: 9A198283	-	1	Enquire
9H334	WJP502490	TUBE	WJP502490 TUBE EU2 / From: 9A198284	-	1	Enquire
9H334	WJP502480	TUBE	WJP502480 TUBE Stage IV + DPF Emissions / From: 9A198284	-	1	Enquire
9J308	WKW500080	SENSOR - WATER DETECTOR	WKW500080 SENSOR - WATER DETECTOR Sensor - Water Detector / From: 7A000001	-	1	Enquire
9K299A	WJP502410	PIPE - FUEL	WJP502410 PIPE - FUEL From Fuel Cooler To Fuel Tank, Return / From: 8A104950 / To: 9A198283	-	1	Enquire
9K299A	WJP501590	PIPE - FUEL	WJP501590 PIPE - FUEL From Fuel Cooler To Fuel Tank, Return / From: 7A000001 / To: 8A104949	-	1	Enquire
9K299A	LR010352	PIPE - FUEL	LR010352 PIPE - FUEL From Fuel Cooler To Fuel Tank, Return / From: 9A198284	-	1	Enquire
9K299B	WJP502420	PIPE - FUEL	WJP502420 PIPE - FUEL Feed, From Fuel Tank To Under Floor Pipes / From: 7A000001	-	1	Enquire
9K335	WJP501690	TUBE - FUEL FEED	WJP501690 TUBE - FUEL FEED From: 7A000001	-	1	Enquire
9S324	WJN500200	FILTER - FUEL	WJN500200 FILTER - FUEL From: 7A000001 / To: 8A182778	-	1	Enquire
9S324	LR010416	FILTER - FUEL	LR010416 FILTER - FUEL From: 8A182779	-	1	Enquire
18K471	WJP502050	TUBE - FUEL FEED	WJP502050 TUBE - FUEL FEED With Fuel Fired Heater / From: 7A000001	-	1	Enquire
9176	WJI500020	ELEMENT - FUEL FILTER	WJI500020 ELEMENT - FUEL FILTER Filter / From: 7A000001 / To: 9A203077	-	1	Enquire
9176	LR009705	ELEMENT - FUEL FILTER	LR009705 ELEMENT - FUEL FILTER Filter / From: 9A203078	-	1	Enquire
9288A	WFP500570	HOSE	WFP500570 HOSE Fuel Filter Outlet To Fuel Tank, Return / From: 7A000001	-	1	Enquire
9288B	WFP500500	PIPE - FUEL	WFP500500 PIPE - FUEL Feed, From Fuel Tank To Fuel Filter / From: 7A000001	-	1	Enquire
