Name: Turbocharger (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999)
Rating: 4.2 (1 reviews)

Turbocharger (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

View All

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Turbocharger (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999)

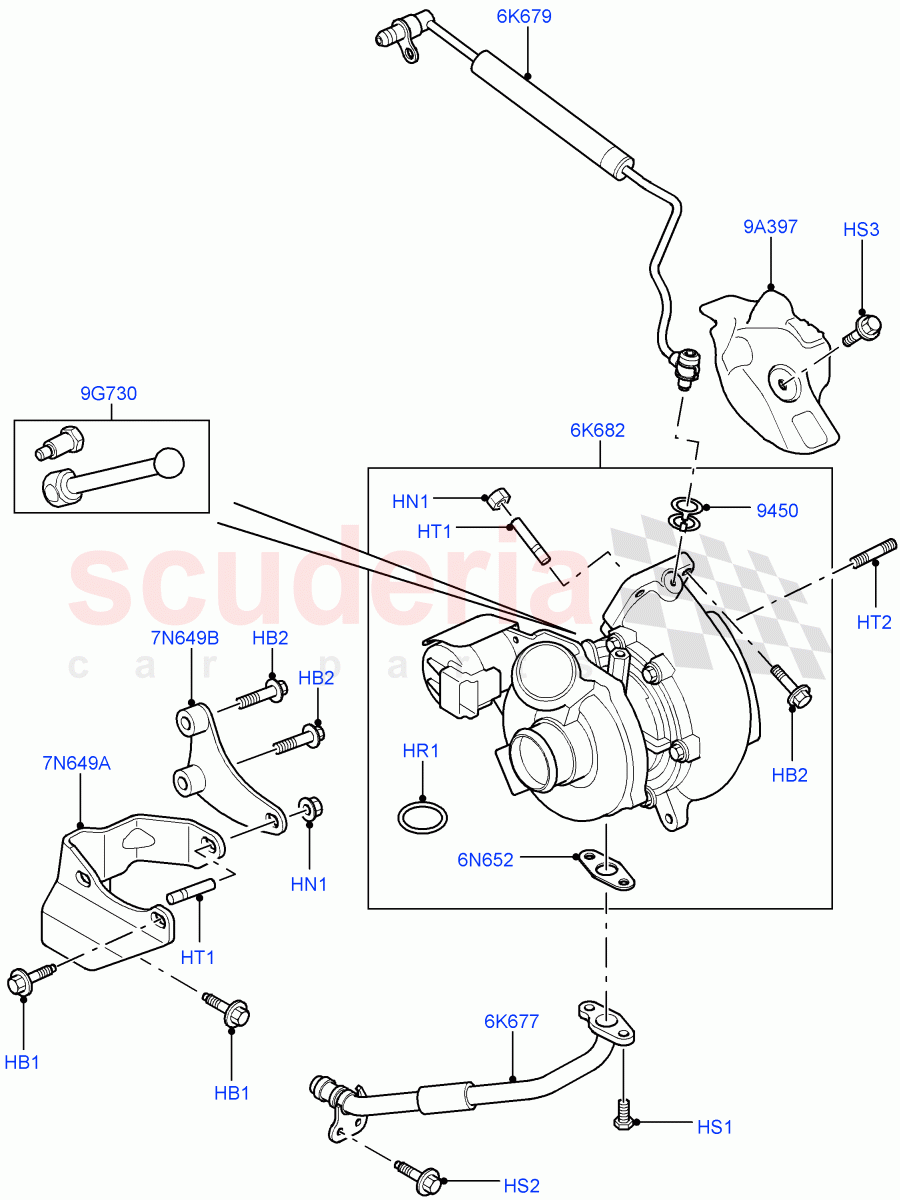

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1372721	BOLT	$11.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106277	NUT - HEX. - FLANGED	$2.08	IN STOCK
	LR106277	NUT - HEX. - FLANGED	$2.08	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR006184	O-RING	$6.44	To Order

Photo	Part No	Description	Price (each)	Stock
	6988544	SCREW - PAN HEAD	$0.73	To Order

Photo	Part No	Description	Price (each)	Stock
	4408651	SCREW	$1.22	To Order
	LR006028	SCREW	$2.59	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106101	Screw	$0.51	To Order

Photo	Part No	Description	Price (each)	Stock
	1005532	STUD	$8.37	To Order
	1335310	STUD	$3.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LYR500010	STUD	$6.09	To Order

Photo	Part No	Description	Price (each)	Stock
	1372726	GASKET - OIL TUBE	$12.80	To Order

Photo	Part No	Description	Price (each)	Stock
	1331364	HOSE - CONNECTING	$75.76	To Order
	LR004696	HOSE - CONNECTING	$53.15	To Order

Photo	Part No	Description	Price (each)	Stock
	1348918	PIPE - OIL FEED	$68.99	To Order
	1386530	PIPE - OIL FEED	$80.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005846	TURBOCHARGER	$4,659.29	To Order
	LR005954	TURBOCHARGER	$2,490.53	To Order
	LR003356	TURBOCHARGER	$3,824.64	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1331076	GASKET - OIL TUBE	$1.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LWQ500070	SHIELD	$42.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023086	ACTUATOR	$61.17	To Order

Photo	Part No	Description	Price (each)	Stock
	1316057	BRACKET	$17.98	To Order

Photo	Part No	Description	Price (each)	Stock
	PMB500020	BRACKET	$18.95	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB2	1372721	BOLT	1372721 BOLT M8 x 38MM	$11.70	3
HN1	LR106277	NUT - HEX. - FLANGED IN STOCK	LR106277 NUT - HEX. - FLANGED M8 / To: 6A999999 IN STOCK	$2.08	3
HN1	LR106277	NUT - HEX. - FLANGED IN STOCK	LR106277 NUT - HEX. - FLANGED M8 / From: 7A000001 IN STOCK	$2.08	3
HR1	LR006184	O-RING	LR006184 O-RING Oil - Drain / From: 7A000001	$6.44	1
HS1	6988544	SCREW - PAN HEAD	6988544 SCREW - PAN HEAD M6 x 14MM	$0.73	2
HS2	4408651	SCREW	4408651 SCREW M6 X 14MM / To: 5A999999	$1.22	2
HS2	LR006028	SCREW	LR006028 SCREW M6 X 16MM, Torx / From: 6A000001	$2.59	2
HS3	FS106101	Screw	FS106101 Screw M6 X 10MM	$0.51	1
HT1	1005532	STUD	1005532 STUD M8 x 10MM, M8 X 25MM	$8.37	-
HT1	1335310	STUD	1335310 STUD M8 X 10 + M8 X 30	$3.58	-
HT2	LYR500010	STUD	LYR500010 STUD M10 x 13MM, M10 X 20MM	$6.09	3
6K677	1331364	HOSE - CONNECTING	1331364 HOSE - CONNECTING To: 6A999999	$75.76	1
6K677	LR004696	HOSE - CONNECTING	LR004696 HOSE - CONNECTING From: 7A000001	$53.15	1
6K679	1348918	PIPE - OIL FEED	1348918 PIPE - OIL FEED To: 6A916350	$68.99	1
6K679	1386530	PIPE - OIL FEED	1386530 PIPE - OIL FEED From: 6A916351	$80.69	1
6K682	LR005846	TURBOCHARGER	LR005846 TURBOCHARGER New Part-Please Check For Reman Version, Production Replacement, Service Kit	$4,659.29	1
6K682	LR005954	TURBOCHARGER	LR005954 TURBOCHARGER Remanufactured Part, Same As Production / To: 5A999999	$2,490.53	1
6K682	LR003356	TURBOCHARGER	LR003356 TURBOCHARGER New Part-Please Check For Reman Version, Same As Production / From: 5A999999 / To: 6A999999	$3,824.64	1
6K682	LR004286	TURBOCHARGER	LR004286 TURBOCHARGER New Part-Please Check For Reman Version, Same As Production / From: 7A000001 / To: 8A161365	$2,929.27	1
6K682	1357581	TURBOCHARGER	1357581 TURBOCHARGER New Part-Please Check For Reman Version, Same As Production / To: 5A999999	$2,369.59	1
6K682	LR006422	TURBOCHARGER	LR006422 TURBOCHARGER Remanufactured Part, Same As Production / From: 6A000001	$2,490.53	1
6K682	LR008838	TURBOCHARGER	LR008838 TURBOCHARGER Remanufactured Part, Service Kit	$1,689.03	1
6K682	LR010188	TURBOCHARGER	LR010188 TURBOCHARGER Same As Production / From: 8A161366	$2,490.53	1
6N652	1331076	GASKET - OIL TUBE	1331076 GASKET - OIL TUBE Oil Tube	$1.32	1
7N649A	1316057	BRACKET	1316057 BRACKET	$17.98	1
7N649B	PMB500020	BRACKET	PMB500020 BRACKET	$18.95	1
9A397	LWQ500070	SHIELD	LWQ500070 SHIELD	$42.36	1
9G730	LR023086	ACTUATOR	LR023086 ACTUATOR Incl. pin, Includes Rod, Service Kit / From: 6A928000 / To: 9A215618	$61.17	1
9450	1372726	GASKET - OIL TUBE	1372726 GASKET - OIL TUBE Banjo Washer	$12.80	1
