Fuel Pump And Sender Unit (Lion Diesel 2.7 V6 (140Kw)) ((V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Fuel Pump And Sender Unit (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
WGQ000031 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
LR015377 FLOAT Enquire To Order
Photo Part No Description Price (each) Stock
LR015000 FLOAT Enquire To Order
Photo Part No Description Price (each) Stock
LR015376 BRACKET - FUEL TANK Enquire To Order
Photo Part No Description Price (each) Stock
WGS500060 MODULE Enquire To Order
WGS500071 MODULE Enquire To Order
WGS500061 MODULE Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR014998 SENDER AND PUMP Enquire To Order
Photo Part No Description Price (each) Stock
WGI500080 SENDER - FUEL TANK Enquire To Order
Photo Part No Description Price (each) Stock
WGI500120 SENDER - FUEL TANK Enquire To Order
View All

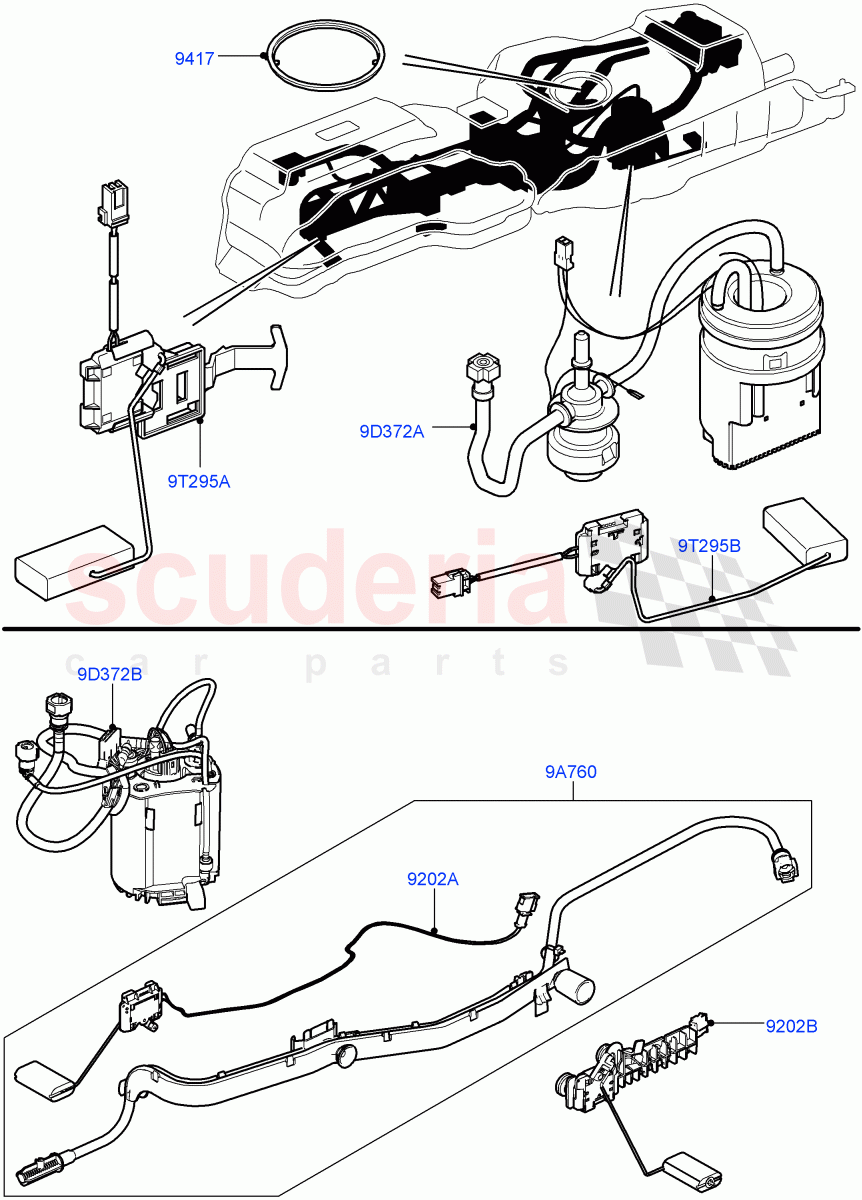

Fuel Pump And Sender Unit (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
9A760 LR015376
BRACKET - FUEL TANK
Vehicles Fitted With 10MY Fuel Tank, With Fuel Sender 		- 1 Enquire
9D372A WGS500060
MODULE
Less Heater / To: 5A915545 		- 1 Enquire
9D372A WGS500071
MODULE
With Fuel Fired Heater / To: 6A999999 		- 1 Enquire
9D372A WGS500061
MODULE
Less Heater / From: 5A915546 / To: 6A999999 		- 1 Enquire
9D372A WGS500120
MODULE
With Fresh Air Heater / From: 7A000001 		- 1 Enquire
9D372A WGS500110
MODULE
With Fuel Fired Heater / From: 7A000001 		- 1 Enquire
9D372B LR014998
SENDER AND PUMP 		- 1 Enquire
9T295A WGI500080
SENDER - FUEL TANK
Front 		- 1 Enquire
9T295B WGI500120
SENDER - FUEL TANK
Includes Mounting Bracket, Rear 		- 1 Enquire
9202A LR015377
FLOAT
Front, Vehicles Fitted With 10MY Fuel Tank 		- 1 Enquire
9202B LR015000
FLOAT
Rear, Vehicles Fitted With 10MY Fuel Tank 		- 1 Enquire
9417 WGQ000031
GASKET 		- 1 Enquire
