Fuel Injectors And Pipes (Lion Diesel 2.7 V6 (140Kw)) ((V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Fuel Injectors And Pipes (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1316025 BOLT $0.72 To Order
1387730 BOLT $1.42 To Order
Photo Part No Description Price (each) Stock
6726723 BOLT - HEX.HEAD $0.46 To Order
Photo Part No Description Price (each) Stock
1372612 SCREW $3.62 To Order
Photo Part No Description Price (each) Stock
FS106201 Screw $0.28 To Order
Photo Part No Description Price (each) Stock
1316029 STUD $2.58 To Order
Photo Part No Description Price (each) Stock
LR019118 O-RING $3.32 To Order
Photo Part No Description Price (each) Stock
1348653 WIRE $25.76 To Order
1348654 WIRE $25.87 To Order
LR007521 WIRE - GLOW PLUG $108.86 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1351811 PIPE - FUEL $16.41 To Order
1338849 PIPE - FUEL $11.60 To Order
LR004714 TUBE - FUEL SUPPLY $52.35 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1357062 RAIL $214.30 To Order
1387695 MANIFOLD - FUEL SUPPLY $718.67 To Order
Photo Part No Description Price (each) Stock
1354290 TUBE - FUEL RETURN $56.59 To Order
LR005687 PIPE - FUEL $49.41 To Order
Photo Part No Description Price (each) Stock
1316122 TUBE - FUEL $9.95 To Order
Photo Part No Description Price (each) Stock
1357075 MANIFOLD - FUEL SUPPLY $131.06 To Order
1369551 MANIFOLD - FUEL SUPPLY $333.17 To Order
1369552 MANIFOLD - FUEL SUPPLY $323.93 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1336528 BRACKET $3.38 To Order
1354269 BRACKET $13.86 To Order
Photo Part No Description Price (each) Stock
LR006496 NOZZLE AND HOLDER - FUEL INJECTOR $740.34 To Order
LR008836 NOZZLE AND HOLDER - FUEL INJECTOR $467.12 To Order
LR008837 NOZZLE AND HOLDER - FUEL INJECTOR $477.53 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR003392 TUBE - FUEL INLET $18.69 To Order
Photo Part No Description Price (each) Stock
1386505 TUBE - INJECTION PUMP LEAK-OFF $190.26 To Order
Photo Part No Description Price (each) Stock
1336504 BRACKET $11.41 To Order
Photo Part No Description Price (each) Stock
LBH500220 INSULATOR $45.90 To Order
LBH500250 INSULATOR $45.17 To Order
LBH500230 INSULATOR $47.25 To Order
Photo Part No Description Price (each) Stock
1354289 GLOW PLUG $27.22 To Order
Photo Part No Description Price (each) Stock
LR010347 KIT - PROTECTION CAPS $46.42 To Order
Photo Part No Description Price (each) Stock
1331362 CLIP $4.59 To Order
LR002456 CLIP $10.05 To Order
Photo Part No Description Price (each) Stock
LR002751 CLIP $1.74 To Order
Photo Part No Description Price (each) Stock
1331260 KIT - FUEL INJECTION $810.94 To Order
LR004563 KIT - FUEL INJECTION $912.77 To Order
LR004564 KIT - FUEL INJECTION $912.77 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1331261 KIT - FUEL INJECTION $64.79 To Order
LR004568 KIT - FUEL INJECTION $57.01 To Order
LR004566 KIT - FUEL INJECTION $53.24 To Order
...and 1 more part variants. See table on right for more details.
View All

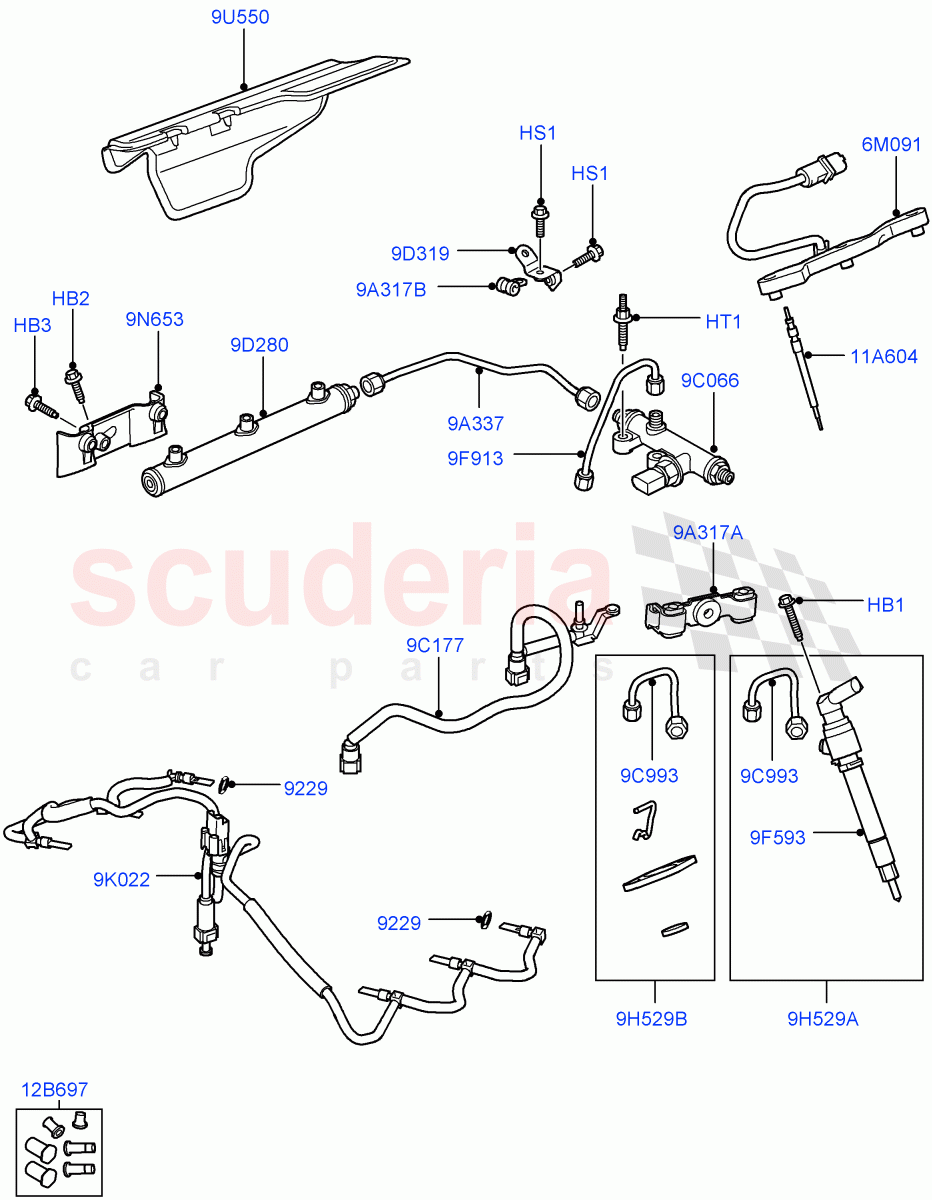

Fuel Injectors And Pipes (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 1316025
BOLT
M6 x 35MM / To: 6A916350 		$0.72 12
HB1 1387730
BOLT
M6 x 35MM / From: 6A916351 		$1.42 12
HB2 6726723
BOLT - HEX.HEAD
M8 X 20MM 		$0.46 4
HB3 1372612
SCREW
M8 x 30MM 		$3.62 4
HS1 FS106201
Screw
M6 X 20MM 		$0.28 2
HT1 1316029
STUD
M8 X 30MM + M6 X 15MM 		$2.58 2
6M091 1348653
WIRE
LH / To: 7A999999 		$25.76 1
6M091 1348654
WIRE
RH / To: 7A999999 		$25.87 1
6M091 LR007521
WIRE - GLOW PLUG
LH / From: 8A000001 		$108.86 1
6M091 LR007522
WIRE - GLOW PLUG
RH / From: 8A000001 		$108.86 1
9A317A 1331362
CLIP
To: 6A999999 		$4.59 6
9A317A LR002456
CLIP
From: 7A000001 		$10.05 6
9A317B LR002751
CLIP 		$1.74 2
9A337 1351811
PIPE - FUEL
EU2 / LH / To: 6A944743 		$16.41 1
9A337 1338849
PIPE - FUEL
EU2 / RH / To: 6A944743 		$11.60 1
9A337 LR004714
TUBE - FUEL SUPPLY
Stage IV + DPF Emissions / LH / From: 7A000001 		$52.35 1
9A337 LR004715
TUBE - FUEL SUPPLY
Stage IV + DPF Emissions / RH / From: 7A000001 		$50.64 1
9A337 LR003061
PIPE - FUEL
Euro Consolidated Directive 3 / LH / From: 6A944744 		$28.94 1
9A337 LR003063
PIPE - FUEL
Euro Consolidated Directive 3 / RH / From: 6A944744 		$19.33 1
9C066 1357062
RAIL
To: 5A999999 		$214.30 1
9C066 1387695
MANIFOLD - FUEL SUPPLY
Euro Consolidated Directive 3 / From: 6A000001 		$718.67 1
9C177 1354290
TUBE - FUEL RETURN
EU2 		$56.59 1
9C177 LR005687
PIPE - FUEL
Stage IV + DPF Emissions / From: 7A000001 		$49.41 1
9C993 1316122
TUBE - FUEL
EU2 / To: 6A999999 		$9.95 6
9D280 1357075
MANIFOLD - FUEL SUPPLY
RH / To: 5A999999 		$131.06 1
9D280 1369551
MANIFOLD - FUEL SUPPLY
EU2 / LH 		$333.17 1
9D280 1369552
MANIFOLD - FUEL SUPPLY
Euro Consolidated Directive 3 / RH / From: 6A000001 		$323.93 1
9D280 LR005553
MANIFOLD - FUEL SUPPLY
Stage IV + DPF Emissions / LH, Includes Fuel Pressure Sensor / From: 7A000001 		$415.26 1
9D280 LR005551
MANIFOLD - FUEL SUPPLY
Stage IV + DPF Emissions / RH / From: 7A000001 		$554.98 1
9D319 1336528
BRACKET
RH 		$3.38 1
9D319 1354269
BRACKET
LH 		$13.86 1
9F593 LR006496
NOZZLE AND HOLDER - FUEL INJECTOR
Stage IV + DPF Emissions / New Part-Please Check For Reman Version / From: 7A000001 		$740.34 6
9F593 LR008836
NOZZLE AND HOLDER - FUEL INJECTOR
EU2 / Fuel Injector Only, Remanufactured Part 		$467.12 6
9F593 LR008837
NOZZLE AND HOLDER - FUEL INJECTOR
Stage IV + DPF Emissions / Fuel Injector Only, Remanufactured Part / From: 7A000001 		$477.53 6
9F593 LR006495
NOZZLE AND HOLDER - FUEL INJECTOR
EU2 / New Part-Please Check For Reman Version 		$671.96 6
9F913 LR003392
TUBE - FUEL INLET 		$18.69 1
9H529A 1331260
KIT - FUEL INJECTION
EU2 / New Part-Please Check For Reman Version 		$810.94 6
9H529A LR004563
KIT - FUEL INJECTION
Stage IV + DPF Emissions / Cylinder No.1, Cylinder No.6, New Part-Please Check For Reman Version / From: 7A000001 		$912.77 2
9H529A LR004564
KIT - FUEL INJECTION
Stage IV + DPF Emissions / Cylinder No.2, Cylinder No.5, New Part-Please Check For Reman Version / From: 7A000001 		$912.77 2
9H529A LR004565
KIT - FUEL INJECTION
Stage IV + DPF Emissions / Cylinder No.3, Cylinder No.4, New Part-Please Check For Reman Version / From: 7A000001 		$919.51 2
9H529A LR005961
KIT - FUEL INJECTION
EU2 / Remanufactured Part 		$570.90 6
9H529A LR010129
KIT - FUEL INJECTION
Stage IV + DPF Emissions / Cylinder No.1, Cylinder No.6, Remanufactured Part / From: 7A000001 		$914.51 2
9H529A LR010130
KIT - FUEL INJECTION
Stage IV + DPF Emissions / Cylinder No.2, Cylinder No.5, Remanufactured Part / From: 7A000001 		$914.51 2
9H529A LR010131
KIT - FUEL INJECTION
Stage IV + DPF Emissions / Cylinder No.3, Cylinder No.4, Remanufactured Part / From: 7A000001 		$876.38 2
9H529B 1331261
KIT - FUEL INJECTION
EU2 		$64.79 6
9H529B LR004568
KIT - FUEL INJECTION
Stage IV + DPF Emissions / Cylinder No.3, Cylinder No.4 / From: 7A000001 		$57.01 2
9H529B LR004566
KIT - FUEL INJECTION
Stage IV + DPF Emissions / Cylinder No.1, Cylinder No.6 / From: 7A000001 		$53.24 2
9H529B LR004567
KIT - FUEL INJECTION
Stage IV + DPF Emissions / Cylinder No.2, Cylinder No.5 / From: 7A000001 		$53.24 2
9K022 1386505
TUBE - INJECTION PUMP LEAK-OFF
Includes Fuel Temperature Sensor, Leak Off 		$190.26 1
9N653 1336504
BRACKET 		$11.41 2
9U550 LBH500220
INSULATOR
RH / To: 6A916350 		$45.90 1
9U550 LBH500250
INSULATOR
RH / From: 6A916351 		$45.17 1
9U550 LBH500230
INSULATOR
LH 		$47.25 1
11A604 1354289
GLOW PLUG 		$27.22 6
12B697 LR010347
KIT - PROTECTION CAPS
Protection Cap Kit For Disassembled Fuel Injection Elements 		$46.42 1
9229 LR019118
O-RING
For Fuel Tube, Leak Off 		$3.32 6
