Fuel Injection Pump - Diesel (Lion Diesel 2.7 V6 (140Kw)) ((V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Fuel Injection Pump - Diesel (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR004693 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR008150 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR002806 NUT Enquire To Order
Photo Part No Description Price (each) Stock
1316026 SCREW Enquire To Order
1387739 SCREW Enquire To Order
1331310 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
1311294 PULLEY Enquire To Order
LR003788 SPROCKET - CAMSHAFT Enquire To Order
Photo Part No Description Price (each) Stock
LR004569 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
LR014562 CABLE Enquire To Order
Photo Part No Description Price (each) Stock
LR005549 Pump - Fuel Injection Enquire To Order
LR005958 PUMP - FUEL INJECTION Enquire To Order
LR009666 PUMP - FUEL INJECTION Enquire To Order
...and 3 more part variants. See table on right for more details.
View All

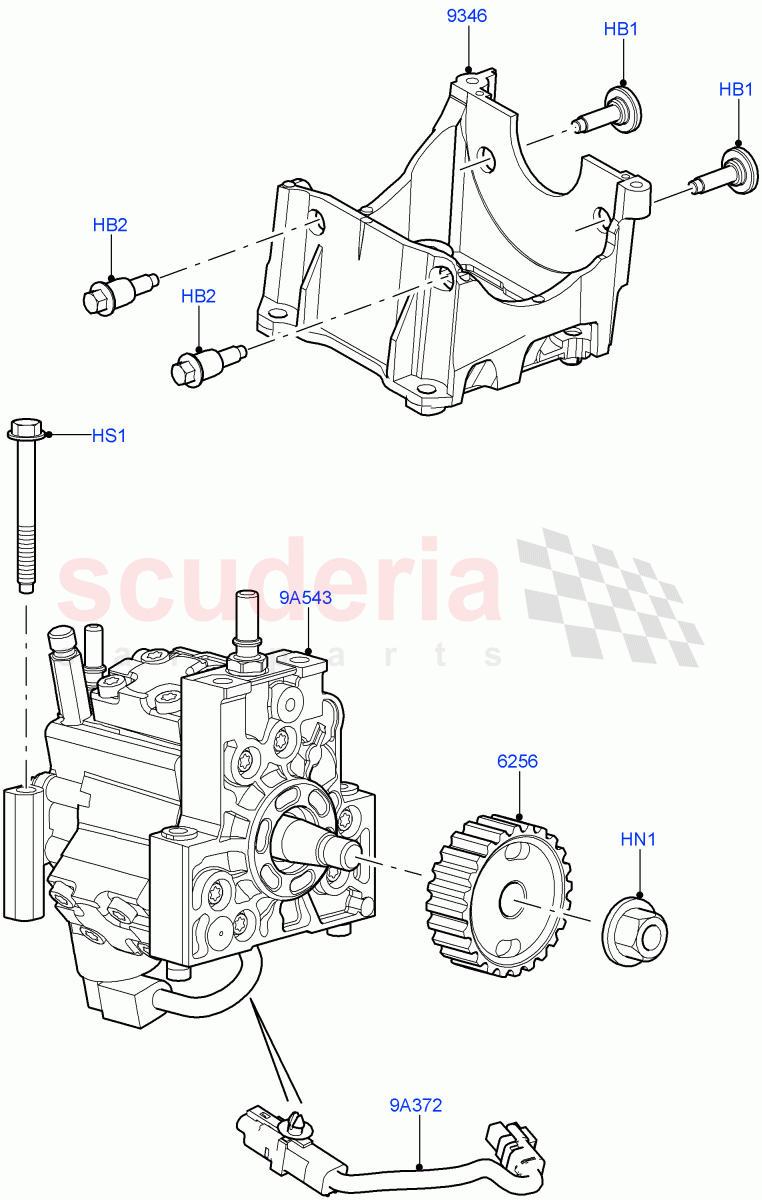

Fuel Injection Pump - Diesel (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR004693
BOLT
Stage IV + DPF Emissions / M8 X 22MM, Torx / From: 7A000001 		- 2 Enquire
HB2 LR008150
BOLT
Stage IV + DPF Emissions / Bolt And Washer, M8 X 30, With Bushings / From: 7A000001 		- 2 Enquire
HN1 LR002806
NUT
M14 		- 1 Enquire
HS1 1316026
SCREW
M8 x 80MM / To: 6A916350 		- 4 Enquire
HS1 1387739
SCREW
Euro Consolidated Directive 3 / M8 x 80MM / From: 6A989900 		- 4 Enquire
HS1 1331310
SCREW
M8 x 80MM / From: 6A916351 / To: 6A989899 		- 1 Enquire
9A372 LR014562
CABLE
Euro Consolidated Directive 3 / From: 7A000001 		- 1 Enquire
9A543 LR005549
Pump - Fuel Injection
Euro Stage 4 Emissions / New Part-Please Check For Reman Version / From: 7A000001 / To: 8A147001 		- 1 Enquire
9A543 LR005958
PUMP - FUEL INJECTION
Euro Consolidated Directive 3 / Remanufactured Part, Supplied Without Locating Dowels / To: 8A999999 		- 1 Enquire
9A543 LR009666
PUMP - FUEL INJECTION
Euro Stage 4 Emissions / New Part-Please Check For Reman Version / From: 8A147002 / To: 9A211714 		- 1 Enquire
9A543 LR009804
PUMP - FUEL INJECTION
EU2 		- 1 Enquire
9A543 LR017367
PUMP - FUEL INJECTION
Euro Stage 4 Emissions / New Part-Please Check For Reman Version / From: 9A211715 		- 1 Enquire
9A543 LR049606
PUMP - FUEL INJECTION
Euro Stage 4 Emissions / Remanufactured Part / From: 7A000001 		- 1 Enquire
6256 1311294
PULLEY
To: 6A999999 		- 1 Enquire
6256 LR003788
SPROCKET - CAMSHAFT
From: 7A000001 		- 1 Enquire
9346 LR004569
BRACKET
Stage IV + DPF Emissions / From: 7A000001 		- 1 Enquire
