Windscreen Washer (Itatiaia (Brazil))

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] - Windscreen Washer (Itatiaia (Brazil))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
SYC100530 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR077424 NUT Enquire To Order
Photo Part No Description Price (each) Stock
AYP500110 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR128571 RESERVOIR - WINDSHIELD WASHER Enquire To Order
LR128573 RESERVOIR - WINDSHIELD WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR117363 BRACKET - RESERVOIR SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR114691 HOSE - FILLER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR127514 HOSE - REAR WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR132803 HOSE - REAR WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR146759 JET - WINDSHIELD WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR146760 JET - WINDSHIELD WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR114665 HOSE - WINDSHIELD WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR114550 HOSE - WINDSHIELD WASHER Enquire To Order
View All

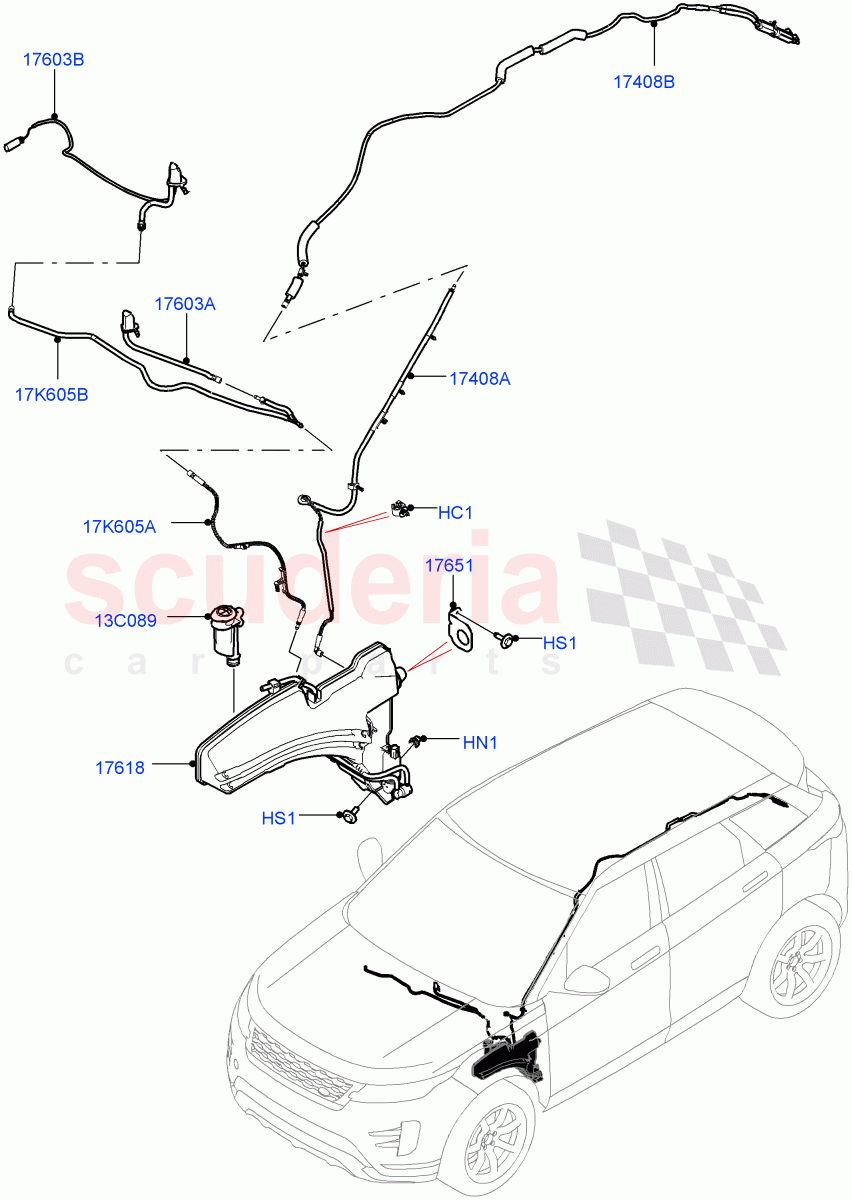

Windscreen Washer (Itatiaia (Brazil)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 SYC100530
CLIP
Single 		- 1 Enquire
HN1 LR077424
NUT
Expanding Rivet, M6 x 15MM 		- 2 Enquire
HS1 AYP500110
SCREW
Bolt And Washer, Hexagonal Head, M6 X 20MM, Reservoir 		- 2 Enquire
13C089 LR114691
HOSE - FILLER PIPE 		- 1 Enquire
17K605A LR114665
HOSE - WINDSHIELD WASHER
From Washer Reservoir To Windshield Hose Assembly 		- 1 Enquire
17K605B LR114550
HOSE - WINDSHIELD WASHER
Windshield Washer Hose 		- 1 Enquire
17408A LR127514
HOSE - REAR WASHER
Bulkhead, For Rear Window Washer, Top 		- 1 Enquire
17408B LR132803
HOSE - REAR WASHER
For Rear Window Washer, To Top Hose 		- 1 Enquire
17603A LR146759
JET - WINDSHIELD WASHER
LH 		- 1 Enquire
17603B LR146760
JET - WINDSHIELD WASHER
RH 		- 1 Enquire
17618 LR128571
RESERVOIR - WINDSHIELD WASHER
Less Headlamp Washer 		- 1 Enquire
17618 LR128573
RESERVOIR - WINDSHIELD WASHER
With Headlamp Power Wash 		- 1 Enquire
17651 LR117363
BRACKET - RESERVOIR SUPPORT 		- 1 Enquire
