Name: Luggage Compartment Door (Door And Fixings) (Itatiaia (Brazil))
Rating: 4.6 (1 reviews)

Luggage Compartment Door (Door And Fixings) (Itatiaia (Brazil)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] - Luggage Compartment Door (Door And Fixings) (Itatiaia (Brazil))

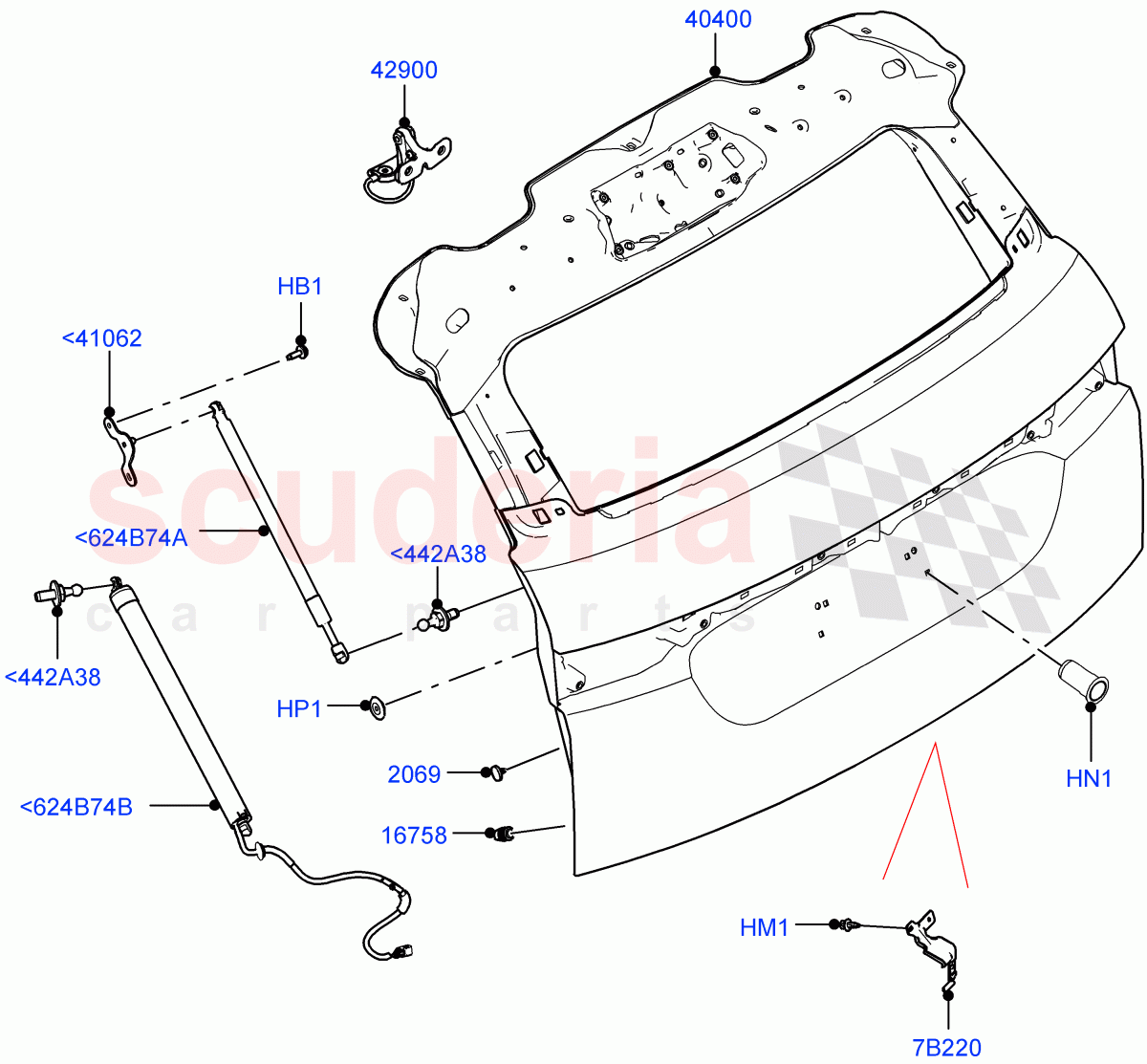

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR024183	BOLT	$1.70	To Order

Photo	Part No	Description	Price (each)	Stock
	RYQ500040	FASTENER	$0.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR136979	NUT - RIVET	$1.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012710	PLUG - BODY SEALING	$1.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137576	PIN - TRIM	$1.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001777	BUMPER - TAILGATE	$9.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR146880	DOOR - REAR - LESS HINGES	$1,066.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117320	HINGE - TAILGATE	$60.71	To Order
	LR117322	HINGE - TAILGATE	$60.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123842	BRACKET - KEY MOUNTING	$15.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR118174	BRACKET - TAILGATE	$18.64	To Order
	LR118175	BRACKET - TAILGATE	$19.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138284	STUD - BALL	$6.20	To Order
	LR138284	STUD - BALL	$6.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114631	LIFT - GAS	$126.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR164087	LIFT - TAILGATE - ELECTRIC	$296.55	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<442A38	LR138284	STUD - BALL	LR138284 STUD - BALL With Conventional Tailgate / M8 x 19MM	$6.20	2
<442A38	LR138284	STUD - BALL	LR138284 STUD - BALL Tailgate-Powered Upper / M8 x 19MM	$6.20	2
<624B74A	LR114631	LIFT - GAS	LR114631 LIFT - GAS With Conventional Tailgate	$126.69	2
<624B74B	LR164087	LIFT - TAILGATE - ELECTRIC	LR164087 LIFT - TAILGATE - ELECTRIC Tailgate-Powered Upper	$296.55	2
<41062	LR118174	BRACKET - TAILGATE	LR118174 BRACKET - TAILGATE With Conventional Tailgate / RH	$18.64	1
<41062	LR118175	BRACKET - TAILGATE	LR118175 BRACKET - TAILGATE With Conventional Tailgate / LH	$19.27	1
HB1	LR024183	BOLT	LR024183 BOLT Hexagonal Head, M8 X 25MM	$1.70	8
HM1	RYQ500040	FASTENER IN STOCK	RYQ500040 FASTENER Vehicle Access-Leisure Activity Key / 6.25 x 1.6/6MM IN STOCK	$0.58	2
HN1	LR136979	NUT - RIVET	LR136979 NUT - RIVET Rr Number Plate Plinth - Australia / M6 X 20MM	$1.49	2
HP1	LR012710	PLUG - BODY SEALING	LR012710 PLUG - BODY SEALING	$1.26	4
7B220	LR123842	BRACKET - KEY MOUNTING	LR123842 BRACKET - KEY MOUNTING Vehicle Access-Leisure Activity Key	$15.61	1
2069	LR137576	PIN - TRIM	LR137576 PIN - TRIM	$1.42	6
16758	LR001777	BUMPER - TAILGATE	LR001777 BUMPER - TAILGATE Adjustable, Tailgate	$9.97	2
40400	LR146880	DOOR - REAR - LESS HINGES	LR146880 DOOR - REAR - LESS HINGES	$1,066.50	1
42900	LR117320	HINGE - TAILGATE	LR117320 HINGE - TAILGATE 5 Door / RH	$60.71	1
42900	LR117322	HINGE - TAILGATE	LR117322 HINGE - TAILGATE 5 Door / LH	$60.71	1
