Side Panels - Inner (Middle - Rear, Inner - Rear) (Itatiaia (Brazil))

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] - Side Panels - Inner (Middle - Rear, Inner - Rear) (Itatiaia (Brazil))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR135220 PANEL - WHEELHOUSE - OUTER Enquire To Order
LR118001 PANEL - WHEELHOUSE - OUTER Enquire To Order
LR118002 PANEL - WHEELHOUSE - OUTER Enquire To Order
Photo Part No Description Price (each) Stock
LR117175 REINFORCEMENT - REAR QUARTER PANEL Enquire To Order
LR117176 REINFORCEMENT - REAR QUARTER PANEL Enquire To Order
Photo Part No Description Price (each) Stock
LR117361 GASKET - FILLER PIPE Enquire To Order
LR135307 GASKET - FILLER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR121013 PANEL - WHEELHOUSE - OUTER Enquire To Order
LR121014 PANEL - WHEELHOUSE - OUTER Enquire To Order
Photo Part No Description Price (each) Stock
LR117187 PANEL - BODY SIDE - REAR Enquire To Order
LR117188 PANEL - BODY SIDE - REAR Enquire To Order
Photo Part No Description Price (each) Stock
LR117189 PANEL - BODY SIDE - REAR Enquire To Order
LR117190 PANEL - BODY SIDE - REAR Enquire To Order
Photo Part No Description Price (each) Stock
LR117191 PANEL - BODY REAR Enquire To Order
LR117192 PANEL - BODY REAR Enquire To Order
Photo Part No Description Price (each) Stock
LR117997 GUSSET Enquire To Order
LR117998 GUSSET Enquire To Order
Photo Part No Description Price (each) Stock
LR135363 PANEL - REAR QUARTER Enquire To Order
LR135364 PANEL - REAR QUARTER Enquire To Order
LR118000 PANEL - REAR QUARTER Enquire To Order
Photo Part No Description Price (each) Stock
LR118009 PANEL - "D" PILLAR WATER DRAIN Enquire To Order
LR118010 PANEL - "D" PILLAR WATER DRAIN Enquire To Order
View All

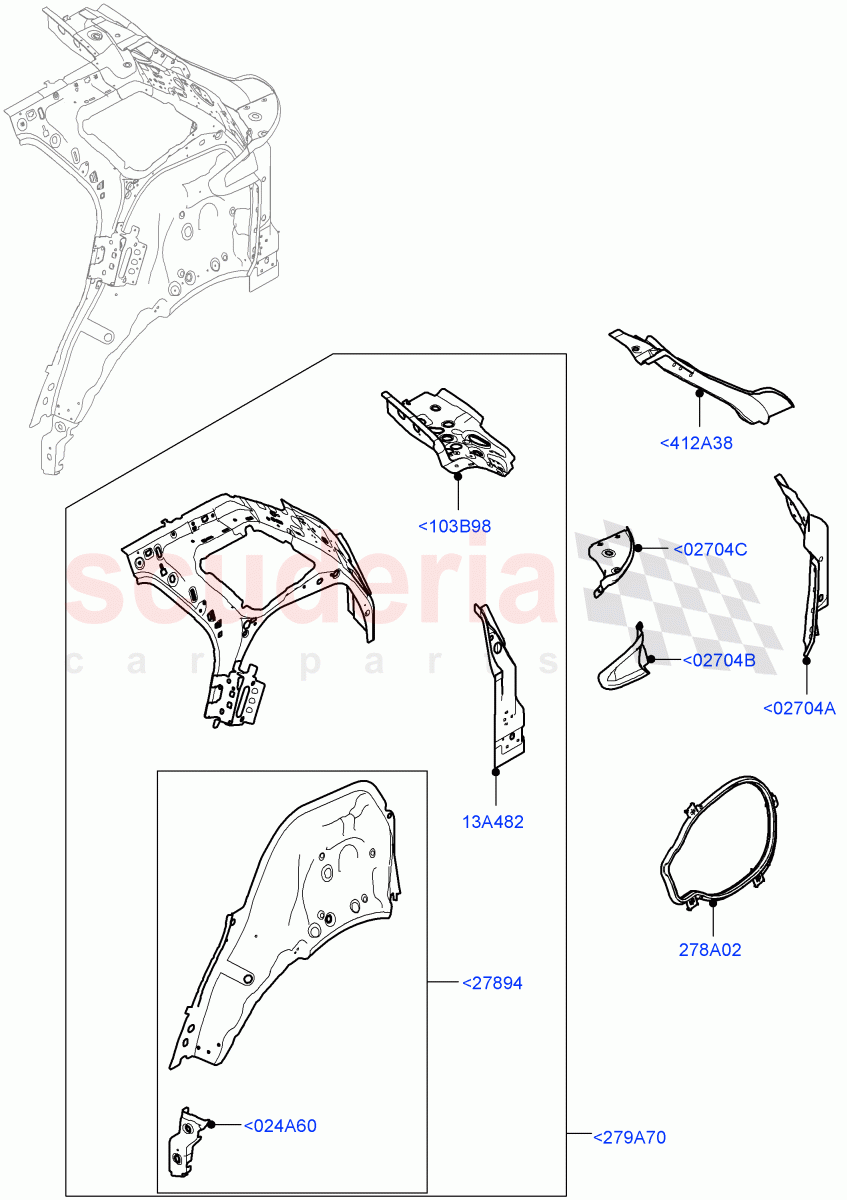

Side Panels - Inner (Middle - Rear, Inner - Rear) (Itatiaia (Brazil)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<024A60 LR121013
PANEL - WHEELHOUSE - OUTER
RH, Extension 		- 1 Enquire
<024A60 LR121014
PANEL - WHEELHOUSE - OUTER
LH, Extension 		- 1 Enquire
<103B98 LR117997
GUSSET
RH 		- 1 Enquire
<103B98 LR117998
GUSSET
LH 		- 1 Enquire
<279A70 LR135363
PANEL - REAR QUARTER
RH 		- 1 Enquire
<279A70 LR135364
PANEL - REAR QUARTER
Electric Engine Battery-PHEV / LH 		- 1 Enquire
<279A70 LR118000
PANEL - REAR QUARTER
Electric Engine Battery-MHEV / LH 		- 1 Enquire
<412A38 LR118009
PANEL - "D" PILLAR WATER DRAIN
RH 		- 1 Enquire
<412A38 LR118010
PANEL - "D" PILLAR WATER DRAIN
LH 		- 1 Enquire
<02704A LR117187
PANEL - BODY SIDE - REAR
RH, Lower Back Panel 		- 1 Enquire
<02704A LR117188
PANEL - BODY SIDE - REAR
LH, Lower Back Panel 		- 1 Enquire
<02704B LR117189
PANEL - BODY SIDE - REAR
RH, Rear Side 		- 1 Enquire
<02704B LR117190
PANEL - BODY SIDE - REAR
LH, Rear Side 		- 1 Enquire
<02704C LR117191
PANEL - BODY REAR
RH, Upper Rear 		- 1 Enquire
<02704C LR117192
PANEL - BODY REAR
LH, Rear Side 		- 1 Enquire
<27894 LR135220
PANEL - WHEELHOUSE - OUTER
Electric Engine Battery-PHEV / LH 		- 1 Enquire
<27894 LR118001
PANEL - WHEELHOUSE - OUTER
RH 		- 1 Enquire
<27894 LR118002
PANEL - WHEELHOUSE - OUTER
Electric Engine Battery-MHEV / LH 		- 1 Enquire
13A482 LR117175
REINFORCEMENT - REAR QUARTER PANEL
RH 		- 1 Enquire
13A482 LR117176
REINFORCEMENT - REAR QUARTER PANEL
LH 		- 1 Enquire
278A02 LR117361
GASKET - FILLER PIPE
RH 		- 1 Enquire
278A02 LR135307
GASKET - FILLER PIPE
Electric Engine Battery-PHEV / LH 		- 1 Enquire
