Cowl/Panel And Related Parts (Halewood (Uk))

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] - Cowl/Panel And Related Parts (Halewood (UK))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR024316 PIN $3.30 IN STOCK
LR024316 PIN $3.30 IN STOCK
LR147004 RIVET - PLASTIC $1.66 To Order
Photo Part No Description Price (each) Stock
RYQ500070 PIN - RETAINING $1.45 IN STOCK
Photo Part No Description Price (each) Stock
LR114552 COVER - BATTERY $66.44 To Order
LR133957 COVER - BATTERY $66.44 To Order
Photo Part No Description Price (each) Stock
LR003110 PIPE - DRAIN $7.77 To Order
Photo Part No Description Price (each) Stock
LR114547 PANEL - COWL TOP $267.84 To Order
LR114548 PANEL - COWL TOP $276.69 To Order
LR136934 PANEL - COWL SIDE $276.69 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR114551 JET - WINDSHIELD WASHER $27.22 To Order
LR146759 JET - WINDSHIELD WASHER $25.91 To Order
Photo Part No Description Price (each) Stock
LR128937 JET - WINDSHIELD WASHER $26.28 To Order
LR146760 JET - WINDSHIELD WASHER $25.91 To Order
Photo Part No Description Price (each) Stock
LR114550 HOSE - WINDSHIELD WASHER $36.70 To Order
Photo Part No Description Price (each) Stock
LR124428 BRACKET - BATTERY BOX $8.73 To Order
LR124428 BRACKET - BATTERY BOX $8.73 To Order
LR135626 BRACKET - BATTERY BOX $8.73 To Order
Photo Part No Description Price (each) Stock
LR114688 COVER - BRAKE RESERVOIR - COWL TOP $111.54 To Order
LR133950 COVER - BRAKE RESERVOIR - COWL TOP $111.54 To Order
LR159618 COVER - BRAKE RESERVOIR - COWL TOP $111.54 To Order
Photo Part No Description Price (each) Stock
LR137030 PANEL - COWL TOP $46.96 To Order
LR137525 PANEL - COWL TOP $57.94 To Order
View All

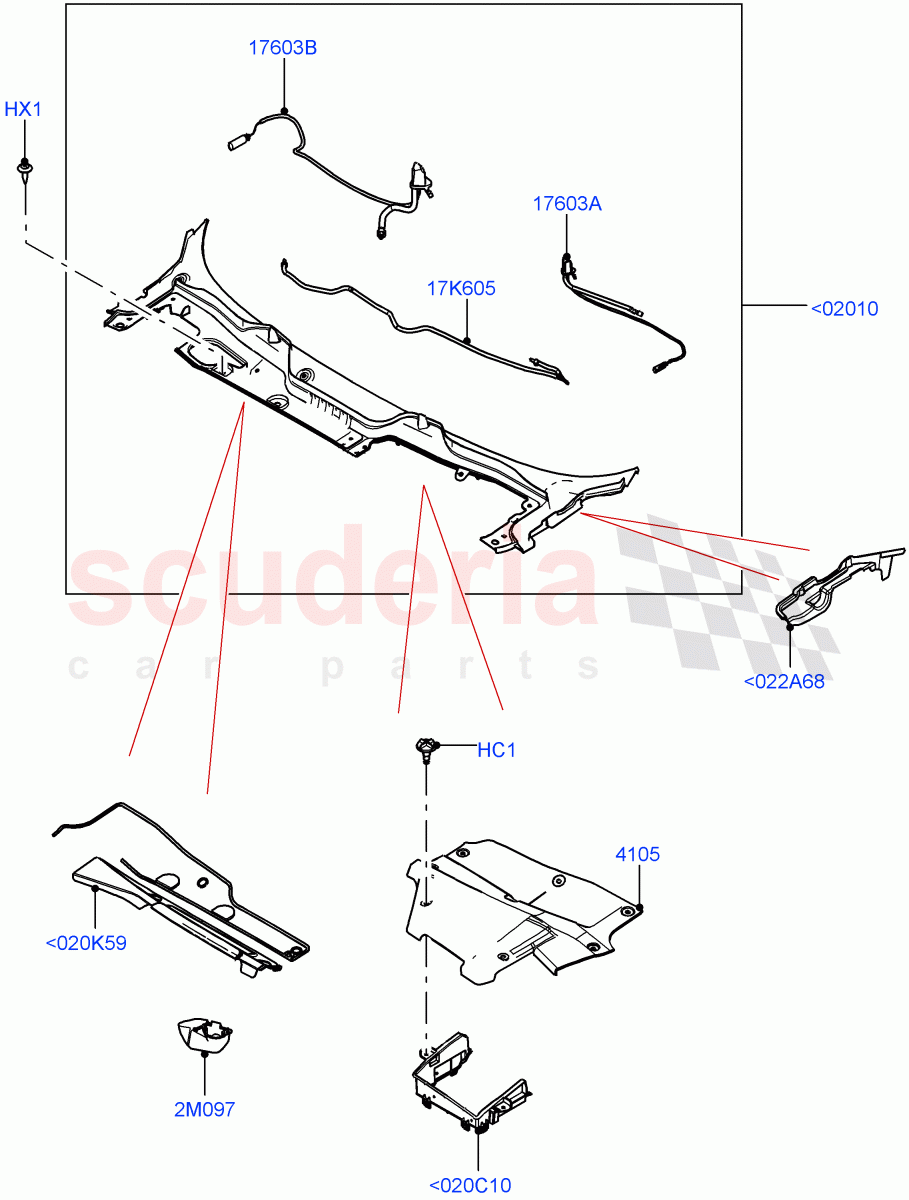

Cowl/Panel And Related Parts (Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<020C10 LR124428
BRACKET - BATTERY BOX
To: KH999999 		$8.73 1
<020C10 LR124428
BRACKET - BATTERY BOX
2.0L AJ20D4 Diesel High PTA / From: LH000001 		$8.73 1
<020C10 LR135626
BRACKET - BATTERY BOX
1.5L AJ20P3 Petrol High PHEV / From: LH000001 		$8.73 1
<020K59 LR114688
COVER - BRAKE RESERVOIR - COWL TOP
To: LH013166 		$111.54 1
<020K59 LR133950
COVER - BRAKE RESERVOIR - COWL TOP
From: LH013167 / To: MH143457 		$111.54 1
<020K59 LR159618
COVER - BRAKE RESERVOIR - COWL TOP
From: MH143458 		$111.54 1
<022A68 LR137030
PANEL - COWL TOP
RH 		$46.96 1
<022A68 LR137525
PANEL - COWL TOP
LH 		$57.94 1
<02010 LR114547
PANEL - COWL TOP
LHD / To: LH023045 		$267.84 1
<02010 LR114548
PANEL - COWL TOP
RHD / To: LH023045 		$276.69 1
<02010 LR136934
PANEL - COWL SIDE
LHD / From: LH023046 		$276.69 1
<02010 LR136935
PANEL - COWL SIDE
RHD / From: LH023046 		$267.84 1
HC1 LR024316
PIN
Cover, Rivet Blind 9.4 X 13 / To: LH104447
IN STOCK 		$3.30 6
HC1 LR024316
PIN
Battery Cover, Rivet Blind 9.4 X 13 / To: LH104447
IN STOCK 		$3.30 7
HC1 LR147004
RIVET - PLASTIC
Rivet Blind 9.4 X 13 / From: LH104448 		$1.66 13
HX1 RYQ500070
PIN - RETAINING
6.3 X 22MM, Push Pin
IN STOCK 		$1.45 2
2M097 LR003110
PIPE - DRAIN 		$7.77 2
17K605 LR114550
HOSE - WINDSHIELD WASHER
Windshield Washer Hose 		$36.70 1
4105 LR114552
COVER - BATTERY
To: LH028049 		$66.44 1
4105 LR133957
COVER - BATTERY
From: LH028050 		$66.44 1
17603A LR114551
JET - WINDSHIELD WASHER
LH / To: LH104448 		$27.22 1
17603A LR146759
JET - WINDSHIELD WASHER
LH / From: LH104449 		$25.91 1
17603B LR128937
JET - WINDSHIELD WASHER
RH / To: LH104448 		$26.28 1
17603B LR146760
JET - WINDSHIELD WASHER
RH / From: LH104449 		$25.91 1
