Find Your Part

View All

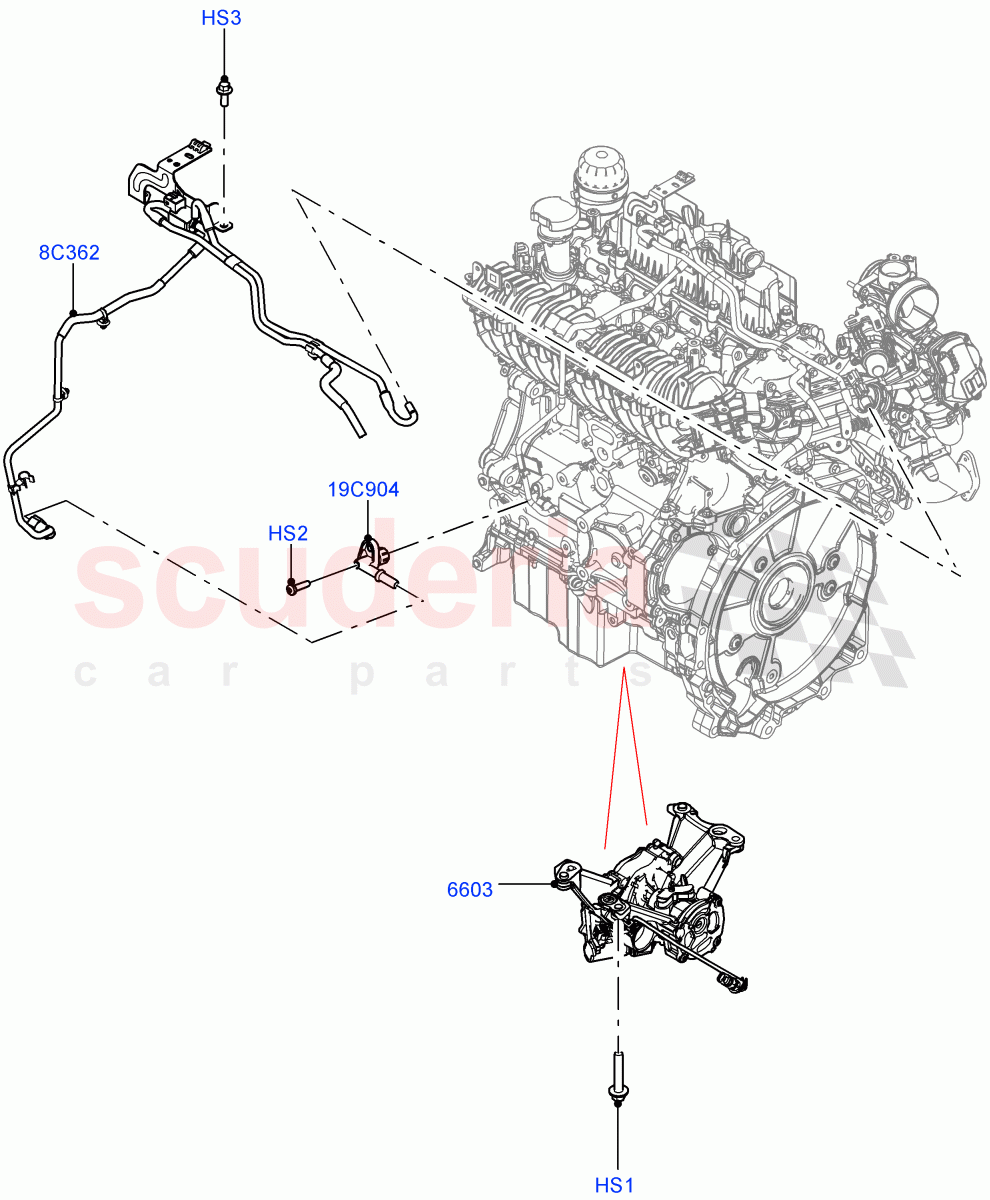

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073649	SCREW	$2.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073666	SCREW	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR108591	BOLT	$1.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139682	HOSE - VACUUM	$199.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR148201	CONNECTOR - VACUUM TUBE	$51.53	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	LR073649	SCREW	LR073649 SCREW M8 x 40MM / From: MH000001	$2.40	4
HS2	LR073666	SCREW	LR073666 SCREW M5 x 20MM, Vacuum Connector / From: MH000001	$1.36	1
HS3	LR108591	BOLT	LR108591 BOLT M6 X 16MM, Main Vacuum Harness / From: MH000001	$1.01	2
8C362	LR139682	HOSE - VACUUM	LR139682 HOSE - VACUUM Main Vacuum Harness / From: MH000001	$199.39	1
19C904	LR148201	CONNECTOR - VACUUM TUBE	LR148201 CONNECTOR - VACUUM TUBE From: MH000001	$51.53	1
6603	LR139790	PUMP - OIL	LR139790 PUMP - OIL From: MH000001 / To: MH155376	$635.38	1
6603	LR163189	PUMP - OIL	LR163189 PUMP - OIL From: MH155377	$575.83	1
