Exhaust Gas Recirculation (2.0L Aj21D4 Diesel Mid, Itatiaia (Brazil))

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] - Exhaust Gas Recirculation (2.0L AJ21D4 Diesel Mid, Itatiaia (Brazil))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR091557 BOLT $2.89 To Order
Photo Part No Description Price (each) Stock
LR071777 BOLT - HEX.HEAD $2.65 To Order
Photo Part No Description Price (each) Stock
LR083962 O-RING $5.13 To Order
Photo Part No Description Price (each) Stock
LR071774 SCREW $2.23 To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.54 IN STOCK
Photo Part No Description Price (each) Stock
LR073648 SCREW $2.55 IN STOCK
Photo Part No Description Price (each) Stock
LR073686 SCREW $2.38 To Order
Photo Part No Description Price (each) Stock
LR073724 SCREW $1.96 To Order
Photo Part No Description Price (each) Stock
LR139748 EGR VALVE - LOW PRESSURE $510.47 To Order
Photo Part No Description Price (each) Stock
LR139075 FILTER - EGR COOLER $17.28 To Order
Photo Part No Description Price (each) Stock
LR139720 COOLER - EGR $408.16 To Order
LR155126 COOLER - EGR $425.57 To Order
Photo Part No Description Price (each) Stock
LR139826 TUBE - EGR COOLER $142.12 To Order
Photo Part No Description Price (each) Stock
LR159422 EGR UNIT $1,354.21 To Order
Photo Part No Description Price (each) Stock
LR075629 SENSOR - TEMPERATURE $46.10 To Order
Photo Part No Description Price (each) Stock
LR153987 SENSOR $138.70 To Order
Photo Part No Description Price (each) Stock
LR162966 SENSOR $77.07 To Order
Photo Part No Description Price (each) Stock
LR139718 TUBE - EXHAUST GAS RECIRCULATION $119.28 To Order
Photo Part No Description Price (each) Stock
LR139653 TUBE - EXHAUST GAS RECIRCULATION $88.24 To Order
Photo Part No Description Price (each) Stock
LR139823 BRACKET - SUPPORT $25.18 To Order
Photo Part No Description Price (each) Stock
LR139690 BRACKET - SUPPORT $43.34 To Order
View All

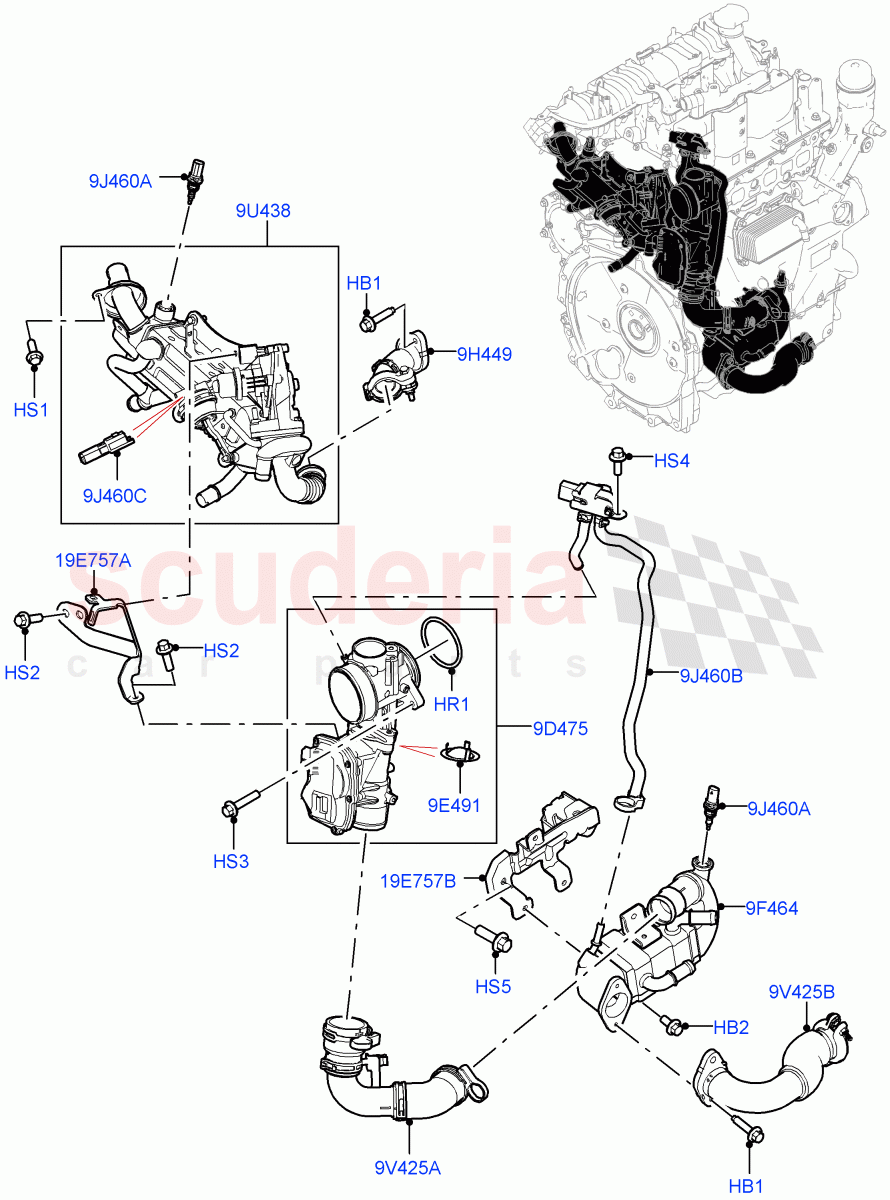

Exhaust Gas Recirculation (2.0L AJ21D4 Diesel Mid, Itatiaia (Brazil)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR091557
BOLT
EGR Tube To EGR Cooler, M6 X 25MM 		$2.89 2
HB2 LR071777
BOLT - HEX.HEAD
M6 X 14MM 		$2.65 3
HR1 LR083962
O-RING
60MM 		$5.13 1
HS1 LR071774
SCREW
Hexagonal Head, M6 X 20MM 		$2.23 1
HS2 LR073655
SCREW
Hexagonal Head, M6 X 20MM
IN STOCK 		$1.54 6
HS3 LR073648
SCREW
Hexagonal Head, M6 x 30MM
IN STOCK 		$2.55 2
HS4 LR073686
SCREW
M6 X 16MM 		$2.38 1
HS5 LR073724
SCREW
M8 X 25MM 		$1.96 3
9D475 LR139748
EGR VALVE - LOW PRESSURE 		$510.47 1
9E491 LR139075
FILTER - EGR COOLER 		$17.28 1
9F464 LR139720
COOLER - EGR
Bharat VI Emission 		$408.16 1
9F464 LR155126
COOLER - EGR
L7 Emission - Brazil 		$425.57 1
9H449 LR139826
TUBE - EGR COOLER 		$142.12 1
9J460A LR075629
SENSOR - TEMPERATURE
Sensor - Air Charge Temperature 		$46.10 2
9J460B LR153987
SENSOR
Exhaust Gas Pressure, Sensor And Tube Assy 		$138.70 1
9J460C LR162966
SENSOR
EGR Unit 		$77.07 1
9U438 LR159422
EGR UNIT 		$1,354.21 1
9V425A LR139718
TUBE - EXHAUST GAS RECIRCULATION
EGR Cooler To EGR Valve 		$119.28 1
9V425B LR139653
TUBE - EXHAUST GAS RECIRCULATION
EGR Cooler Inlet 		$88.24 1
19E757A LR139823
BRACKET - SUPPORT
EGR Unit 		$25.18 1
19E757B LR139690
BRACKET - SUPPORT
EGR Cooler 		$43.34 1
