Exhaust Fluid Injection System (Tank And Filler) (2.0L AJ21D4 Diesel Mid, Halewood (UK), With Diesel Exh Fluid Emission Tank) ((V) FROMMH000001) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] - Exhaust Fluid Injection System (Tank And Filler) (2.0L AJ21D4 Diesel Mid, Halewood (UK), With...

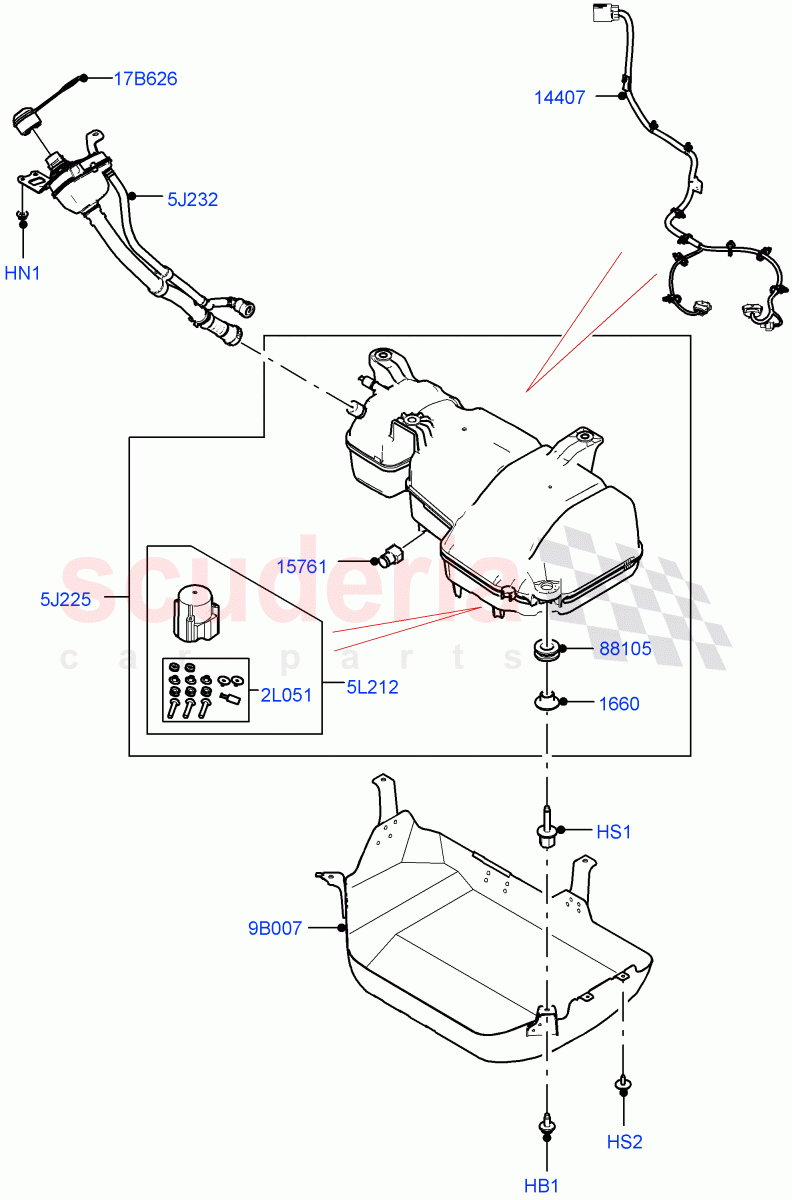

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR008026	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117836	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000890	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115628	SPACER - STRIKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR143676	WIRE - FUEL SENDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115627	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085287	KIT - FIXING PARTS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139836	TANK - DIESEL EXHAUST FLUID	Enquire	To Order
	LR139837	TANK - DIESEL EXHAUST FLUID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR134942	FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR166698	PUMP - DIESEL EXHAUST FLUID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125664	BUSH - INSULATING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117823	SHIELD - TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115637	CAP - FILLER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR008026	BOLT	LR008026 BOLT Bolt And Washer, M8 X 17MM / From: MH000001	-	4	Enquire
HN1	FN106046	NUT - HEX.	FN106046 NUT - HEX. Hexagonal Head, M6 / From: MH000001	-	3	Enquire
HS1	LR117836	SCREW	LR117836 SCREW M8 X 35MM / From: MH000001	-	4	Enquire
HS2	LR000890	SCREW AND WASHER	LR000890 SCREW AND WASHER 4.8 X 19MM / From: MH000001	-	2	Enquire
2L051	LR085287	KIT - FIXING PARTS	LR085287 KIT - FIXING PARTS Diesel Exhaust Fluid Pump / From: MH000001	-	1	Enquire
5J225	LR139836	TANK - DIESEL EXHAUST FLUID	LR139836 TANK - DIESEL EXHAUST FLUID Standard Diesel Exhst Fld Tank Size / From: MH000001	-	1	Enquire
5J225	LR139837	TANK - DIESEL EXHAUST FLUID	LR139837 TANK - DIESEL EXHAUST FLUID Eco Diesel Exhaust Fluid Tank Size / From: MH000001	-	1	Enquire
5J232	LR134942	FILLER	LR134942 FILLER From: MH000001	-	1	Enquire
5L212	LR166698	PUMP - DIESEL EXHAUST FLUID	LR166698 PUMP - DIESEL EXHAUST FLUID Kit Includes Fitting Parts, Service Kit / From: MH000001	-	1	Enquire
9B007	LR117823	SHIELD - TANK	LR117823 SHIELD - TANK From: MH000001	-	1	Enquire
17B626	LR115637	CAP - FILLER	LR115637 CAP - FILLER From: MH000001	-	1	Enquire
1660	LR115628	SPACER - STRIKER	LR115628 SPACER - STRIKER From: MH000001	-	4	Enquire
14407	LR143676	WIRE - FUEL SENDER	LR143676 WIRE - FUEL SENDER Diesel Exhaust Fluid Pump / From: MH000001	-	1	Enquire
15761	LR115627	PLUG - BLANKING	LR115627 PLUG - BLANKING From: MH000001	-	1	Enquire
88105	LR125664	BUSH - INSULATING	LR125664 BUSH - INSULATING From: MH000001	-	4	Enquire
