Exhaust Gas Recirculation (2.0L AJ21D4 Diesel Mid, Halewood (UK)) ((V) FROMMH000001) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] - Exhaust Gas Recirculation (2.0L AJ21D4 Diesel Mid, Halewood (UK)) ((V) FROMMH000001)

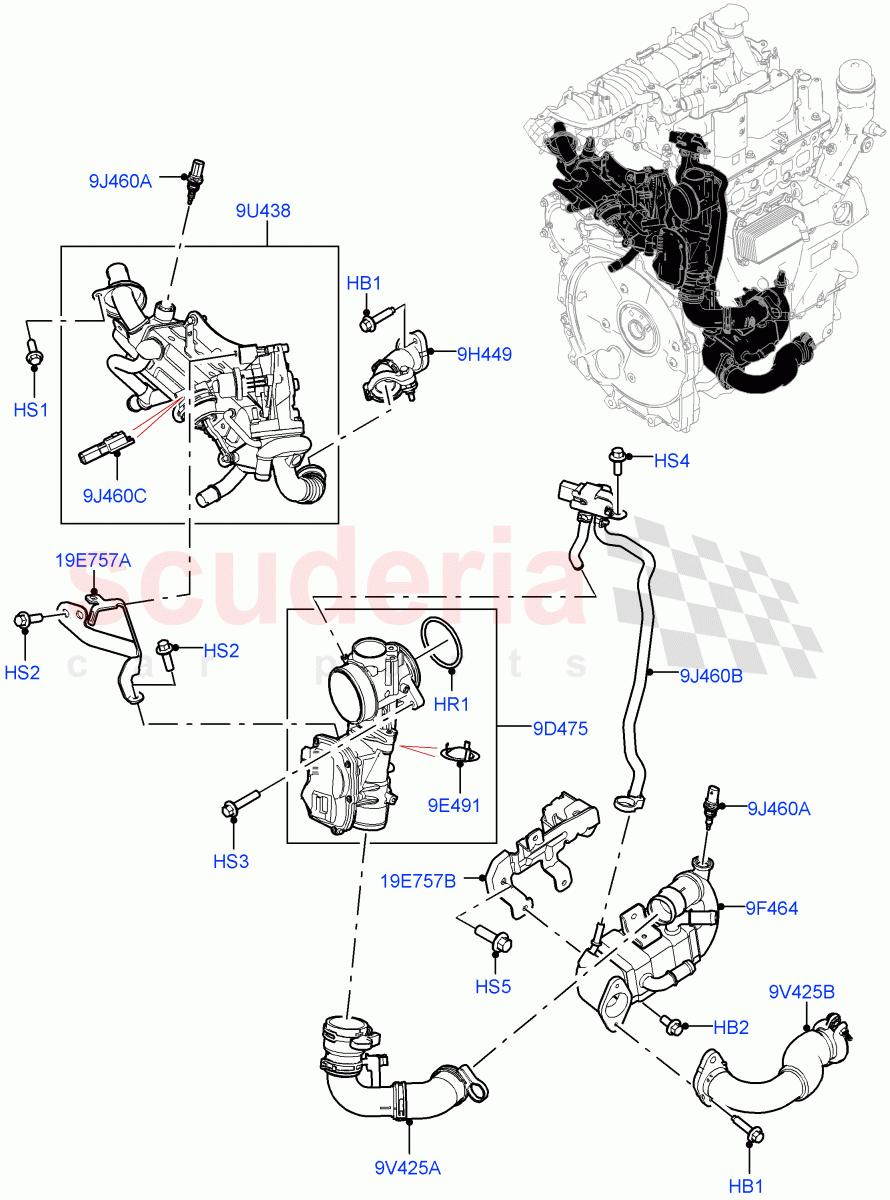

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR091557	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071777	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083962	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073648	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073686	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073724	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139748	EGR VALVE - LOW PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139075	FILTER - EGR COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139720	COOLER - EGR	Enquire	To Order
	LR155126	COOLER - EGR	Enquire	To Order
	LR164412	COOLER - EGR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR139826	TUBE - EGR COOLER	Enquire	To Order
	LR161890	TUBE - EGR COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139674	EGR UNIT	Enquire	To Order
	LR156783	EGR UNIT	Enquire	To Order
	LR159422	EGR UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075629	SENSOR - TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139805	SENSOR	Enquire	To Order
	LR153987	SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR162966	SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139718	TUBE - EXHAUST GAS RECIRCULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139653	TUBE - EXHAUST GAS RECIRCULATION	Enquire	To Order
	LR175125	Tube	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139823	BRACKET - SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139690	BRACKET - SUPPORT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR091557	BOLT	LR091557 BOLT EGR Tube To EGR Cooler, M6 X 25MM / From: MH000001	-	2	Enquire
HB2	LR071777	BOLT - HEX.HEAD	LR071777 BOLT - HEX.HEAD M6 X 14MM / From: MH000001	-	3	Enquire
HR1	LR083962	O-RING	LR083962 O-RING 60MM / From: MH000001	-	1	Enquire
HS1	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM / From: MH000001	-	1	Enquire
HS2	LR073655	SCREW	LR073655 SCREW Hexagonal Head, M6 X 20MM / From: MH000001	-	6	Enquire
HS3	LR073648	SCREW	LR073648 SCREW Hexagonal Head, M6 x 30MM / From: MH000001	-	2	Enquire
HS4	LR073686	SCREW	LR073686 SCREW M6 X 16MM / From: MH000001	-	1	Enquire
HS5	LR073724	SCREW	LR073724 SCREW M8 X 25MM / From: MH000001	-	3	Enquire
9D475	LR139748	EGR VALVE - LOW PRESSURE	LR139748 EGR VALVE - LOW PRESSURE From: MH000001	-	1	Enquire
9E491	LR139075	FILTER - EGR COOLER	LR139075 FILTER - EGR COOLER From: MH000001	-	1	Enquire
9F464	LR139720	COOLER - EGR	LR139720 COOLER - EGR J-WLTP Emission / From: MH000001 / To: MH158921	-	1	Enquire
9F464	LR155126	COOLER - EGR	LR155126 COOLER - EGR Stage V Plus DPF / From: MH000001 / To: MH158921	-	1	Enquire
9F464	LR164412	COOLER - EGR	LR164412 COOLER - EGR Proconve L6 Emissions / From: MH158922	-	1	Enquire
9F464	LR164411	COOLER - EGR	LR164411 COOLER - EGR Bharat VI Emission / From: MH158922	-	1	Enquire
9H449	LR139826	TUBE - EGR COOLER	LR139826 TUBE - EGR COOLER From: MH000001 / To: MH152974	-	1	Enquire
9H449	LR161890	TUBE - EGR COOLER	LR161890 TUBE - EGR COOLER From: MH152975	-	1	Enquire
9J460A	LR075629	SENSOR - TEMPERATURE	LR075629 SENSOR - TEMPERATURE Sensor - Air Charge Temperature / From: MH000001	-	2	Enquire
9J460B	LR139805	SENSOR	LR139805 SENSOR Exhaust Gas Pressure, Sensor And Tube Assy / From: MH000001 / To: MH128335	-	1	Enquire
9J460B	LR153987	SENSOR	LR153987 SENSOR Exhaust Gas Pressure, Sensor And Tube Assy / From: MH128336	-	1	Enquire
9J460C	LR162966	SENSOR	LR162966 SENSOR EGR Unit / From: MH000001	-	1	Enquire
9U438	LR139674	EGR UNIT	LR139674 EGR UNIT From: MH000001 / To: MH137880	-	1	Enquire
9U438	LR156783	EGR UNIT	LR156783 EGR UNIT From: MH137881 / To: MH151472	-	1	Enquire
9U438	LR159422	EGR UNIT	LR159422 EGR UNIT From: MH151473	-	1	Enquire
9V425A	LR139718	TUBE - EXHAUST GAS RECIRCULATION	LR139718 TUBE - EXHAUST GAS RECIRCULATION EGR Cooler To EGR Valve / From: MH000001	-	1	Enquire
9V425B	LR139653	TUBE - EXHAUST GAS RECIRCULATION	LR139653 TUBE - EXHAUST GAS RECIRCULATION EGR Cooler Inlet / From: MH000001 / To: PH182698	-	1	Enquire
9V425B	LR175125	Tube	LR175125 Tube EGR Cooler Inlet / From: PH182699	-	1	Enquire
19E757A	LR139823	BRACKET - SUPPORT	LR139823 BRACKET - SUPPORT EGR Unit / From: MH000001	-	1	Enquire
19E757B	LR139690	BRACKET - SUPPORT	LR139690 BRACKET - SUPPORT EGR Cooler / From: MH000001	-	1	Enquire
