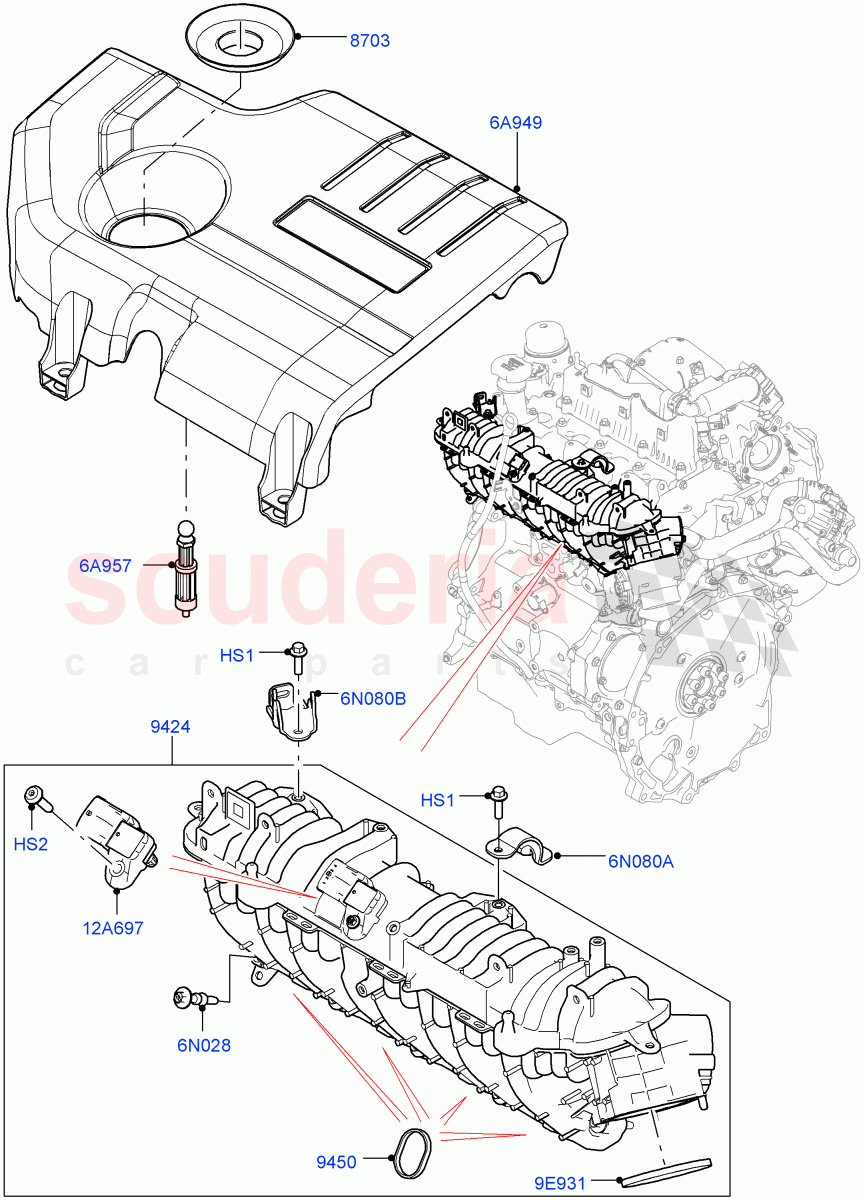

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR130401	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074074	OIL SPILL GAITER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139770	MANIFOLD - INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139769	GASKET - INTAKE MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139670	COVER - ENGINE TOP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010871	STUD - BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074085	BOLT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139766	GASKET - THROTTLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR144572	SENSOR - AIR TEMPERATURE & PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139685	BRACKET - MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139684	BRACKET - MANIFOLD	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HS1	LR073655	SCREW	LR073655 SCREW Bracket, Hexagonal Head, M6 X 20MM / From: MH000001	-	4	Enquire
HS2	LR130401	SCREW	LR130401 SCREW Hexagonal Head, M5 x 20MM, Sensor / From: MH000001	-	1	Enquire
6A949	LR139670	COVER - ENGINE TOP	LR139670 COVER - ENGINE TOP Engine / From: MH000001	-	1	Enquire
6A957	LR010871	STUD - BALL	LR010871 STUD - BALL Engine Cover / From: MH000001	-	1	Enquire
6N028	LR074085	BOLT - SPECIAL	LR074085 BOLT - SPECIAL M6 x 42MM, Manifold To Cylinder Head / From: MH000001	-	9	Enquire
6N080A	LR139685	BRACKET - MANIFOLD	LR139685 BRACKET - MANIFOLD LH / From: MH000001	-	1	Enquire
6N080B	LR139684	BRACKET - MANIFOLD	LR139684 BRACKET - MANIFOLD RH / From: MH000001	-	1	Enquire
9E931	LR139766	GASKET - THROTTLE	LR139766 GASKET - THROTTLE Throttle Body To Intake / From: MH000001	-	1	Enquire
12A697	LR144572	SENSOR - AIR TEMPERATURE & PRESSURE	LR144572 SENSOR - AIR TEMPERATURE & PRESSURE Pressure, Temperature / From: MH000001	-	1	Enquire
8703	LR074074	OIL SPILL GAITER	LR074074 OIL SPILL GAITER Oil Spill / From: MH000001	-	1	Enquire
9424	LR139770	MANIFOLD - INLET	LR139770 MANIFOLD - INLET From: MH000001	-	1	Enquire
9450	LR139769	GASKET - INTAKE MANIFOLD	LR139769 GASKET - INTAKE MANIFOLD Inlet Manifold / From: MH000001	-	8	Enquire
