Name: Cylinder Block And Plugs (2.0L AJ21D4 Diesel Mid, Itatiaia (Brazil))
Rating: 4.9 (1 reviews)

Cylinder Block And Plugs (2.0L AJ21D4 Diesel Mid, Itatiaia (Brazil)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] - Cylinder Block And Plugs (2.0L AJ21D4 Diesel Mid, Itatiaia (Brazil))

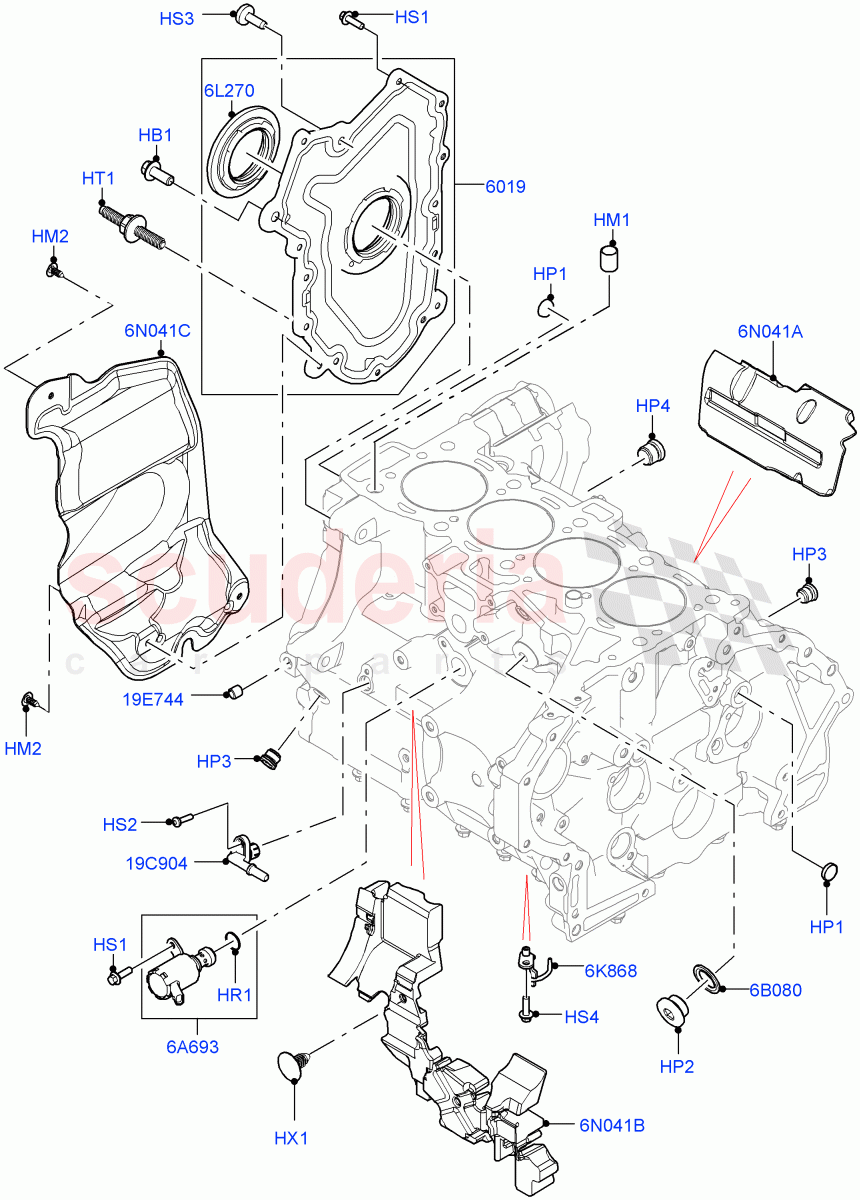

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR101794	BOLT	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073637	DOWEL - PIN	$2.36	To Order

Photo	Part No	Description	Price (each)	Stock
	RZM500070	PIN - SPECIAL	$1.07	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073636	PLUG - BLANKING	$4.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163193	PLUG - ENGINE	$4.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163194	PLUG - ENGINE	$10.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163195	PLUG - ENGINE	$10.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095786	O-RING	$4.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	$1.54	IN STOCK
	LR073655	SCREW	$1.54	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073666	SCREW	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101795	SCREW	$1.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073720	SCREW	$1.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR162083	STUD	$1.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126160	PIN - FASTENING	$0.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR133742	COVER - CYLINDER FRONT	$94.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139681	VALVE - PISTON OIL COOLNG	$165.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR107013	KIT - "O" RING	$13.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095896	NOZZLE - PISTON COOLING	$16.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121757	SEAL - CRANKSHAFT OIL - FRONT	$64.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR148201	CONNECTOR - VACUUM TUBE	$51.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057802	DOWEL - PIN	$3.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR084238	INSULATOR PAD - CYLINDER BLOCK	$32.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083682	INSULATOR - ENGINE COMPARTMENT	$51.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140692	INSULATOR - CYLINDER HEAD	$17.63	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR101794	BOLT	LR101794 BOLT Cover, M10 X 25MM, Torx	$1.62	1
HM1	LR073637	DOWEL - PIN	LR073637 DOWEL - PIN 16.5 x 20, Pin - Dowell	$2.36	2
HM2	RZM500070	PIN - SPECIAL IN STOCK	RZM500070 PIN - SPECIAL 6.4 X 20.4, Push Pin IN STOCK	$1.07	3
HP1	LR073636	PLUG - BLANKING	LR073636 PLUG - BLANKING 18MM, Blanking	$4.24	4
HP2	LR163193	PLUG - ENGINE	LR163193 PLUG - ENGINE M22 X 1.5MM	$4.08	1
HP3	LR163194	PLUG - ENGINE	LR163194 PLUG - ENGINE M14 x 9 mm	$10.79	2
HP4	LR163195	PLUG - ENGINE	LR163195 PLUG - ENGINE M18 x 1.5	$10.79	1
HR1	LR095786	O-RING IN STOCK	LR095786 O-RING 15.3MM, Valve - piston oil cooling IN STOCK	$4.47	1
HS1	LR073655	SCREW IN STOCK	LR073655 SCREW Cover, Hexagonal Head, M6 X 20MM IN STOCK	$1.54	12
HS1	LR073655	SCREW IN STOCK	LR073655 SCREW Hexagonal Head, M6 X 20MM, Valve - piston oil cooling IN STOCK	$1.54	1
HS2	LR073666	SCREW	LR073666 SCREW M5 x 20MM, Vacuum Connector	$1.36	1
HS3	LR101795	SCREW	LR101795 SCREW M8X25, Torx	$1.16	1
HS4	LR073720	SCREW	LR073720 SCREW M6 X 20MM, Oil Lubrication Jet	$1.53	4
HT1	LR162083	STUD	LR162083 STUD Cover, M6 X 20 + M6 X 16	$1.66	1
HX1	LR126160	PIN - FASTENING IN STOCK	LR126160 PIN - FASTENING 6.5 x 6, Insulator IN STOCK	$0.55	1
6A693	LR139681	VALVE - PISTON OIL COOLNG	LR139681 VALVE - PISTON OIL COOLNG	$165.97	1
6B080	LR107013	KIT - "O" RING	LR107013 KIT - "O" RING	$13.79	1
6K868	LR095896	NOZZLE - PISTON COOLING	LR095896 NOZZLE - PISTON COOLING	$16.36	4
6L270	LR121757	SEAL - CRANKSHAFT OIL - FRONT	LR121757 SEAL - CRANKSHAFT OIL - FRONT	$64.72	1
6N041A	LR084238	INSULATOR PAD - CYLINDER BLOCK	LR084238 INSULATOR PAD - CYLINDER BLOCK Cylinder Block, Rear	$32.88	1
6N041B	LR083682	INSULATOR - ENGINE COMPARTMENT	LR083682 INSULATOR - ENGINE COMPARTMENT Cylinder Block, Front	$51.06	1
6N041C	LR140692	INSULATOR - CYLINDER HEAD	LR140692 INSULATOR - CYLINDER HEAD Front Cover to Cyl Block	$17.63	1
19C904	LR148201	CONNECTOR - VACUUM TUBE	LR148201 CONNECTOR - VACUUM TUBE	$51.53	1
19E744	LR057802	DOWEL - PIN IN STOCK	LR057802 DOWEL - PIN Air Conditioning Compressor Bracket, IN STOCK	$3.36	1
6019	LR133742	COVER - CYLINDER FRONT	LR133742 COVER - CYLINDER FRONT Engine Front, Includes Seal	$94.24	1
