Cylinder Head (2.0L AJ21D4 Diesel Mid, Halewood (UK)) ((V) FROMMH000001) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] - Cylinder Head (2.0L AJ21D4 Diesel Mid, Halewood (UK)) ((V) FROMMH000001)

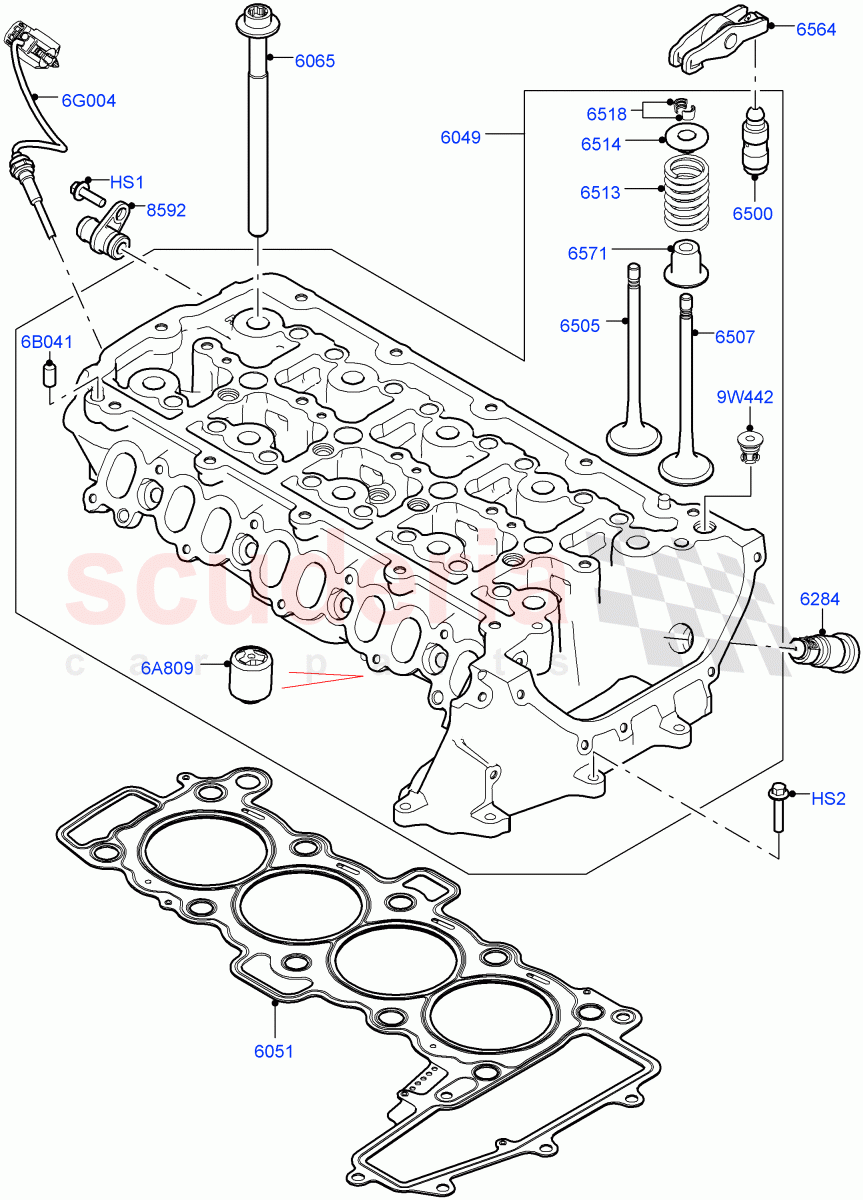

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073648	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139768	CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073638	GASKET - CYLINDER HEAD	Enquire	To Order
	LR073639	GASKET - CYLINDER HEAD	Enquire	To Order
	LR073640	GASKET-CYLINDER HEAD	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR073643	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139776	TENSIONER - TIMING CHAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073777	TAPPET - VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073779	VALVE - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073780	VALVE - INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125672	SPRING - VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073773	RETAINER - VALVE SPRING - UPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073774	COLLET - VALVE SPRING RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073775	ARM - VALVE ROCKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073776	SEAL - VALVE STEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073690	TUBE - WATER OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077674	VALVE - CHECK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073651	DOWEL - PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115083	SENSOR - CYLINDER HEAD TEMPERATURE	Enquire	To Order
	LR155114	SENSOR - CYLINDER HEAD TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073685	TUBE - DRAIN	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HS1	LR073655	SCREW	LR073655 SCREW Hexagonal Head, M6 X 20MM, Outlet pipe / From: MH000001	-	1	Enquire
HS2	LR073648	SCREW	LR073648 SCREW Hexagonal Head, M6 x 30MM / From: MH000001	-	4	Enquire
6A809	LR077674	VALVE - CHECK	LR077674 VALVE - CHECK From: MH000001	-	1	Enquire
6B041	LR073651	DOWEL - PIN	LR073651 DOWEL - PIN 8 x 19MM / From: MH000001	-	2	Enquire
6G004	LR115083	SENSOR - CYLINDER HEAD TEMPERATURE	LR115083 SENSOR - CYLINDER HEAD TEMPERATURE Sensor - Cylinder Head Temperature / From: MH000001 / To: MH133079	-	1	Enquire
6G004	LR155114	SENSOR - CYLINDER HEAD TEMPERATURE	LR155114 SENSOR - CYLINDER HEAD TEMPERATURE Sensor - Cylinder Head Temperature / From: MH133080	-	1	Enquire
9W442	LR073685	TUBE - DRAIN	LR073685 TUBE - DRAIN Drain / From: MH000001	-	1	Enquire
6049	LR139768	CYLINDER HEAD	LR139768 CYLINDER HEAD With Valves / From: MH000001	-	1	Enquire
6051	LR073638	GASKET - CYLINDER HEAD	LR073638 GASKET - CYLINDER HEAD 1.30MM, Grade 1 / From: MH000001	-	1	Enquire
6051	LR073639	GASKET - CYLINDER HEAD	LR073639 GASKET - CYLINDER HEAD 1.40MM, Grade 2 / From: MH000001	-	1	Enquire
6051	LR073640	GASKET-CYLINDER HEAD	LR073640 GASKET-CYLINDER HEAD 1.50MM, Grade 3 / From: MH000001	-	1	Enquire
6051	LR073641	GASKET - CYLINDER HEAD	LR073641 GASKET - CYLINDER HEAD 1.60MM, Grade 4 / From: MH000001	-	1	Enquire
6051	LR073642	GASKET - CYLINDER HEAD	LR073642 GASKET - CYLINDER HEAD 1.70MM, Grade 5 / From: MH000001	-	1	Enquire
6065	LR073643	BOLT - HEX.HEAD	LR073643 BOLT - HEX.HEAD From: MH000001	-	10	Enquire
6284	LR139776	TENSIONER - TIMING CHAIN	LR139776 TENSIONER - TIMING CHAIN Secondary / From: MH000001	-	1	Enquire
6500	LR073777	TAPPET - VALVE	LR073777 TAPPET - VALVE From: MH000001	-	16	Enquire
6505	LR073779	VALVE - EXHAUST	LR073779 VALVE - EXHAUST From: MH000001	-	8	Enquire
6507	LR073780	VALVE - INLET	LR073780 VALVE - INLET From: MH000001	-	8	Enquire
6513	LR125672	SPRING - VALVE	LR125672 SPRING - VALVE From: MH000001	-	16	Enquire
6514	LR073773	RETAINER - VALVE SPRING - UPPER	LR073773 RETAINER - VALVE SPRING - UPPER From: MH000001	-	16	Enquire
6518	LR073774	COLLET - VALVE SPRING RETAINER	LR073774 COLLET - VALVE SPRING RETAINER From: MH000001	-	32	Enquire
6564	LR073775	ARM - VALVE ROCKER	LR073775 ARM - VALVE ROCKER From: MH000001	-	16	Enquire
6571	LR073776	SEAL - VALVE STEM	LR073776 SEAL - VALVE STEM From: MH000001	-	16	Enquire
8592	LR073690	TUBE - WATER OUTLET	LR073690 TUBE - WATER OUTLET From: MH000001	-	1	Enquire
