Name: Exhaust Manifold (2.0L AJ21D4 Diesel Mid, Itatiaia (Brazil))
Rating: 4.4 (1 reviews)

View All

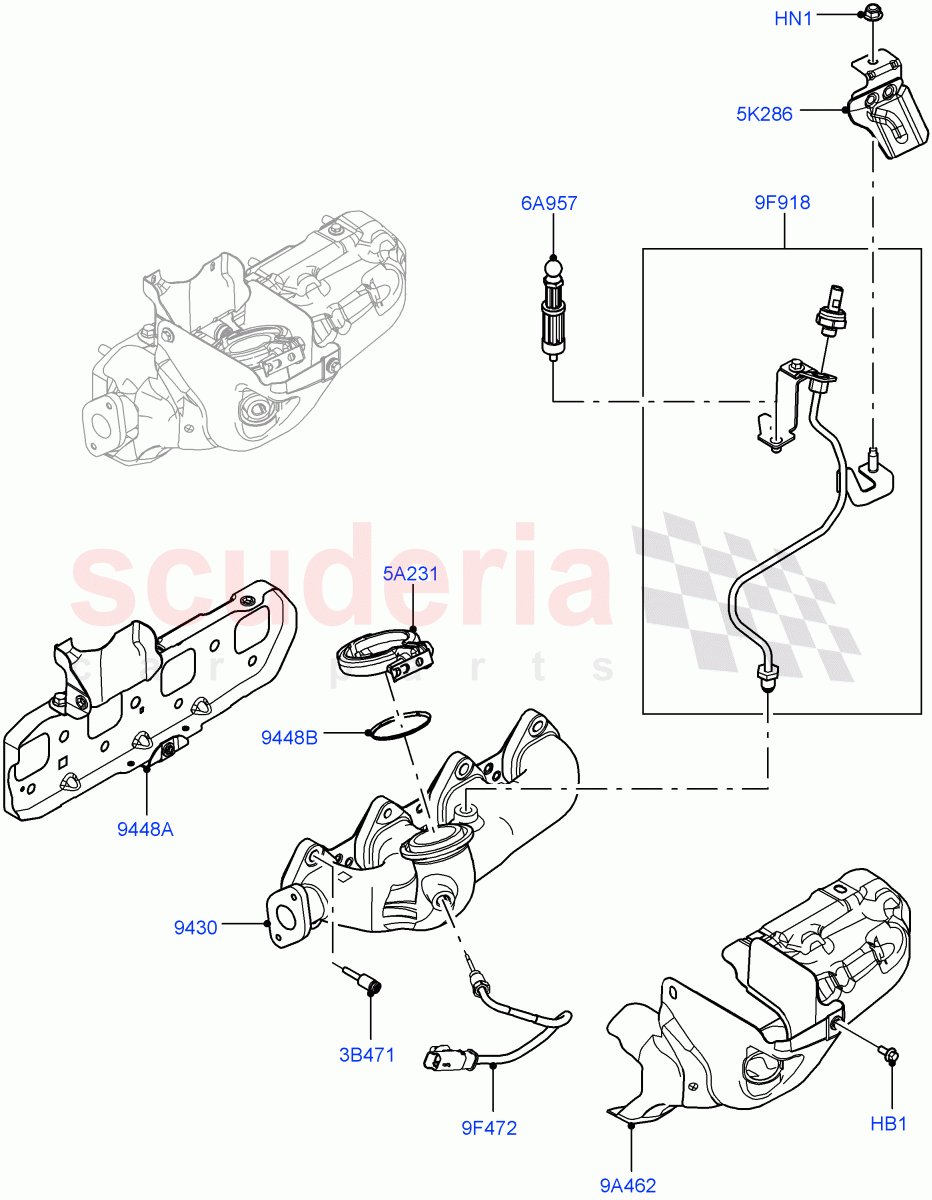

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR078918	BOLT - HEX. HEAD - FLANGED	$0.90	To Order

Photo	Part No	Description	Price (each)	Stock
	FX108046	NUT - LOCKING	$0.41	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR139764	MANIFOLD - EXHAUST	$417.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073663	BOLT - SPECIAL	$3.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139688	CLAMP - EXHAUST	$32.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR149833	HEAT SHIELD	$21.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010871	STUD - BALL	$6.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139762	GASKET - EXHAUST MANIFOLD	$43.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139689	GASKET - TURBOCHARGER	$40.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139732	SHIELD - EXHAUST MANIFOLD HEAT	$71.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163161	SENSOR - EXHAUST GAS - TEMPERATURE	$135.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139686	SENSOR - EXHAUST GAS PRESSURE	$120.74	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR078918	BOLT - HEX. HEAD - FLANGED	LR078918 BOLT - HEX. HEAD - FLANGED M6 X 14MM	$0.90	4
HN1	FX108046	NUT - LOCKING IN STOCK	FX108046 NUT - LOCKING M8 IN STOCK	$0.41	1
3B471	LR073663	BOLT - SPECIAL	LR073663 BOLT - SPECIAL	$3.57	8
5A231	LR139688	CLAMP - EXHAUST	LR139688 CLAMP - EXHAUST Manifold To Turbocharger	$32.15	1
5K286	LR149833	HEAT SHIELD	LR149833 HEAT SHIELD Wiring Connector	$21.62	1
6A957	LR010871	STUD - BALL	LR010871 STUD - BALL Engine Cover	$6.79	1
9A462	LR139732	SHIELD - EXHAUST MANIFOLD HEAT	LR139732 SHIELD - EXHAUST MANIFOLD HEAT	$71.82	1
9F472	LR163161	SENSOR - EXHAUST GAS - TEMPERATURE	LR163161 SENSOR - EXHAUST GAS - TEMPERATURE Exhaust Gas Temperature	$135.01	1
9F918	LR139686	SENSOR - EXHAUST GAS PRESSURE	LR139686 SENSOR - EXHAUST GAS PRESSURE Complete Assembly	$120.74	1
9430	LR139764	MANIFOLD - EXHAUST	LR139764 MANIFOLD - EXHAUST	$417.95	1
9448A	LR139762	GASKET - EXHAUST MANIFOLD	LR139762 GASKET - EXHAUST MANIFOLD Manifold To Cylinder Head	$43.80	1
9448B	LR139689	GASKET - TURBOCHARGER	LR139689 GASKET - TURBOCHARGER Manifold To Turbocharger	$40.01	1

Exhaust Manifold (2.0L Aj21D4 Diesel Mid, Itatiaia (Brazil))

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]
