Fuel Tank & Related Parts (1.5L AJ20P3 Petrol High, 8 Speed Automatic Trans 8G30, Changsu (China))

Find Your Part

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Fuel Tank & Related Parts (1.5L AJ20P3 Petrol High, 8 Speed Automatic Trans 8G30, Changsu (China))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR088949 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR061655 CLAMP - FUEL SUPPLY TUBE Enquire To Order
Photo Part No Description Price (each) Stock
LR006025 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR115125 RETAINER - RIVET Enquire To Order
Photo Part No Description Price (each) Stock
LR133747 TANK - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
202123475 CAP - FUEL TANK FILLER Enquire To Order
LR138720 CAP - FUEL TANK FILLER Enquire To Order
Photo Part No Description Price (each) Stock
LR115294 PIPE - FUEL FILLER Enquire To Order
Photo Part No Description Price (each) Stock
LR125676 HOSE - FILLER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR115407 STRAP - FUEL TANK Enquire To Order
Photo Part No Description Price (each) Stock
LR123779 HOSE - VENT Enquire To Order
Photo Part No Description Price (each) Stock
LR115342 TUBE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR128791 SHIELD - FUEL TANK Enquire To Order
Photo Part No Description Price (each) Stock
LR117831 CLIP Enquire To Order
View All

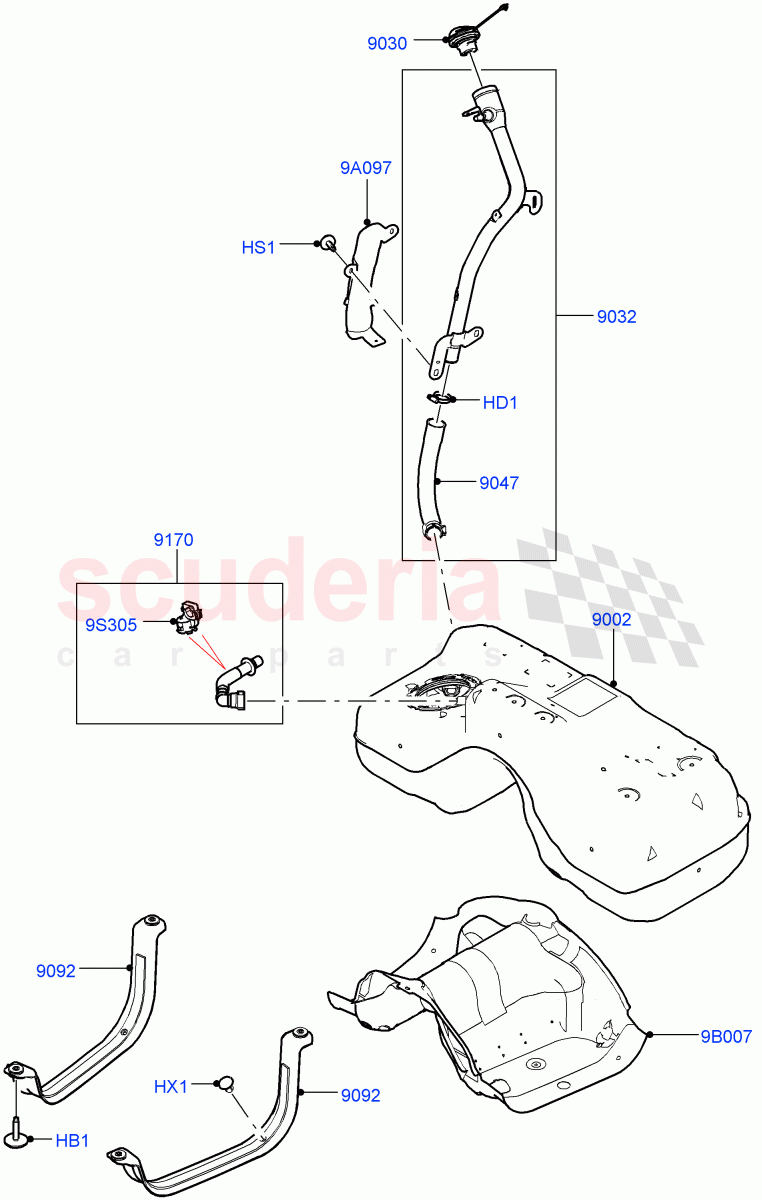

Fuel Tank & Related Parts (1.5L AJ20P3 Petrol High, 8 Speed Automatic Trans 8G30, Changsu (China)) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR088949
BOLT
Fuel Tank Strap, M6 X 40MM 		- 4 Enquire
HD1 LR061655
CLAMP - FUEL SUPPLY TUBE
35-50 x 9 		- 1 Enquire
HS1 LR006025
BOLT
Bolt And Washer, Filler Pipe, M6 X 15 Hex, Shield 		- 3 Enquire
HX1 LR115125
RETAINER - RIVET
Fuel Tank Strap, Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon 		- 2 Enquire
9A097 LR115342
TUBE - FUEL
Filler Pipe 		- 1 Enquire
9B007 LR128791
SHIELD - FUEL TANK 		- 1 Enquire
9S305 LR117831
CLIP
Fuel Tank Ventilation Pipe 		- 1 Enquire
9002 LR133747
TANK - FUEL 		- 1 Enquire
9030 202123475
CAP - FUEL TANK FILLER
To: LG563384 		- 1 Enquire
9030 LR138720
CAP - FUEL TANK FILLER
From: LG563385 		- 1 Enquire
9032 LR115294
PIPE - FUEL FILLER 		- 1 Enquire
9047 LR125676
HOSE - FILLER PIPE
Fuel Tank, Inlet 		- 1 Enquire
9092 LR115407
STRAP - FUEL TANK 		- 2 Enquire
9170 LR123779
HOSE - VENT 		- 1 Enquire
