Name: Carbon Canister (1.5L AJ20P3 Petrol High, Halewood (UK), Fuel Tank Filler Neck - Unleaded) ((V) FROMMH000001)
Rating: 5.0 (1 reviews)

View All

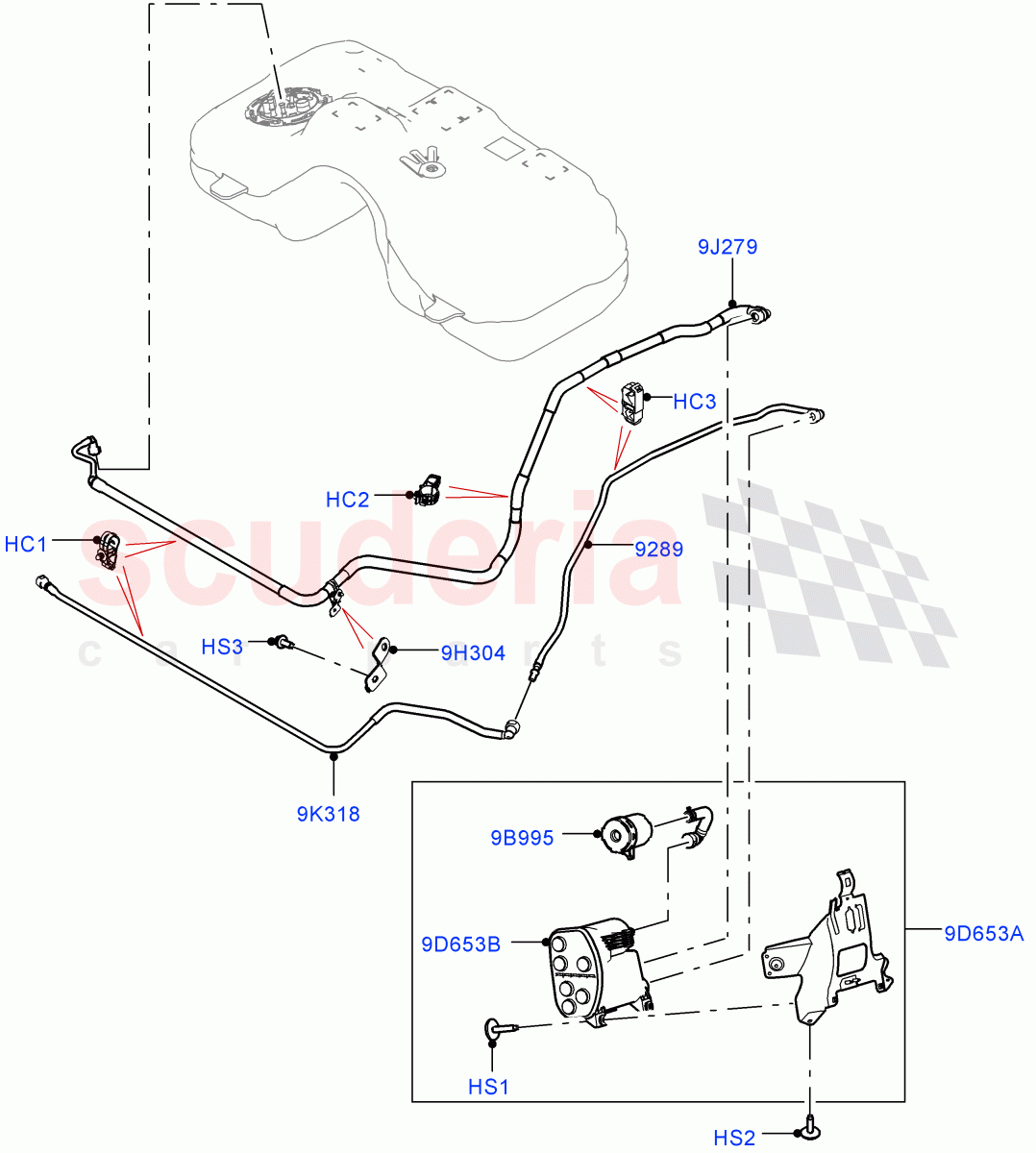

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR006655	CLIP	$1.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114127	CLIP - HOSE	$5.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060351	CLIP - HOSE	$4.25	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	$4.03	To Order

Photo	Part No	Description	Price (each)	Stock
	AYP500110	SCREW	$0.92	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500160	SCREW	$0.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115836	TUBE - FUEL	$57.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121787	FILTER - FUEL	$147.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135258	BRACKET	$8.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115807	TUBE - VENTILATION	$127.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115837	TUBE - FUEL VAPOUR	$37.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR143256	CANNISTER - FUEL VAPOUR STORE	$440.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027061	RESERVOIR - FUEL VAPOUR SYSTEM	$243.00	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR006655	CLIP	LR006655 CLIP 14+12-20.5 X 7.5 X 1-3 / From: MH000001	$1.18	4
HC2	LR114127	CLIP - HOSE	LR114127 CLIP - HOSE From: MH000001	$5.47	2
HC3	LR060351	CLIP - HOSE	LR060351 CLIP - HOSE Double / From: MH000001	$4.25	2
HS1	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Hexagonal Head, M6X30 / From: MH000001	$4.03	2
HS2	AYP500110	SCREW IN STOCK	AYP500110 SCREW Bolt And Washer, Bracket, Hexagonal Head, M6 X 20MM / From: MH000001 IN STOCK	$0.92	2
HS3	RYG500160	SCREW	RYG500160 SCREW Hexagonal Head, M6 X 14MM / From: MH000001	$0.59	1
9B995	LR121787	FILTER - FUEL	LR121787 FILTER - FUEL Charcoal Cannister / From: MH000001	$147.93	1
9D653A	LR143256	CANNISTER - FUEL VAPOUR STORE	LR143256 CANNISTER - FUEL VAPOUR STORE With Bracket / From: MH000001	$440.60	1
9D653B	LR027061	RESERVOIR - FUEL VAPOUR SYSTEM	LR027061 RESERVOIR - FUEL VAPOUR SYSTEM Reservoir / From: MH000001	$243.00	1
9H304	LR135258	BRACKET	LR135258 BRACKET From: MH000001	$8.13	1
9J279	LR115807	TUBE - VENTILATION	LR115807 TUBE - VENTILATION Fuel Tank Ventilation Pipe / From: MH000001	$127.29	1
9K318	LR115837	TUBE - FUEL VAPOUR	LR115837 TUBE - FUEL VAPOUR Lower / From: MH000001	$37.86	1
9289	LR115836	TUBE - FUEL	LR115836 TUBE - FUEL From Carbon Canister To Fuel Lines / From: MH000001	$57.07	1

Carbon Canister (1.5L Aj20P3 Petrol High, Halewood (Uk), Fuel Tank Filler Neck - Unleaded) ((V)...

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]
