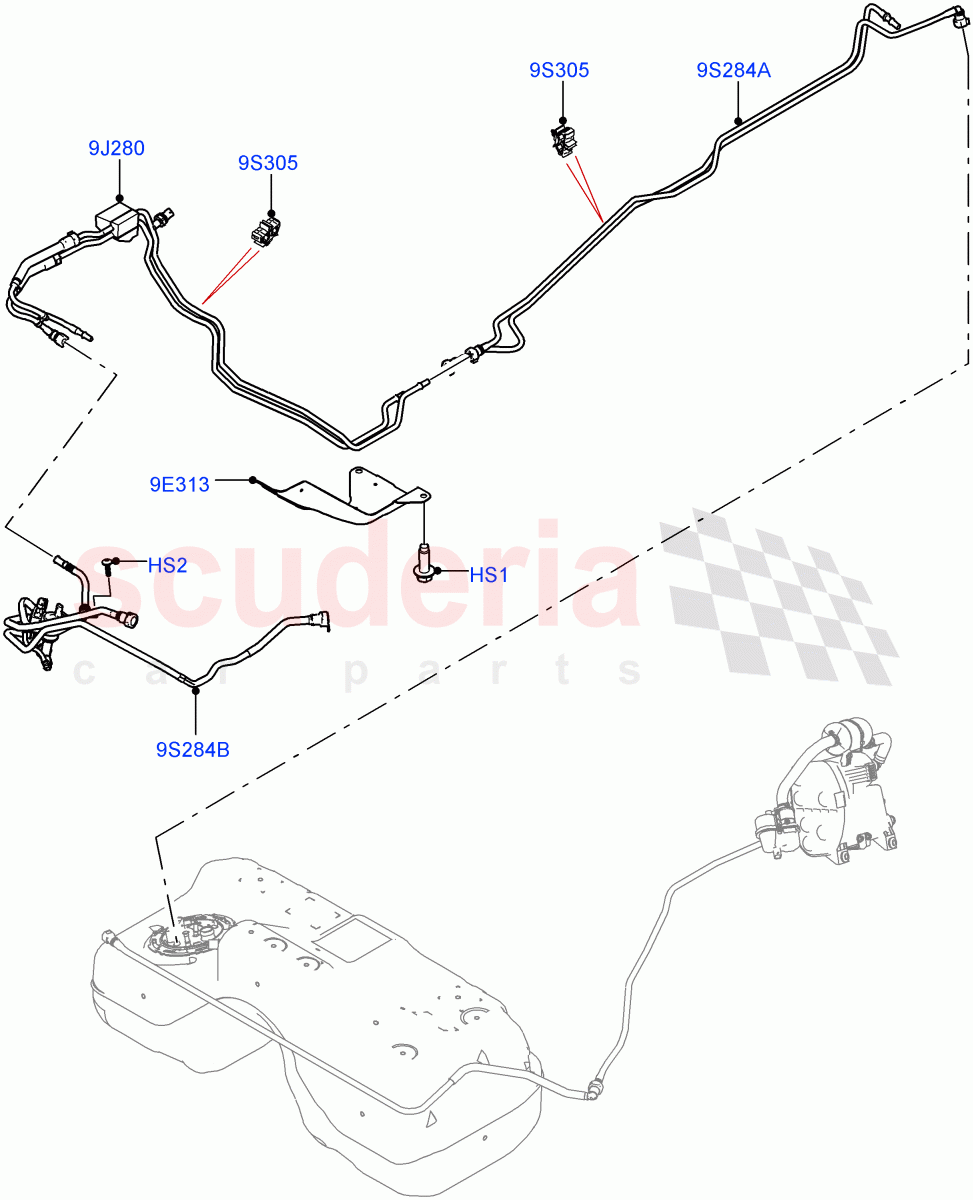

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500470	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126054	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133032	SHIELD - FUEL TUBES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139949	PIPE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117831	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR147251	TUBE - FUEL SUPPLY AND VAPOUR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125411	TUBE - FUEL VAPOUR	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HS1	RYG500470	SCREW	RYG500470 SCREW Hexagonal Head, M10 X 25MM, Shield / From: MH000001	-	3	Enquire
HS2	LR126054	SCREW	LR126054 SCREW M6 X 20MM / From: MH000001	-	1	Enquire
9E313	LR133032	SHIELD - FUEL TUBES	LR133032 SHIELD - FUEL TUBES Front / From: MH000001	-	1	Enquire
9J280	LR139949	PIPE - FUEL	LR139949 PIPE - FUEL Front / From: MH000001	-	1	Enquire
9S284A	LR147251	TUBE - FUEL SUPPLY AND VAPOUR	LR147251 TUBE - FUEL SUPPLY AND VAPOUR Rear / From: MH000001	-	1	Enquire
9S284B	LR125411	TUBE - FUEL VAPOUR	LR125411 TUBE - FUEL VAPOUR Front, With Vapour Purge Valve / From: MH000001	-	1	Enquire
9S305	LR117831	CLIP	LR117831 CLIP Clip-Fuel Tube(Dual Latch) / From: MH000001	-	8	Enquire
