Name: Carbon Canister (1.5L AJ20P3 Petrol High, 8 Speed Automatic Trans 8G30, Changsu (China))
Rating: 4.7 (1 reviews)

View All

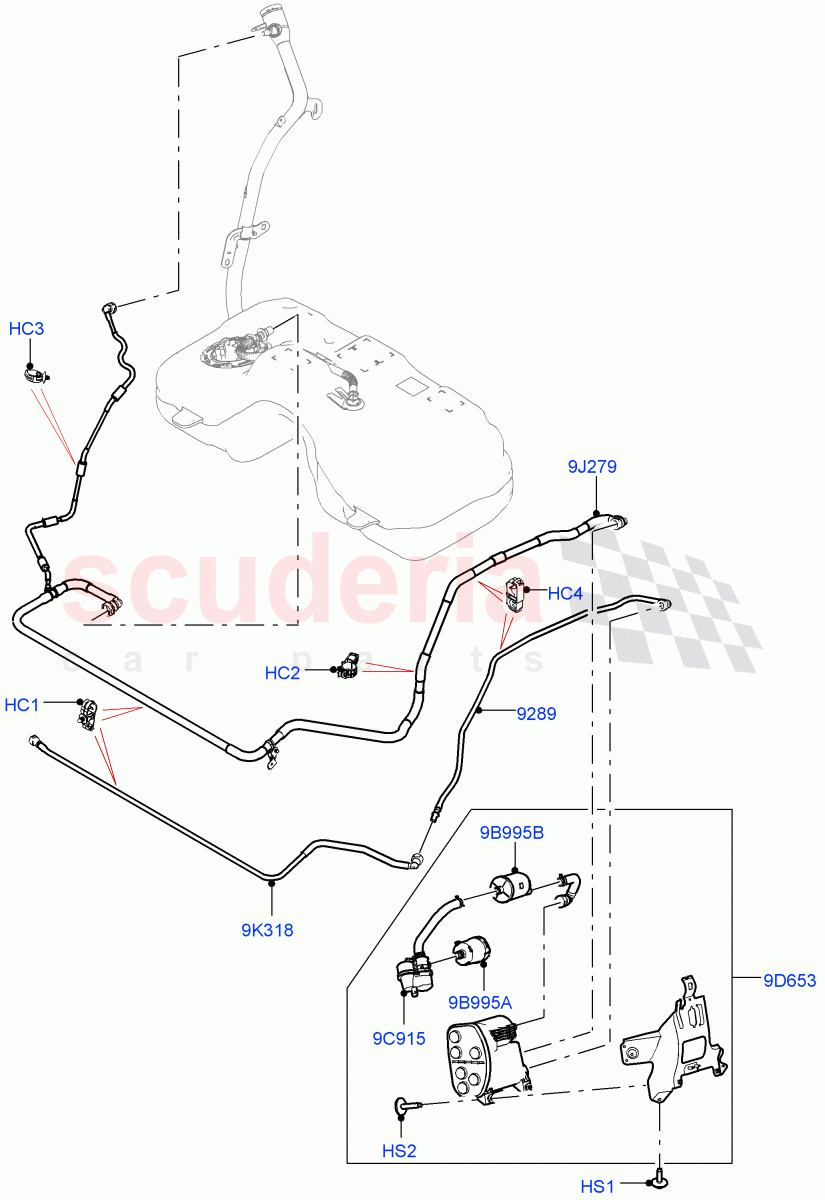

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR006655	CLIP	$1.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114127	CLIP - HOSE	$5.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR055988	CLIP - CABLE	$1.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060351	CLIP - HOSE	$4.25	To Order

Photo	Part No	Description	Price (each)	Stock
	AYP500110	SCREW	$0.92	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	$4.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115836	TUBE - FUEL	$57.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR174757	VALVE - CONTROL	$187.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126509	CANNISTER - FUEL VAPOUR STORE	$443.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115805	TUBE - VENTILATION	$155.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115837	TUBE - FUEL VAPOUR	$37.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121787	FILTER - FUEL	$147.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121786	FILTER - FUEL	$86.29	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR006655	CLIP	LR006655 CLIP 14+12-20.5 X 7.5 X 1-3	$1.18	5
HC2	LR114127	CLIP - HOSE	LR114127 CLIP - HOSE	$5.47	2
HC3	LR055988	CLIP - CABLE	LR055988 CLIP - CABLE 16-22X6.4-7X0.7-4	$1.42	3
HC4	LR060351	CLIP - HOSE	LR060351 CLIP - HOSE	$4.25	2
HS1	AYP500110	SCREW IN STOCK	AYP500110 SCREW Bolt And Washer, Bracket To BIW, Hexagonal Head, M6 X 20MM IN STOCK	$0.92	2
HS2	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Charcoal Cannister, Hexagonal Head, M6X30	$4.03	2
9B995A	LR121787	FILTER - FUEL	LR121787 FILTER - FUEL Charcoal Cannister, Lower	$147.93	1
9B995B	LR121786	FILTER - FUEL	LR121786 FILTER - FUEL Charcoal Cannister, Upper	$86.29	1
9C915	LR174757	VALVE - CONTROL	LR174757 VALVE - CONTROL Charcoal Cannister	$187.80	1
9D653	LR126509	CANNISTER - FUEL VAPOUR STORE	LR126509 CANNISTER - FUEL VAPOUR STORE Charcoal Cannister, With Bracket / From: KG006088	$443.41	1
9J279	LR115805	TUBE - VENTILATION	LR115805 TUBE - VENTILATION Fuel Tank Ventilation Pipe	$155.69	1
9K318	LR115837	TUBE - FUEL VAPOUR	LR115837 TUBE - FUEL VAPOUR	$37.86	1
9289	LR115836	TUBE - FUEL	LR115836 TUBE - FUEL From Carbon Canister To Fuel Lines	$57.07	1

Carbon Canister (1.5L Aj20P3 Petrol High, 8 Speed Automatic Trans 8G30, Changsu (China))

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]
