Water Pump (1.5L Aj20P3 Petrol High Phev, Halewood (Uk), 1.5L Aj20P3 Petrol High) ((V) Fromlh000001)

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Water Pump (1.5L AJ20P3 Petrol High PHEV, Halewood (UK), 1.5L AJ20P3 Petrol High) ((V) FROMLH000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR071777 BOLT - HEX.HEAD $2.65 To Order
Photo Part No Description Price (each) Stock
LR071842 SCREW AND WASHER - HEX HEAD $1.28 To Order
Photo Part No Description Price (each) Stock
FS108186 SCREW - SOCKET HEAD CAP $2.16 To Order
Photo Part No Description Price (each) Stock
LR124266 SCREW $0.97 To Order
Photo Part No Description Price (each) Stock
LR139925 PUMP - WATER $257.90 To Order
Photo Part No Description Price (each) Stock
LR135158 PULLEY - WATER PUMP $77.20 To Order
LR125405 PULLEY - WATER PUMP $67.48 To Order
Photo Part No Description Price (each) Stock
LR125625 SHIELD - PROTECTION $67.95 To Order
Photo Part No Description Price (each) Stock
LR125626 SHIELD - PROTECTION $15.21 To Order
LR140739 SHIELD - PROTECTION $100.92 To Order
View All

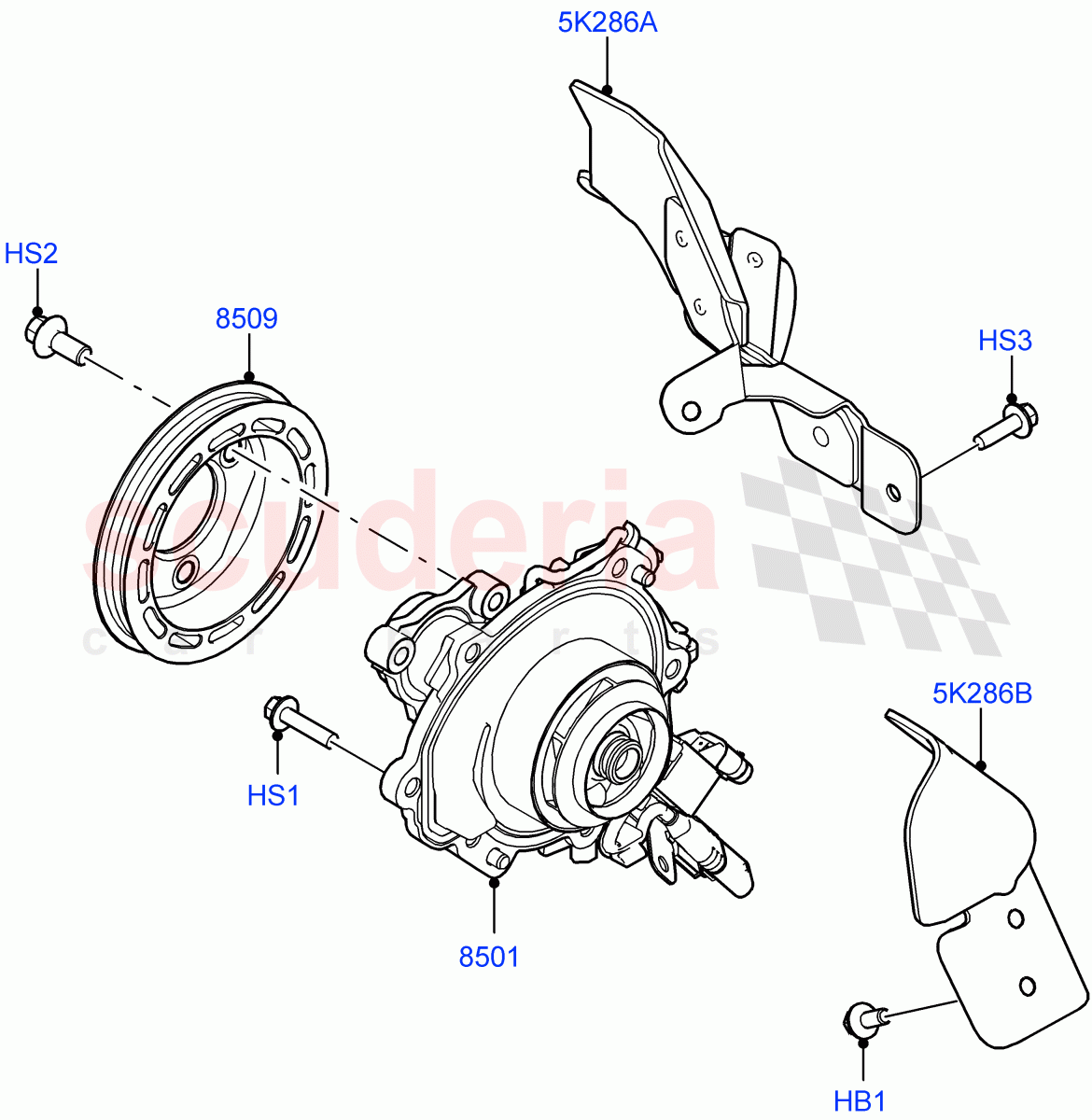

Water Pump (1.5L AJ20P3 Petrol High PHEV, Halewood (UK), 1.5L AJ20P3 Petrol High) ((V) FROMLH000001) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR071777
BOLT - HEX.HEAD
Heatshield, Lower, M6 X 14MM / From: LH000001 		$2.65 2
HS1 LR071842
SCREW AND WASHER - HEX HEAD
Hexagonal Head, M6 X 25MM, Water Pump / From: LH000001 		$1.28 6
HS2 FS108186
SCREW - SOCKET HEAD CAP
M8 x 18MM, Pulley / From: LH000001 		$2.16 3
HS3 LR124266
SCREW
Heatshield, M6 X 20MM, Upper / From: LH000001 		$0.97 2
5K286A LR125625
SHIELD - PROTECTION
Upper / From: LH000001 		$67.95 1
5K286B LR125626
SHIELD - PROTECTION
Lower / From: LH000001 / To: LH080978 		$15.21 1
5K286B LR140739
SHIELD - PROTECTION
Lower / From: LH080979 		$100.92 1
8501 LR139925
PUMP - WATER
From: LH000001 		$257.90 1
8509 LR135158
PULLEY - WATER PUMP
1.5L AJ20P3 Petrol High PHEV / From: LH000001 		$77.20 1
8509 LR125405
PULLEY - WATER PUMP
1.5L AJ20P3 Petrol High / From: MH000001 		$67.48 1
