Name: Cooling System Pipes And Hoses (1.5L AJ20P3 Petrol High, 8 Speed Automatic Trans 8G30, Changsu (China))
Rating: 4.3 (1 reviews)

Cooling System Pipes And Hoses (1.5L AJ20P3 Petrol High, 8 Speed Automatic Trans 8G30, Changsu (China)) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

View All

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Cooling System Pipes And Hoses (1.5L AJ20P3 Petrol High, 8 Speed Automatic Trans 8G30, Changsu...

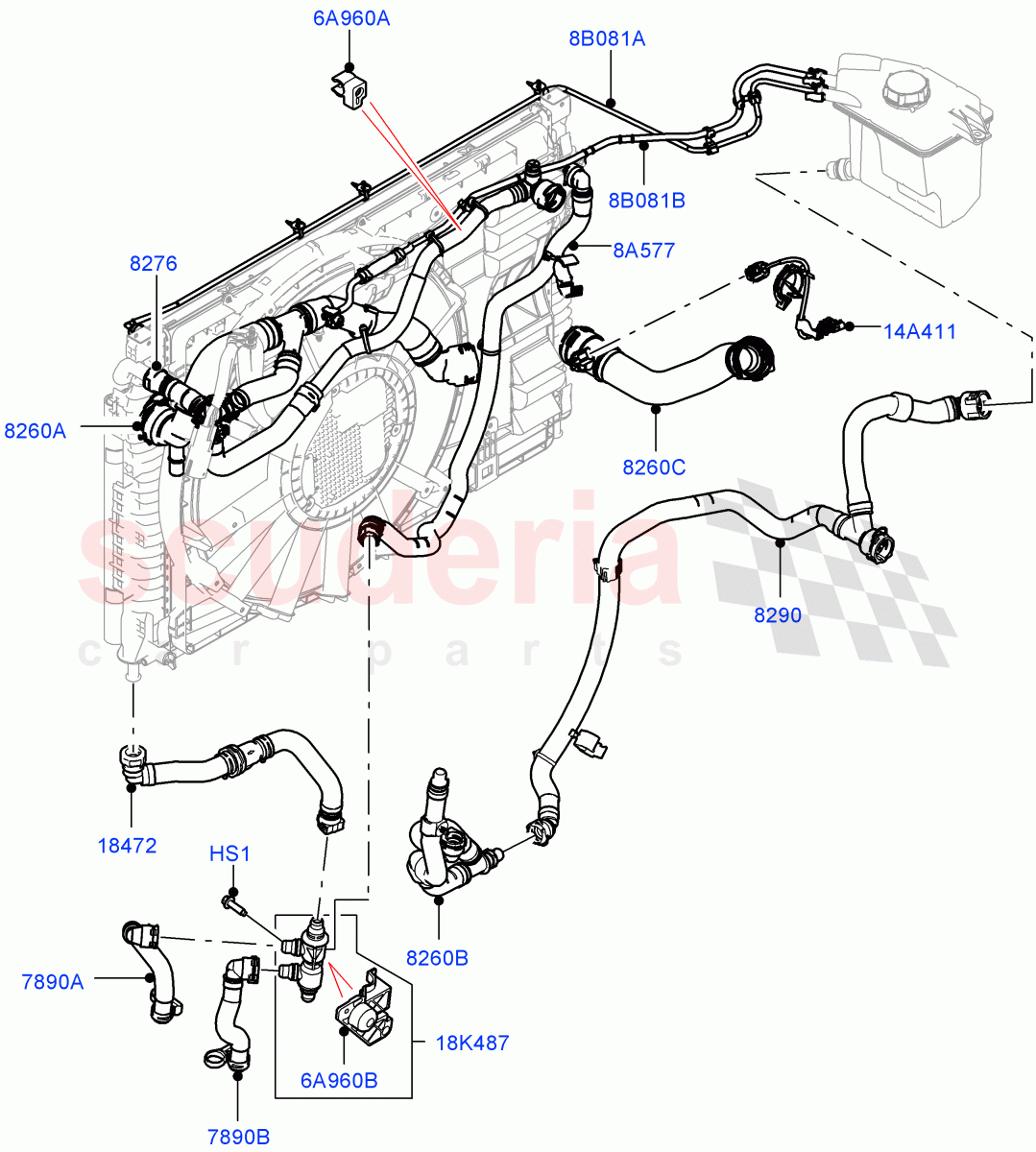

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500260	BOLT - HEX.HEAD	$3.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125557	HOSE - WATER INLET	$50.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125552	HOSE - COOLING SYSTEM	$96.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125545	HOSE - HEATER WATER	$114.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125549	HOSE - OIL COOLER	$63.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125550	DUCT AND VALVE - AIR CLEANER	$56.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125551	HOSE - RADIATOR	$55.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125555	HOSE - COOLING SYSTEM	$76.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125553	HOSE - RADIATOR	$70.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125542	HOSE - COOLING SYSTEM	$77.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137830	WIRING - TRACTION BATTERY	$58.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125547	VALVE - COOLANT FLOW CONTROL	$104.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125566	BRACKET - ENGINE MOUNTING	$86.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126051	BRACKET - COOLING HOSE	$21.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128178	HOSE	$55.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135919	HOSE - DEGAS COOLING SYSTEM	$63.27	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	RYG500260	BOLT - HEX.HEAD	RYG500260 BOLT - HEX.HEAD M8 X 25MM	$3.81	2
6A960A	LR125566	BRACKET - ENGINE MOUNTING	LR125566 BRACKET - ENGINE MOUNTING Intercooler Inlet	$86.51	1
6A960B	LR126051	BRACKET - COOLING HOSE	LR126051 BRACKET - COOLING HOSE	$21.62	1
8A577	LR125542	HOSE - COOLING SYSTEM	LR125542 HOSE - COOLING SYSTEM From Transmission Warming Valve To Radiator	$77.33	1
8B081A	LR128178	HOSE	LR128178 HOSE Radiator To Expansion Tank Bleed	$55.76	1
8B081B	LR135919	HOSE - DEGAS COOLING SYSTEM	LR135919 HOSE - DEGAS COOLING SYSTEM From Engine To Expansion Tank	$63.27	1
14A411	LR137830	WIRING - TRACTION BATTERY	LR137830 WIRING - TRACTION BATTERY	$58.89	1
18K487	LR125547	VALVE - COOLANT FLOW CONTROL	LR125547 VALVE - COOLANT FLOW CONTROL With Bracket	$104.99	1
7890A	LR125549	HOSE - OIL COOLER	LR125549 HOSE - OIL COOLER Inlet	$63.44	1
7890B	LR125550	DUCT AND VALVE - AIR CLEANER	LR125550 DUCT AND VALVE - AIR CLEANER Outlet	$56.13	1
8260A	LR125551	HOSE - RADIATOR	LR125551 HOSE - RADIATOR Upper	$55.93	1
8260B	LR125555	HOSE - COOLING SYSTEM	LR125555 HOSE - COOLING SYSTEM Heater Inlet	$76.30	1
8260C	LR125553	HOSE - RADIATOR	LR125553 HOSE - RADIATOR Lower, Radiator	$70.06	1
8276	LR125557	HOSE - WATER INLET	LR125557 HOSE - WATER INLET Intercooler Inlet	$50.68	1
8290	LR125552	HOSE - COOLING SYSTEM	LR125552 HOSE - COOLING SYSTEM Expansion Tank, Outlet	$96.83	1
18472	LR125545	HOSE - HEATER WATER	LR125545 HOSE - HEATER WATER Radiator To Transmission Warning Valve	$114.82	1
