Cooling System Pipes And Hoses (Combustion Unit) (1.5L AJ20P3 Petrol High PHEV, Halewood (UK)) ((V) FROMLH000001) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

View All

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Cooling System Pipes And Hoses (Combustion Unit) (1.5L AJ20P3 Petrol High PHEV, Halewood (UK)) ((V)...

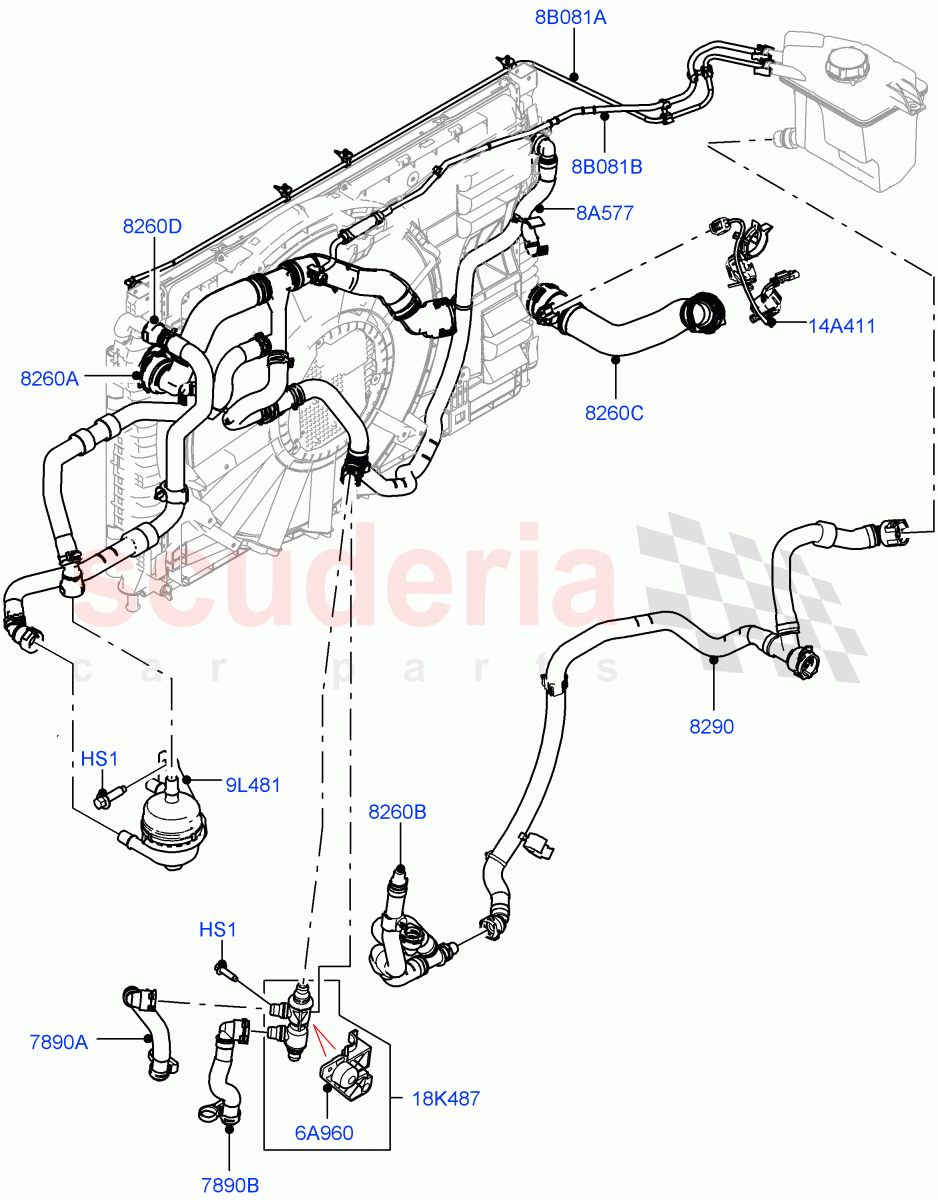

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500260	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125552	HOSE - COOLING SYSTEM	Enquire	To Order
	LR143911	HOSE - COOLING SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126051	BRACKET - COOLING HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125549	HOSE - OIL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125550	DUCT AND VALVE - AIR CLEANER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135840	HOSE - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125555	HOSE - COOLING SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137641	HOSE - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135308	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140607	HOSE - COOLING SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135831	SEPARATOR - COOLANT DEGAS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137831	WIRING - TRACTION BATTERY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125547	VALVE - COOLANT FLOW CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128178	HOSE	Enquire	To Order
	LR163783	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135919	HOSE - DEGAS COOLING SYSTEM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HS1	RYG500260	BOLT - HEX.HEAD	RYG500260 BOLT - HEX.HEAD M8 X 25MM / From: LH000001	-	2	Enquire
6A960	LR126051	BRACKET - COOLING HOSE	LR126051 BRACKET - COOLING HOSE From: LH000001	-	1	Enquire
8A577	LR140607	HOSE - COOLING SYSTEM	LR140607 HOSE - COOLING SYSTEM From Transmission Warming Valve To Radiator / From: LH000001	-	1	Enquire
8B081A	LR128178	HOSE	LR128178 HOSE Radiator To Expansion Tank Bleed / From: LH000001 / To: NH169081	-	1	Enquire
8B081A	LR163783	HOSE	LR163783 HOSE Radiator To Expansion Tank Bleed / From: NH169082	-	1	Enquire
8B081B	LR135919	HOSE - DEGAS COOLING SYSTEM	LR135919 HOSE - DEGAS COOLING SYSTEM From Engine To Expansion Tank / From: LH000001	-	1	Enquire
9L481	LR135831	SEPARATOR - COOLANT DEGAS	LR135831 SEPARATOR - COOLANT DEGAS From: LH000001	-	1	Enquire
14A411	LR137831	WIRING - TRACTION BATTERY	LR137831 WIRING - TRACTION BATTERY Radiator Hose / From: LH000001	-	1	Enquire
18K487	LR125547	VALVE - COOLANT FLOW CONTROL	LR125547 VALVE - COOLANT FLOW CONTROL From: LH000001	-	1	Enquire
7890A	LR125549	HOSE - OIL COOLER	LR125549 HOSE - OIL COOLER Inlet / From: LH000001	-	1	Enquire
7890B	LR125550	DUCT AND VALVE - AIR CLEANER	LR125550 DUCT AND VALVE - AIR CLEANER Outlet / From: LH000001	-	1	Enquire
8260A	LR135840	HOSE - RADIATOR	LR135840 HOSE - RADIATOR Top / From: LH000001	-	1	Enquire
8260B	LR125555	HOSE - COOLING SYSTEM	LR125555 HOSE - COOLING SYSTEM Heater Inlet / From: LH000001	-	1	Enquire
8260C	LR137641	HOSE - RADIATOR	LR137641 HOSE - RADIATOR Lower, Radiator / From: LH000001	-	1	Enquire
8260D	LR135308	HOSE - WATER	LR135308 HOSE - WATER Lower, Separator / From: LH000001	-	1	Enquire
8290	LR125552	HOSE - COOLING SYSTEM	LR125552 HOSE - COOLING SYSTEM Expansion Tank, Outlet / From: LH000001 / To: LH115311	-	1	Enquire
8290	LR143911	HOSE - COOLING SYSTEM	LR143911 HOSE - COOLING SYSTEM Expansion Tank, Outlet / From: LH115312	-	1	Enquire
