Cooling System Pipes And Hoses (Electric Unit, Front Section) (1.5L AJ20P3 Petrol High PHEV, Halewood (UK)) ((V) FROMLH000001) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

View All

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Cooling System Pipes And Hoses (Electric Unit, Front Section) (1.5L AJ20P3 Petrol High PHEV,...

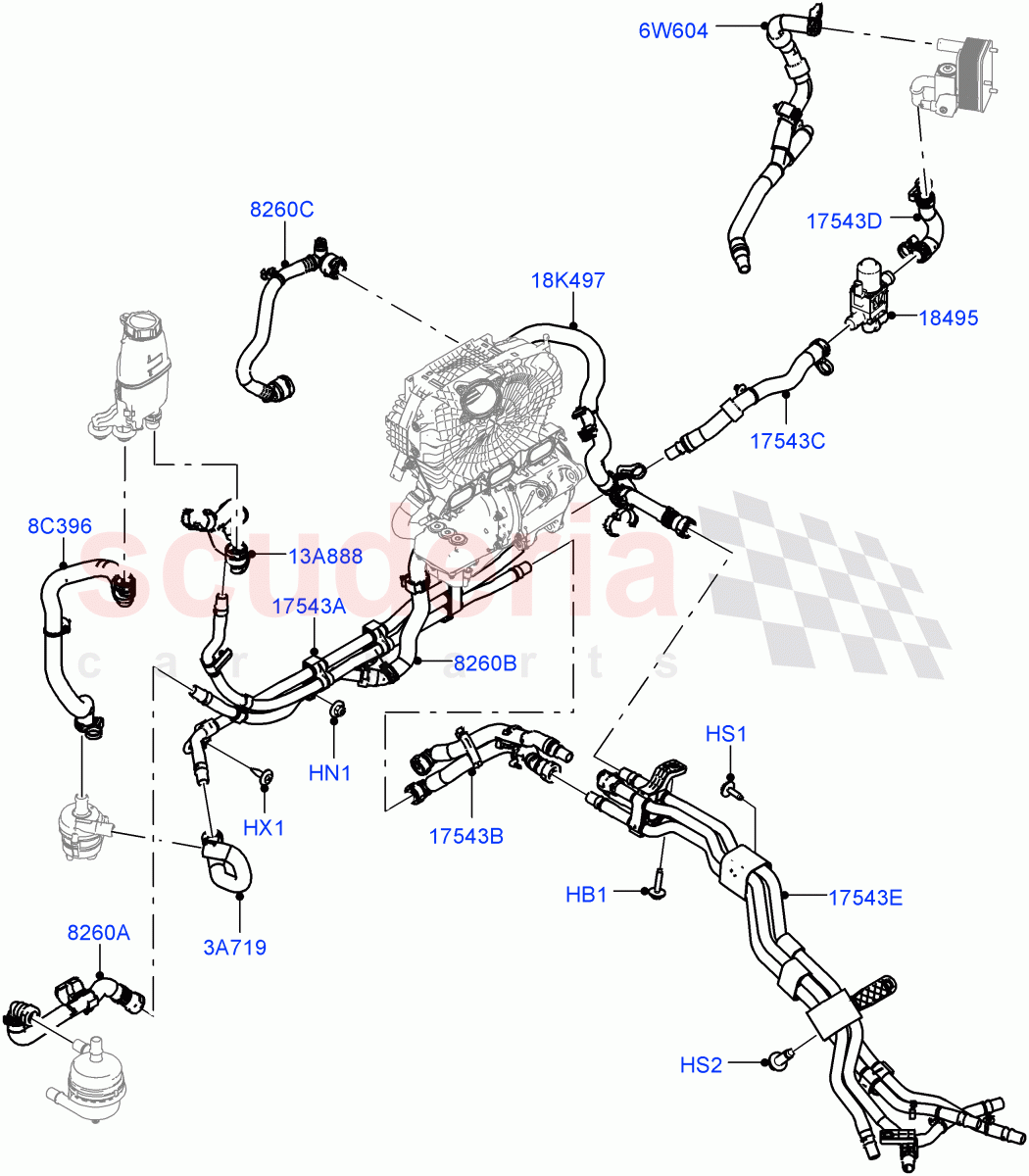

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR115317	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500420	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FYP500550	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500470	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYQ500070	PIN - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132398	VALVE - HEATER WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135268	HOSE - RESERVOIR TO PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135415	TUBE - WATER INLET	Enquire	To Order
	LR153966	TUBE - WATER INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135310	HOSE - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135257	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135256	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135283	HOSE - HEATER WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135405	RESERVOIR - EXPANSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135439	HOSE - TRACTION BATTERY COOLING	Enquire	To Order
	LR143952	HOSE - TRACTION BATTERY COOLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135411	HOSE - TRACTION BATTERY COOLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135347	HOSE - COOLING SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135244	HOSE - TRACTION BATTERY COOLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135413	HOSE - TRACTION BATTERY COOLING	Enquire	To Order
	LR144560	HOSE - TRACTION BATTERY COOLING	Enquire	To Order
	LR143948	HOSE - TRACTION BATTERY COOLING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR135337	HOSE - COOLING SYSTEM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR115317	BOLT AND WASHER - HEX.HEAD	LR115317 BOLT AND WASHER - HEX.HEAD M6x28 / From: LH000001	-	1	Enquire
HN1	RYH500420	NUT AND WASHER - HEX.	RYH500420 NUT AND WASHER - HEX. Hexagonal Head, M6, Nut And Washer / From: LH000001	-	3	Enquire
HS1	FYP500550	SCREW	FYP500550 SCREW Hexagonal Head, M6 X 20MM / From: LH000001	-	2	Enquire
HS2	RYG500470	SCREW	RYG500470 SCREW Hexagonal Head, M10 X 25MM / From: LH000001	-	2	Enquire
HX1	RYQ500070	PIN - RETAINING	RYQ500070 PIN - RETAINING 6.3 X 22MM, Push Pin / From: LH000001	-	1	Enquire
3A719	LR135268	HOSE - RESERVOIR TO PUMP	LR135268 HOSE - RESERVOIR TO PUMP From: LH000001	-	1	Enquire
6W604	LR135415	TUBE - WATER INLET	LR135415 TUBE - WATER INLET To Valve / From: LH000001 / To: MH156166	-	1	Enquire
6W604	LR153966	TUBE - WATER INLET	LR153966 TUBE - WATER INLET To Valve / From: MH156167	-	1	Enquire
8C396	LR135283	HOSE - HEATER WATER	LR135283 HOSE - HEATER WATER LH, Upper / From: LH000001	-	1	Enquire
13A888	LR135405	RESERVOIR - EXPANSION	LR135405 RESERVOIR - EXPANSION To Expansion Tank / From: LH000001	-	1	Enquire
18K497	LR135337	HOSE - COOLING SYSTEM	LR135337 HOSE - COOLING SYSTEM RH / From: LH000001	-	1	Enquire
8260A	LR135310	HOSE - RADIATOR	LR135310 HOSE - RADIATOR Separator / From: LH000001	-	1	Enquire
8260B	LR135257	HOSE - WATER	LR135257 HOSE - WATER Starter Motor / From: LH000001	-	1	Enquire
8260C	LR135256	HOSE - WATER	LR135256 HOSE - WATER Intercooler Outlet / From: LH000001	-	1	Enquire
17543A	LR135439	HOSE - TRACTION BATTERY COOLING	LR135439 HOSE - TRACTION BATTERY COOLING Bottom, Center Location / From: LH000001 / To: LH112277	-	1	Enquire
17543A	LR143952	HOSE - TRACTION BATTERY COOLING	LR143952 HOSE - TRACTION BATTERY COOLING Bottom, Center Location / From: LH112278	-	1	Enquire
17543B	LR135411	HOSE - TRACTION BATTERY COOLING	LR135411 HOSE - TRACTION BATTERY COOLING Bottom, Right Side / From: LH000001	-	1	Enquire
17543C	LR135347	HOSE - COOLING SYSTEM	LR135347 HOSE - COOLING SYSTEM To Valve / From: LH000001	-	1	Enquire
17543D	LR135244	HOSE - TRACTION BATTERY COOLING	LR135244 HOSE - TRACTION BATTERY COOLING For Battery Chiller, Inlet / From: LH000001	-	1	Enquire
17543E	LR135413	HOSE - TRACTION BATTERY COOLING	LR135413 HOSE - TRACTION BATTERY COOLING PHEV Battery And Cooling, Rear Section / From: LH000001 / To: LH112585	-	1	Enquire
17543E	LR144560	HOSE - TRACTION BATTERY COOLING	LR144560 HOSE - TRACTION BATTERY COOLING PHEV Battery And Cooling, Rear Section / From: MH000001	-	1	Enquire
17543E	LR143948	HOSE - TRACTION BATTERY COOLING	LR143948 HOSE - TRACTION BATTERY COOLING PHEV Battery And Cooling, Rear Section / From: LH112586 / To: LH116162	-	1	Enquire
17543E	LR148831	HOSE - TRACTION BATTERY COOLING	LR148831 HOSE - TRACTION BATTERY COOLING PHEV Battery And Cooling, Rear Section / From: LH116163 / To: LH999999	-	1	Enquire
18495	LR132398	VALVE - HEATER WATER	LR132398 VALVE - HEATER WATER Heater / From: LH000001	-	1	Enquire
