Insulators - Rear (Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Insulators - Rear (Itatiaia (Brazil)) ((V) FROMGT000001)

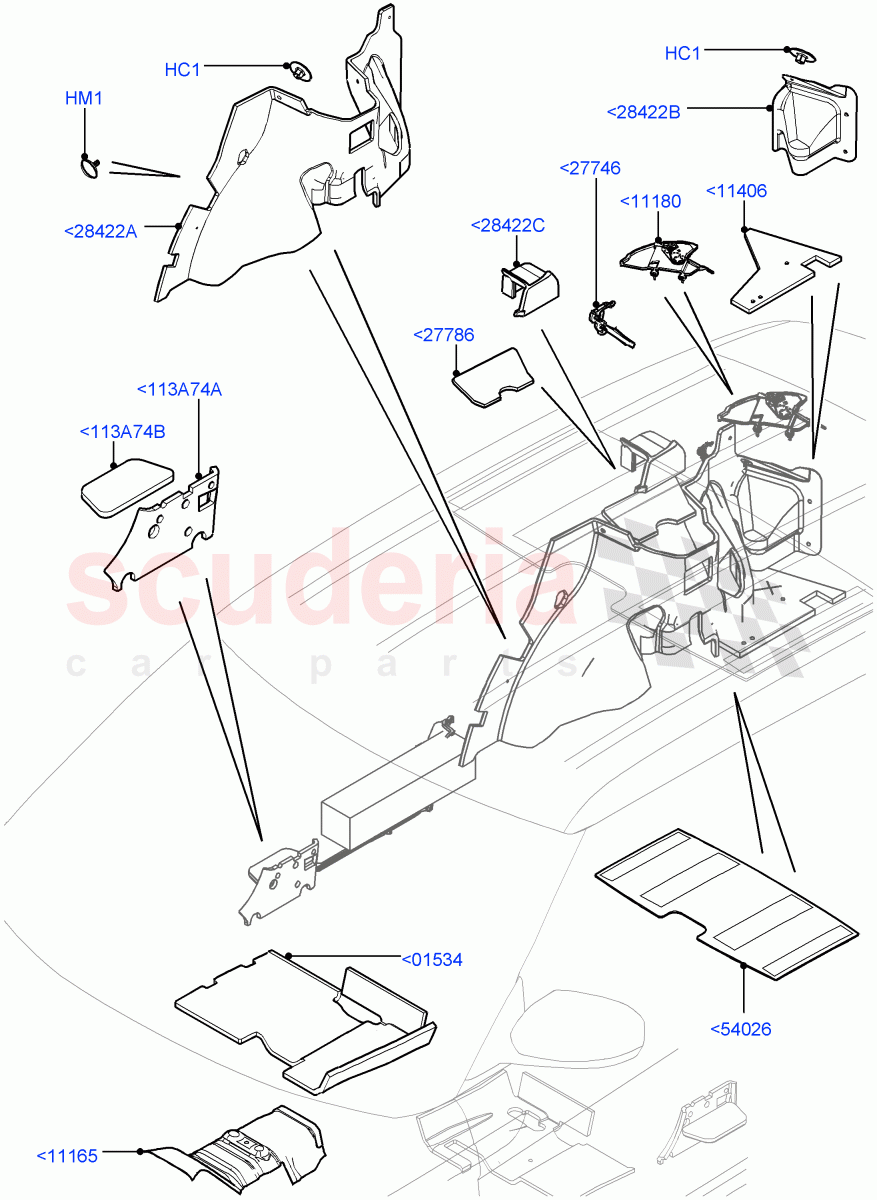

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	EYC500320	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000891	PIN - FASTENING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027019	INSULATOR - FLOOR	Enquire	To Order
	LR078351	INSULATOR - FLOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031636	INSULATOR - TUNNEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066551	INSULATOR - SOUND - BODY	Enquire	To Order
	LR066542	INSULATOR - SOUND - BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027065	INSULATOR - LUGGAGE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027618	INSULATOR - QUARTER PANEL	Enquire	To Order
	LR027619	INSULATOR - QUARTER PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031473	INSULATOR - WHEELHOUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035345	PAD - SLIDING ROOF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027063	INSULATOR - REAR QUARTER PANEL	Enquire	To Order
	LR078371	INSULATOR - REAR QUARTER PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR055424	INSULATOR - REAR QUARTER PANEL	Enquire	To Order
	LR055425	INSULATOR - REAR QUARTER PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027104	INSULATOR - QUARTER PANEL	Enquire	To Order
	LR027105	INSULATOR - QUARTER PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031613	INSULATOR - "C" PILLAR	Enquire	To Order
	LR031617	INSULATOR - "C" PILLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031484	INSULATOR - FLOOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<113A74A	LR031613	INSULATOR - "C" PILLAR	LR031613 INSULATOR - "C" PILLAR RH / From: GT000001	-	1	Enquire
<113A74A	LR031617	INSULATOR - "C" PILLAR	LR031617 INSULATOR - "C" PILLAR LH / From: GT000001	-	1	Enquire
<113A74B	LR031484	INSULATOR - FLOOR	LR031484 INSULATOR - FLOOR Pad / From: GT000001	-	2	Enquire
<01534	LR027019	INSULATOR - FLOOR	LR027019 INSULATOR - FLOOR LH / From: GT000001	-	1	Enquire
<01534	LR078351	INSULATOR - FLOOR	LR078351 INSULATOR - FLOOR RH / From: GT000001	-	1	Enquire
<11165	LR031636	INSULATOR - TUNNEL	LR031636 INSULATOR - TUNNEL Tunnel Insulator / From: GT000001	-	1	Enquire
<11180	LR066551	INSULATOR - SOUND - BODY	LR066551 INSULATOR - SOUND - BODY RH / From: GT000001	-	1	Enquire
<11180	LR066542	INSULATOR - SOUND - BODY	LR066542 INSULATOR - SOUND - BODY LH / From: GT000001	-	1	Enquire
<11406	LR027065	INSULATOR - LUGGAGE COMPARTMENT	LR027065 INSULATOR - LUGGAGE COMPARTMENT Rear Floor, RH/LH / From: GT000001	-	1	Enquire
<27746	LR027618	INSULATOR - QUARTER PANEL	LR027618 INSULATOR - QUARTER PANEL RH / From: GT000001	-	1	Enquire
<27746	LR027619	INSULATOR - QUARTER PANEL	LR027619 INSULATOR - QUARTER PANEL LH / From: GT000001	-	1	Enquire
<27786	LR031473	INSULATOR - WHEELHOUSE	LR031473 INSULATOR - WHEELHOUSE From: GT000001	-	2	Enquire
<28422A	LR027063	INSULATOR - REAR QUARTER PANEL	LR027063 INSULATOR - REAR QUARTER PANEL RH / From: GT000001	-	1	Enquire
<28422A	LR078371	INSULATOR - REAR QUARTER PANEL	LR078371 INSULATOR - REAR QUARTER PANEL LH / From: GT000001	-	1	Enquire
<28422B	LR055424	INSULATOR - REAR QUARTER PANEL	LR055424 INSULATOR - REAR QUARTER PANEL RH, Vertical / From: GT000001	-	1	Enquire
<28422B	LR055425	INSULATOR - REAR QUARTER PANEL	LR055425 INSULATOR - REAR QUARTER PANEL LH, Vertical / From: GT000001	-	1	Enquire
<28422C	LR027104	INSULATOR - QUARTER PANEL	LR027104 INSULATOR - QUARTER PANEL RH / From: GT000001	-	1	Enquire
<28422C	LR027105	INSULATOR - QUARTER PANEL	LR027105 INSULATOR - QUARTER PANEL LH / From: GT000001	-	1	Enquire
<54026	LR035345	PAD - SLIDING ROOF	LR035345 PAD - SLIDING ROOF Less Panorama Roof / From: GT000001	-	1	Enquire
HC1	EYC500320	CLIP	EYC500320 CLIP 5.0MM / From: GT000001	-	4	Enquire
HM1	LR000891	PIN - FASTENING	LR000891 PIN - FASTENING 15 X 6, Pin / From: GT000001	-	1	Enquire
