Floor Pan - Centre And Rear (Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Floor Pan - Centre And Rear (Itatiaia (Brazil)) ((V) FROMGT000001)

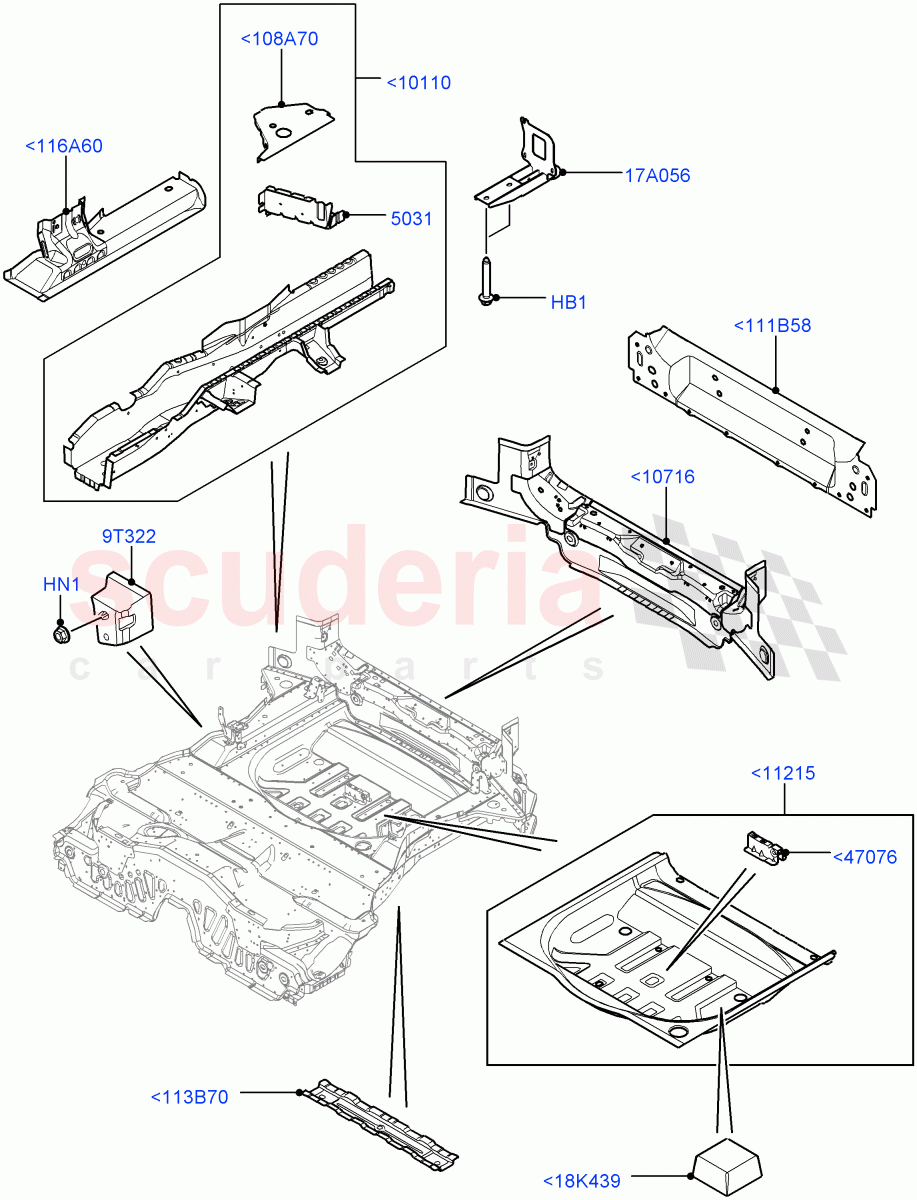

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR023457	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500420	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038358	GUSSET - MEMBER - FLOOR SIDE	Enquire	To Order
	LR038359	GUSSET - MEMBER - FLOOR SIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028935	MOULDING - FUEL TANK PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR076971	MEMBER - FLOOR SIDE	Enquire	To Order
	LR076972	MEMBER - FLOOR SIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027571	CROSSMEMBER - REAR FLOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027572	PAN - FLOOR - REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000179	BRACKET - SPARE WHEEL CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044060	BRACKET - TOW EYE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027576	EXTENSION - REAR FLOOR SIDE MEMBER	Enquire	To Order
	LR027577	EXTENSION - REAR FLOOR SIDE MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028332	PANEL - BODY REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049330	STIFFENER - XMEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027574	PAN - FLOOR SIDE	Enquire	To Order
	LR027575	PAN - FLOOR SIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032529	PAD - ANTI-RATTLE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<18K439	LR032529	PAD - ANTI-RATTLE	LR032529 PAD - ANTI-RATTLE Less Tyre Repair Service Kit / For Spare Wheel / From: GT000001	-	2	Enquire
<108A70	LR027576	EXTENSION - REAR FLOOR SIDE MEMBER	LR027576 EXTENSION - REAR FLOOR SIDE MEMBER RH / From: GT000001	-	1	Enquire
<108A70	LR027577	EXTENSION - REAR FLOOR SIDE MEMBER	LR027577 EXTENSION - REAR FLOOR SIDE MEMBER LH / From: GT000001	-	1	Enquire
<111B58	LR028332	PANEL - BODY REAR	LR028332 PANEL - BODY REAR Lower, Outer / From: GT000001	-	1	Enquire
<113B70	LR049330	STIFFENER - XMEMBER	LR049330 STIFFENER - XMEMBER Centre / From: GT000001	-	1	Enquire
<116A60	LR027574	PAN - FLOOR SIDE	LR027574 PAN - FLOOR SIDE RH / From: GT000001	-	1	Enquire
<116A60	LR027575	PAN - FLOOR SIDE	LR027575 PAN - FLOOR SIDE LH / From: GT000001	-	1	Enquire
<10110	LR076971	MEMBER - FLOOR SIDE	LR076971 MEMBER - FLOOR SIDE RH / From: GT000001	-	1	Enquire
<10110	LR076972	MEMBER - FLOOR SIDE	LR076972 MEMBER - FLOOR SIDE LH / From: GT000001	-	1	Enquire
<10716	LR027571	CROSSMEMBER - REAR FLOOR	LR027571 CROSSMEMBER - REAR FLOOR From: GT000001	-	1	Enquire
<11215	LR027572	PAN - FLOOR - REAR	LR027572 PAN - FLOOR - REAR From: GT000001	-	1	Enquire
<47076	LR000179	BRACKET - SPARE WHEEL CARRIER	LR000179 BRACKET - SPARE WHEEL CARRIER From: GT000001	-	1	Enquire
HB1	LR023457	BOLT	LR023457 BOLT Hex Head, M14 X 90 / From: GT000001	-	2	Enquire
HN1	RYH500420	NUT AND WASHER - HEX.	RYH500420 NUT AND WASHER - HEX. Hexagonal Head, M6, Nut And Washer / From: GT000001	-	1	Enquire
9T322	LR028935	MOULDING - FUEL TANK PROTECTION	LR028935 MOULDING - FUEL TANK PROTECTION From: GT000001	-	1	Enquire
17A056	LR044060	BRACKET - TOW EYE	LR044060 BRACKET - TOW EYE Towing Eye / From: GT000001	-	1	Enquire
5031	LR038358	GUSSET - MEMBER - FLOOR SIDE	LR038358 GUSSET - MEMBER - FLOOR SIDE RH, Member Assy - Floor Side / From: GT000001	-	1	Enquire
5031	LR038359	GUSSET - MEMBER - FLOOR SIDE	LR038359 GUSSET - MEMBER - FLOOR SIDE LH, Member Assy - Floor Side / From: GT000001	-	1	Enquire
